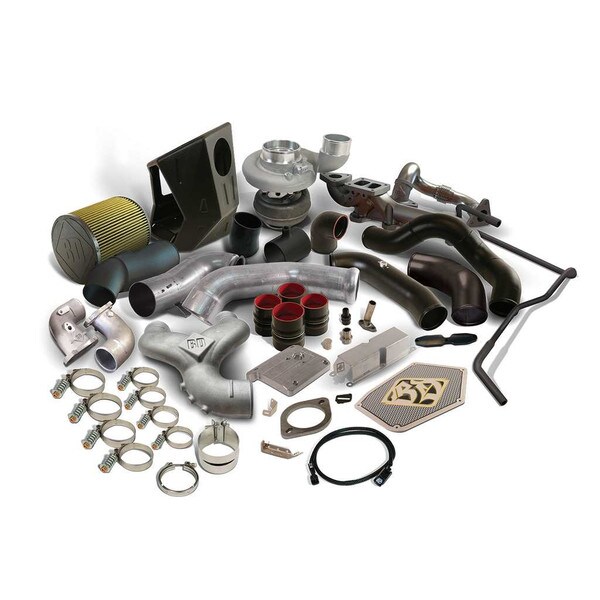

BD Diesel 1045804 Scorpion S363SX-E Turbo Kit - Ford 2011-2016 6.7L F250/F350

(0)No Reviews yet
SKU: BD-1045804
$5,985.00



Details

Designed with both reliability and performance in mind, the BD scorpion kit grants you the opportunity to take advantage of high-flow Borg Warner S300 SXE or S400 SXE turbochargers. The turbocharger is mounted directly to a BD cast iron T4 manifold, built to maximize both durability and performance. To minimize EGT's, a smooth-wall Y-bridge evenly distributes air to all eight cylinders. From stock hp levels, to those wanting to push past 700hp, the BD Scorpion Kit is the perfect combination of performance a reliability.Borg Warner S363SX-E series turbocharger with FMW; Larger turbochargers available for even higher horsepower; Race tune required (not included); 0.91 AR Ratio; BD 90-deg compressor cover with 2.75in outlet; BD high performance T4 flanged exhaust manifold, stainless heatshield and crossover tube; BD billet aluminum pedestal block with oil drain and feed. Includes 1/8 NPT water feed port if using water cooled waste gate (Or CHRA).; BD high strength A356 aluminum intake horns; BD high strength A356 Y-Intake with meth, NOS and boost pressure sensor bosses; Our goal is to be an innovative company and a world class manufacturer that distributes products Worldwide for North American Diesel vehicles.; Our goal is to be an innovative company and a world class manufacturer that distributes products Worldwide for North American Diesel vehicles.; BD custom 4in cold air intake with 8in OD high-flow velocity stacked filter; BD complete high flow aluminized 4in downpipe that mates to stock flange position for easy install to stock or aftermarket exhaust systems; BD cold air charge tubes, 3.5in intercooler to intake tubes with pressure sensor provision; Stainless heat shield keeps heat in and intake temperatures down; Incorporated dual 1/8 NPT EGT ports as well as the provision to use a factory EGT sensor; BD Boot Lock ready with boss positions on intake and outlets; Compatible with stock or aftermarket water-to-air intercooler

Fitments

2011_Ford_F-250 Super Duty_6.7L DIESEL, 2011_Ford_F-350 Super Duty_6.7L DIESEL, 2012_Ford_F-250 Super Duty_6.7L DIESEL, 2012_Ford_F-350 Super Duty_6.7L DIESEL, 2013_Ford_F-250 Super Duty_6.7L DIESEL, 2013_Ford_F-350 Super Duty_6.7L DIESEL, 2014_Ford_F-250 Super Duty_6.7L DIESEL, 2014_Ford_F-350 Super Duty_6.7L DIESEL, 2015_Ford_F-250 Super Duty_6.7L DIESEL, 2015_Ford_F-350 Super Duty_6.7L DIESEL, 2016_Ford_F-250 Super Duty_6.7L DIESEL, 2016_Ford_F-350 Super Duty_6.7L DIESEL
