Merchant Automotive 2001-2004 Chev/GMC Allison 1000 NSBU Switch with Connector - 10499

(0)No Reviews yet
SKU: MAT-10499
$360.81



Details

Comes with connector set. Color coded wires make for an easy install.

Comes with OE style connectors and approximately 12" of lead.


One of the most common problems with the Allison transmission is failure of the Neutral Safety Back Up switch.

Some of the symptoms of failure include but are not limited to:
  • No start condition
  • Gear shift indicator on dash not following properly
  • Trans stuck in limp mode or fail safe
  • DTC's set indicating pressure switch codes
This switch easily installs with just common hand tools.

How does it work and why does it cause my transmission not to shift?


The vehicle is equipped with a column type shift selector. In addition to the column shifter, another component associated with the shift selector is the Nuetral Safety Back Up (NSBU) switch mounted on the selector shaft of the transmission. The NSBU switch transmits selector position information to the TCM. The NSBU switch mounts directly onto the transmission housing, from the outside, and detects the angular position of the shift selector shaft. This position is communicated to the TCM so that certain vehicle control functions can be coordinated with the position of the shift controls. The neutral signal output of the NSBU switch is typically used as confirmation that the transmission is in NEUTRALor PARK before the engine starter is engaged.

Common trouble codes associated with NSBU failure include :
  • DTC P0708, Neutral start/backup (PNP or NSBU) switch
  • DTC P0847, Pressure Switch Manifold (PSM)
  • DTC P0872, Pressure Switch Manifold (PSM)
  • DTC P0875, Pressure Switch Manifold (PSM)
  • DTC P1711, Pressure Switch Manifold (PSM)
  • DTC P1713, Pressure Switch Manifold (PSM)
  • DTC U1000, Serial Data Communications
  • Blank PRNDL Display
  • Flashing PRNDL Display
  • Slow or No Engagement of Automatic Transmission


The reason that PSM codes may set is that the NSBU switch and the internal PSM switch "look at each other" and "compare readings" Basically, the NSBU switch lets the TCM know what gear position that you, the driver, have selected. The PSM has the job of telling the TCM what gear the transmission is in based on hydraulic inputs. If the data received from the PSM and the NSBU do not agree, the above mentioned trouble codes may set. The NSBU is subject to water contamination and will allow the switch to give faulty readings.

Includes:

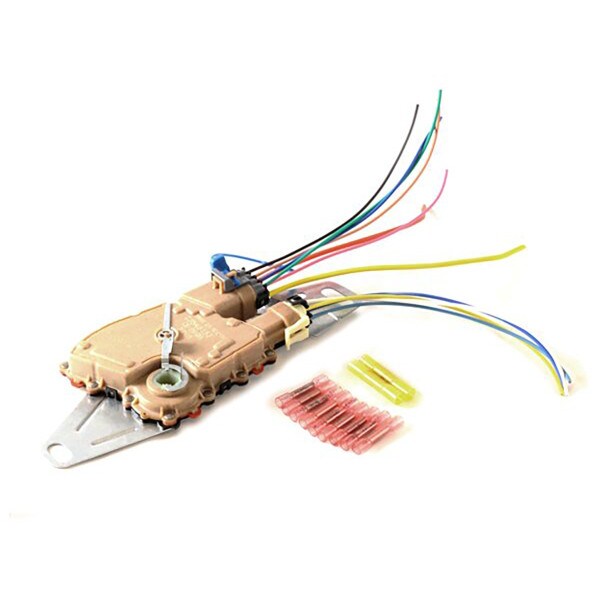

  • 1x NSBU Switch, LB7, 2001-2004 Allison 1000
  • 1x NSBU Connector Repair Kit, LB7, 2001-2004

Fitments

2001_Chevrolet_Silverado 2500 HD_6.6L DIESEL, 2001_Chevrolet_Silverado 3500_6.6L DIESEL, 2001_GMC_Sierra 2500 HD_6.6L DIESEL, 2001_GMC_Sierra 3500_6.6L DIESEL, 2002_Chevrolet_Silverado 2500 HD_6.6L DIESEL, 2002_Chevrolet_Silverado 3500_6.6L DIESEL, 2002_GMC_Sierra 2500 HD_6.6L DIESEL, 2002_GMC_Sierra 3500_6.6L DIESEL, 2003_Chevrolet_Silverado 2500 HD_6.6L DIESEL, 2003_Chevrolet_Silverado 3500_6.6L DIESEL, 2003_GMC_Sierra 2500 HD_6.6L DIESEL, 2003_GMC_Sierra 3500_6.6L DIESEL, 2004_Chevrolet_Silverado 2500 HD_6.6L DIESEL, 2004_Chevrolet_Silverado 3500_6.6L DIESEL, 2004_GMC_Sierra 2500 HD_6.6L DIESEL, 2004_GMC_Sierra 3500_6.6L DIESEL
