Merchant Automotive 2001-2019 Chev/GMC Transfer Case Rear Output Seal Driver - 10695

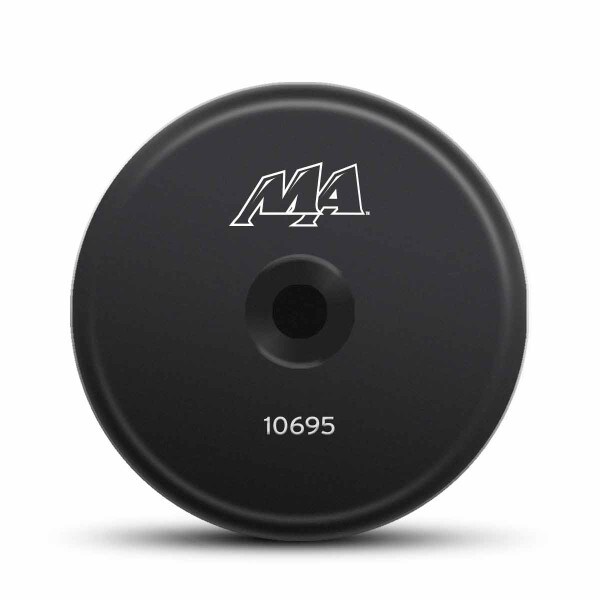

To make it easier to install a new rear output shaft seal in a NP246, NP261HD, NP263HD, NP261XHD, NP263XHD, MP1226 and MP1626 transfer case the team at Merchant Automotive developed this CNC-machined billet aluminum seal driver. The driver features a durable anodized black finish with a laser etched logo and part number to make them easy to identify when sitting in your tool box.

FAQ:

How do I remove the old rear output seal?

We have seen good results by simply using a pry bar or mallet and popping the old seal off the output of the transfer case after removing the rear driveshaft. Be careful not to scar the output shaft or damage the transfer case half.

What kind of hammer should I use with the seal driver?

For best results use a rubber or plastic hammer such as a dead-blow hammer. Do not use a metal hammer as the tool could be damaged.

How do I set the seal depth while using the seal driver?

The Merchant Automotive seal drivers are precision machined with positive stops to properly index and set the depth on your seals when properly used.

• 2001 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2001 Chevrolet Silverado 3500 6.6L DIESEL
• 2001 GMC Sierra 2500 HD 6.6L DIESEL
• 2001 GMC Sierra 3500 6.6L DIESEL
• 2002 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2002 Chevrolet Silverado 3500 6.6L DIESEL
• 2002 GMC Sierra 2500 HD 6.6L DIESEL
• 2002 GMC Sierra 3500 6.6L DIESEL
• 2003 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2003 Chevrolet Silverado 3500 6.6L DIESEL
• 2003 GMC Sierra 2500 HD 6.6L DIESEL
• 2003 GMC Sierra 3500 6.6L DIESEL
• 2004 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2004 Chevrolet Silverado 3500 6.6L DIESEL
• 2004 GMC Sierra 2500 HD 6.6L DIESEL
• 2004 GMC Sierra 3500 6.6L DIESEL
• 2005 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2005 Chevrolet Silverado 3500 6.6L DIESEL
• 2005 GMC Sierra 2500 HD 6.6L DIESEL
• 2005 GMC Sierra 3500 6.6L DIESEL
• 2006 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2006 Chevrolet Silverado 3500 6.6L DIESEL
• 2006 GMC Sierra 2500 HD 6.6L DIESEL
• 2006 GMC Sierra 3500 6.6L DIESEL
• 2007 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2007 GMC Sierra 2500 HD 6.6L DIESEL
• 2008 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2008 GMC Sierra 2500 HD 6.6L DIESEL
• 2009 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2009 GMC Sierra 2500 HD 6.6L DIESEL
• 2010 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2010 GMC Sierra 2500 HD 6.6L DIESEL
• 2011 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2011 GMC Sierra 2500 HD 6.6L DIESEL
• 2011 GMC Sierra 3500 HD 6.6L DIESEL
• 2012 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2012 GMC Sierra 2500 HD 6.6L DIESEL
• 2012 GMC Sierra 3500 HD 6.6L DIESEL
• 2013 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2013 GMC Sierra 2500 HD 6.6L DIESEL
• 2013 GMC Sierra 3500 HD 6.6L DIESEL
• 2014 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2014 GMC Sierra 2500 HD 6.6L DIESEL
• 2014 GMC Sierra 3500 HD 6.6L DIESEL
• 2015 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2015 GMC Sierra 2500 HD 6.6L DIESEL
• 2015 GMC Sierra 3500 HD 6.6L DIESEL
• 2016 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2016 GMC Sierra 2500 HD 6.6L DIESEL
• 2016 GMC Sierra 3500 HD 6.6L DIESEL
• 2017 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2017 GMC Sierra 2500 HD 6.6L DIESEL
• 2017 GMC Sierra 3500 HD 6.6L DIESEL
• 2018 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2018 GMC Sierra 2500 HD 6.6L DIESEL
• 2018 GMC Sierra 3500 HD 6.6L DIESEL
• 2019 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2019 GMC Sierra 2500 HD 6.6L DIESEL
• 2019 GMC Sierra 3500 HD 6.6L DIESEL
