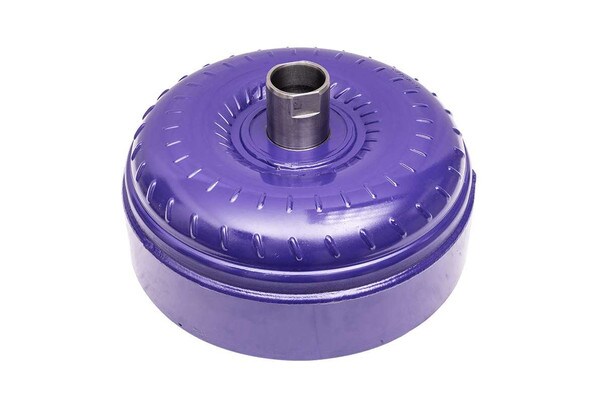

ATS Allison Triplelok Torque Converter Fits 2001-2010 6.6L Duramax

(0)No Reviews yet
SKU: ATS-302-930-4248
$1,750.88



Details

The TripleLok Torque Converter for 2001 to 2010 Allison is the only Diesel torque converter on the market that has been awarded two patents from the United States patent office. There is no other torque converter offered anywhere that can make this claim. The 30 square drive tabs that are precision CNC cut into the billet cover is only one of the many patented aspect of the TripleLok converter.

ATS engineered a unique two piece design that not only allows us to cut precision radial flank drive lugs into the cover but also utilizes a plasma weld ensuring an unmatched quality standard. The patented radial flank drive tabs virtually eliminate the wear that is common with all other round tab multi-disc torque converters. This is the number one reason ATS can offer a 5 year warranty on all our torque converters.

There are a few things that I would like to tell you about this torque converter. In 1999 the first Diesel multiple disc converter was developed utilizing round tabs to connect the clutch plates to the cover. We soon realized this to be a problem, after several thousand miles the outer plate would start to hammer into the billet cover due to the engine piston pulsations. These pulsations are engine torsional loads that will destroy a converter and flex plate.

We soon invented and patented the Square tab design that you can see and only get from ATS today. The Radial Flank Square Tab is the back bone of the ATS TripleLok and FiveStar torque converter, all ATS multiple Disc converters are 100 percent square tab construction. The Billet cover provides a multitude of benefits, having the thick steel cover provides a base that will not flex. This is very important when needing a flat surface for the Lock-up clutches to couple with, this is also very important during times when there are high pressures created inside the converter due to extended load times when the converter is in a vortex flow. This pressure will cause the converter to balloon and the thrust bearings to get out of alignment causing converter failure.

The triple clutch lock-up system is used to transfer torque from the engine to the transmission during high power applications when the converter is in lock-up. The triple clutch provides three times the torque capacity of a standard single disc converter and ensures there will be no slipping during hard accelerations or when pulling heavy loads. There are basically two areas of operation in a torque converter. The fluid coupling portion and the lock-up portion.

The fluid coupling section is the operation that takes place when you accelerate from a stop when the engine is spinning and the vehicle wheels are not moving or just starting to move. As you push on the accelerator pedal and the vehicle starts to move this is considered the torque converter stall speed. Once the stall speed is reached and the vehicle starts to move forward the converter is in what we refer to as the Vortex flow condition of the converter cycle. The Vortex flow cycle is one of the most important and overlooked segments of a converter.
Details:

  • TripleLock Torque Converter
  • Factory RPM Stall Speed
  • Cast Stator
  • Positive Impeller
  • Billet Cover with Patented square Flank Drive
  • Square Tab Construction (Not Round)
  • Triple Disc CNC Laser Cut Clutch Plates
  • Billet Piston with Patented flank drive tab design
  • Proprietary ATS exclusive Clutch Formulation with unique bonding technology (ensures 100 percent chemical Bond)
  • Redesigned Spring Dampener supports increased extend torque loads
  • 4340 Hardened turbine splines provide longevity due to engine torsional stress
  • Fully Welded Turbine and Impeller Vanes
  • CNC Stator with High Flow Windows Increase Oil Flow providing increase efficiency
  • Full Roller Bearing Construction Between High Load Areas
  • 340 CNC cut Pump Drive Hub lock into Impeller Housing and Plasma welded for unsurpassed strength
  • Sold Individually

Fits:

  • 2001-2010 GM 2500|3500 Truck w/6.6L Duramax Engine and Allison LCT-1000 Transmission

Fitments

2001_Chevrolet_Silverado 2500 HD_6.6L DIESEL, 2001_Chevrolet_Silverado 3500_6.6L DIESEL, 2001_GMC_Sierra 2500 HD_6.6L DIESEL, 2001_GMC_Sierra 3500_6.6L DIESEL, 2002_Chevrolet_Silverado 2500 HD_6.6L DIESEL, 2002_Chevrolet_Silverado 3500_6.6L DIESEL, 2002_GMC_Sierra 2500 HD_6.6L DIESEL, 2002_GMC_Sierra 3500_6.6L DIESEL, 2003_Chevrolet_Silverado 2500 HD_6.6L DIESEL, 2003_Chevrolet_Silverado 3500_6.6L DIESEL, 2003_GMC_Sierra 2500 HD_6.6L DIESEL, 2003_GMC_Sierra 3500_6.6L DIESEL, 2004_Chevrolet_Silverado 2500 HD_6.6L DIESEL, 2004_Chevrolet_Silverado 3500_6.6L DIESEL, 2004_GMC_Sierra 2500 HD_6.6L DIESEL, 2004_GMC_Sierra 3500_6.6L DIESEL, 2005_Chevrolet_Silverado 2500 HD_6.6L DIESEL, 2005_Chevrolet_Silverado 3500_6.6L DIESEL, 2005_GMC_Sierra 2500 HD_6.6L DIESEL, 2005_GMC_Sierra 3500_6.6L DIESEL, 2006_Chevrolet_Silverado 2500 HD_6.6L DIESEL, 2006_Chevrolet_Silverado 3500_6.6L DIESEL, 2006_GMC_Sierra 2500 HD_6.6L DIESEL, 2006_GMC_Sierra 3500_6.6L DIESEL, 2007_Chevrolet_Silverado 2500 HD_6.6L DIESEL, 2007_GMC_Sierra 2500 HD_6.6L DIESEL, 2008_Chevrolet_Silverado 2500 HD_6.6L DIESEL, 2008_GMC_Sierra 2500 HD_6.6L DIESEL, 2009_Chevrolet_Silverado 2500 HD_6.6L DIESEL, 2009_GMC_Sierra 2500 HD_6.6L DIESEL, 2010_Chevrolet_Silverado 2500 HD_6.6L DIESEL, 2010_GMC_Sierra 2500 HD_6.6L DIESEL
WARRANTY: 5-Year/500,000 Mile Limited Warranty
