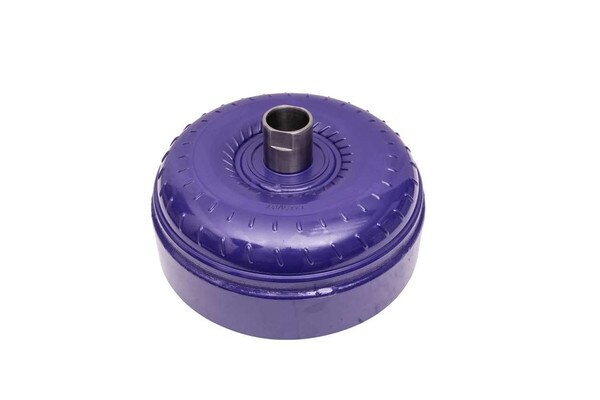

ATS Allison Five Star Torque Converter Fits 2001-2010 6.6L Duramax 1500-1700 Rpm

(0)No Reviews yet
SKU: 302-951-4248
BRAND: ATS Diesel Performance
$1,986.86
550

Details

Standard in all transmission packages, and available individually, is the ATS Five Star Torque Converter. This torque converter is built to handle daily driving and towing duties while delivering reliable performance. Key features of the ATS Five Star Torque Converter Include:

  • Patented Viskus Clutch Drive System for increased efficiency
  • Billet Cover with Patented Square Flank Drive
  • Square Tab Construction (Not Round)
  • Viskus Disc CNC Laser Cut Clutch Plates
  • Billet Piston with Patented Flank Drive Tab design
  • Proprietary ATS exclusive Clutch Formulation with unique bonding technology (ensures 100% chemical Bond)
  • Redesigned Spring Dampener supports increased torque loads
  • 4340 hardened turbine splines provide longevity and reliability
  • Fully welded turbine and impeller vanes
  • CNC Stator with high flow windows increase oil flow, providing increased efficiency
  • Full roller bearing construction between high load areas
  • 4340 CNC cut pump drive hub locked into impeller housing
  • Plasma welded for unsurpassed strength

The ATS Five Star utilizes an optimized factory stall speed that features improved torque multiplication. With factory torque multiplication at approximately 1.25:1, the ATS Five Star boasts 2.4:1. This occurs when peak engine torque is achieved. Increased torque multiplication results in improved vehicle response, towing and driving ability.

Every Five Star comes standard with a 5 year / 500,000 mile warranty. When the most efficient torque converter is required, look no further than ATS Five Star Torque Converter.
Application:

  • 2001-2010 2500/3500
  • Duramax GM Light Duty
  • Diesel
  • 6.6 Liter

Fitments

  • 2001 Chevrolet Silverado 2500 HD 6.6L DIESEL
  • 2001 Chevrolet Silverado 3500 6.6L DIESEL
  • 2001 GMC Sierra 2500 HD 6.6L DIESEL
  • 2001 GMC Sierra 3500 6.6L DIESEL
  • 2002 Chevrolet Silverado 2500 HD 6.6L DIESEL
  • 2002 Chevrolet Silverado 3500 6.6L DIESEL
  • 2002 GMC Sierra 2500 HD 6.6L DIESEL
  • 2002 GMC Sierra 3500 6.6L DIESEL
  • 2003 Chevrolet Silverado 2500 HD 6.6L DIESEL
  • 2003 Chevrolet Silverado 3500 6.6L DIESEL
  • 2003 GMC Sierra 2500 HD 6.6L DIESEL
  • 2003 GMC Sierra 3500 6.6L DIESEL
  • 2004 Chevrolet Silverado 2500 HD 6.6L DIESEL
  • 2004 Chevrolet Silverado 3500 6.6L DIESEL
  • 2004 GMC Sierra 2500 HD 6.6L DIESEL
  • 2004 GMC Sierra 3500 6.6L DIESEL
  • 2005 Chevrolet Silverado 2500 HD 6.6L DIESEL
  • 2005 Chevrolet Silverado 3500 6.6L DIESEL
  • 2005 GMC Sierra 2500 HD 6.6L DIESEL
  • 2005 GMC Sierra 3500 6.6L DIESEL
  • 2006 Chevrolet Silverado 2500 HD 6.6L DIESEL
  • 2006 Chevrolet Silverado 3500 6.6L DIESEL
  • 2006 GMC Sierra 2500 HD 6.6L DIESEL
  • 2006 GMC Sierra 3500 6.6L DIESEL
  • 2007 Chevrolet Silverado 2500 HD 6.6L DIESEL
  • 2007 GMC Sierra 2500 HD 6.6L DIESEL
  • 2008 Chevrolet Silverado 2500 HD 6.6L DIESEL
  • 2008 GMC Sierra 2500 HD 6.6L DIESEL
  • 2009 Chevrolet Silverado 2500 HD 6.6L DIESEL
  • 2009 GMC Sierra 2500 HD 6.6L DIESEL
  • 2010 Chevrolet Silverado 2500 HD 6.6L DIESEL
  • 2010 GMC Sierra 2500 HD 6.6L DIESEL
WARRANTY: 5-Year/500,000 Mile Limited Warranty
