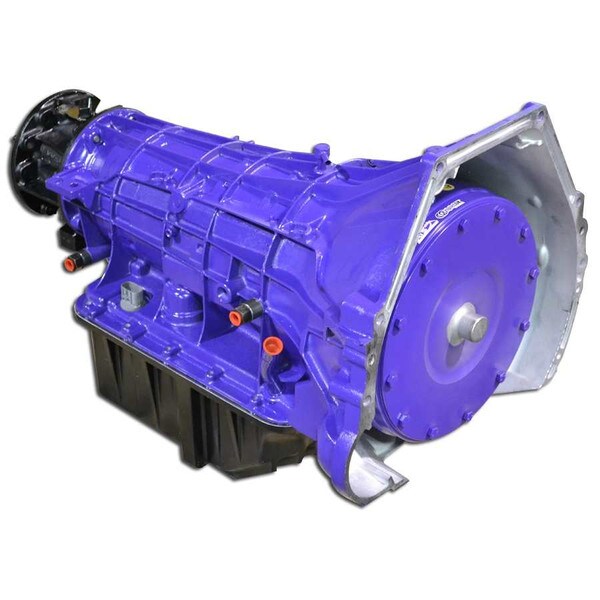

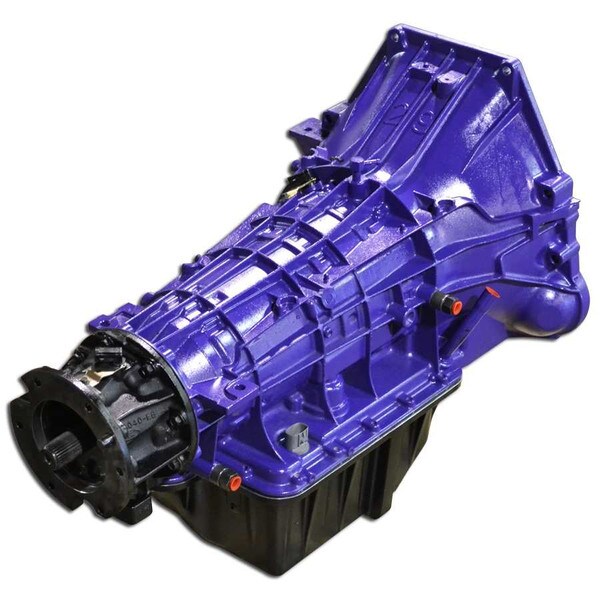

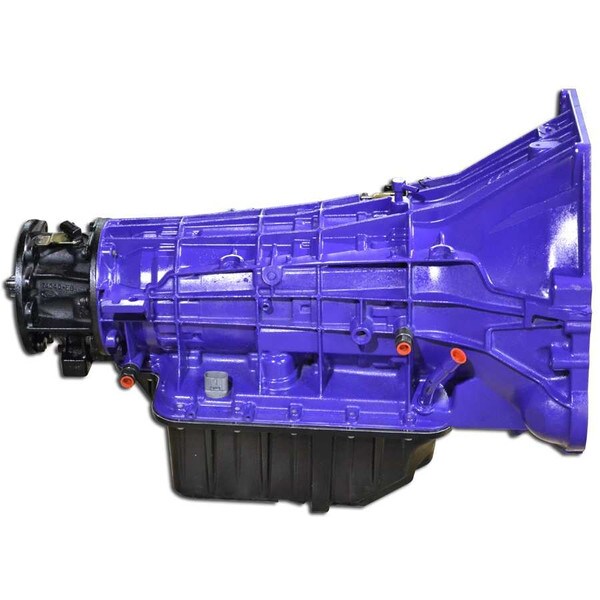

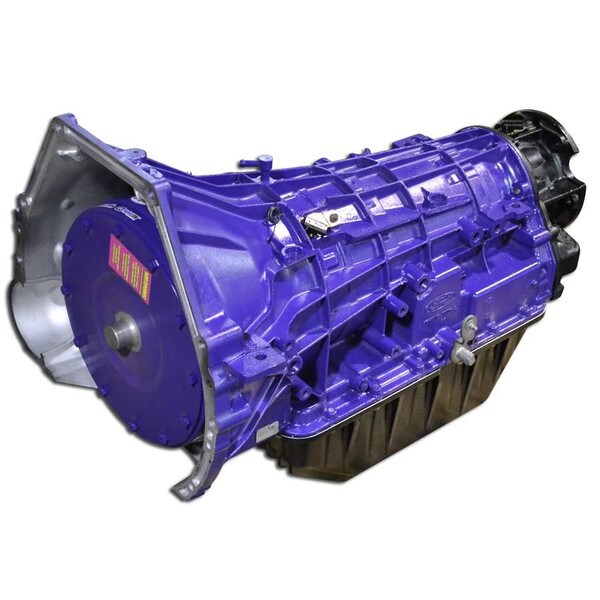

E4Od Stage 1 Package 1989-1991 Ford 4Wd ATS Diesel

(0)No Reviews yet
SKU: 309-914-3104
BRAND: ATS Diesel Performance
WEIGHT: Items over 200lbs may incur additional shipping charges and require special handling. A member of our team may be in contact with you.
This item has a core charge of 2150. Learn more about core charges

This item may require additional shipping
Please refer to details above.


The Ford E4OD transmission was designed to fit behind various powerplants including gas and diesel engines. Most failures revolve around the torque of the diesel motor, especially when power is increased over stock. The good news is that the framework of the E4OD allows for substantial increases in reliability and capability.

The ATS Stage 1 Package is designed for trucks that are used for light towing, daily driving and stock or slightly modified power levels. The transmission package comes with a 5 year/500,000 mile warranty.


  • ATS Five Star Torque Converter featuring a billet cover, five lock-up clutches, available in either low or high stall configurations
  • High performance overdrive, intermediate and forward clutch packs, with one additional clutch added per section
  • Modified transmission pump to increase line pressure, which provides increased clamping force on the clutch packs
  • Modified valve body that focuses around precise shifts, increase line pressure and increasing the torque capacity of the E4OD
  • New bearings, seals and gaskets
  • New low roller clutch, heavy duty intermediate sprag, bonded coast and overdrive pistons

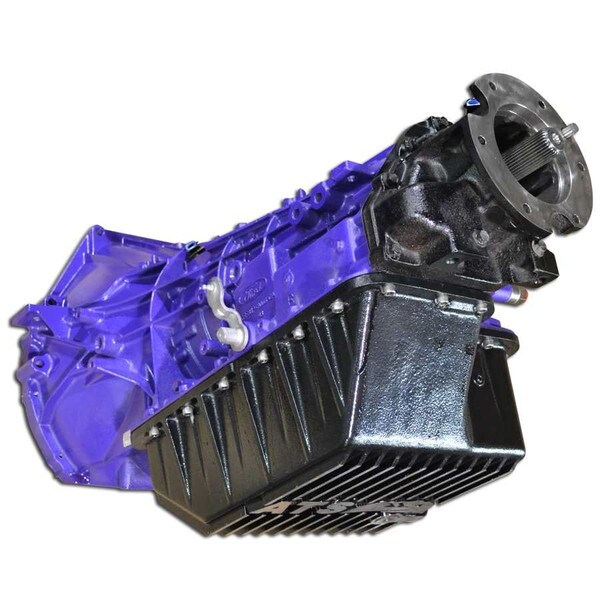

  • ATS Deep Transmission Pan which adds 5 quarts of fluid over stock, which helps keep the transmission cool
  • Engine Manufacturer: Powerstroke
  • Make: Ford
  • Models: F-250/F-350/F-450
  • Fuel Type: Diesel
  • Transmission Model: E4OD
  • Warranty: 5 year/500,000 mile warranty
  • Sold As: Kit


  • 1989 Ford F-250 7.3L DIESEL
  • 1989 Ford F-350 7.3L DIESEL
  • 1990 Ford F-250 7.3L DIESEL
  • 1990 Ford F-350 7.3L DIESEL
  • 1991 Ford F-250 7.3L DIESEL
  • 1991 Ford F-350 7.3L DIESEL
WARRANTY: 5 year/500,000 mile warranty
