ATS 68Rfe Heavy Duty Pump Fits 2007.5+ 6.7L Cummins
Details

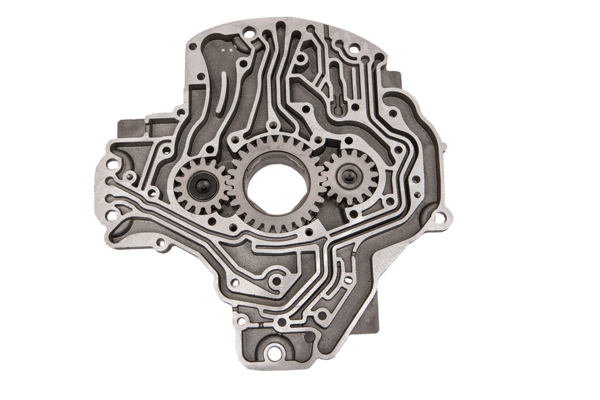

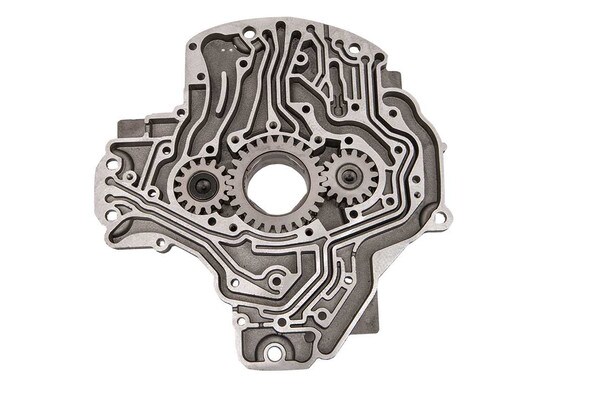

ATS modifies and upgrades the 68-RFE pump to allow pressures up to 300 and up psi. The factory pump uses the cast aluminum to serve as the high pressure pump gear support bushing and the two idler gear support bushings, the reality is using the aluminum as a bushing at pressures above stock (160 PSI) is unreliable and the pump gear and housing fails prematurely.

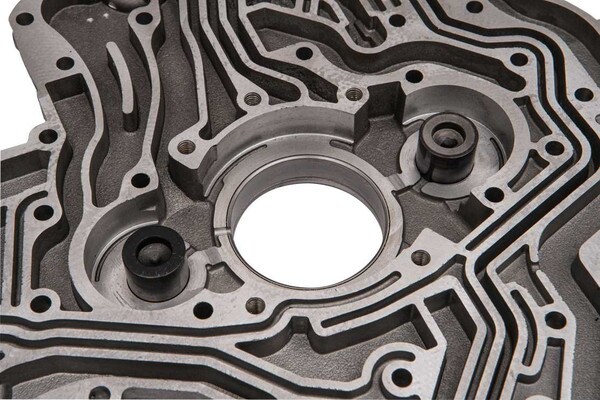

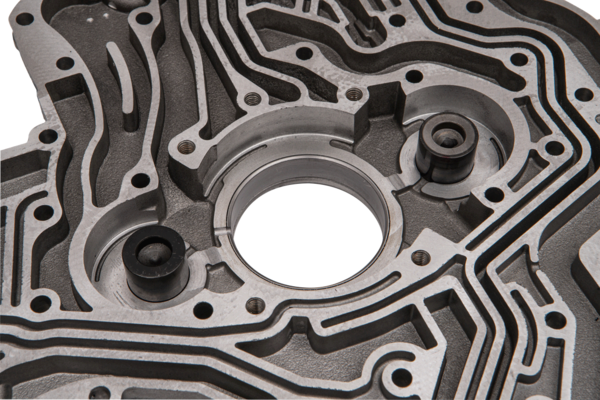

The HD ATS pump is redesigned to withstand increased pressures over stock in excess of 300 and up PSI by installing a high pressure bushing material for the center pump gear to ride in and bushings to support the two idler gears.
These modifications not only ensure reliability but they also allow the pump to build more pressure across the RPM range be reducing hydraulic leaks. The Pressure regulator valve assembly and Lock up valve assembly is also reworked to promote proper function and durability.
Features:
- ATS 68RFE Upgraded Pump Package
- Transmission Model: 68RFE
- PSI: 300 and Up
- Fits: Dodge Ram
- Sold As: Kit
Fitments
- 2007 Dodge Ram 2500 5.9L DIESEL
- 2007 Dodge Ram 2500 6.7L DIESEL
- 2007 Dodge Ram 3500 5.9L DIESEL
- 2007 Dodge Ram 3500 6.7L DIESEL
- 2008 Dodge Ram 2500 6.7L DIESEL
- 2008 Dodge Ram 3500 6.7L DIESEL
- 2009 Dodge Ram 2500 6.7L DIESEL
- 2009 Dodge Ram 3500 6.7L DIESEL
- 2010 Dodge Ram 2500 6.7L DIESEL
- 2010 Dodge Ram 3500 6.7L DIESEL
- 2011 Ram 2500 6.7L DIESEL
- 2011 Ram 3500 6.7L DIESEL
- 2012 Ram 2500 6.7L DIESEL
- 2012 Ram 3500 6.7L DIESEL
- 2013 Ram 2500 6.7L DIESEL
- 2013 Ram 3500 6.7L DIESEL
- 2014 Ram 2500 6.7L DIESEL
- 2014 Ram 3500 6.7L DIESEL
- 2015 Ram 2500 6.7L DIESEL
- 2015 Ram 3500 6.7L DIESEL
- 2016 Ram 2500 6.7L DIESEL
- 2016 Ram 3500 6.7L DIESEL
- 2017 Ram 2500 6.7L DIESEL
- 2017 Ram 3500 6.7L DIESEL
- 2018 Ram 2500 6.7L DIESEL
- 2018 Ram 3500 6.7L DIESEL
- 2019 Ram 2500 6.7L DIESEL
- 2019 Ram 3500 6.7L DIESEL
- 2020 Ram 2500 6.7L DIESEL
- 2020 Ram 3500 6.7L DIESEL
- 2021 Ram 2500 6.7L DIESEL
- 2021 Ram 3500 6.7L DIESEL
