Wireless Control Onboard Air Combo Kit Pacbrake HP10406

(0)No Reviews yet
SKU: HP10406
BRAND: Pacbrake


Take complete command of your vehicle with the wireless control onboard air combo kit from Pacbrake, featuring our popular wireless control kit (HP10325) and 0.5 gallon onboard air kit (HP10163) into one package!

Wireless control Sepcifics (HP10325)

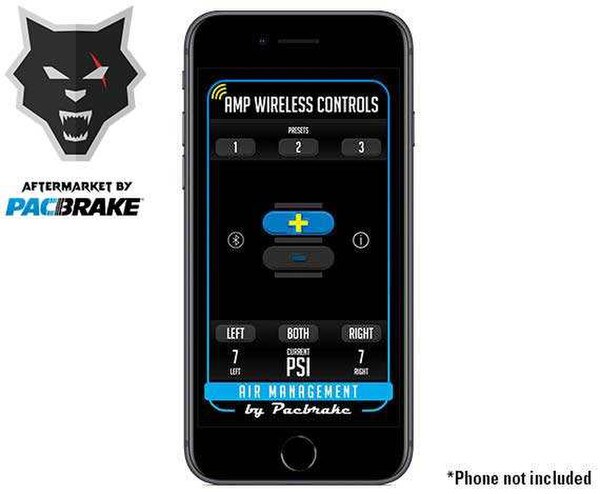

  • An easy to use app that reads real time pressure feedback within each air spring. The app has 3 built-in memory presets so you can quickly achieve your desired air spring pressure.
  • Military grade solenoids designed to withstand extreme environments
  • IP67 rated controller that is waterproof and debris resistant
  • Accessible components offer ease of serviceability and replacement of parts
  • Pre-assembled plug and play harnesses for easy install

The Pacbrake Wireless Controls are a universal fit - They fit the frame of any vehicle, work with any air spring on the market or with any existing onboard air system. They can also be easily installed with common mechanic tools under 1 hour - no lines or wires to the cab and no drilling required!

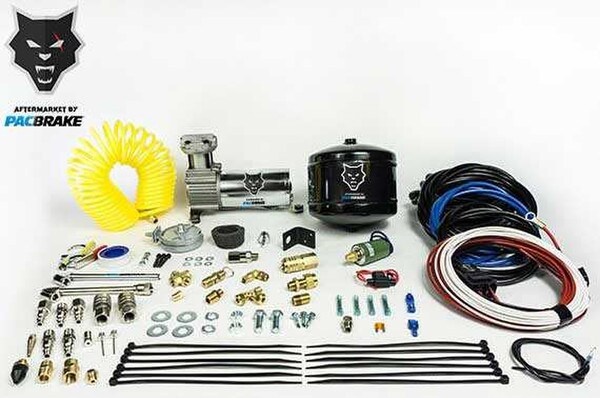

The kit comes with everything required for install

  • Pacbrake Wireless Controls air board assembly (controller, solenoid block, pressure sensors and harnesses)
  • Phone app (For use with iOS and Android devices)
  • Air lines, pressure connectors and mounting hardware

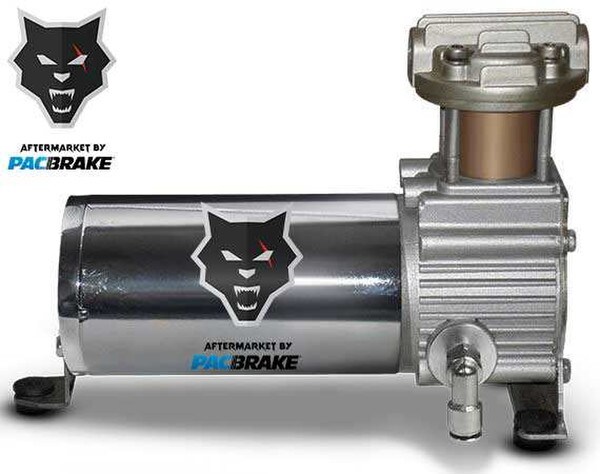

  • 33 percent Duty Cycle (20 minutes at 100 PSI)
  • 150 PSI Max Working Pressure
  • 1.2 SCFM
  • 158 degree F Max / -40 degree F Ambient Temperature Range
  • Size: 8.7 inch x 4 inch x 6.2 inch (LxWxH)
  • Weight: 5.5 lbs

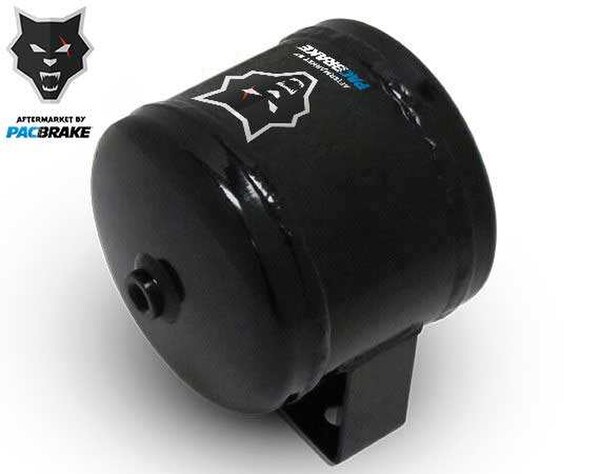

  • Mountable in any orientation


  • Ports: 2 x 1/4 (-4) NPT
  • Rust Inhibitor: Applied to inside of tank
  • Max Working Pressure: 150 psi
  • Size: 6.4 inch x 5.5 inch x 6.5 inch (LxWxH) [163 mm x 140 mm x 152 mm]
  • Weight: 3.4 lbs [1.54 kg]
  • Welded on Mounting Brackets

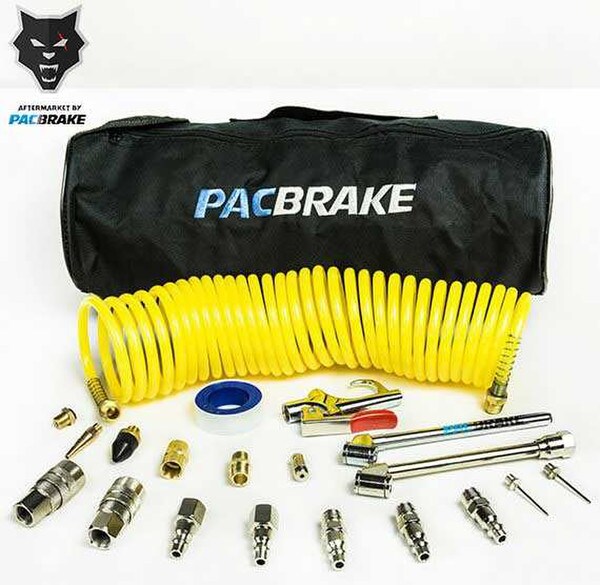

  • Fill your tires and check tire pressure
  • Inflate air mattresses, sports balls, beach toys, etc.
  • Blow air for cleaning, dusting and quick removal of
    dust and debris
