PAC-HP10632

12V HP625 Series Heavy Duty Air Compressor Kit consists of HP625 Series Pacbrake HP10625V Air Compressor and the basic components of the unloader block assembly.

This kit Does Not Include the pre-built wiring harnesses.

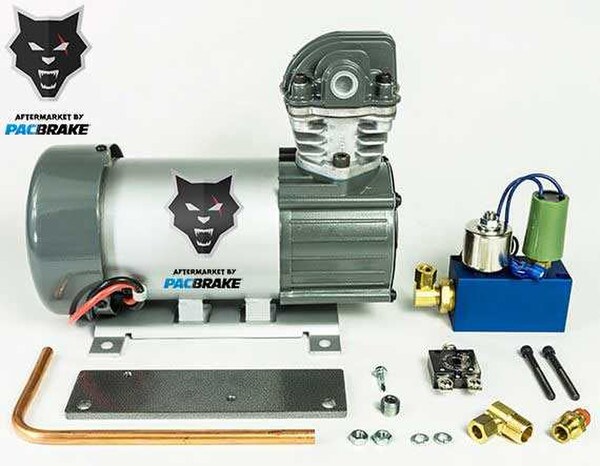

This kit includes

• Pacbrake's HP625 Series heavy duty Pacbrake Air Compressor (Kit Number HP10625V)
• The basic components of the unloader block assembly
• This kit Does Not Include the pre-built wiring harnessses

Pacbrake's 625 Series Pacbrake Air Compressors have a 100 percent duty cycle and are offered in two pump head configurations-Vertical and Horizontal.

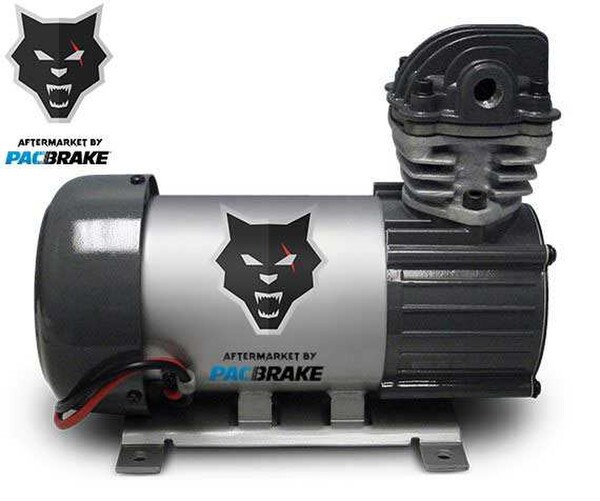

Compressor features

• Copper wire wound permanent magnet motor
• Oil-less design
• Sealed bearings
• PTFE piston ring
• Cast aluminum cylinder head
• Hard anodized aluminum cylinder and aluminum sleeve

Compressor Specifications

• 12V DC
• 100 percent duty cycle at 100 PSI
• 3/4 HP
• Vertical head configuration
• Size is 11.5 inch x 6 inch x 9.5 inch or 293 mm x 153 mm x 242 mm (LxWxH)
• Weight is 17.7 lbs.
