  • Dodge Performance Pistons For 1998.5-2002 Cummins .040 Over Industrial Injection

Dodge Performance Pistons For 1998.5-2002 Cummins .040 Over Industrial Injection

(0)No Reviews yet
SKU: INDJ-PDM-3354CC.040
$2,078.36



Details

1998.5-2002 24v Cummins Performance Pistons .040. PDM's Ceramic Piston Skirt Coating, is designed to be used, on any rigid or semi rigid surface experiencing sliding, rotating or oscillating friction.

This coating will carry loads in excess of 350,000 PSI as well as lubricate at temperatures in excess of 1600f. This coating combines the durability of a ceramic resin with the lubricity of the ceramic lubricant.

It is used in applications where high temperatures, high loads and high speeds are experienced. When higher temperatures, than most other types of coatings can provide protection at, are experienced, this coating is fully capable of carrying the load. Gray in color it acquires a glass like finish in use. Cured film thickness of .001 or less requires no change is piston clearance.

PDM's Thermal Barrier Coating for piston tops is designed for Performance engines running; Nitrous oxide, supercharged or Turbocharged. It creates a hard surface specifically designed for engines running High volumes of fuel and/or high compression ratios.

The thermal barrier coating. Reduces part temperature. Keeps heat in combustion chamber longer through the power stroke. Increase torque, H.P. and improved combustion chamber efficiency.

1998.5-2002 5.9L Cummins Pistons

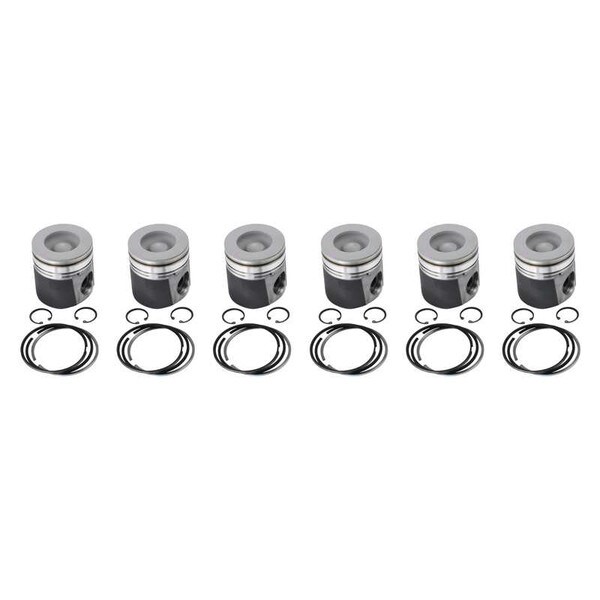

Stock Piston Features:

  • Drop In Replacement
  • Complete W/ Rings, Wrist Pins And Clips
  • Performance .040 Size

Performance Piston Features:

  • Drop In Replacement
  • Complete W/ Rings, Wrist Pins And Clips
  • Performance .040 Size
  • Chamfered tops
  • Thermal Barrier Coating For Piston Tops
  • Ceramic Piston Skirt Coating

Race Piston Features:

  • Drop In Replacement
  • Complete W/ Rings, Wrist Pins And Clips
  • Performance .040 Size
  • Fly Cut with .100 Valve Reliefs
  • Chamfered tops
  • Thermal Barrier Coating For Piston Tops
  • Ceramic Piston Skirt Coating

Fly Cut (valve relief): .100

Fly cutting is a machining Process we use to add Piston to valve Clearance, when using High lift camshaft.

Chamfering:

Our performance and race Cummins pistons are Chamfered (The top is tapered to help avoid swelling and Scuffing the Cylinder Wall.)

Fitments

1998_Dodge_Ram 2500_5.9L DIESEL, 1998_Dodge_Ram 3500_5.9L DIESEL, 1999_Dodge_Ram 2500_5.9L DIESEL, 1999_Dodge_Ram 3500_5.9L DIESEL, 2000_Dodge_Ram 2500_5.9L DIESEL, 2000_Dodge_Ram 3500_5.9L DIESEL, 2001_Dodge_Ram 2500_5.9L DIESEL, 2001_Dodge_Ram 3500_5.9L DIESEL, 2002_Dodge_Ram 2500_5.9L DIESEL, 2002_Dodge_Ram 3500_5.9L DIESEL
WARRANTY: 1 Year Warranty
