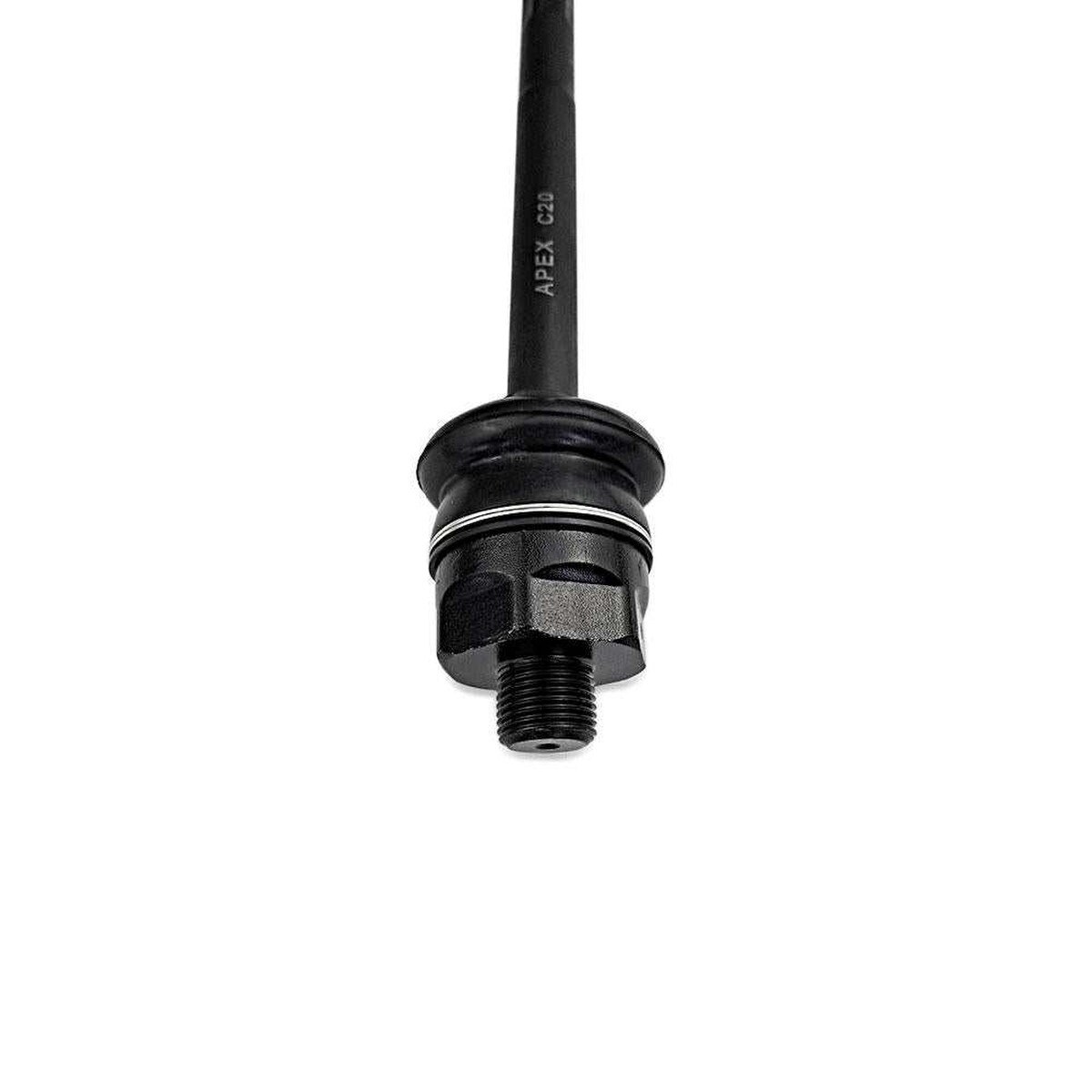

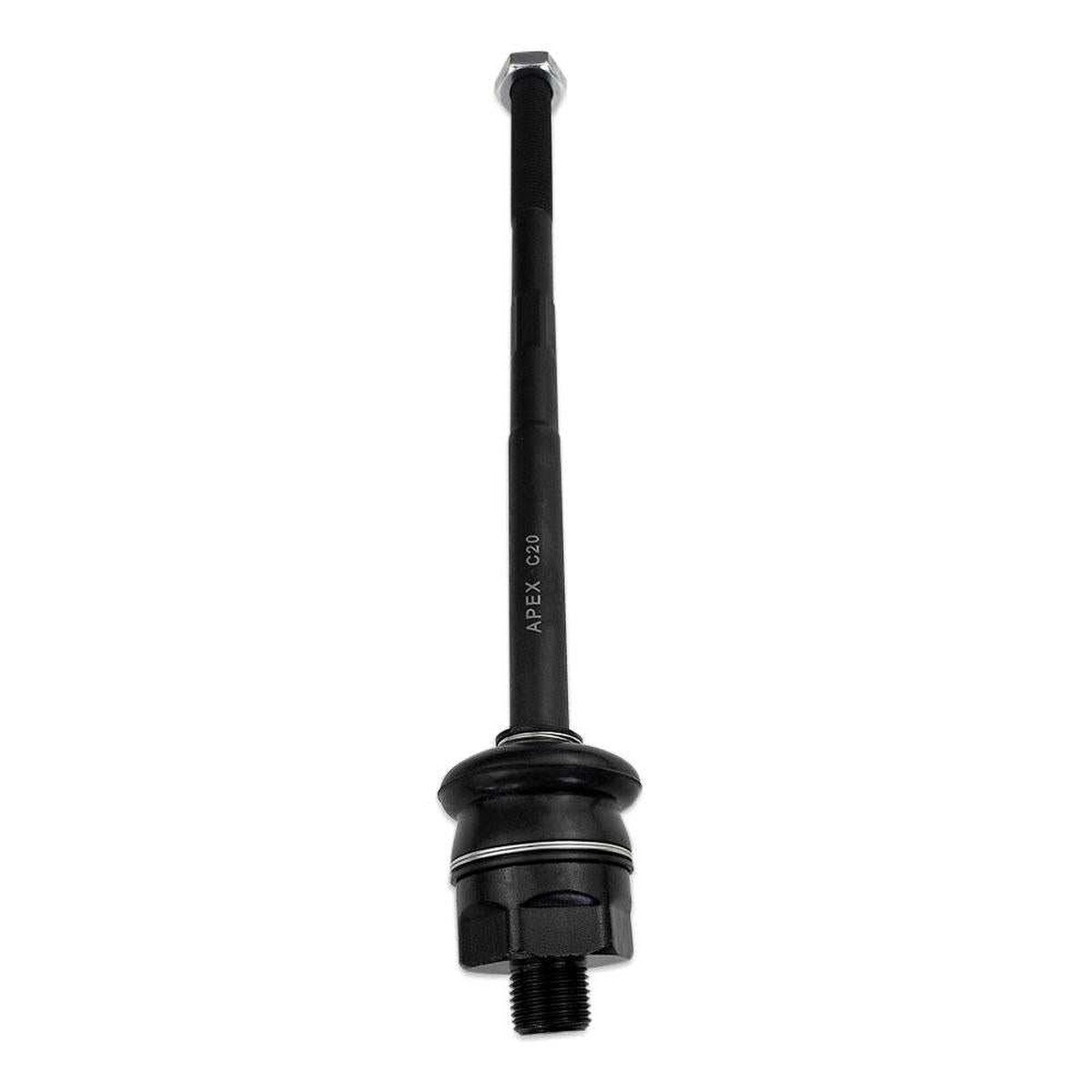

Heavy Duty Tie Rod End Fits: 99-06 Silverado/Sierra 1500/2500/3500 02-06 Avalanche 1500/2500 Front Inner - Apex Chassis - TR133

Chevy/GMC Front Inner Tie Rod End For 02-06/Avalanche 1500/2500 99-06 Silverado/Sierra 1500/2500/3500 Apex Chassis. At APEX we like to say our quality is not consistent, it's constantly evolving. We rely entirely on engineering, in-house and off-road testing as well as customer feedback to decide on the best design and materials to choose.

What It Fits:

02-06 Escalade 2WD or 4WD03-06 Escalade ESV 02-06 Escalade EXT 02-06 Avalanche 1500

Chevrolet Avalanche 2500 (2002-2006) 2WD or 4WD99-06 Silverado/Sierra 1500

Chevrolet Silverado 1500 Classic (2007) 2WD or 4WD

Chevrolet Silverado 1500 HD (2001-2006) 2WD or 4WD

Chevrolet Silverado 1500 HD Classic (2007) 2WD or 4WD

Chevrolet Silverado 2500 (2001-2004) 2WD or 4WD

Chevrolet Silverado 2500 (1999-2000) 4WD

Chevrolet Silverado 2500 HD (2001-2010) 2WD or 4WD

Chevrolet Silverado 2500 HD Classic (2007) 2WD or 4WD

Chevrolet Silverado 3500 (2001-2006) 2WD or 4WD

Chevrolet Silverado 3500 HD Classic (2007) 2WD or 4WD

Chevrolet Silverado 3500 HD (2007-2010) 2WD or 4WD

00-06 Suburban 1500 Suburban 2500 (2001-2013) 2WD or 4WD

Chevrolet Suburban 2500 (2000) 4WD

00-06 Tahoe GMC Sierra 1500 (1999-2006) 2WD or 4WD

GMC Sierra 1500 Classic (2007) 2WD or 4WD

GMC Sierra 1500 HD (2001-2006) 2WD or 4WD

GMC Sierra 1500 HD Classic (2007) 2WD or 4WD

GMC Sierra 2500 (2001-2004) 2WD or 4WD

GMC Sierra 2500 (1999-2000) 4WD

GMC Sierra 3500 HD (2007-2010) 2WD or 4WD

00-06 Yukon 00-06 Yukon XL 1500

GMC Yukon XL 2500 (2001-2013) 2WD or 4WD

GMC Yukon XL 2500 (2000) 4WD

Hummer H2 (2003-2007) 4WD

• Phosphate Finish: Extremely durable. Double coated. Threads coated as well. Rugged look.

• Grade 8 - Class 10.9 Hardware: Superior tensile strength.
• Nyloc Nut: Very strong hold in most applications.

• SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
• CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

• Military Grade Acetal Bearing: The same bearing material spec'd by the US military for Hummer ball joints. This material is: dimensionally stable (doesn't expand or contract with hot or cold, water or oil absorption), it can be polished smooth as steel, is anti-friction, Doesn't wear itself out under load like metal on metal, and can take an absolute pounding.

• SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
• Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
• Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
• Step Threads: allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

• CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold
• Compression Boot

• Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
• Greaseable: Because it should be.
• Pre-Greased: Just in case you forget, we have you covered.
• Gull Winged Grease Grooves: Allows for improved lubrication disbursement around the ball stud.
• Zerk Fittings: Included for every application.

• 1999 Chevrolet Silverado 1500 4.3L GAS
• 1999 Chevrolet Silverado 1500 4.8L GAS
• 1999 Chevrolet Silverado 1500 5.3L GAS
• 1999 Chevrolet Silverado 2500 5.3L GAS
• 1999 Chevrolet Silverado 2500 6.0L GAS
• 1999 GMC Sierra 1500 4.3L GAS
• 1999 GMC Sierra 1500 4.8L GAS
• 1999 GMC Sierra 1500 5.3L GAS
• 1999 GMC Sierra 2500 5.3L GAS
• 1999 GMC Sierra 2500 6.0L GAS
• 2000 Chevrolet Silverado 1500 4.3L GAS
• 2000 Chevrolet Silverado 1500 4.8L GAS
• 2000 Chevrolet Silverado 1500 5.3L GAS
• 2000 Chevrolet Silverado 2500 5.3L GAS
• 2000 Chevrolet Silverado 2500 6.0L GAS
• 2000 GMC Sierra 1500 4.3L GAS
• 2000 GMC Sierra 1500 4.8L GAS
• 2000 GMC Sierra 1500 5.3L GAS
• 2000 GMC Sierra 2500 5.3L GAS
• 2000 GMC Sierra 2500 6.0L GAS
• 2001 Chevrolet Silverado 1500 HD 6.0L GAS
• 2001 Chevrolet Silverado 1500 4.3L GAS
• 2001 Chevrolet Silverado 1500 4.8L GAS
• 2001 Chevrolet Silverado 1500 5.3L GAS
• 2001 Chevrolet Silverado 2500 6.0L GAS
• 2001 Chevrolet Silverado 2500 Duramax LB6
• 2001 GMC Sierra 1500 HD 6.0L GAS
• 2001 GMC Sierra 1500 4.3L GAS
• 2001 GMC Sierra 1500 4.8L GAS
• 2001 GMC Sierra 1500 5.3L GAS
• 2001 GMC Sierra 1500 6.0L GAS
• 2001 GMC Sierra 2500 6.0L GAS
• 2002 Chevrolet Avalanche 2500 8.1L GAS
• 2002 Chevrolet Silverado 1500 HD 6.0L GAS
• 2002 Chevrolet Silverado 1500 4.3L GAS
• 2002 Chevrolet Silverado 1500 4.8L GAS
• 2002 Chevrolet Silverado 1500 5.3L FLEX
• 2002 Chevrolet Silverado 1500 5.3L GAS
• 2002 Chevrolet Silverado 2500 6.0L BI-FUEL
• 2002 Chevrolet Silverado 2500 6.0L CNG
• 2002 Chevrolet Silverado 2500 6.0L GAS
• 2002 GMC Sierra 1500 HD 6.0L GAS
• 2002 GMC Sierra 1500 4.3L GAS
• 2002 GMC Sierra 1500 4.8L GAS
• 2002 GMC Sierra 1500 5.3L FLEX
• 2002 GMC Sierra 1500 5.3L GAS
• 2002 GMC Sierra 1500 6.0L GAS
• 2002 GMC Sierra 2500 6.0L BI-FUEL
• 2002 GMC Sierra 2500 6.0L CNG
• 2002 GMC Sierra 2500 6.0L GAS
• 2003 Cadillac Escalade ESV 6.0L GAS
• 2003 Cadillac Escalade EXT 6.0L GAS
• 2003 Cadillac Escalade 5.3L GAS
• 2003 Cadillac Escalade 6.0L GAS
• 2003 Chevrolet Avalanche 2500 8.1L GAS
• 2003 Chevrolet Silverado 1500 HD 6.0L GAS
• 2003 Chevrolet Silverado 1500 4.3L GAS
• 2003 Chevrolet Silverado 1500 4.8L GAS
• 2003 Chevrolet Silverado 1500 5.3L FLEX
• 2003 Chevrolet Silverado 1500 5.3L GAS
• 2003 Chevrolet Silverado 1500 6.0L GAS
• 2003 Chevrolet Silverado 2500 6.0L GAS
• 2003 GMC Sierra 1500 HD 6.0L GAS
• 2003 GMC Sierra 1500 4.3L GAS
• 2003 GMC Sierra 1500 4.8L GAS
• 2003 GMC Sierra 1500 5.3L FLEX
• 2003 GMC Sierra 1500 5.3L GAS
• 2003 GMC Sierra 1500 6.0L GAS
• 2003 GMC Sierra 2500 6.0L GAS
• 2004 Cadillac Escalade ESV 6.0L GAS
• 2004 Cadillac Escalade EXT 6.0L GAS
• 2004 Cadillac Escalade 5.3L GAS
• 2004 Cadillac Escalade 6.0L GAS
• 2004 Chevrolet Avalanche 2500 8.1L GAS
• 2004 Chevrolet Silverado 1500 4.3L GAS
• 2004 Chevrolet Silverado 1500 4.8L GAS
• 2004 Chevrolet Silverado 1500 5.3L ELECTRIC/GAS
• 2004 Chevrolet Silverado 1500 5.3L FLEX
• 2004 Chevrolet Silverado 1500 5.3L FULL HYBRID EV-GAS (FHEV)
• 2004 Chevrolet Silverado 1500 5.3L GAS
• 2004 Chevrolet Silverado 1500 6.0L GAS
• 2004 Chevrolet Silverado 2500 6.0L GAS
• 2004 GMC Sierra 1500 4.3L GAS
• 2004 GMC Sierra 1500 4.8L GAS
• 2004 GMC Sierra 1500 5.3L FLEX
• 2004 GMC Sierra 1500 5.3L GAS
• 2004 GMC Sierra 1500 6.0L GAS
• 2004 GMC Sierra 2500 6.0L GAS
• 2005 Cadillac Escalade ESV 6.0L GAS
• 2005 Cadillac Escalade EXT 6.0L GAS
• 2005 Cadillac Escalade 5.3L GAS
• 2005 Cadillac Escalade 6.0L GAS
• 2005 Chevrolet Avalanche 2500 8.1L GAS
• 2005 Chevrolet Silverado 1500 HD 6.0L GAS
• 2005 Chevrolet Silverado 1500 4.3L GAS
• 2005 Chevrolet Silverado 1500 4.8L GAS
• 2005 Chevrolet Silverado 1500 5.3L ELECTRIC/GAS
• 2005 Chevrolet Silverado 1500 5.3L FLEX
• 2005 Chevrolet Silverado 1500 5.3L FULL HYBRID EV-GAS (FHEV)
• 2005 Chevrolet Silverado 1500 5.3L GAS
• 2005 Chevrolet Silverado 1500 6.0L GAS
• 2005 GMC Sierra 1500 HD 6.0L GAS
• 2005 GMC Sierra 1500 4.3L GAS
• 2005 GMC Sierra 1500 4.8L GAS
• 2005 GMC Sierra 1500 5.3L ELECTRIC/GAS
• 2005 GMC Sierra 1500 5.3L FLEX
• 2005 GMC Sierra 1500 5.3L FULL HYBRID EV-GAS (FHEV)
• 2005 GMC Sierra 1500 5.3L GAS
• 2005 GMC Sierra 1500 6.0L GAS
• 2006 Cadillac Escalade ESV 6.0L GAS
• 2006 Cadillac Escalade EXT 6.0L GAS
• 2006 Cadillac Escalade 6.0L GAS
• 2006 Chevrolet Avalanche 2500 8.1L GAS
• 2006 Chevrolet Silverado 1500 HD 6.0L GAS
• 2006 Chevrolet Silverado 1500 4.3L GAS
• 2006 Chevrolet Silverado 1500 4.8L GAS
• 2006 Chevrolet Silverado 1500 5.3L ELECTRIC/GAS
• 2006 Chevrolet Silverado 1500 5.3L FLEX
• 2006 Chevrolet Silverado 1500 5.3L FULL HYBRID EV-GAS (FHEV)
• 2006 Chevrolet Silverado 1500 5.3L GAS
• 2006 Chevrolet Silverado 1500 6.0L GAS
• 2006 GMC Sierra 1500 HD 6.0L GAS
• 2006 GMC Sierra 1500 4.3L GAS
• 2006 GMC Sierra 1500 4.8L GAS
• 2006 GMC Sierra 1500 5.3L ELECTRIC/GAS
• 2006 GMC Sierra 1500 5.3L FLEX
• 2006 GMC Sierra 1500 5.3L FULL HYBRID EV-GAS (FHEV)
• 2006 GMC Sierra 1500 5.3L GAS
• 2006 GMC Sierra 1500 6.0L GAS
• 2007 Cadillac Escalade ESV 6.2L GAS
• 2007 Cadillac Escalade EXT 6.2L GAS
• 2007 Cadillac Escalade 6.2L GAS
• 2008 Cadillac Escalade ESV 6.2L GAS
• 2008 Cadillac Escalade EXT 6.2L GAS
• 2008 Cadillac Escalade 6.2L GAS
• 2009 Cadillac Escalade ESV 6.2L FLEX
• 2009 Cadillac Escalade EXT 6.2L FLEX
• 2009 Cadillac Escalade 6.0L ELECTRIC/GAS
• 2009 Cadillac Escalade 6.0L FULL HYBRID EV-GAS (FHEV)
• 2009 Cadillac Escalade 6.2L FLEX
• 2010 Cadillac Escalade ESV 6.2L FLEX
• 2010 Cadillac Escalade EXT 6.2L FLEX
• 2010 Cadillac Escalade 6.0L ELECTRIC/FLEX
• 2010 Cadillac Escalade 6.0L FULL HYBRID EV-FLEX (FHEV)
• 2010 Cadillac Escalade 6.2L FLEX
• 2011 Cadillac Escalade ESV 6.2L FLEX
• 2011 Cadillac Escalade EXT 6.2L FLEX
• 2011 Cadillac Escalade 6.0L ELECTRIC/FLEX
• 2011 Cadillac Escalade 6.0L FULL HYBRID EV-FLEX (FHEV)
• 2011 Cadillac Escalade 6.2L FLEX
• 2012 Cadillac Escalade ESV 6.2L FLEX
• 2012 Cadillac Escalade EXT 6.2L FLEX
• 2012 Cadillac Escalade 6.0L ELECTRIC/FLEX
• 2012 Cadillac Escalade 6.0L FULL HYBRID EV-FLEX (FHEV)
• 2012 Cadillac Escalade 6.2L FLEX
• 2013 Cadillac Escalade ESV 6.2L FLEX
• 2013 Cadillac Escalade EXT 6.2L FLEX
• 2013 Cadillac Escalade 6.0L ELECTRIC/FLEX
• 2013 Cadillac Escalade 6.0L FULL HYBRID EV-FLEX (FHEV)
• 2013 Cadillac Escalade 6.2L FLEX
• 2014 Cadillac Escalade ESV 6.2L FLEX
• 2014 Cadillac Escalade 6.2L FLEX
