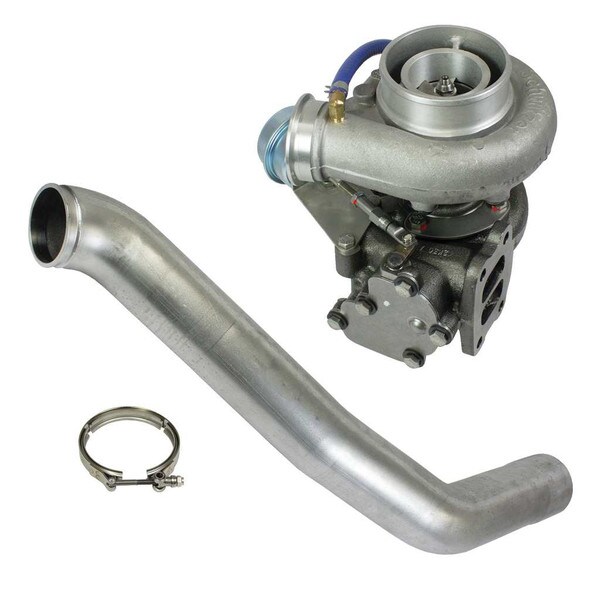

BD Diesel 1045220 Super B Single SX S358 Turbo Kit w/FMW Billet Wheel - Dodge 1994-2002 5.9L

(0)No Reviews yet
SKU: 1045220
BRAND: BD Diesel
$3,289.00

Details

Designed for 1994-2007 5.9L Dodge trucks, the Super B Single supports modified applications making 250-425 rwhp. Featuring Borg Warner's unique Extended Tip compressor wheel technology and low inertia, full-floating journal bearings, these turbos utilize BD's unique dual-volute turbine housing. This proven design utilizes low rpm exhaust pulses for improved turbine response, while the dual-action waste gate bleeds off turbine drive pressure from both volutes. BD's turbo systems also feature a heavy-duty waste gate actuator that prevents premature opening caused by high exhaust pressure. You can even fine-tune for ambient temperature and barometric pressure changes using BD's adjustable waste gate control. The Super B single offers quick spool-up, cooler EGT's and no compressor surge. All kits come with everything you need to allow for an easy install.Forged Milled Billet Wheel; Custom built to BD specifications, not a box turbo; Quick spool-up with no surging; Cooler EGTs & less smoke; Special low inertia, full-floating 6-pad thrust bearings, not 3 pad like box turbos; Dual volute T3 turbine housing utilizes low rpm exhaust pulses for improved turbine response; Efficient positive boost-to-drive pressure ratio yields high power with low EGTs; Perfect fitment to the stock turbocharger inlet connection points; BD's HD Waste gate and bracket holds boost and prevents over speed damage; Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning; Our goal is to be an innovative company and a world class manufacturer that distributes products Worldwide for North American Diesel vehicles.; Our goal is to be an innovative company and a world class manufacturer that distributes products Worldwide for North American Diesel vehicles.; Most systems can be upgraded to a twin system for more power or even better towing performance; 870 CFM / 450 HP; Comp Wheel: 58mm 2.28in; A/R Ratio: 0.80; Downpipe, V-Band Clamp, Band Clamp; Turbine Wheel: 74mm 2.91in

Fitments

  • 1994 Dodge Ram 2500 5.9L DIESEL
  • 1994 Dodge Ram 2500 5.9L GAS
  • 1994 Dodge Ram 3500 5.9L DIESEL
  • 1994 Dodge Ram 3500 5.9L GAS
  • 1995 Dodge Ram 2500 5.9L DIESEL
  • 1995 Dodge Ram 2500 5.9L GAS
  • 1995 Dodge Ram 3500 5.9L DIESEL
  • 1995 Dodge Ram 3500 5.9L GAS
  • 1996 Dodge Ram 2500 5.9L DIESEL
  • 1996 Dodge Ram 2500 5.9L GAS
  • 1996 Dodge Ram 3500 5.9L DIESEL
  • 1996 Dodge Ram 3500 5.9L GAS
  • 1997 Dodge Ram 2500 5.9L DIESEL
  • 1997 Dodge Ram 2500 5.9L GAS
  • 1997 Dodge Ram 3500 5.9L DIESEL
  • 1997 Dodge Ram 3500 5.9L GAS
  • 1998 Dodge Ram 2500 5.9L DIESEL
  • 1998 Dodge Ram 2500 5.9L GAS
  • 1998 Dodge Ram 3500 5.9L DIESEL
  • 1998 Dodge Ram 3500 5.9L GAS
  • 1999 Dodge Ram 2500 5.9L DIESEL
  • 1999 Dodge Ram 2500 5.9L GAS
  • 1999 Dodge Ram 3500 5.9L DIESEL
  • 1999 Dodge Ram 3500 5.9L GAS
  • 2000 Dodge Ram 2500 5.9L DIESEL
  • 2000 Dodge Ram 2500 5.9L GAS
  • 2000 Dodge Ram 3500 5.9L DIESEL
  • 2000 Dodge Ram 3500 5.9L GAS
  • 2001 Dodge Ram 2500 5.9L DIESEL
  • 2001 Dodge Ram 2500 5.9L GAS
  • 2001 Dodge Ram 3500 5.9L DIESEL
  • 2001 Dodge Ram 3500 5.9L GAS
  • 2002 Dodge Ram 2500 5.9L DIESEL
  • 2002 Dodge Ram 2500 5.9L GAS
  • 2002 Dodge Ram 3500 5.9L DIESEL
  • 2002 Dodge Ram 3500 5.9L GAS
