PPE Trans Pan Standard Depth GM Allison 1000 And 2000 Series 1000 And 2000 Series Raw PPE Diesel

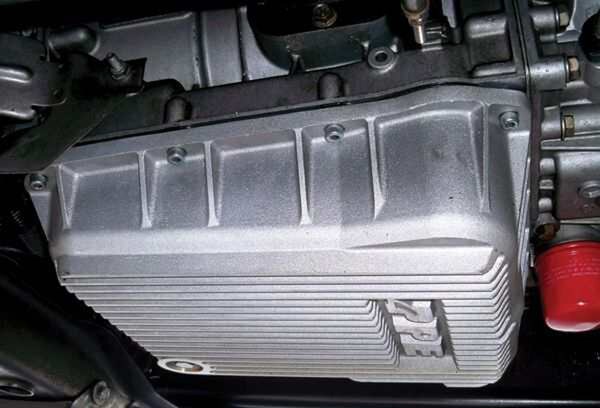

Replace the stock, stamped metal pan with one that will help keep your transmission cool and protected.

Cast from high-grade aluminum alloy and holding stock fluid capacity, it is only 5 inches Deep making this pan perfect for those who like their rides lowered to the ground and still running cool. Thanks to the 3/4 inch external cooling fins, the fluid will run much cooler than the stock pan.

The PPE pans are tough, too! Thanks to its thick cast construction with external fins and the additional side ribbing, all PPE Transmission Pans are much stronger than the stock units.

Each pan is equipped with 1/8 inch and 1/4 inch NPT threaded ports for easy installation of gauge sensors as well as one of >PPEs Neodymium magnet equipped 17mm hex head drain plug. The Neodymium magnet is an insanely strong magnet that attracts and holds harmful ferrous metal particles.

New zinc-plated Allen head mounting hardware is supplied. The PPE Standard Profile Aluminum Transmission Pan is perfect for hot rod or marine applications.

Covered by a lifetime warranty.
Features:

• Standard Profile Aluminum Transmission Pan - GM Allison 1000/2000/2400 - Raw Finish (128052000)
• 3/4 inch external cooling fins reduce oil temps
• Robust side ribs provide additional strength

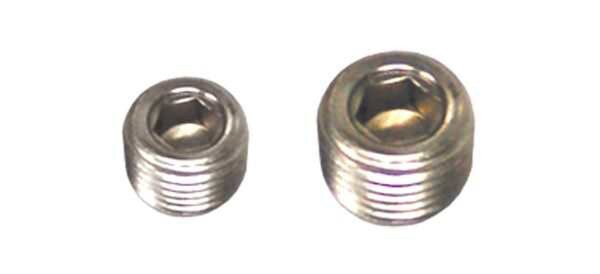

• 1/8 and 1/4 inch NPT threaded ports for gauge sensors

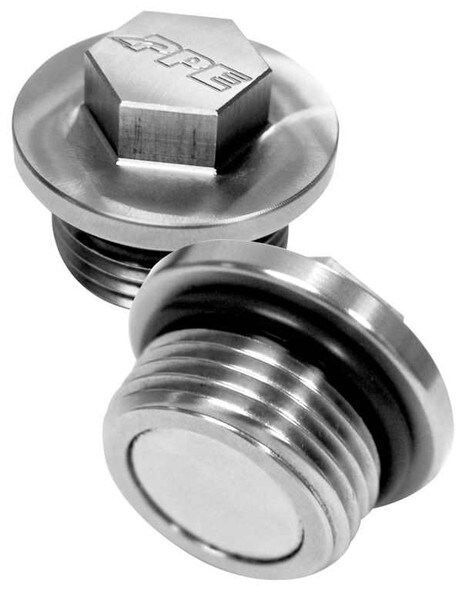

• High-strength Neodymium magnet equipped 304 stainless steel drain plug with reusable Viton O-Ring
• Retains use of high-quality original Allison pan gasket
• M8 x 1.25 x 30mm Allen head bolts
• Lifetime warranty
• Sold As A Kit

Applications:

• GMC and Chevy 2001 to present model year GM Allison Transmissions

Note:

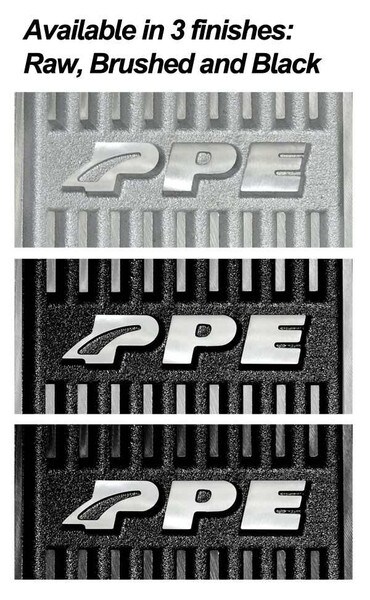

• Available in 3 finishes:
• Raw (128052000) - Brushed (128052010) - Black (128052020)

• 2001 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2001 GMC Sierra 2500 HD 6.6L DIESEL
• 2002 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2002 GMC Sierra 2500 HD 6.6L DIESEL
• 2003 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2003 GMC Sierra 2500 HD 6.6L DIESEL
• 2004 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2004 GMC Sierra 2500 HD 6.6L DIESEL
• 2005 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2005 GMC Sierra 2500 HD 6.6L DIESEL
• 2006 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2006 GMC Sierra 2500 HD 6.6L DIESEL
• 2007 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2007 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2007 GMC Sierra 2500 HD 6.6L DIESEL
• 2007 GMC Sierra 3500 HD 6.6L DIESEL
• 2008 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2008 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2008 GMC Sierra 2500 HD 6.6L DIESEL
• 2008 GMC Sierra 3500 HD 6.6L DIESEL
• 2009 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2009 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2009 GMC Sierra 2500 HD 6.6L DIESEL
• 2009 GMC Sierra 3500 HD 6.6L DIESEL
• 2010 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2010 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2010 GMC Sierra 2500 HD 6.6L DIESEL
• 2010 GMC Sierra 3500 HD 6.6L DIESEL
• 2011 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2011 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2011 GMC Sierra 2500 HD 6.6L DIESEL
• 2011 GMC Sierra 3500 HD 6.6L DIESEL
• 2012 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2012 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2012 GMC Sierra 2500 HD 6.6L DIESEL
• 2012 GMC Sierra 3500 HD 6.6L DIESEL
• 2013 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2013 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2013 GMC Sierra 2500 HD 6.6L DIESEL
• 2013 GMC Sierra 3500 HD 6.6L DIESEL
• 2014 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2014 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2014 GMC Sierra 2500 HD 6.6L DIESEL
• 2014 GMC Sierra 3500 HD 6.6L DIESEL
• 2015 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2015 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2015 GMC Sierra 2500 HD 6.6L DIESEL
• 2015 GMC Sierra 3500 HD 6.6L DIESEL
• 2016 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2016 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2016 GMC Sierra 2500 HD 6.6L DIESEL
• 2016 GMC Sierra 3500 HD 6.6L DIESEL
• 2017 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2017 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2017 GMC Sierra 2500 HD 6.6L DIESEL
• 2017 GMC Sierra 3500 HD 6.6L DIESEL
• 2018 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2018 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2018 GMC Sierra 2500 HD 6.6L DIESEL
• 2018 GMC Sierra 3500 HD 6.6L DIESEL
• 2019 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2019 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2019 GMC Sierra 2500 HD 6.6L DIESEL
• 2019 GMC Sierra 3500 HD 6.6L DIESEL
• 2020 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2020 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2020 GMC Sierra 2500 HD 6.6L DIESEL
• 2020 GMC Sierra 3500 HD 6.6L DIESEL
