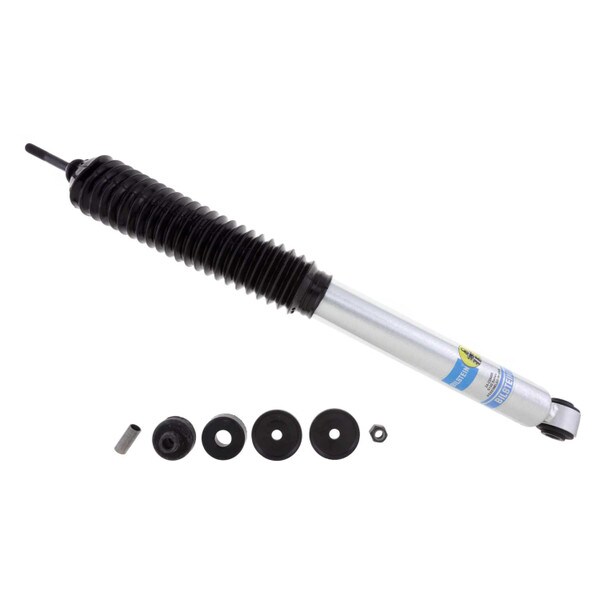

Bilstein 24-239455 B8 5100 - Suspension Shock Absorber
Details
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s.
These shock absorbers feature a monotube design which provides consistent fade free performance.
B8 5100 shock absorbers utilize a unique velocity sensitive digressive piston which reacts to changing road conditions.
All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved.
B8 5100 shock absorbers offer a significant improvement in ride quality handling and comfort.
46mm monotube design ensures consistent fade-free performance in all conditions; Patented digressive valving instantly reacts to changing surface conditions; Vehicle specific tuning.
Adjustable Damping:Non-Adjustable
Body Design:Smooth Body (Non-Coilover)
Body Diameter (ID):46mm
Boot Included:Black Bellows
Collapsed Length (IN):16.75
Collapsed Length (MM):425.5
Extended Length (IN):24.96
Extended Length (MM):634.0
Finish:Zinc Plated
Internal Design:Monotube
Lower Mount Type:Eye 14.1mm
PartType:Shocks / Struts
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:No
Segment:Light Truck
Series:B8 5100
Spring Seat Included:No
Title:Bilstein Shock Absorbers
Upper Mount Type:Stem
Detailed Fitment Results
| Year | Make | Position | Model | Submodel | Drive Type Name | Rear Spring Type Name | Fitment Notes |
|---|---|---|---|---|---|---|---|
| 2014 | Ram | Rear | 2500 | Big Horn | 4WD | Coil | Without Air Leveling Suspension; Fits Vehicles With 0-1 inch Rear Lift; Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2014 | Ram | Rear | 2500 | Outdoorsman | Coil | Without Air Leveling Suspension; Fits Vehicles With 0-1 inch Rear Lift; Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension | |
| 2014 | Ram | Rear | 2500 | Tradesman | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension; Without Air Leveling Suspension; Fits Vehicles With 0-1 inch Rear Lift |
| 2014 | Ram | Rear | 2500 | SLT | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2014 | Ram | Rear | 2500 | Lone Star | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension; Without Air Leveling Suspension; Fits Vehicles With 0-1 inch Rear Lift |
| 2014 | Ram | Rear | 2500 | Laramie Limited | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2014 | Ram | Rear | 2500 | Laramie Longhorn | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2014 | Ram | Rear | 2500 | Laramie | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2015 | Ram | Rear | 2500 | Big Horn | 4WD | Coil | Without Air Leveling Suspension; Fits Vehicles With 0-1 inch Rear Lift; Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2015 | Ram | Rear | 2500 | Lone Star | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension; Without Air Leveling Suspension; Fits Vehicles With 0-1 inch Rear Lift |
| 2015 | Ram | Rear | 2500 | Tradesman | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2015 | Ram | Rear | 2500 | SLT | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension; Without Air Leveling Suspension; Fits Vehicles With 0-1 inch Rear Lift |
| 2015 | Ram | Rear | 2500 | Outdoorsman | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension | |
| 2015 | Ram | Rear | 2500 | Laramie Limited | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2015 | Ram | Rear | 2500 | Laramie Longhorn | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2015 | Ram | Rear | 2500 | Laramie | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2016 | Ram | Rear | 2500 | SLT | 4WD | Coil | Without Air Leveling Suspension; Fits Vehicles With 0-1 inch Rear Lift; Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2016 | Ram | Rear | 2500 | Laramie | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2016 | Ram | Rear | 2500 | Outdoorsman | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension; Without Air Leveling Suspension; Fits Vehicles With 0-1 inch Rear Lift | |
| 2016 | Ram | Rear | 2500 | Laramie Longhorn | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2016 | Ram | Rear | 2500 | Limited | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2016 | Ram | Rear | 2500 | Tradesman | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2016 | Ram | Rear | 2500 | Big Horn | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2017 | Ram | Rear | 2500 | Limited | 4WD | Coil | Without Air Leveling Suspension; Fits Vehicles With 0-1 inch Rear Lift; Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2017 | Ram | Rear | 2500 | Laramie | 4WD | Coil | Without Air Leveling Suspension; Fits Vehicles With 0-1 inch Rear Lift; Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2017 | Ram | Rear | 2500 | Tradesman | 4WD | Coil | Without Air Leveling Suspension; Fits Vehicles With 0-1 inch Rear Lift; Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2017 | Ram | Rear | 2500 | Laramie Longhorn | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2017 | Ram | Rear | 2500 | Big Horn | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2017 | Ram | Rear | 2500 | SLT | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2018 | Ram | Rear | 2500 | Big Horn | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2018 | Ram | Rear | 2500 | Limited | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension; Without Air Leveling Suspension; Fits Vehicles With 0-1 inch Rear Lift |
| 2018 | Ram | Rear | 2500 | Laramie Longhorn | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2018 | Ram | Rear | 2500 | Laramie | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension; Without Air Leveling Suspension; Fits Vehicles With 0-1 inch Rear Lift |
| 2018 | Ram | Rear | 2500 | Tradesman | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension |
| 2018 | Ram | Rear | 2500 | SLT | 4WD | Coil | Fits Vehicles With 0-1 inch Rear Lift; Without Air Leveling Suspension; Without Air Leveling Suspension; Fits Vehicles With 0-1 inch Rear Lift |
Fitments
- 2014 Ram 2500 5.7L CNG
- 2014 Ram 2500 5.7L GAS
- 2014 Ram 2500 6.4L GAS
- 2014 Ram 2500 6.7L DIESEL
- 2015 Ram 2500 5.7L CNG
- 2015 Ram 2500 5.7L GAS
- 2015 Ram 2500 6.4L GAS
- 2015 Ram 2500 6.7L DIESEL
- 2016 Ram 2500 5.7L CNG
- 2016 Ram 2500 5.7L GAS
- 2016 Ram 2500 6.4L GAS
- 2016 Ram 2500 6.7L DIESEL
- 2017 Ram 2500 5.7L CNG
- 2017 Ram 2500 5.7L GAS
- 2017 Ram 2500 6.4L GAS
- 2017 Ram 2500 6.7L DIESEL
- 2018 Ram 2500 5.7L CNG
- 2018 Ram 2500 5.7L GAS
- 2018 Ram 2500 6.4L GAS
- 2018 Ram 2500 6.7L DIESEL
