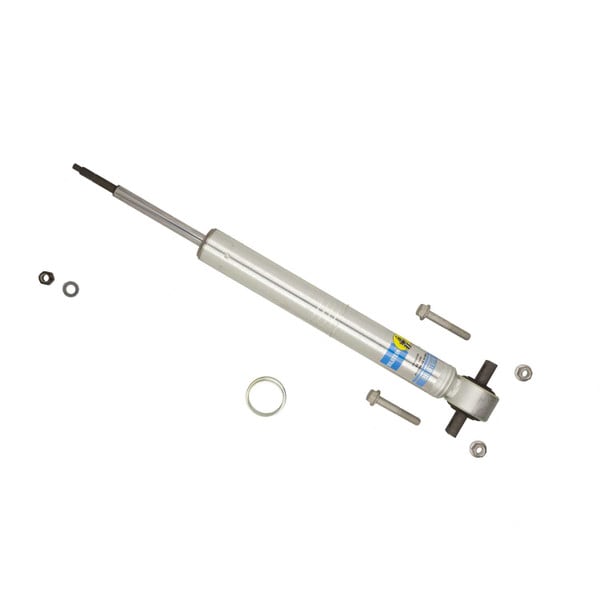

Bilstein 24-256759 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
Details
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension.
Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-3 inches of front lift with OE springs (depending on application).
The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling.
Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
46mm monotube design ensures consistent fade-free performance in all conditions; Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology; Adjustable spring seat offers 0-2.
75in of lift depending on the application.
Adjustable Damping:Non-Adjustable
Body Design:Snap Ring Grooved Body (Coilover)
Body Diameter (ID):46mm
Boot Included:No
Collapsed Length (IN):16.91
Collapsed Length (MM):429.6
Extended Length (IN):22.46
Extended Length (MM):570.5
Finish:Zinc Plated
Internal Design:Monotube
Lower Mount Type:Crossbar
PartType:Shocks / Struts
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:No
Segment:Light Truck
Series:B8 5100 (Ride Height Adjustable)
Spring Seat Included:No
Title:Bilstein Shock Absorbers
Upper Mount Type:Stem
Detailed Fitment Results
| Year | Make | Position | Model | Submodel | Drive Type Name | Fitment Notes |
|---|---|---|---|---|---|---|
| 2014 | Ford | Front | F-150 | FX4 | Provides 0-2 inch Front Lift | |
| 2014 | Ford | Front | F-150 | Lariat | 4WD | Provides 0-2 inch Front Lift |
| 2014 | Ford | Front | F-150 | King Ranch | 4WD | Provides 0-2 inch Front Lift |
| 2014 | Ford | Front | F-150 | XL | 4WD | Provides 0-2 inch Front Lift |
| 2014 | Ford | Front | F-150 | STX | 4WD | Provides 0-2 inch Front Lift |
| 2014 | Ford | Front | F-150 | XLT | 4WD | Provides 0-2 inch Front Lift |
| 2014 | Ford | Front | F-150 | Platinum | 4WD | Provides 0-2 inch Front Lift |
| 2014 | Ford | Front | F-150 | Limited | 4WD | Provides 0-2 inch Front Lift |
Fitments
- 2014 Ford F-150 3.5L GAS
- 2014 Ford F-150 3.7L CNG
- 2014 Ford F-150 3.7L FLEX
- 2014 Ford F-150 3.7L LPG
- 2014 Ford F-150 5.0L FLEX
- 2014 Ford F-150 6.2L GAS
