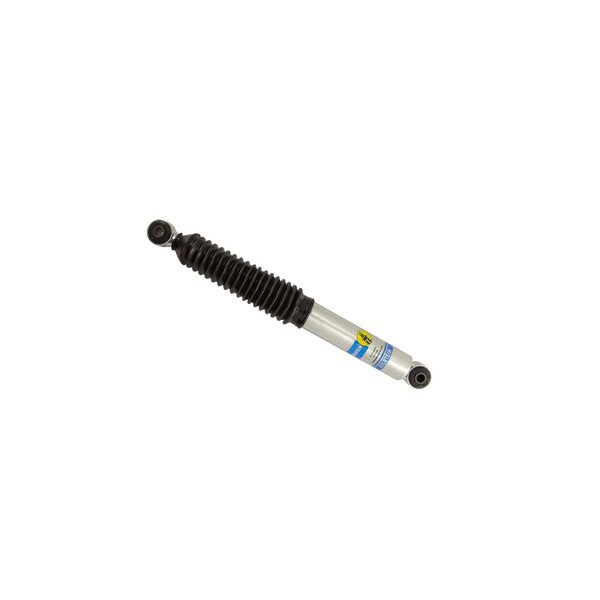

Bilstein 24-274395 B8 5100 - Suspension Shock Absorber
Details
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s.
These shock absorbers feature a monotube design which provides consistent fade free performance.
B8 5100 shock absorbers utilize a unique velocity sensitive digressive piston which reacts to changing road conditions.
All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved.
B8 5100 shock absorbers offer a significant improvement in ride quality handling and comfort.
46mm monotube design ensures consistent fade-free performance in all conditions; Patented digressive valving instantly reacts to changing surface conditions; Vehicle specific tuning.
Adjustable Damping:Non-Adjustable
Body Design:Smooth Body (Non-Coilover)
Boot Included:Black Bellows
Collapsed Length (IN):14.69
Collapsed Length (MM):373.0
Extended Length (IN):20.33
Extended Length (MM):516.5
Finish:Zinc Plated
Internal Design:Monotube
Lower Mount Type:Eye 14.4mm
PartType:Shocks / Struts
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:No
Segment:Light Truck
Series:B8 5100
Title:Bilstein Shock Absorbers
Upper Mount Type:Eye 14.4mm
Detailed Fitment Results
| Year | Make | Position | Model | Submodel | Fitment Notes |
|---|---|---|---|---|---|
| 2014 | Ram | Rear | 2500 | Outdoorsman | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2014 | Ram | Rear | 2500 | Laramie Longhorn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2014 | Ram | Rear | 2500 | Tradesman | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2014 | Ram | Rear | 2500 | SLT | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2014 | Ram | Rear | 2500 | Power Wagon | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2014 | Ram | Rear | 2500 | Lone Star | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2014 | Ram | Rear | 2500 | Laramie Limited | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2014 | Ram | Rear | 2500 | Laramie | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2014 | Ram | Rear | 2500 | Big Horn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2015 | Ram | Rear | 2500 | Big Horn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2015 | Ram | Rear | 2500 | Lone Star | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2015 | Ram | Rear | 2500 | SLT | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2015 | Ram | Rear | 2500 | Tradesman | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2015 | Ram | Rear | 2500 | Laramie Longhorn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2015 | Ram | Rear | 2500 | Outdoorsman | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2015 | Ram | Rear | 2500 | Laramie Limited | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2015 | Ram | Rear | 2500 | Laramie | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2015 | Ram | Rear | 2500 | Power Wagon | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2016 | Ram | Rear | 2500 | Limited | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2016 | Ram | Rear | 2500 | Tradesman | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2016 | Ram | Rear | 2500 | SLT | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2016 | Ram | Rear | 2500 | Laramie Longhorn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2016 | Ram | Rear | 2500 | Big Horn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2016 | Ram | Rear | 2500 | Power Wagon | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2016 | Ram | Rear | 2500 | Laramie | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2016 | Ram | Rear | 2500 | Outdoorsman | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2017 | Ram | Rear | 2500 | Big Horn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2017 | Ram | Rear | 2500 | Laramie Longhorn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2017 | Ram | Rear | 2500 | Tradesman | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2017 | Ram | Rear | 2500 | Limited | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2017 | Ram | Rear | 2500 | Power Wagon | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2017 | Ram | Rear | 2500 | Laramie | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2017 | Ram | Rear | 2500 | SLT | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2018 | Ram | Rear | 2500 | SLT | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2018 | Ram | Rear | 2500 | Limited | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2018 | Ram | Rear | 2500 | Big Horn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2018 | Ram | Rear | 2500 | Laramie Longhorn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2018 | Ram | Rear | 2500 | Tradesman | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2018 | Ram | Rear | 2500 | Power Wagon | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2018 | Ram | Rear | 2500 | Laramie | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2019 | Ram | Rear | 2500 | Power Wagon | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2019 | Ram | Rear | 2500 | Tradesman | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2019 | Ram | Rear | 2500 | Laramie Longhorn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2019 | Ram | Rear | 2500 | Limited | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2019 | Ram | Rear | 2500 | Laramie | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2019 | Ram | Rear | 2500 | Lone Star | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2019 | Ram | Rear | 2500 | Big Horn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2020 | Ram | Rear | 2500 | Laramie Longhorn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2020 | Ram | Rear | 2500 | Lone Star | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2020 | Ram | Rear | 2500 | Limited | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2020 | Ram | Rear | 2500 | Power Wagon | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2020 | Ram | Rear | 2500 | Big Horn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2020 | Ram | Rear | 2500 | Laramie | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2020 | Ram | Rear | 2500 | Tradesman | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2021 | Ram | Rear | 2500 | Laramie | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2021 | Ram | Rear | 2500 | Tradesman | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2021 | Ram | Rear | 2500 | Big Horn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2021 | Ram | Rear | 2500 | Limited | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2021 | Ram | Rear | 2500 | Limited Longhorn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2021 | Ram | Rear | 2500 | Power Wagon | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2021 | Ram | Rear | 2500 | Lone Star | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2021 | Ram | Rear | 2500 | Laramie Longhorn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2022 | Ram | Rear | 2500 | Tradesman | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2022 | Ram | Rear | 2500 | Limited Longhorn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2022 | Ram | Rear | 2500 | Lone Star | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2022 | Ram | Rear | 2500 | Power Wagon | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2022 | Ram | Rear | 2500 | Limited | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2022 | Ram | Rear | 2500 | Big Horn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2022 | Ram | Rear | 2500 | Laramie | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2023 | Ram | Rear | 2500 | Limited Longhorn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2023 | Ram | Rear | 2500 | Big Horn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2023 | Ram | Rear | 2500 | Limited | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2023 | Ram | Rear | 2500 | Power Wagon | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2023 | Ram | Rear | 2500 | Lone Star | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2023 | Ram | Rear | 2500 | Tradesman | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2023 | Ram | Rear | 2500 | Laramie | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2023 | Ram | Rear | 2500 | Rebel | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2024 | Ram | Rear | 2500 | Limited Longhorn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2024 | Ram | Rear | 2500 | Rebel | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2024 | Ram | Rear | 2500 | Laramie | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2024 | Ram | Rear | 2500 | Limited | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2024 | Ram | Rear | 2500 | Lone Star | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2024 | Ram | Rear | 2500 | Big Horn | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2024 | Ram | Rear | 2500 | Power Wagon | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
| 2024 | Ram | Rear | 2500 | Tradesman | Rear Axle Anti-Wrap Power Hop Shock Absorber; Additional components needed if vehicle was not factory equipped with this shock, see instructions for details |
Fitments
- 2014 Ram 2500 5.7L CNG
- 2014 Ram 2500 5.7L GAS
- 2014 Ram 2500 6.4L GAS
- 2014 Ram 2500 6.7L DIESEL
- 2015 Ram 2500 5.7L CNG
- 2015 Ram 2500 5.7L GAS
- 2015 Ram 2500 6.4L GAS
- 2015 Ram 2500 6.7L DIESEL
- 2016 Ram 2500 5.7L CNG
- 2016 Ram 2500 5.7L GAS
- 2016 Ram 2500 6.4L GAS
- 2016 Ram 2500 6.7L DIESEL
- 2017 Ram 2500 5.7L CNG
- 2017 Ram 2500 5.7L GAS
- 2017 Ram 2500 6.4L GAS
- 2017 Ram 2500 6.7L DIESEL
- 2018 Ram 2500 5.7L CNG
- 2018 Ram 2500 5.7L GAS
- 2018 Ram 2500 6.4L GAS
- 2018 Ram 2500 6.7L DIESEL
- 2019 Ram 2500 6.4L GAS
- 2019 Ram 2500 6.7L DIESEL
- 2020 Ram 2500 6.4L GAS
- 2020 Ram 2500 6.7L DIESEL
- 2021 Ram 2500 6.4L GAS
- 2021 Ram 2500 6.7L DIESEL
- 2022 Ram 2500 6.4L GAS
- 2022 Ram 2500 6.7L DIESEL
- 2023 Ram 2500 6.4L GAS
- 2023 Ram 2500 6.7L DIESEL
- 2024 Ram 2500 6.4L GAS
- 2024 Ram 2500 6.7L DIESEL
