ATS 47Rh 47Re 48Re Triplelok Torque Converter Fits 1994-2007 5.9L Cummins
Details

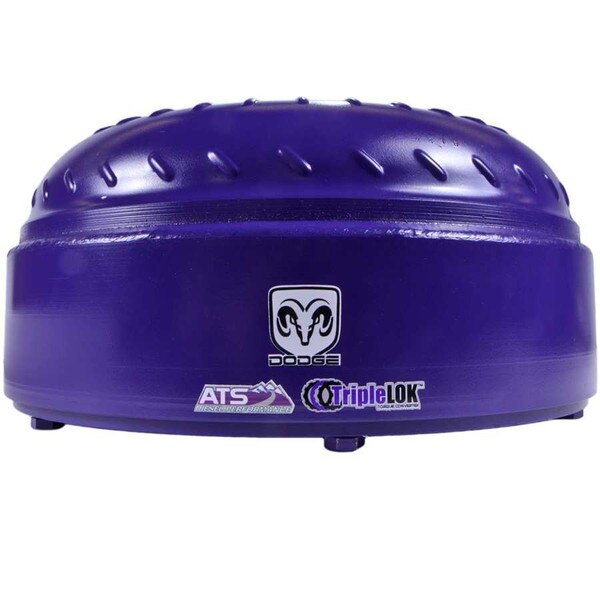

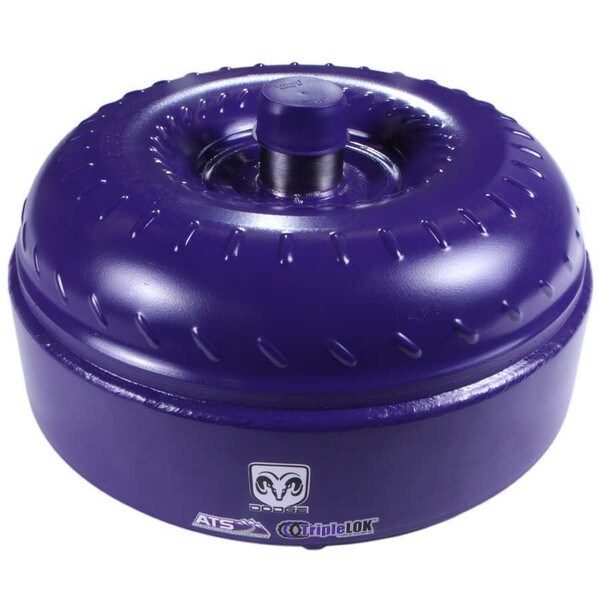

Available individually is the ATS TripleLok Torque Converter. This torque converter is built to handle daily driving and towing duties while delivering reliable performance.
The ATS TripleLok utilizes an optimized factory stall speed that features improved torque multiplication. With factory torque multiplication at approximately 1.25:1, the ATS TripleLok increases it to 2.0:1. This occurs when peak engine torque is achieved. Increased torque multiplication results in improved vehicle response, towing and driving ability.
Every TripleLok comes standard with a 5 year / 500,000 mile warranty. When the most efficient torque converter is required, look no further than the ATS TripleLok Torque Converter.
Details:
- TripleLok Torque Converter
- Factory Stall Speed
- Patented Viskus Clutch Drive System for increased efficiency

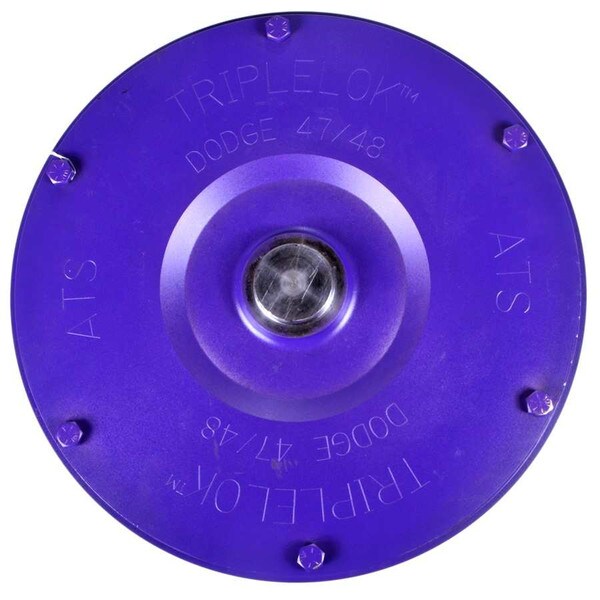

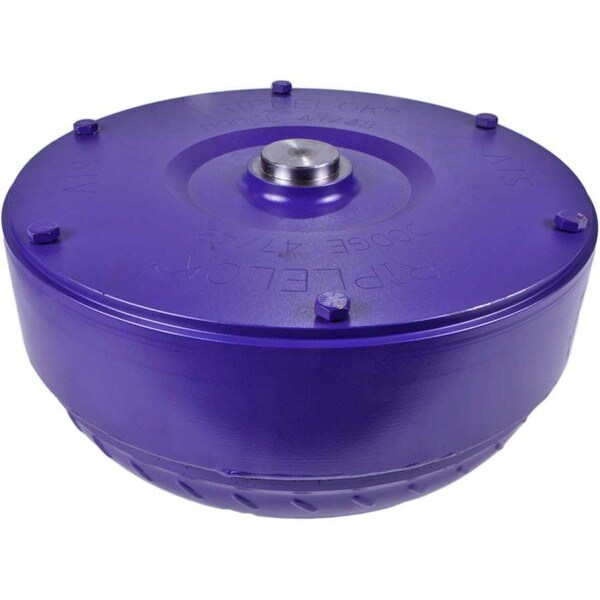

- Billet Cover with Patented Square Flank Drive
- Square Tab Construction (Not Round)
- Viskus Disc CNC Laser Cut Clutch Plates
- Billet Piston with Patented Flank Drive Tab design
- Proprietary ATS exclusive Clutch Formulation with unique bonding technology (ensures 100 percent chemical Bond)
- Redesigned Spring Dampener supports increased torque loads
- 4340 hardened turbine splines provide longevity and reliability
- Fully welded turbine and impeller vanes
- Custom Stator with high flow windows increase oil flow, providing increased efficiency
- Full roller bearing construction between high load areas
- 4340 CNC cut pump drive hub locked into impeller housing
- Plasma welded for unsurpassed strength
- Sold Individually
- SKU: 3029302164
Fits:
- 1994-2007 Dodge Ram 2500|3500 Truck w/5.9L Cummins Engine and Chrysler 47R-H|47-RE|48-RE Transmission
Fitments
1994_Dodge_Ram 2500_5.9L DIESEL, 1994_Dodge_Ram 3500_5.9L DIESEL, 1995_Dodge_Ram 2500_5.9L DIESEL, 1995_Dodge_Ram 3500_5.9L DIESEL, 1996_Dodge_Ram 2500_5.9L DIESEL, 1996_Dodge_Ram 3500_5.9L DIESEL, 1997_Dodge_Ram 2500_5.9L DIESEL, 1997_Dodge_Ram 3500_5.9L DIESEL, 1998_Dodge_Ram 2500_5.9L DIESEL, 1998_Dodge_Ram 3500_5.9L DIESEL, 1999_Dodge_Ram 2500_5.9L DIESEL, 1999_Dodge_Ram 3500_5.9L DIESEL, 2000_Dodge_Ram 2500_5.9L DIESEL, 2000_Dodge_Ram 3500_5.9L DIESEL, 2001_Dodge_Ram 2500_5.9L DIESEL, 2001_Dodge_Ram 3500_5.9L DIESEL, 2002_Dodge_Ram 2500_5.9L DIESEL, 2002_Dodge_Ram 3500_5.9L DIESEL, 2003_Dodge_Ram 2500_5.9L DIESEL, 2003_Dodge_Ram 3500_5.9L DIESEL, 2004_Dodge_Ram 2500_5.9L DIESEL, 2004_Dodge_Ram 3500_5.9L DIESEL, 2005_Dodge_Ram 2500_5.9L DIESEL, 2005_Dodge_Ram 3500_5.9L DIESEL, 2006_Dodge_Ram 2500_5.9L DIESEL, 2006_Dodge_Ram 3500_5.9L DIESEL, 2007_Dodge_Ram 2500_5.9L DIESEL, 2007_Dodge_Ram 3500_5.9L DIESEL
WARRANTY: 5-Year/500,000 Mile Limited Warranty
VIDEO: Watch Video
