Dodge Phatshaft 62 Turbo For 94-02 5.9L Cummins 12cm Housing Industrial Injection

(0)No Reviews yet
SKU: INDJ-3622306501
$2,977.58



Details

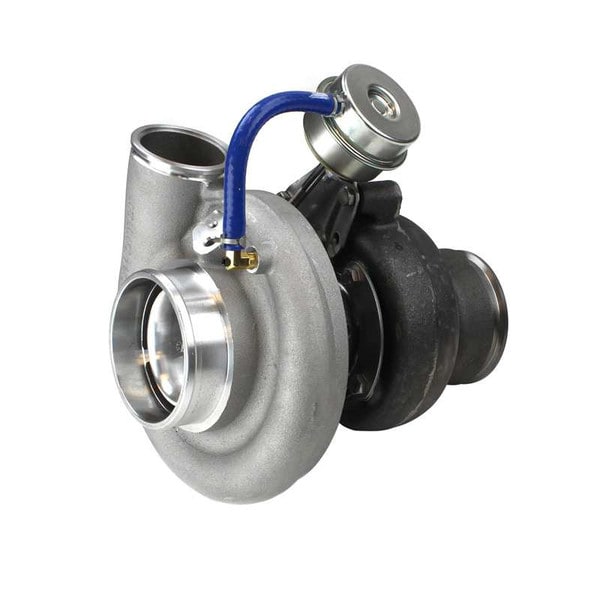

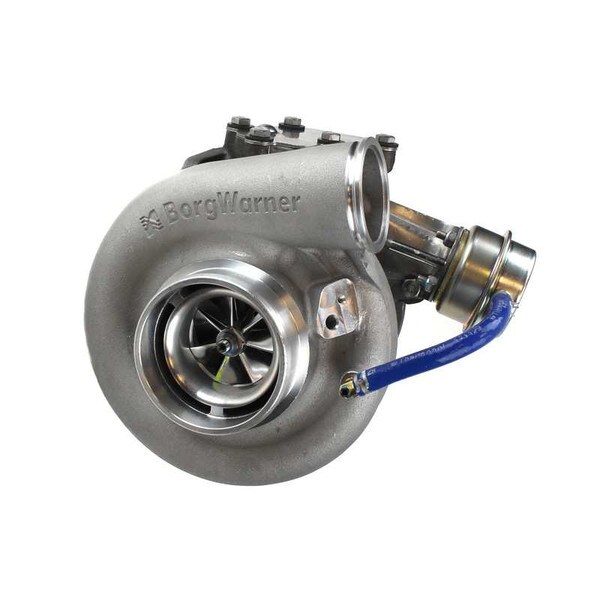

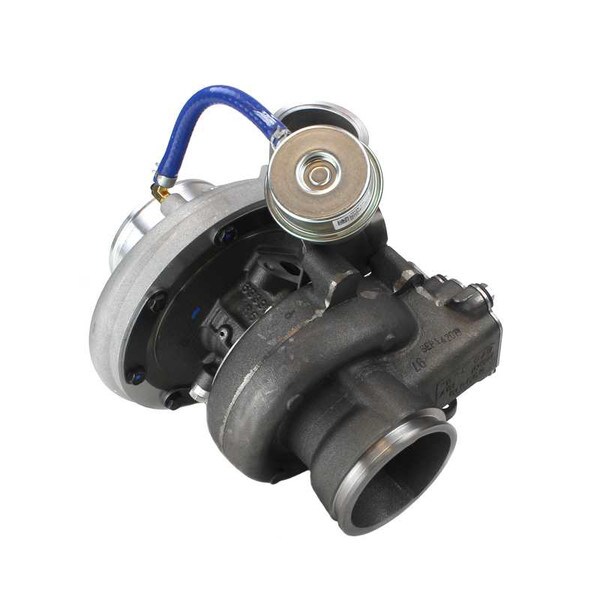

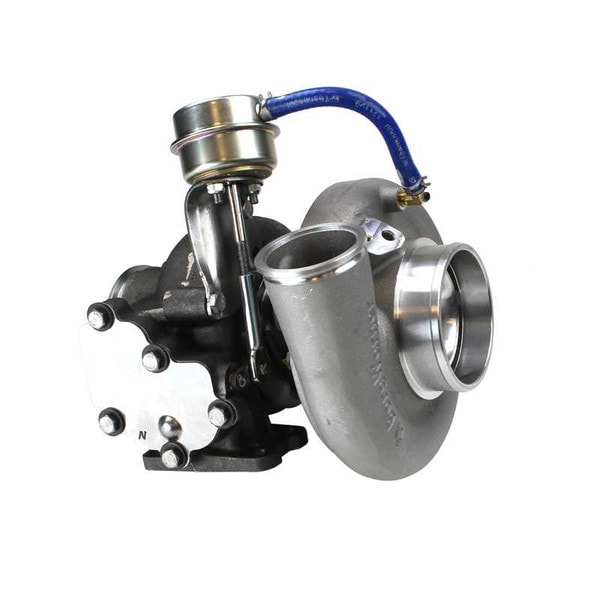

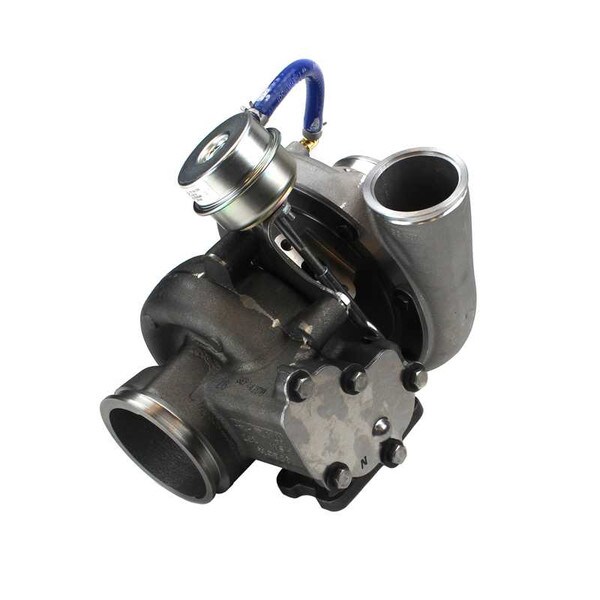

The Industrial Injection Original PhatShaft Series Turbos were designed to handle mild fueling upgrades to help increase overall performance and be perfect for towing and daily driving.

The PhatShaft comes equipped with an extended tip 62mm, or 64mm forged milled compressor wheel and 360 degree thrust bearing. The PhatShaft utilizes the 65mm turbine wheel and is available in a 12cm or 14 cm exhaust housing in which we modify the angle of the exhaust nozzle, maximize the wastegate ports, and enlarge the wastegate chamber for full wastegate travel.

Like all PhatShaft turbochargers it is equipped with dual grooved high performance bearings and an adjustable boost elbow. We recommend the 12cm Housing for 12 valve and 24 valve trucks for faster spool up.

Features:

  • Increased Performance
  • Lower EGTs
  • Designed For Towing and Daily Driving
  • 62mm Compressor Wheel
  • 12cm exhaust housing
  • 65mm Turbine Wheel
  • (FMW) Forged Milled Compressor Wheel
  • 360 Thrust Bearing
  • Dual Grooved High Performance Journal Bearings
  • Drop In Replacement Turbo

Note: Requires HX40 Downpipe

Note: Depending on the factory oil drain configuration it may need to be slightly modified to clear the wastegate rod

Fitments

1994_Dodge_Ram 2500_5.9L DIESEL, 1994_Dodge_Ram 3500_5.9L DIESEL, 1995_Dodge_Ram 2500_5.9L DIESEL, 1995_Dodge_Ram 3500_5.9L DIESEL, 1996_Dodge_Ram 2500_5.9L DIESEL, 1996_Dodge_Ram 3500_5.9L DIESEL, 1997_Dodge_Ram 2500_5.9L DIESEL, 1997_Dodge_Ram 3500_5.9L DIESEL, 1998_Dodge_Ram 2500_5.9L DIESEL, 1998_Dodge_Ram 3500_5.9L DIESEL, 1999_Dodge_Ram 2500_5.9L DIESEL, 1999_Dodge_Ram 3500_5.9L DIESEL, 2000_Dodge_Ram 2500_5.9L DIESEL, 2000_Dodge_Ram 3500_5.9L DIESEL, 2001_Dodge_Ram 2500_5.9L DIESEL, 2001_Dodge_Ram 3500_5.9L DIESEL, 2002_Dodge_Ram 2500_5.9L DIESEL, 2002_Dodge_Ram 3500_5.9L DIESEL
WARRANTY: 1 Year Warranty
