Toyota (Coil/Air) Suspension Control Arm Kit - ICON Vehicle Dynamics - 54002T

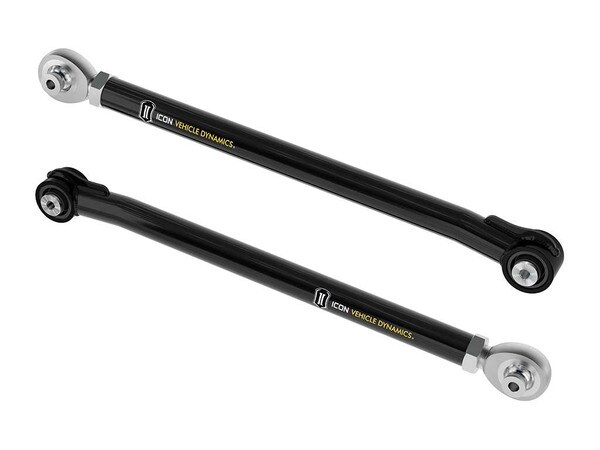

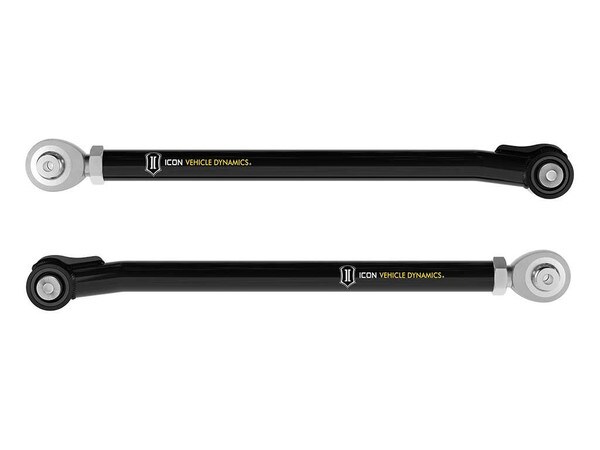

REAR LOWER LINK KIT 54002T APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACOMA TUBULAR REAR LOWER LINK KIT The ICON Tubular Rear Lower Link System helps free up rear axle movement to allow for increased suspension travel and articulation.

Formed using DOM steel tubing for high strength, with CNC machined threaded ends and bushing housings.

The ICON Tubular Rear Lower Link System helps free up rear axle movement on the 2022-2025 Toyota Tundra, 2023-2025 Toyota Sequoia, and 2024-2025 Toyota Tacoma to allow for increased suspension travel and articulation.

Formed using 1 ¾” x.

313 wall DOM Tubing for high strength, with CNC machined threaded ends and bushing housings, and feature a multi-stage black powder coat finish.

These lower links are designed specifically for high clearance for reduced contact with trail obstacles and massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations.

The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form.

Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.

Adjustable for various lift heights and driveline angles Help free rear suspension bind compared to OE links High clearance Lower Link design for reduced contact with obstacles CNC machined and notched 1026 DOM steel construction with semi-gloss black powder coat finish Multi durometer bushings for noise free operation and maximum angularity No grease required for life of bushings Quality JM16T PTFE-lined FK Rod Ends Fabricated components covered under ICON's Limited Lifetime Warranty ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma, Rear, Tubular Lower Link Kit, 54002T ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma, Rear, Tubular Lower Link Kit ICON 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACOMA TUBULAR REAR LOWER LINK KIT.

• 2022 Toyota Tundra 3.5L ELECTRIC/GAS
• 2022 Toyota Tundra 3.5L GAS
• 2023 Toyota Sequoia 3.4L MILD HYBRID EV-GAS (MHEV)
• 2023 Toyota Sequoia 3.5L MILD HYBRID EV-GAS (MHEV)
• 2023 Toyota Tundra 3.4L GAS
• 2023 Toyota Tundra 3.4L MILD HYBRID EV-GAS (MHEV)
• 2023 Toyota Tundra 3.5L GAS
• 2023 Toyota Tundra 3.5L MILD HYBRID EV-GAS (MHEV)
• 2024 Toyota Sequoia 3.4L FULL HYBRID EV-GAS (FHEV)
• 2024 Toyota Tundra 3.4L FULL HYBRID EV-GAS (FHEV)
• 2024 Toyota Tundra 3.4L GAS
• 2024 Toyota Tundra 3.4L MILD HYBRID EV-GAS (MHEV)
