Lexus, Toyota (Coil/Air) Suspension Control Arm Kit - ICON Vehicle Dynamics - 54102T

(0)No Reviews yet
SKU: 54102T
BRAND: Randy's Worldwide : ICON Vehicle Dynamics
$948.24 CAD

ICON is a new offering for us as such this is currently special order please allow for 2 to 3 weeks for shipping on average.


Details

REAR UPPER LINK KIT 54102T APPLICATION NOTE #141: Tundra/Sequoia equipped with Automatic Leveling Headlights or Load-Leveling Rear Height Control Air Suspension part # 55153 is also required APPLICATION NOTE #143: Compatible with ICON Tundra 6" Lift Performance Suspension System but may not be compatible with 6" lift kits from other manufacturers APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs APPLICATION NOTE #199: Land Cruiser 250 Series and GX550 also require Sensor Bracket part number 55161 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACOMA/24 LC250/GX550 TUBE REAR UPPER LINK KIT The ICON Tubular Rear Upper Link System helps free up rear axle movement to allow for increased suspension travel and articulation.

Formed using DOM steel tubing for high strength, with CNC machined threaded ends and bushing housings.

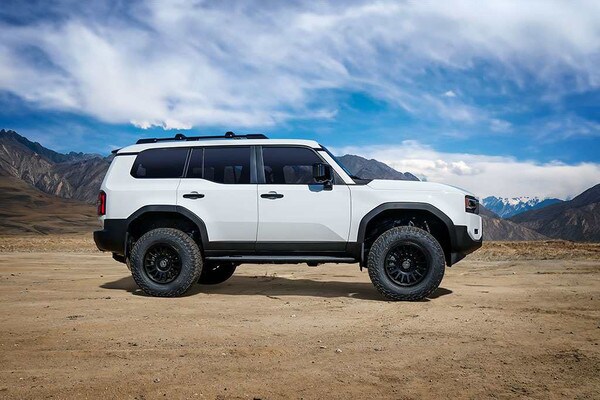

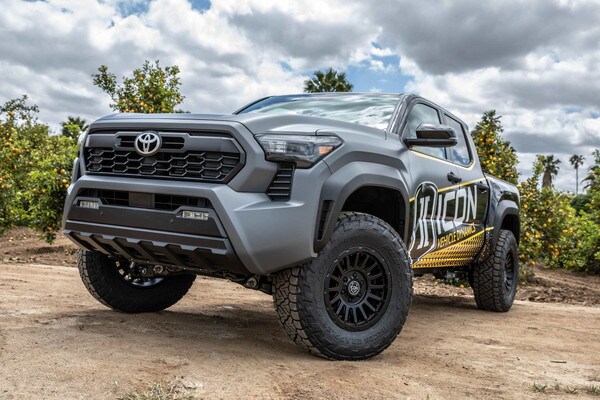

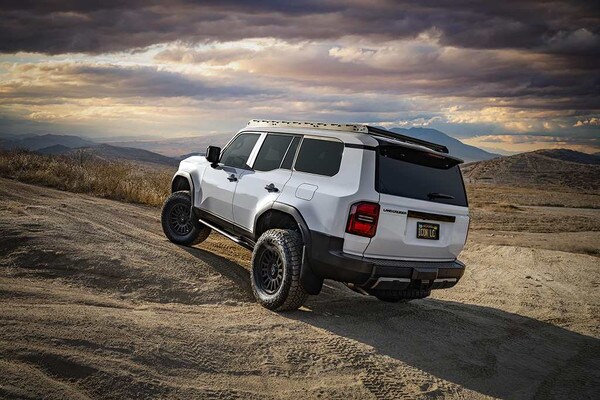

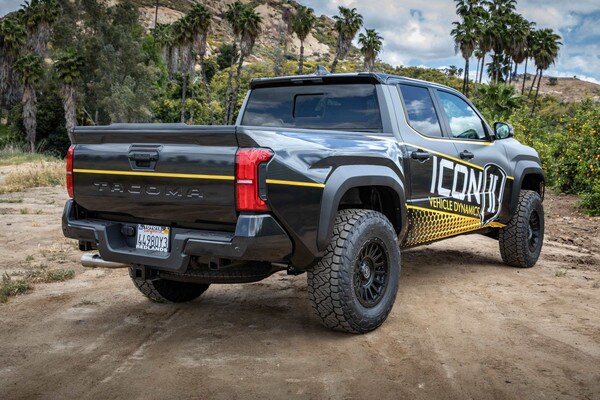

The ICON Tubular Rear Upper Link System helps free up rear axle movement on the 2022-2025 Toyota Tundra, 2023-2025 Toyota Sequoia, 2024-2025 Toyota Tacoma, 2024 Toyota Land Cruiser 250 Series, and the 2024 Lexus GX550 to allow for increased suspension travel and articulation.

Formed using 1 ¾” x.

313 wall DOM Tubing for high strength, with CNC machined threaded ends and bushing housings, and feature a multi-stage black powder coat finish.

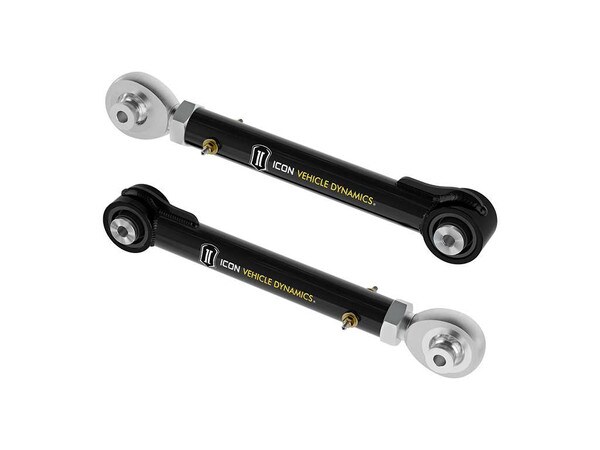

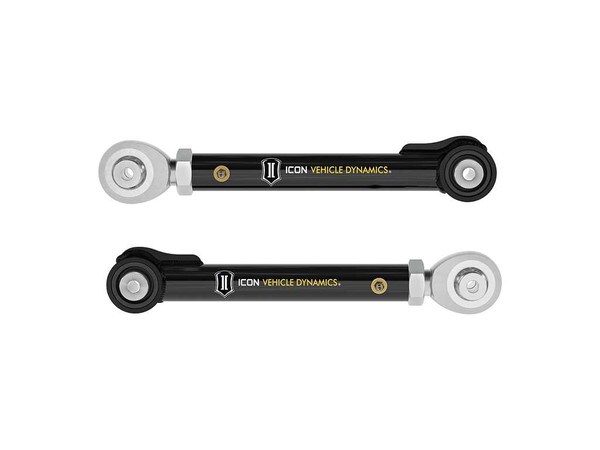

These upper links are designed with massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations.

The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form.

Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.

Adjustable for various lift heights and driveline angles Help free rear suspension bind compared to OE links CNC machined and notched 1026 DOM steel construction with semi-gloss black powder coat finish Multi durometer bushings for noise free operation and maximum angularity No grease required for life of bushings Quality JM16T PTFE-lined FK Rod Ends Fabricated components covered under ICON's Limited Lifetime Warranty ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma/2024 Toyota Land Cruiser 250 Series/2024 Lexus GX550, Rear, Tubular Upper Link Kit, 54102T ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma/2024 Toyota Land Cruiser 250 Series/2024 Lexus GX550, Rear, Tubular Upper Link Kit ICON 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACOMA/24 LC250/GX550 TUBE REAR UPPER LINK KIT.


Detailed Fitment Results
YearMakeModelSubmodelQualifiersFitment Notes
2022ToyotaTundraLimited
2022ToyotaTundraSR; May not be compatible with other manufacturer’s 6 inch lift kits;
2022ToyotaTundraTRD Pro
2022ToyotaTundraCapstoneMay not be compatible with other manufacturer’s 6 inch lift kits
2022ToyotaTundraPlatinum
2022ToyotaTundraSR5
2022ToyotaTundra1794 Edition
2022ToyotaTundraPlatinum 1794 EditionMay not be compatible with other manufacturer’s 6 inch lift kits
2022ToyotaTundraSR TRD Off-RoadMay not be compatible with other manufacturer’s 6 inch lift kits
2022ToyotaTundraSR5 TRD Off-Road
2022ToyotaTundraLimited TRD Off-Road
2023ToyotaTundraLimited
2023ToyotaTundraSR; May not be compatible with other manufacturer’s 6 inch lift kits;
2023ToyotaTundraTRD Pro
2023ToyotaTundraCapstoneMay not be compatible with other manufacturer’s 6 inch lift kits
2023ToyotaTundraPlatinum
2023ToyotaTundraSR5
2023ToyotaTundra1794 Edition
2023ToyotaSequoiaCapstone
2023ToyotaSequoiaLimited
2023ToyotaSequoiaPlatinum
2023ToyotaSequoiaSR5
2023ToyotaSequoiaTRD Pro
2023ToyotaSequoiaTRD Off-Road
2024LexusGX550
2024ToyotaLand Cruiser
2024ToyotaTundraLimited
2024ToyotaTundraSR; May not be compatible with other manufacturer’s 6 inch lift kits;
2024ToyotaTundraTRD Pro
2024ToyotaTundraCapstoneMay not be compatible with other manufacturer’s 6 inch lift kits
2024ToyotaTundraPlatinum
2024ToyotaTundraSR5
2024ToyotaTundra1794 Edition
2024ToyotaSequoiaCapstone
2024ToyotaSequoiaLimited
2024ToyotaSequoiaPlatinum
2024ToyotaSequoiaSR5
2024ToyotaSequoiaTRD Pro
2024ToyotaTacomaSR5
2024ToyotaTacomaTRD Off-Road
2024ToyotaTacomaLimited
2024ToyotaTacomaTRD Sport
2025ToyotaTundraLimited
2025ToyotaTundraSR; May not be compatible with other manufacturer’s 6 inch lift kits;
2025ToyotaTundraTRD Pro
2025ToyotaTundraCapstoneMay not be compatible with other manufacturer’s 6 inch lift kits
2025ToyotaTundraPlatinum
2025ToyotaTundraSR5
2025ToyotaTundra1794 Edition
2025ToyotaTundraTRD Off-Road
2025ToyotaSequoiaCapstone
2025ToyotaSequoiaLimited
2025ToyotaSequoiaPlatinum
2025ToyotaSequoiaSR5
2025ToyotaSequoiaTRD Pro
2025ToyotaSequoia1794 Edition
2025ToyotaTacomaSR5
2025ToyotaTacomaTRD Off-Road
2025ToyotaTacomaLimited
2025ToyotaTacomaTRD Sport Premium
2025ToyotaTacomaTRD Sport

Fitments

  • 2022 Toyota Tundra 3.5L ELECTRIC/GAS
  • 2022 Toyota Tundra 3.5L GAS
  • 2023 Toyota Sequoia 3.4L MILD HYBRID EV-GAS (MHEV)
  • 2023 Toyota Sequoia 3.5L MILD HYBRID EV-GAS (MHEV)
  • 2023 Toyota Tundra 3.4L GAS
  • 2023 Toyota Tundra 3.4L MILD HYBRID EV-GAS (MHEV)
  • 2023 Toyota Tundra 3.5L GAS
  • 2023 Toyota Tundra 3.5L MILD HYBRID EV-GAS (MHEV)
  • 2024 Toyota Sequoia 3.4L FULL HYBRID EV-GAS (FHEV)
  • 2024 Toyota Tundra 3.4L FULL HYBRID EV-GAS (FHEV)
  • 2024 Toyota Tundra 3.4L GAS
  • 2024 Toyota Tundra 3.4L MILD HYBRID EV-GAS (MHEV)
