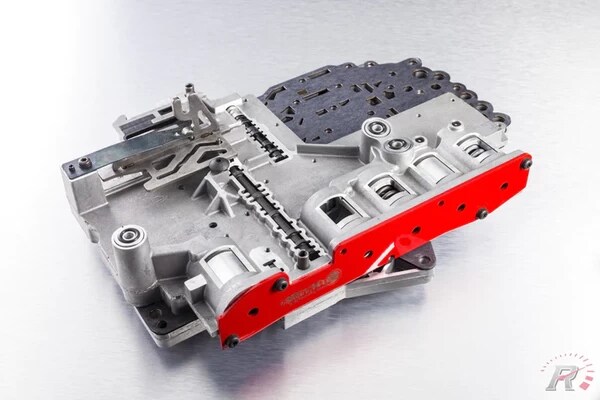

RevMax 68RFE High Performance Towing/HD Valve Body 2011-2018 (With gray valve body plug) - 68RFE-301
Details
68RFE High-Performance Towing/HD Valve Body
RevMax has proprietary technology and workflow processes that make our product superior to the competition. We also have the industry’s best testing equipment. To start, we vacuum leak test each and every valve body after cleaning. Finally, each valve body is dyno tested on one of our fully computerized valve body dyno machines. The results are compared against a brand new valve body and the data is then stored and available to be viewed by the customer if requested.
Our 68RFE performance valve bodies feature the following:
- Shortened Shift Times for crisp, clean shifts
- Upgraded valve body to case seals
- Billet Steel SSV Solenoid Switch Valve and End Plugs
- Revmax Triple Double 3/2 Billet Accumulator Pistons with Dual Seals
- Upgraded grade 8 custom fasteners
- Upgraded Steel accumulator housing plate that is 3x thicker than stock
- RevMax proprietary accumulator springs for improved 3-4 shift feel
- RevMax proprietary separator plate with the bonded gasket that eliminates cross leaks and warpage issues
- Revmax proprietary upgrades
- Hand assembled in Charlotte, NC by Qualified and Caring Professionals!!
- Mounting Surface Verified and Flat Filed
- Threads Checked and Repaired if Needed
- Computerized testing on our state of the art $125k valve body test machines
- Ability to run up to 325psi of line pressure without any warpage! (transmission tuning, TCM upgrade or pressure box is needed) No pump modifications required for up to 250psi!
Fitments
- 2011 Ram 2500 6.7L DIESEL
- 2011 Ram 3500 6.7L DIESEL
- 2012 Ram 2500 6.7L DIESEL
- 2012 Ram 3500 6.7L DIESEL
- 2013 Ram 2500 6.7L DIESEL
- 2013 Ram 3500 6.7L DIESEL
- 2014 Ram 2500 6.7L DIESEL
- 2014 Ram 3500 6.7L DIESEL
- 2015 Ram 2500 6.7L DIESEL
- 2015 Ram 3500 6.7L DIESEL
- 2016 Ram 2500 6.7L DIESEL
- 2016 Ram 3500 6.7L DIESEL
- 2017 Ram 2500 6.7L DIESEL
- 2017 Ram 3500 6.7L DIESEL
- 2018 Ram 2500 6.7L DIESEL
- 2018 Ram 3500 6.7L DIESEL
