6 Inch Lift Kit - 4-Link Conversion - Ford F250/F350 Super Duty (17-19) 4WD - Diesel

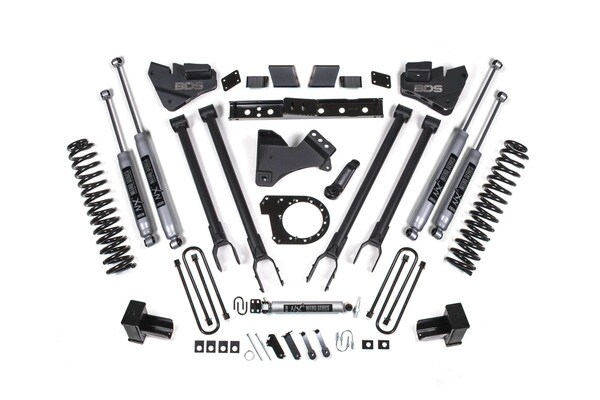

Take your 2017-2019 Ford F250 and F350 Super Duty diesel truck to the next level with this 6-inch 4-Link lift kit from BDS. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 38" tires.; Up front the lift kit includes diesel-specific Pro-Ride coil springs 4-Link control arm conversion forged drop pitman arm and track bar bracket for steering correction sway bar relocation brake line brackets and custom-tuned nitrogen charged shocks.; At this height the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block longer u-bolts brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.; 4-Link Conversion; Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.; Pro-Ride Coil Springs; A pair of full-length diesel-specific Pro-Ride coil springs are supplied to provide the correct lift height and smooth predictable ride across various terrains.; T-Case Indexing; At this height driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally a high clearance transmission crossmember supplied to allow sufficient clearance.R or CR):CR;Prop 65 Short Label:WARNING: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov;Prop 65 Warning Label:p65.jpg;Prop 65 Yes/No:Yes;Title:6 Inch Lift Kit - 4-Link Conversion - Ford F250/F350 Super Duty (17-19) 4WD - Diesel;Installation Time:8-10 Hrs;Installation Difficulty:difficult;Installation Tools:30mm socket-drill-puller pitmanArm;Rear Lift Height:5 IN;Front Lift Method:Coil Spring;Rear Lift Method:Leaf Spring;Front Lift Height:6 IN;Rear Lift Option:Leaf Springs;Shocks Included:Yes
