6 Inch Lift Kit - Ford Ranger (19-23) 4WD

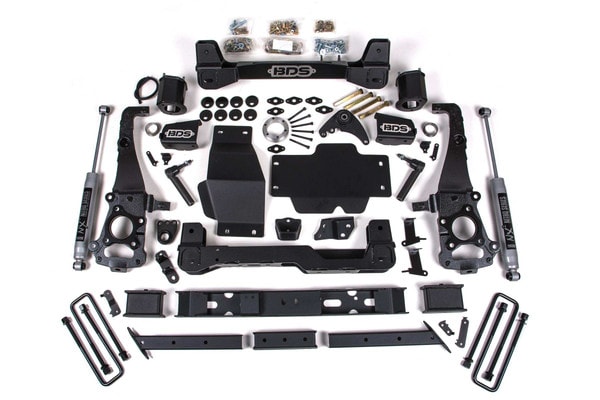

BDS steps up the performance and capability of the 2019-2023 Ford Ranger trucks with 6-inch suspension lift kits. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.; This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers top mounted strut spacers multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.; In the rear BDS utilizes a heavy duty replacement transfer case cross-member high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.; High Clearance Crossmemebers; BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.; Heavy Duty Steering Knuckles; BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.R or CR):CR;Prop 65 Short Label:WARNING: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov;Prop 65 Warning Label:p65.jpg;Prop 65 Yes/No:Yes;Title:6 Inch Lift Kit - Ford Ranger (19-23) 4WD;Installation Time:8 Hrs;Installation Difficulty:difficult;Installation Tools:35mm Socket Axle Nut Socket-Air Hammer Rec-Basic Hand Tools-ballJointSeparationTool-cutOffTool-jack hydraulic;Rear Lift Height:3_5 IN;Front Lift Method:Strut Spacer;Rear Lift Method:Block;Front Lift Height:6 IN;Rear Shock Option:NX2 Nitro Series;Oe Knuckle Type:cast aluminum;Shocks Included:Yes
