6 Inch Lift Kit w/ 4-Link - FOX 2.5 Performance Elite Coil-Over Conversion - Ford F250/F350 Super Duty (11-16) 4WD - Diesel

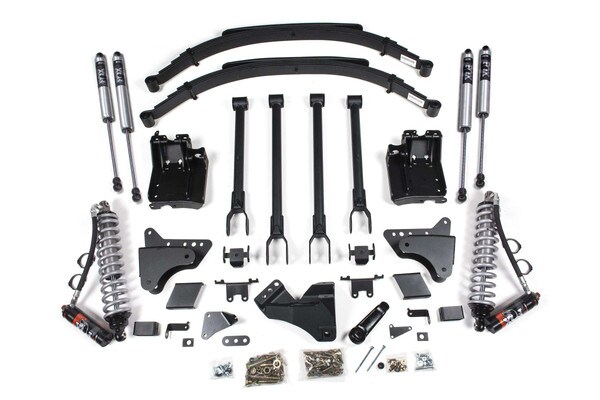

Go farther and raise the bar of performance on your 2011-2016 Ford Super Duty F250 and F350 diesel truck to the next level with this 6-inch radius arm lift kit with 4-link and FOX Performance Elite coil-over conversion from BDS. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.; Upgrading to BDS Glide-Ride leaf springs will reduce axle wrap and provide flexibility throughout the suspension cycle.; Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks heavy-duty 4-link control arms forged drop pitman arm and track bar bracket for steering correction sway bar relocation brake line brackets and custom-tuned secondary FOX 2.0 shocks.; In the rear this kit utilizes a replacement GlideRide leaf springs with integrated overload leaf u-bolts brake line brackets and a matching set of FOX 2.0 Performance shocks.; FOX Performance Elite Coil-Over; FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs offering 10 separate low-speed and 12 high-speed compression levels with a black anodized aluminum reservoir to increase cooling efficiency.; 4-Link Conversion; Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.; BDS Glide-Ride Leaf Springs; Built to outperform BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design where the main leaf pack is broken into two stages:R or CR):CR;Prop 65 Short Label:WARNING: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov;Prop 65 Warning Label:p65.jpg;Prop 65 Yes/No:Yes;Title:6 Inch Lift Kit w/ 4-Link - FOX 2.5 Performance Elite Coil-Over Conversion - Ford F250/F350 Super Duty (11-16) 4WD - Diesel;Installation Time:8-10 Hrs;Installation Difficulty:difficult;Rear Lift Height:3 IN;Front Lift Method:Coil Spring;Rear Lift Method:Leaf Spring;Front Lift Height:6 IN;Rear Lift Option:Factory 2 Inch Rear Blocks;Shocks Included:Yes
