PAC-HP10164-AL

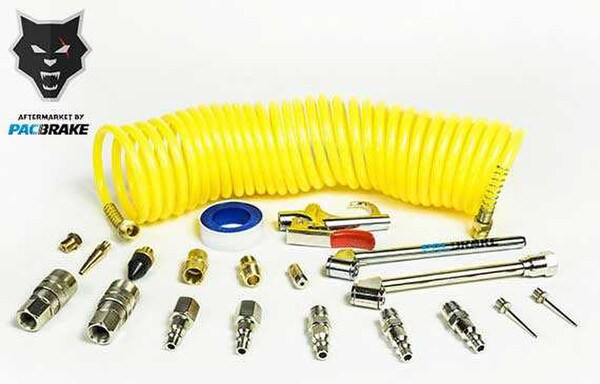

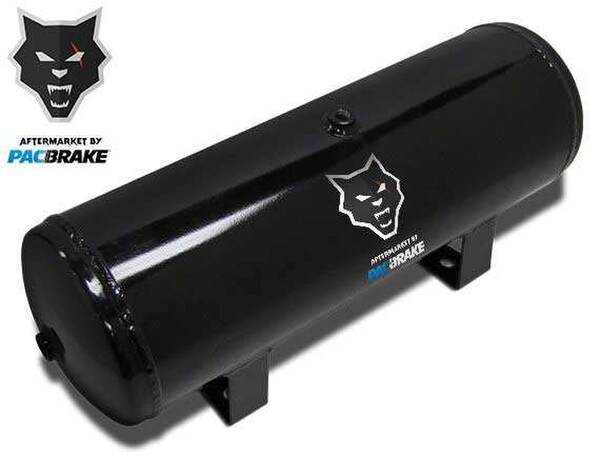

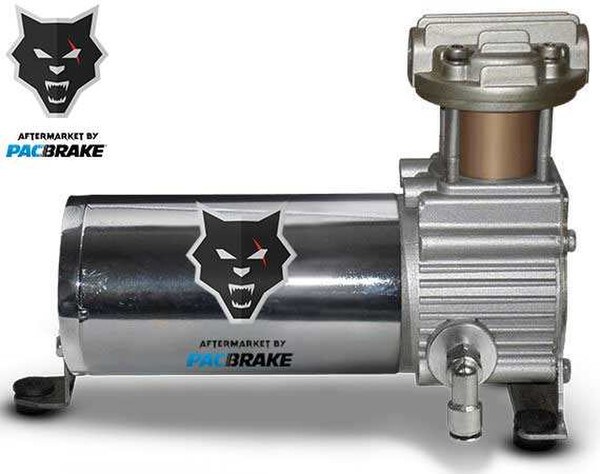

Onboard Air Kit with 2 1/2 Gallon Aluminum Air tank consists of air compressor, air tank, fittings, pressure switch, relay (s), electrical connectors and required accessories. Each Onboard Air System comes complete with: HP325 Series 12V DC compressor (Part Number HP10143). 2 1/2 Gallon aluminum air tank . Fittings. Pressure switch. Relay(s). Electrical connectors and all applicable accessories. Compressor Specifications: (Part Number HP10143)-12 VDC. 100 percent (1 Hour at 100 PSI) duty cycle. 1/4 HP. Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm. Weight is 5.5 lbs. Air Tank Specifications: 2 1/2 gallon capacity. 5-3/8' NPT ports. Rust inhibitor applied to inside of tank. Max working pressure 150 PSI. Size is 21.0 inch x 6.9 inch x 8.9 inch (LxWxH). Weight is 9.8 lbs. Welded on mounting brackets.Compressor features: A copper wire wound permanent magnet motor Oil-less design Sealed bearings PTFE piston ring Cast aluminum cylinder head Hard anodized aluminum cylinder and aluminum sleeve
