24-25 Toyota Tacoma (4WD - Coil) Suspension Lift Kit - ICON Vehicle Dynamics - K53291

SUSPENSION SYSTEM K53291 OEM Wheels and Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.

5 with 5.

75” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.

00” Backspace / 25mm Offset Recommended Aftermarket Tires: 33" x 11.

50" (Larger tires may fit but fender trimming and modifications will be required.

) APPLICATION NOTE #55: Shocks are fully serviceable.

Lift heights indicated are for a stock equipped vehicle.

APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle.

Increasing weight of vehicle due to accessories will alter lift range.

APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs APPLICATION NOTE #169: 4WD models require front differential drop part # 55160 APPLICATION NOTE #202: ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift APPLICATION NOTE #205: Included rear shocks are compatible with 0-1" of rear lift over stock APPLICATION NOTE #206: This kit is configured for fitment on 4WD models.

If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality.

2WD specific kits are coming soon! 24-25 TACOMA 1.

25-3" STAGE 1 SUSPENSION SYSTEM ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind.

ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind.

ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road.

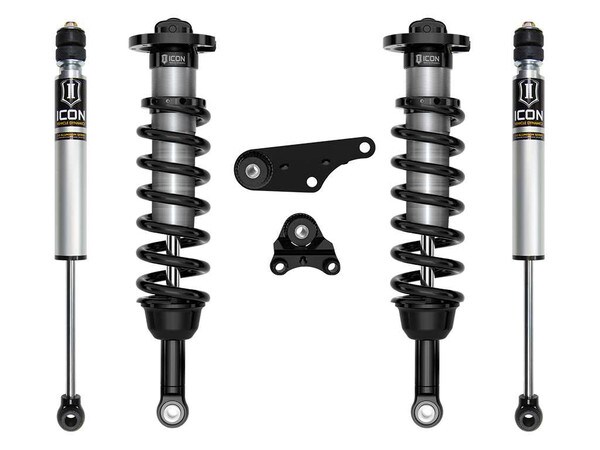

The Stage 1 system includes vehicle-specific tuned 2.

5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel.

These coilovers are height adjustable from 1.

25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations.

The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind.

Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.

ICON 2.

0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.

The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Vehicle specific tuned front and rear shocks for superior shock damping and control Increased wheel travel and improved ride quality over stock Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models Adjustable coilovers provide 1.

25-3" front lift height over stock 6061 aircraft grade aluminum CNC machined components Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts ICON engineered coil springs FK Rod End bearings for extended longevity and minimal deflection 2.

0 Aluminum Series internal reservoir rear shocks with 5/8" shafts ICON 2024-2025 Toyota Tacoma 1.

25-3" Lift, Stage 1 Suspension System, K53291 ICON 2024-2025 Toyota Tacoma 1.

25-3" Lift, Stage 1 Suspension System ICON 24-25 TACOMA 1.

25-3" STAGE 1 SUSPENSION SYSTEM.
