2003 - 2007 DODGE RAM 5.9L GDP AIR-BOSS CR Intake Plenum & Grid Delete - 0307-ABIP

(0)No Reviews yet
SKU: 0307-ABIP
BRAND: Glacier Diesel Power
$471.15



Details

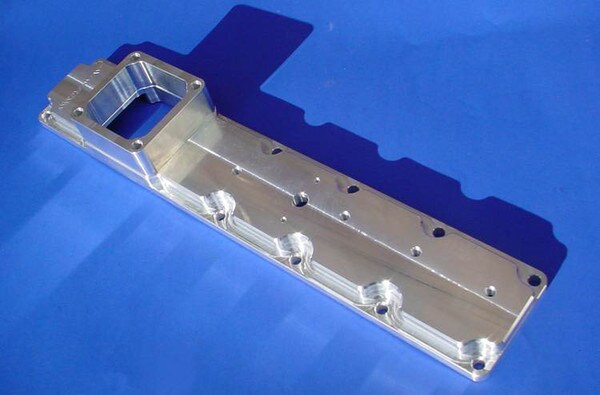

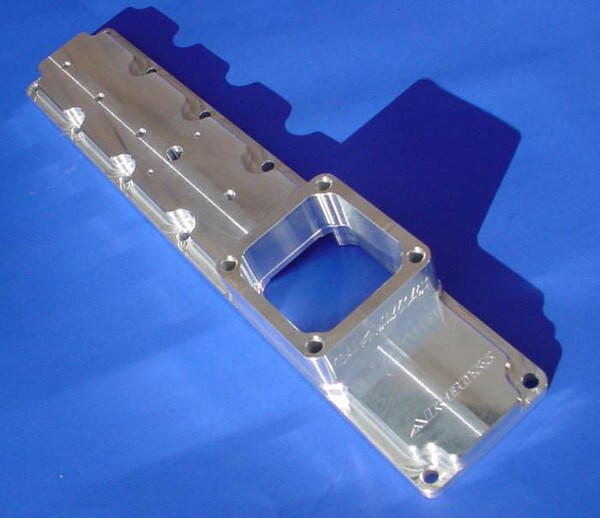

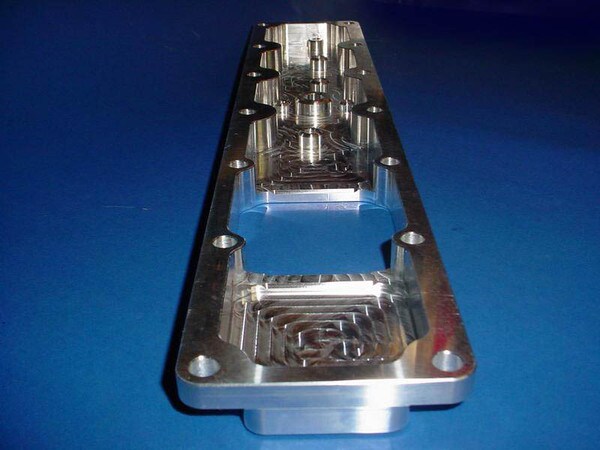

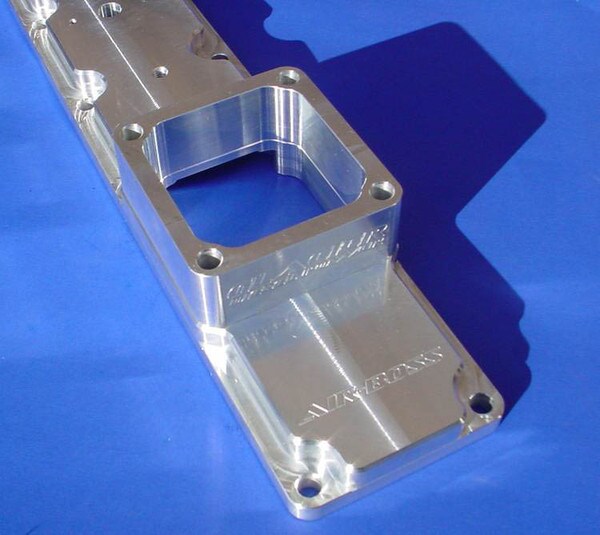

'03-'07 Dodge Ram 5.9L Glacier Diesel Power Air-Boss CR Intake Plenum Cover & Grid Delete

EGT's running too high? Can't use all of the fuel you have available? The GDP Air-Boss intake plate gives the largest flow increase possible short of milling the cast plenum off the head and installing a fabricated intake plenum such as the ZZ Fab unit.

The Air-Boss plenum isn't just a replacement flat aluminum plate as seen in other designs. The Air-Boss is a true, elevated plate designed to flow as much air as possible to cylinders 4, 5, and 6. We've all have seen the head gasket failures between the hottest running #5 and #6 cylinders. With our plate design we open up the plenum area to the starving rear cylinder by a full 30%. By increasing airflow to the rear cylinders we reduce EGT's and allow you to run even higher fueling levels.

The Air-Boss plenum kit also includes a shortened grid heater delete block to maintain the factory IC piping to intake manifold connection geometry . Maintaining this geometry makes the Air-Boss plenum compatible with ALL aftermarket intake manifolds and the stock mounting hardware.

Grid Heater options:

  • The standard Air-Boss CR kit includes a custom height grid heater delete block.
  • For colder climates we now offer the Air-Boss CR with a grid heater option. This option uses the factory grid heater (no delete included) and custom length stainless steel studs to accomodate the increased plenum height of the Air-Boss CR.
  • For customers that want to swap back and forth between the heater and delete block we also offer both items in one package.

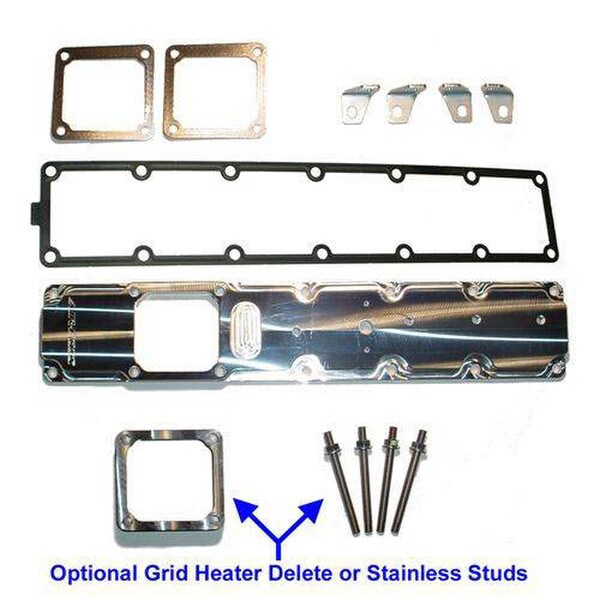

Kit includes:

  • Air-Boss Intake Plenum Cover
  • Factory Gaskets
  • Custom Height Grid Delete Block and/or Optional Stainless Steel Studs
  • Shortened injector line retaining brackets

Fitments

  • 2003 Dodge Ram 2500 5.9L DIESEL
  • 2003 Dodge Ram 3500 5.9L DIESEL
  • 2004 Dodge Ram 2500 5.9L DIESEL
  • 2004 Dodge Ram 3500 5.9L DIESEL
  • 2005 Dodge Ram 2500 5.9L DIESEL
  • 2005 Dodge Ram 3500 5.9L DIESEL
  • 2006 Dodge Ram 2500 5.9L DIESEL
  • 2006 Dodge Ram 3500 5.9L DIESEL
  • 2007 Dodge Ram 2500 5.9L DIESEL
  • 2007 Dodge Ram 2500 6.7L DIESEL
  • 2007 Dodge Ram 3500 5.9L DIESEL
  • 2007 Dodge Ram 3500 6.7L DIESEL
