20 Gallon Passenger Side Undercarriage Fresh Water Tank for 2015-2024 Ford Transit 148" & 148" EXT - S&B Filters - 10-3015

The S&B 20 gallon passenger side undercarriage fresh water tank is made from food-grade safe, BPA-free polyethylene plastic and is TEI listed. Our tanks are perfect for your home build or build needing RVIA certification. We make our tanks in-house and pressure test every tank.

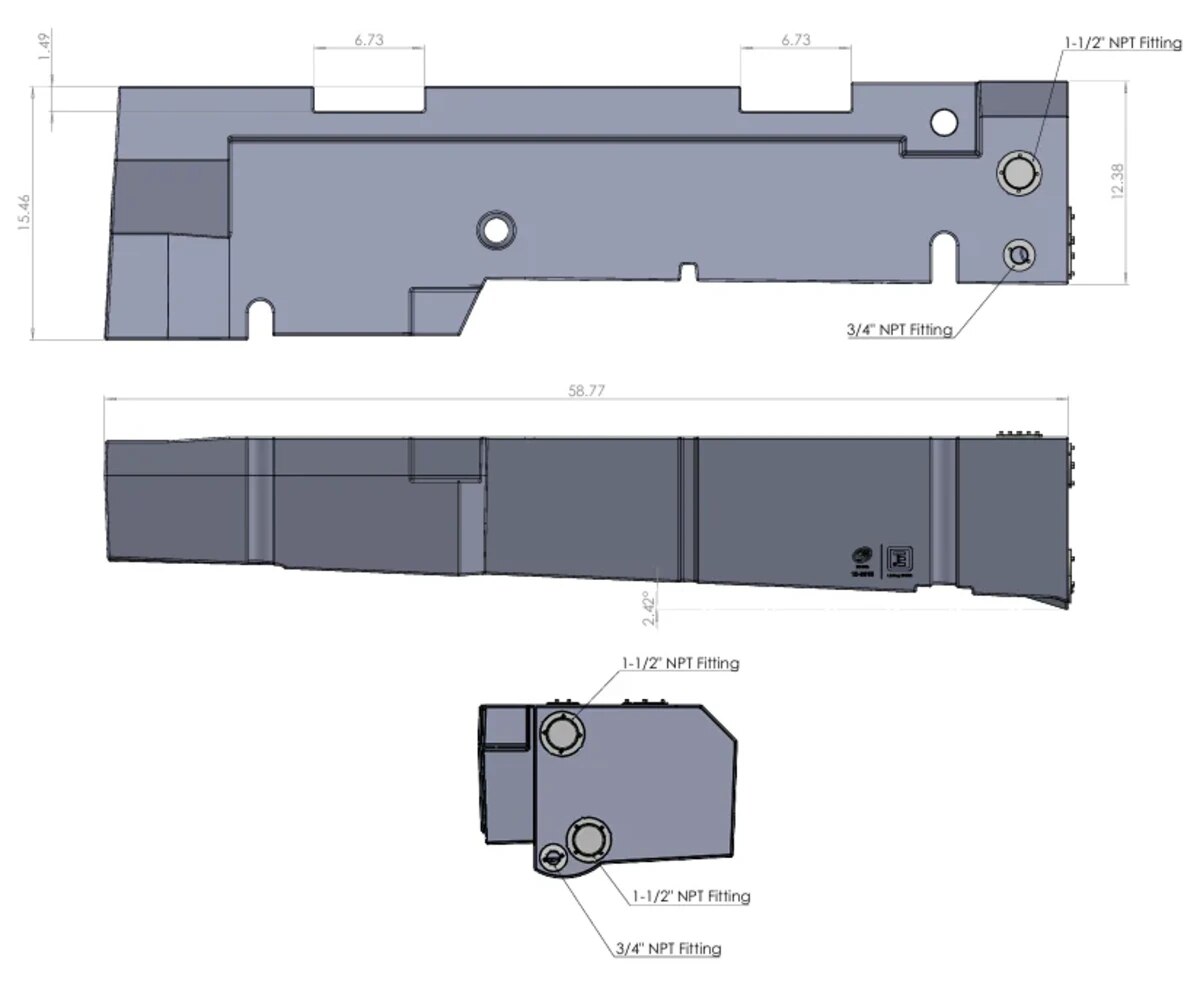

Tank Dimensions:

59" Length x 15.86" Width x 10.55" Height

* Tank dimensions are approximate. Dimensions can vary up to .5".

Confirm you don't have anything installed in the way of the tank before ordering. Works with factory Transit & Transit Trail running boards & Owl running boards. If you want to know if your running boards will fit, text pictures to 909.675.1313. Can be used as a grey or fresh water tank.

TEI Tested & Listed / RVIA Approved.

Water Tank Overview

Check out our overview video detailing the installation process and features of the S&B 20 Gallon water tank for the Ford Transit.

Tank Dimensions

• 2015 Ford Transit-150 3.2L DIESEL
• 2015 Ford Transit-150 3.5L GAS
• 2015 Ford Transit-150 3.7L CNG
• 2015 Ford Transit-150 3.7L FLEX
• 2015 Ford Transit-150 3.7L LPG
• 2015 Ford Transit-250 3.2L DIESEL
• 2015 Ford Transit-250 3.5L GAS
• 2015 Ford Transit-250 3.7L CNG
• 2015 Ford Transit-250 3.7L FLEX
• 2015 Ford Transit-250 3.7L LPG
• 2015 Ford Transit-350 HD 3.2L DIESEL
• 2015 Ford Transit-350 HD 3.5L GAS
• 2015 Ford Transit-350 HD 3.7L CNG
• 2015 Ford Transit-350 HD 3.7L FLEX
• 2015 Ford Transit-350 HD 3.7L LPG
• 2015 Ford Transit-350 3.2L DIESEL
• 2015 Ford Transit-350 3.5L GAS
• 2015 Ford Transit-350 3.7L CNG
• 2015 Ford Transit-350 3.7L FLEX
• 2015 Ford Transit-350 3.7L LPG
• 2016 Ford Transit-150 3.2L DIESEL
• 2016 Ford Transit-150 3.5L GAS
• 2016 Ford Transit-150 3.7L CNG
• 2016 Ford Transit-150 3.7L FLEX
• 2016 Ford Transit-150 3.7L LPG
• 2016 Ford Transit-250 3.2L DIESEL
• 2016 Ford Transit-250 3.5L GAS
• 2016 Ford Transit-250 3.7L CNG
• 2016 Ford Transit-250 3.7L FLEX
• 2016 Ford Transit-250 3.7L LPG
• 2016 Ford Transit-350 HD 3.2L DIESEL
• 2016 Ford Transit-350 HD 3.5L GAS
• 2016 Ford Transit-350 HD 3.7L CNG
• 2016 Ford Transit-350 HD 3.7L FLEX
• 2016 Ford Transit-350 HD 3.7L LPG
• 2016 Ford Transit-350 3.2L DIESEL
• 2016 Ford Transit-350 3.5L GAS
• 2016 Ford Transit-350 3.7L CNG
• 2016 Ford Transit-350 3.7L FLEX
• 2016 Ford Transit-350 3.7L LPG
• 2017 Ford Transit-150 3.2L DIESEL
• 2017 Ford Transit-150 3.5L GAS
• 2017 Ford Transit-150 3.7L CNG
• 2017 Ford Transit-150 3.7L FLEX
• 2017 Ford Transit-150 3.7L LPG
• 2017 Ford Transit-250 3.2L DIESEL
• 2017 Ford Transit-250 3.5L GAS
• 2017 Ford Transit-250 3.7L CNG
• 2017 Ford Transit-250 3.7L FLEX
• 2017 Ford Transit-250 3.7L LPG
• 2017 Ford Transit-350 HD 3.2L DIESEL
• 2017 Ford Transit-350 HD 3.5L GAS
• 2017 Ford Transit-350 HD 3.7L CNG
• 2017 Ford Transit-350 HD 3.7L FLEX
• 2017 Ford Transit-350 HD 3.7L LPG
• 2017 Ford Transit-350 3.2L DIESEL
• 2017 Ford Transit-350 3.5L GAS
• 2017 Ford Transit-350 3.7L CNG
• 2017 Ford Transit-350 3.7L FLEX
• 2017 Ford Transit-350 3.7L LPG
• 2018 Ford Transit-150 3.2L DIESEL
• 2018 Ford Transit-150 3.5L GAS
• 2018 Ford Transit-150 3.7L CNG
• 2018 Ford Transit-150 3.7L FLEX
• 2018 Ford Transit-150 3.7L GAS
• 2018 Ford Transit-150 3.7L LPG
• 2018 Ford Transit-250 3.2L DIESEL
• 2018 Ford Transit-250 3.5L GAS
• 2018 Ford Transit-250 3.7L CNG
• 2018 Ford Transit-250 3.7L FLEX
• 2018 Ford Transit-250 3.7L GAS
• 2018 Ford Transit-250 3.7L LPG
• 2018 Ford Transit-350 HD 3.2L DIESEL
• 2018 Ford Transit-350 HD 3.5L GAS
• 2018 Ford Transit-350 HD 3.7L CNG
• 2018 Ford Transit-350 HD 3.7L FLEX
• 2018 Ford Transit-350 HD 3.7L GAS
• 2018 Ford Transit-350 HD 3.7L LPG
• 2018 Ford Transit-350 3.2L DIESEL
• 2018 Ford Transit-350 3.5L GAS
• 2018 Ford Transit-350 3.7L CNG
• 2018 Ford Transit-350 3.7L FLEX
• 2018 Ford Transit-350 3.7L GAS
• 2018 Ford Transit-350 3.7L LPG
• 2019 Ford Transit-150 3.2L DIESEL
• 2019 Ford Transit-150 3.5L GAS
• 2019 Ford Transit-150 3.7L CNG
• 2019 Ford Transit-150 3.7L FLEX
• 2019 Ford Transit-150 3.7L GAS
• 2019 Ford Transit-150 3.7L LPG
• 2019 Ford Transit-250 3.2L DIESEL
• 2019 Ford Transit-250 3.5L GAS
• 2019 Ford Transit-250 3.7L CNG
• 2019 Ford Transit-250 3.7L FLEX
• 2019 Ford Transit-250 3.7L GAS
• 2019 Ford Transit-250 3.7L LPG
• 2019 Ford Transit-350 HD 3.2L DIESEL
• 2019 Ford Transit-350 HD 3.5L GAS
• 2019 Ford Transit-350 HD 3.7L CNG
• 2019 Ford Transit-350 HD 3.7L FLEX
• 2019 Ford Transit-350 HD 3.7L GAS
• 2019 Ford Transit-350 HD 3.7L LPG
• 2019 Ford Transit-350 3.2L DIESEL
• 2019 Ford Transit-350 3.5L GAS
• 2019 Ford Transit-350 3.7L CNG
• 2019 Ford Transit-350 3.7L FLEX
• 2019 Ford Transit-350 3.7L GAS
• 2019 Ford Transit-350 3.7L LPG
• 2020 Ford Transit-150 3.5L FLEX
• 2020 Ford Transit-150 3.5L GAS
• 2020 Ford Transit-250 3.5L FLEX
• 2020 Ford Transit-250 3.5L GAS
• 2020 Ford Transit-350 HD 3.5L FLEX
• 2020 Ford Transit-350 HD 3.5L GAS
• 2020 Ford Transit-350 3.5L FLEX
• 2020 Ford Transit-350 3.5L GAS
• 2021 Ford Transit-150 3.5L FLEX
• 2021 Ford Transit-150 3.5L GAS
• 2021 Ford Transit-250 3.5L FLEX
• 2021 Ford Transit-250 3.5L GAS
• 2021 Ford Transit-350 HD 3.5L FLEX
• 2021 Ford Transit-350 HD 3.5L GAS
• 2021 Ford Transit-350 3.5L FLEX
• 2021 Ford Transit-350 3.5L GAS
• 2022 Ford Transit-150 3.5L FLEX
• 2022 Ford Transit-150 3.5L GAS
• 2022 Ford Transit-250 3.5L FLEX
• 2022 Ford Transit-250 3.5L GAS
• 2022 Ford Transit-350 HD 3.5L FLEX
• 2022 Ford Transit-350 HD 3.5L GAS
• 2022 Ford Transit-350 3.5L FLEX
• 2022 Ford Transit-350 3.5L GAS
• 2023 Ford Transit-150 3.5L FLEX
• 2023 Ford Transit-150 3.5L GAS
• 2023 Ford Transit-250 3.5L FLEX
• 2023 Ford Transit-250 3.5L GAS
• 2023 Ford Transit-350 HD 3.5L FLEX
• 2023 Ford Transit-350 HD 3.5L GAS
• 2023 Ford Transit-350 3.5L FLEX
• 2023 Ford Transit-350 3.5L GAS
