2013-2018 RAM 2500/3500 5.7L/6.4L/6.7L Transmission Fluid Thermal Bypass Valve - Pacific Performance Engineering - 225065000
Details
Transmission Fluid Thermal Bypass Valve Ram

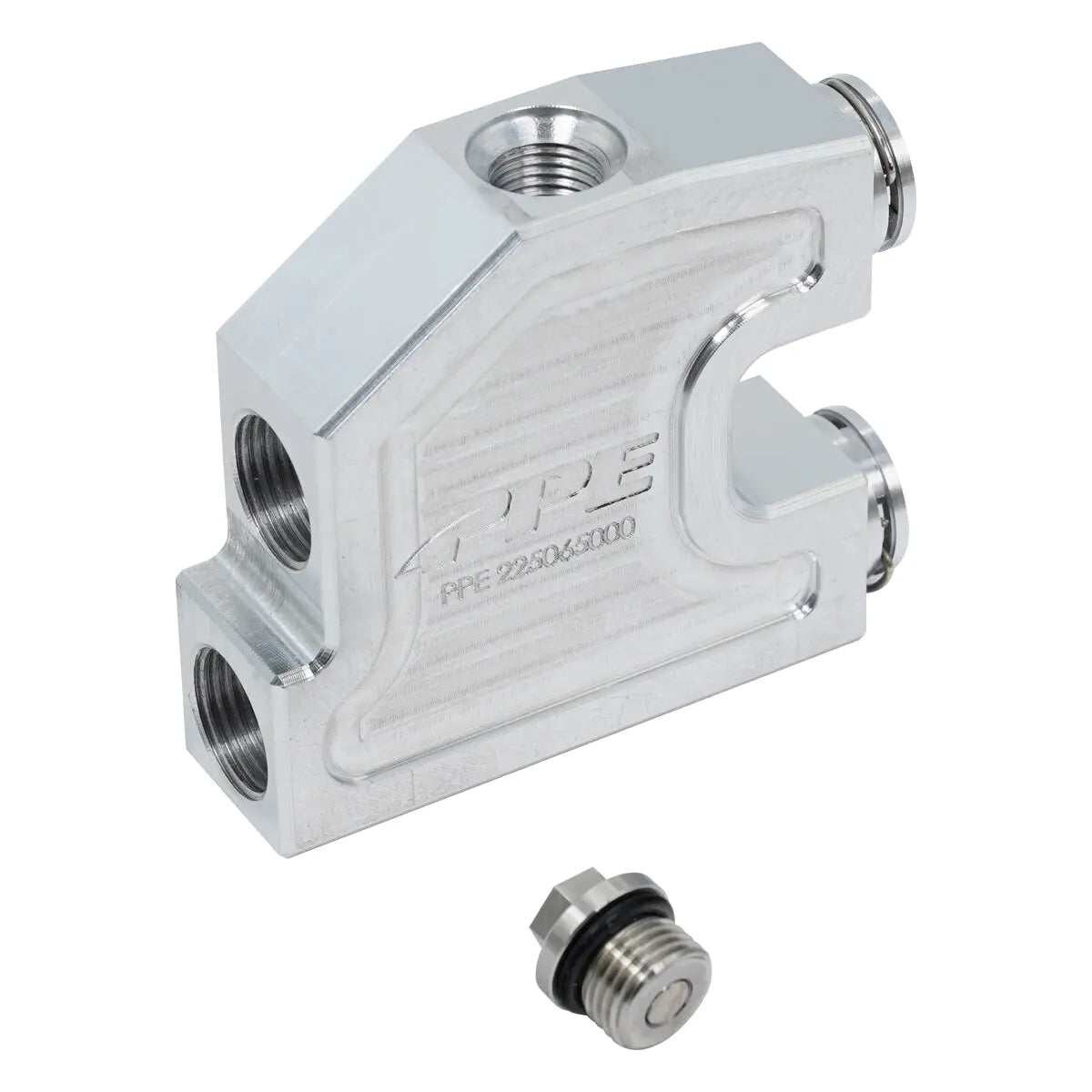

Say goodbye to transmission overheating and add another measure of protection with this easy-to-install billet aluminum PPE Transmission Fluid Thermal Bypass Valve.
The factory thermal bypass valve has an integrated thermostat that cuts off/limits flow even when it fully opens. Restricted flow often results in high operating temperatures and even overheating, which can cause permanent damage to transmission components. The PPE TBV eliminates the extremely restrictive factory thermostat, providing uninterrupted, unrestricted flow to the transmission cooler at all times.

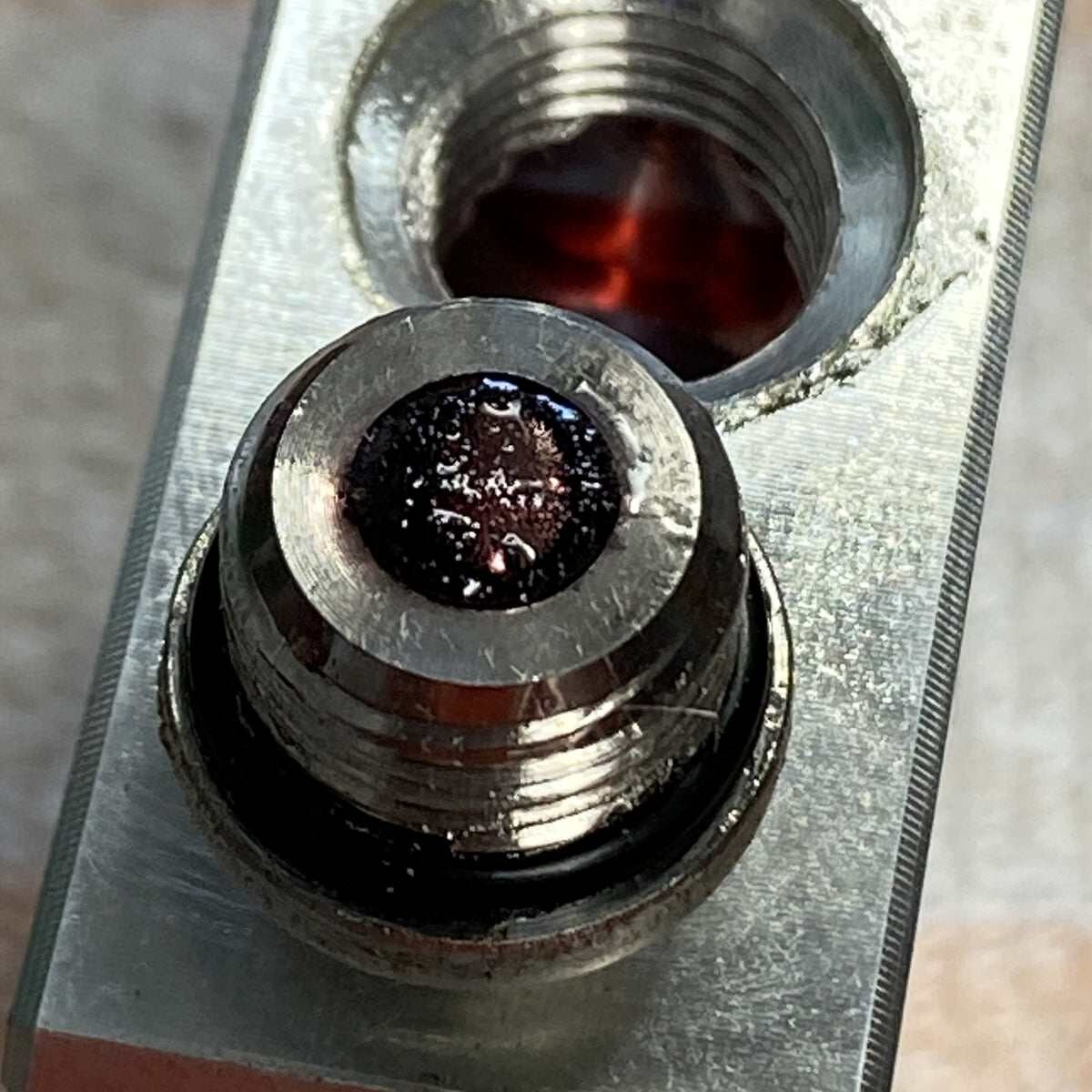

For further protection, a service plug with a built-in neodymium magnet is integrated to the PPE bypass valve. This powerful plug captures ferrous debris before they make their way to the transmission cooler, preventing the cooler from being clogged up. For servicing, simply remove the plug and wipe it clean.
Service Plug Part Number 138051005
Fitments
- 2014 Ram 2500 6.4L GAS
- 2014 Ram 3500 6.4L GAS
- 2015 Ram 2500 6.4L GAS
- 2015 Ram 3500 6.4L GAS
- 2016 Ram 2500 6.4L GAS
- 2016 Ram 3500 6.4L GAS
- 2017 Ram 2500 6.4L GAS
- 2017 Ram 3500 6.4L GAS
- 2018 Ram 2500 6.4L GAS
- 2018 Ram 3500 6.4L GAS
