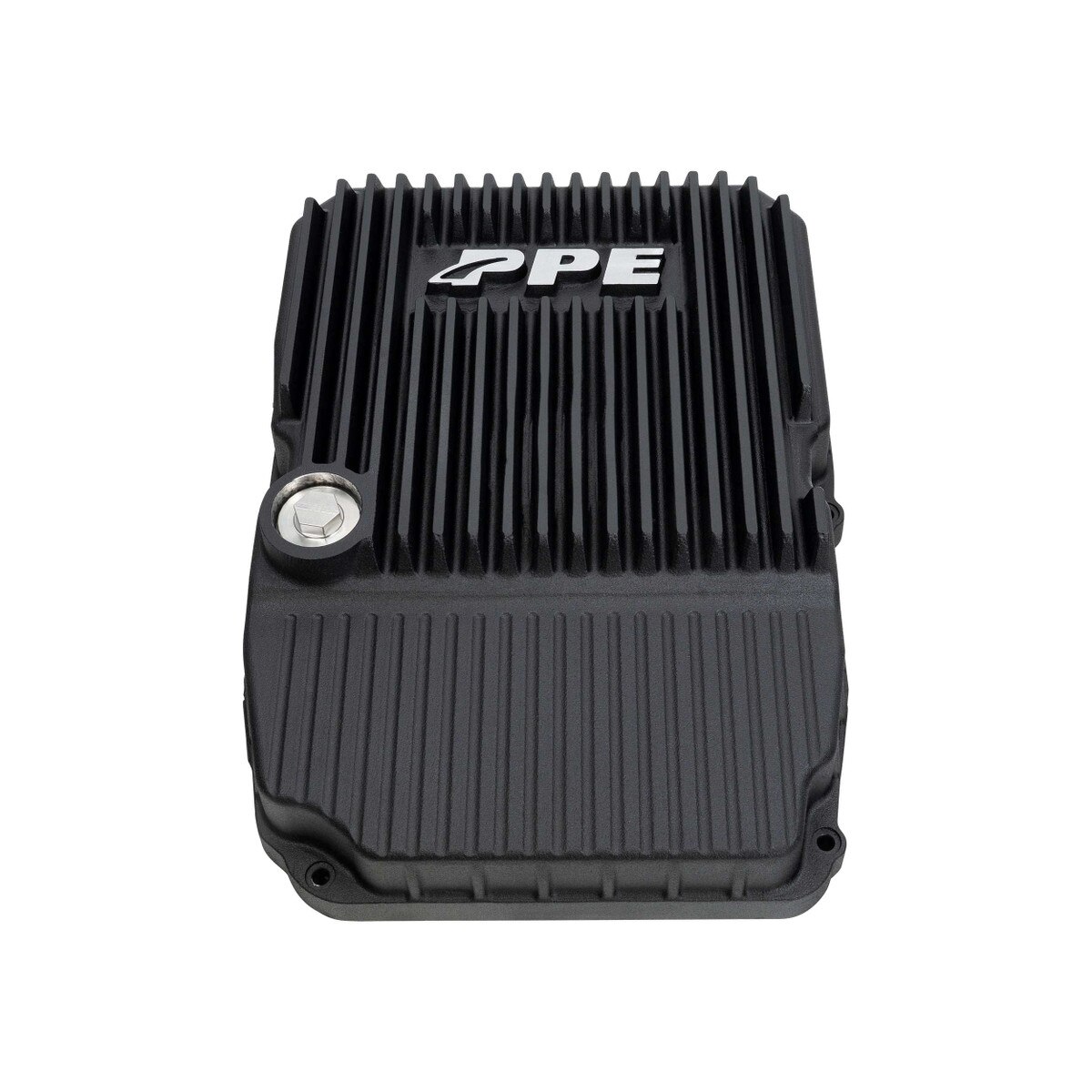

2005-2019 Jeep/Dodge/Chrysler WA580, W5A580, NAG1 Heavy-Duty Cast Aluminum Transmission Pan - Black - Pacific Performance Engineering - 228053520

Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.

Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 3/4 quart of additional fluid capacity, ensuring long-lasting heat management and performance.

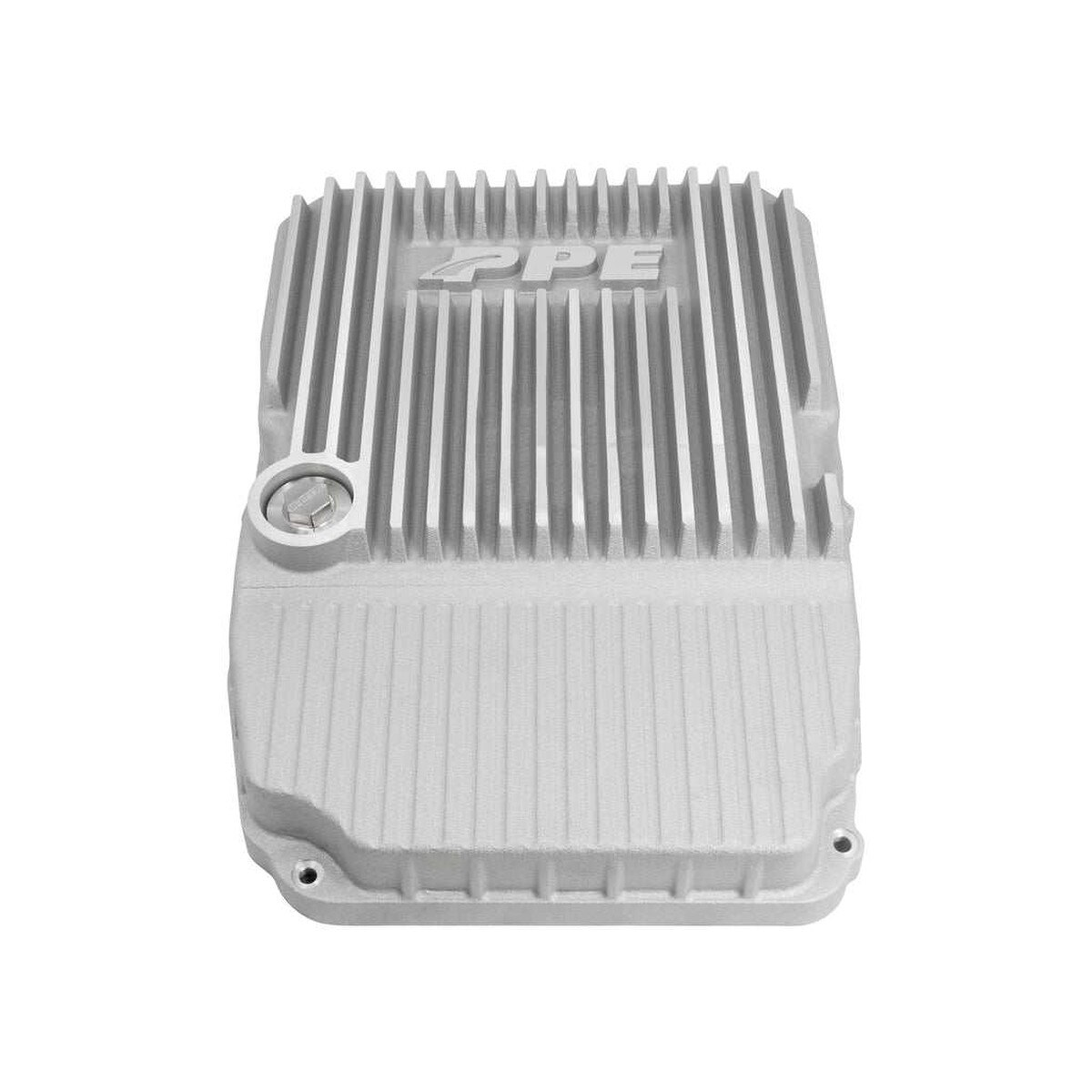

The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.

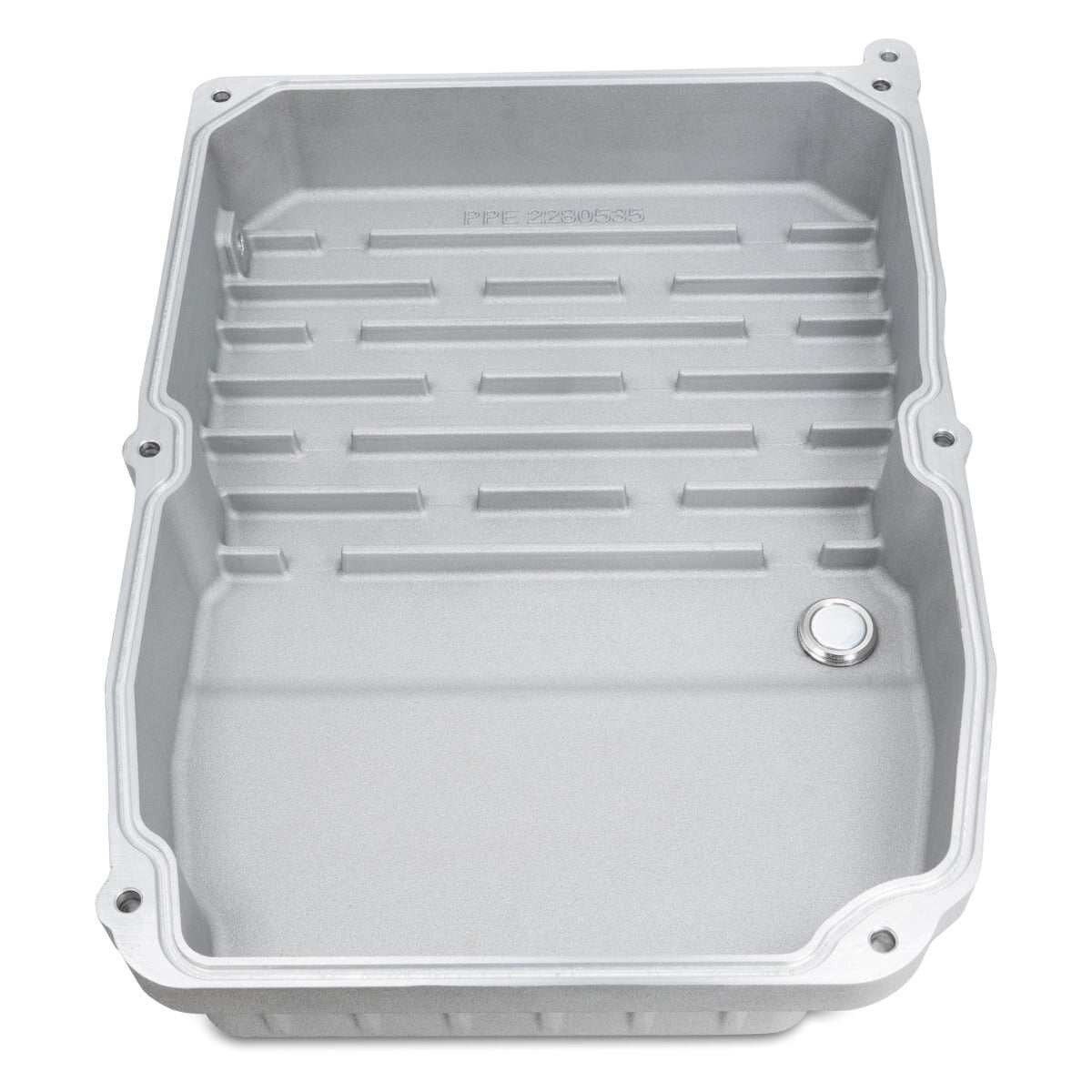

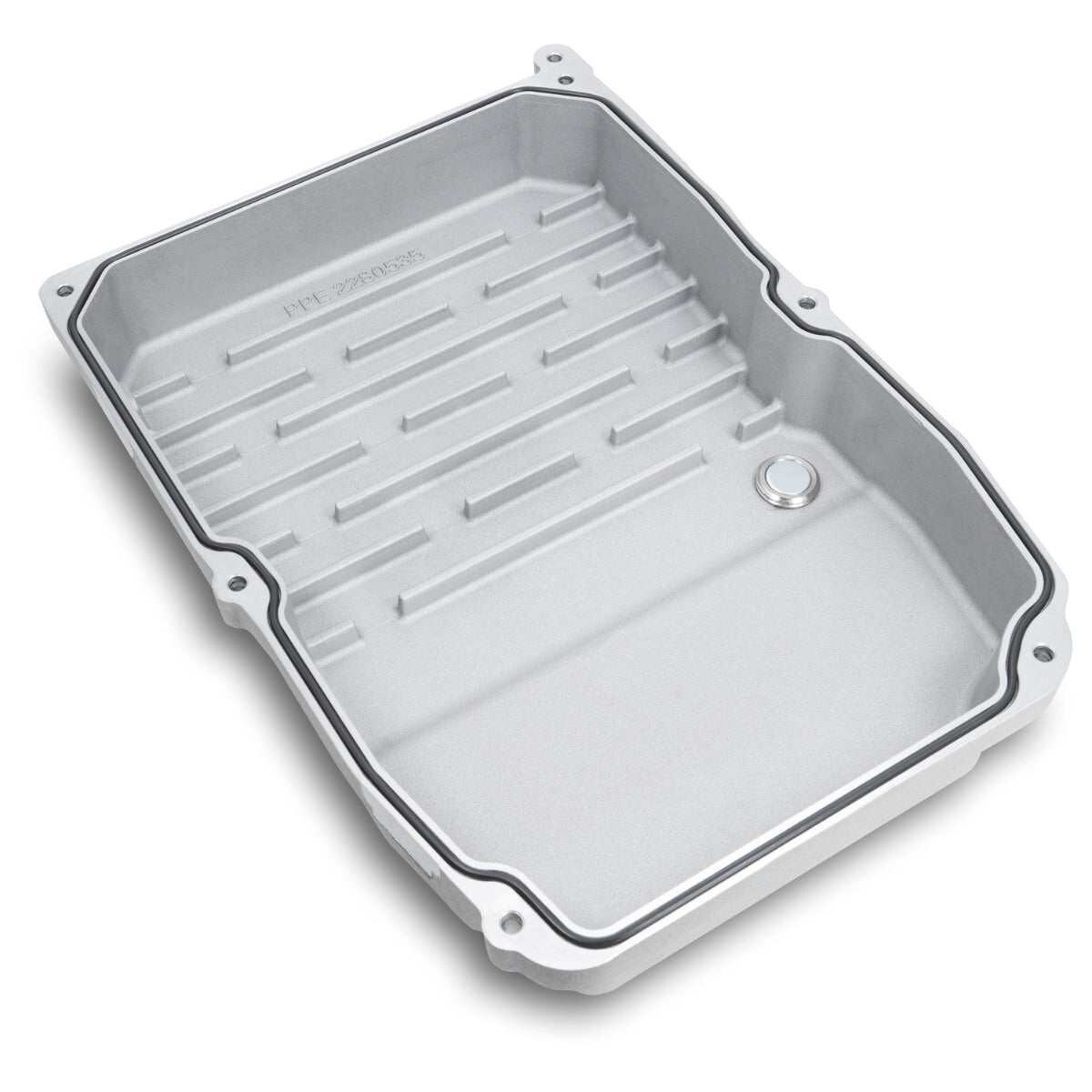

The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.

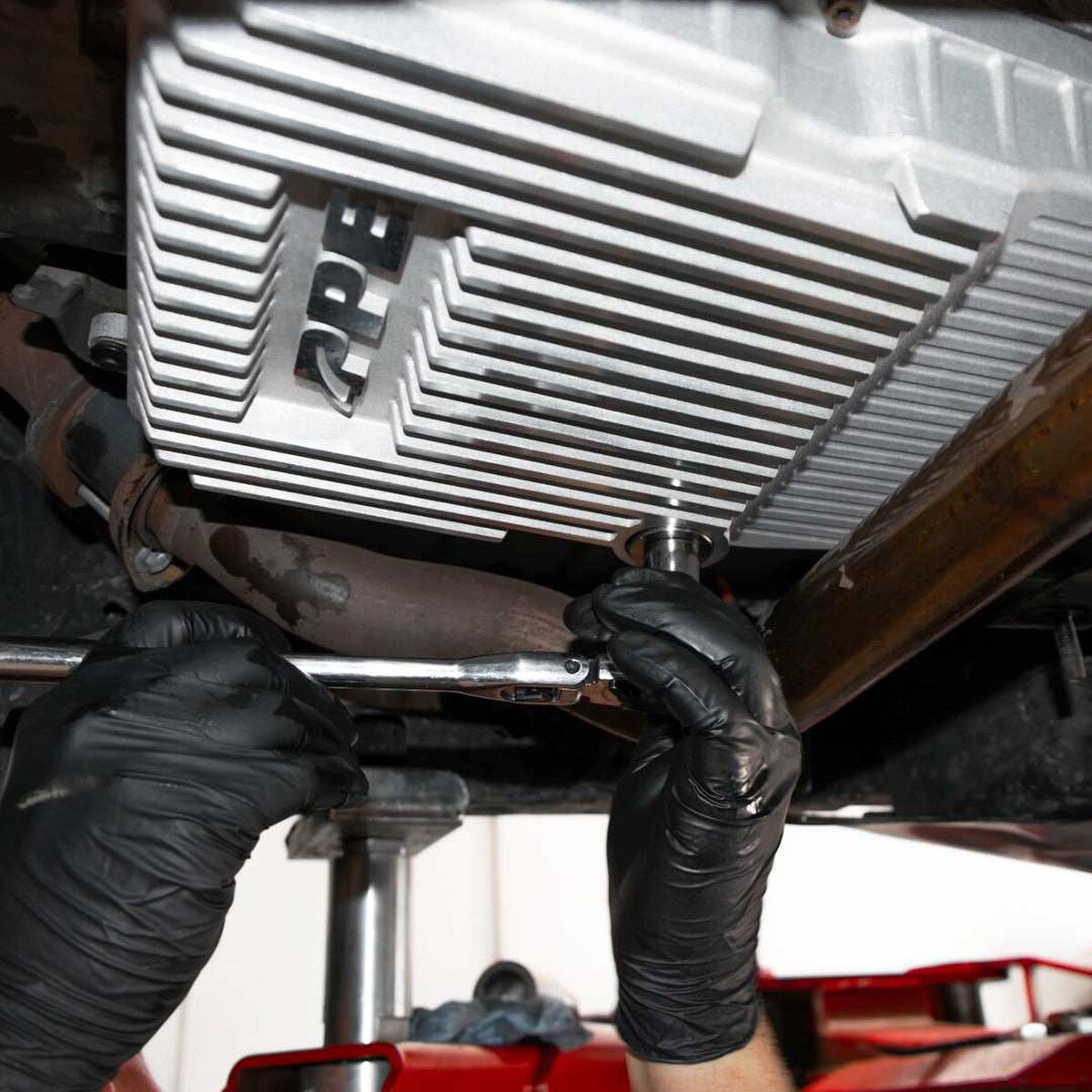

The drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission.

Keep your 5-speed transmission running longer, healthier, and cooler with PPE.

Note: Requires the use of an exhaust spacer kit or aftermarket Y-pipe in 12-18 Jeep Wrangler JK applications for extra exhaust pipe clearance.

• 2005 Chrysler 300 5.7L GAS
• 2005 Jeep Grand Cherokee 5.7L GAS
• 2006 Chrysler 300 5.7L GAS
• 2006 Dodge Charger 5.7L GAS
• 2006 Jeep Grand Cherokee 5.7L GAS
• 2007 Chrysler 300 5.7L GAS
• 2007 Dodge Charger 5.7L GAS
• 2007 Jeep Grand Cherokee 5.7L GAS
• 2008 Chrysler 300 5.7L GAS
• 2008 Dodge Charger 5.7L GAS
• 2008 Jeep Grand Cherokee 5.7L GAS
• 2009 Chrysler 300 5.7L GAS
• 2009 Dodge Challenger 5.7L GAS
• 2009 Dodge Charger 5.7L GAS
• 2009 Jeep Grand Cherokee 5.7L GAS
• 2010 Chrysler 300 5.7L GAS
• 2010 Dodge Challenger 5.7L GAS
• 2010 Dodge Charger 5.7L GAS
• 2010 Jeep Grand Cherokee 5.7L GAS
• 2011 Chrysler 300 5.7L GAS
• 2011 Dodge Challenger 5.7L GAS
• 2011 Dodge Charger 5.7L GAS
• 2011 Dodge Durango 5.7L GAS
• 2011 Jeep Grand Cherokee 5.7L GAS
• 2012 Chrysler 300 5.7L GAS
• 2012 Dodge Challenger 5.7L GAS
• 2012 Dodge Charger 5.7L GAS
• 2012 Dodge Durango 5.7L GAS
• 2012 Jeep Grand Cherokee 5.7L GAS
• 2013 Chrysler 300 5.7L GAS
• 2013 Dodge Challenger 5.7L GAS
• 2013 Dodge Charger 5.7L GAS
• 2013 Dodge Durango 5.7L GAS
• 2013 Jeep Grand Cherokee 5.7L GAS
• 2014 Chrysler 300 5.7L GAS
• 2014 Dodge Challenger 5.7L GAS
• 2014 Dodge Charger 5.7L GAS
• 2015 Dodge Charger 5.7L GAS
• 2016 Dodge Charger 5.7L GAS
• 2017 Dodge Charger 5.7L GAS
• 2018 Dodge Charger 5.7L GAS
• 2019 Dodge Charger 5.7L GAS
