2009-2014 Ford F150 6R80, 2017-2022 Super Duty 6R100 Heavy-Duty Cast Aluminum Transmission Pan - Brushed - Pacific Performance Engineering - 328051110

6R80/6R100 Cast Aluminum Deep Transmission Pan

Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.

Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 4.25 quarts of additional fluid capacity, ensuring long-lasting heat management and performance.

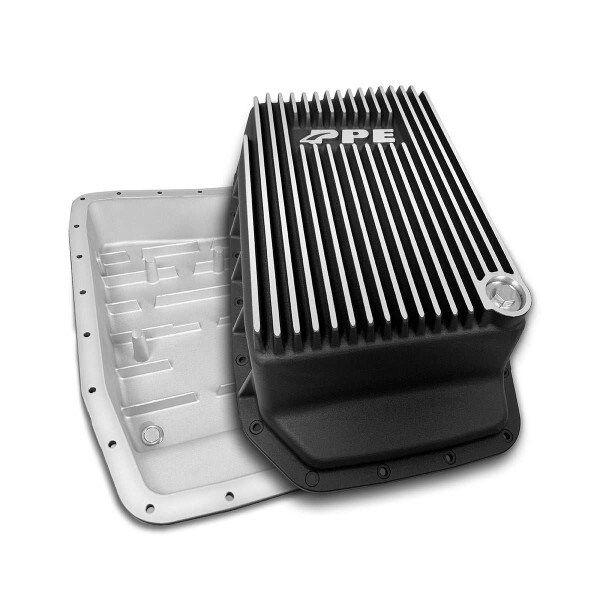

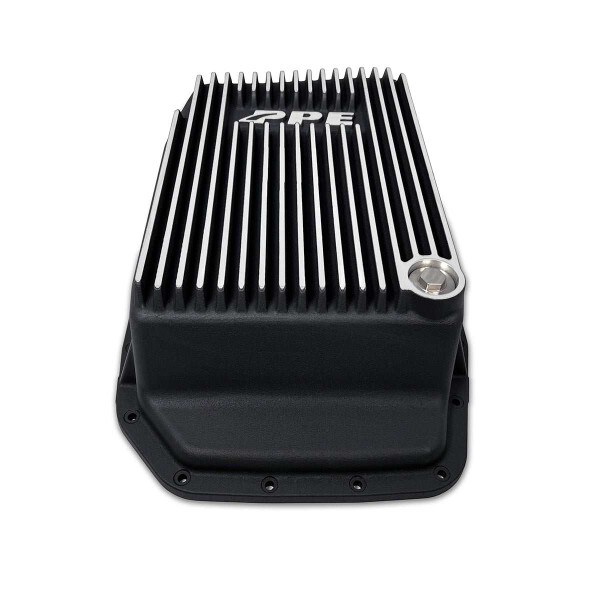

The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.

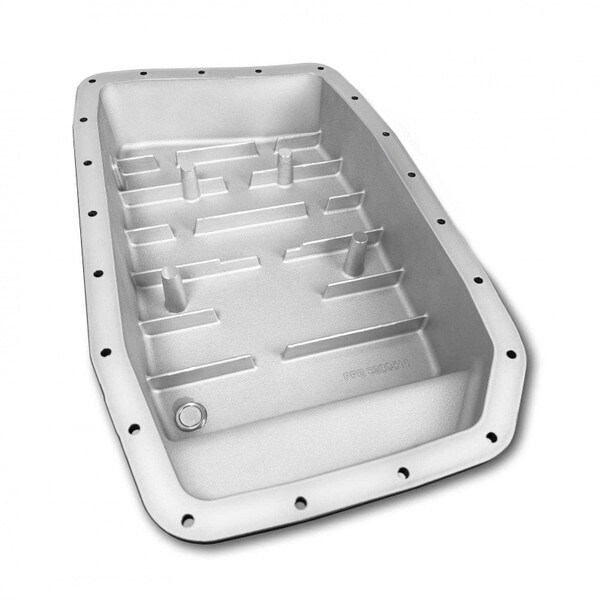

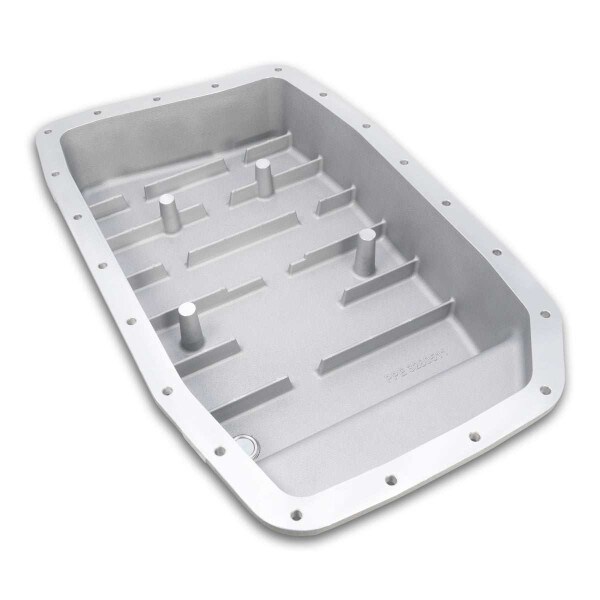

The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.

The drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission. The built-in filter supports ensure proper filter placement.

Keep your 6 speed transmission running longer, healthier, and cooler with PPE.

For 2015-2017 Ford F150, see SKU 3280512XX, which offers more clearance for the exhaust Y-pipe.

• 2010 Ford F-150 6.2L GAS
• 2011 Ford F-150 6.2L GAS
• 2012 Ford F-150 6.2L GAS
• 2013 Ford F-150 6.2L GAS
• 2014 Ford F-150 6.2L GAS
• 2017 Ford F-250 Super Duty 6.2L FLEX
• 2017 Ford F-350 Super Duty 6.2L FLEX
• 2018 Ford F-250 Super Duty 6.2L FLEX
• 2018 Ford F-350 Super Duty 6.2L FLEX
• 2019 Ford F-250 Super Duty 6.2L FLEX
• 2019 Ford F-350 Super Duty 6.2L FLEX
