Extreme Plus Brake System Front 02-08 Dodge Ram 1500 And 09-24 Ram 1500 Classic Body Trucks Hugger Orange 19-24 Classic Body - BAER Brakes - 4141022HO

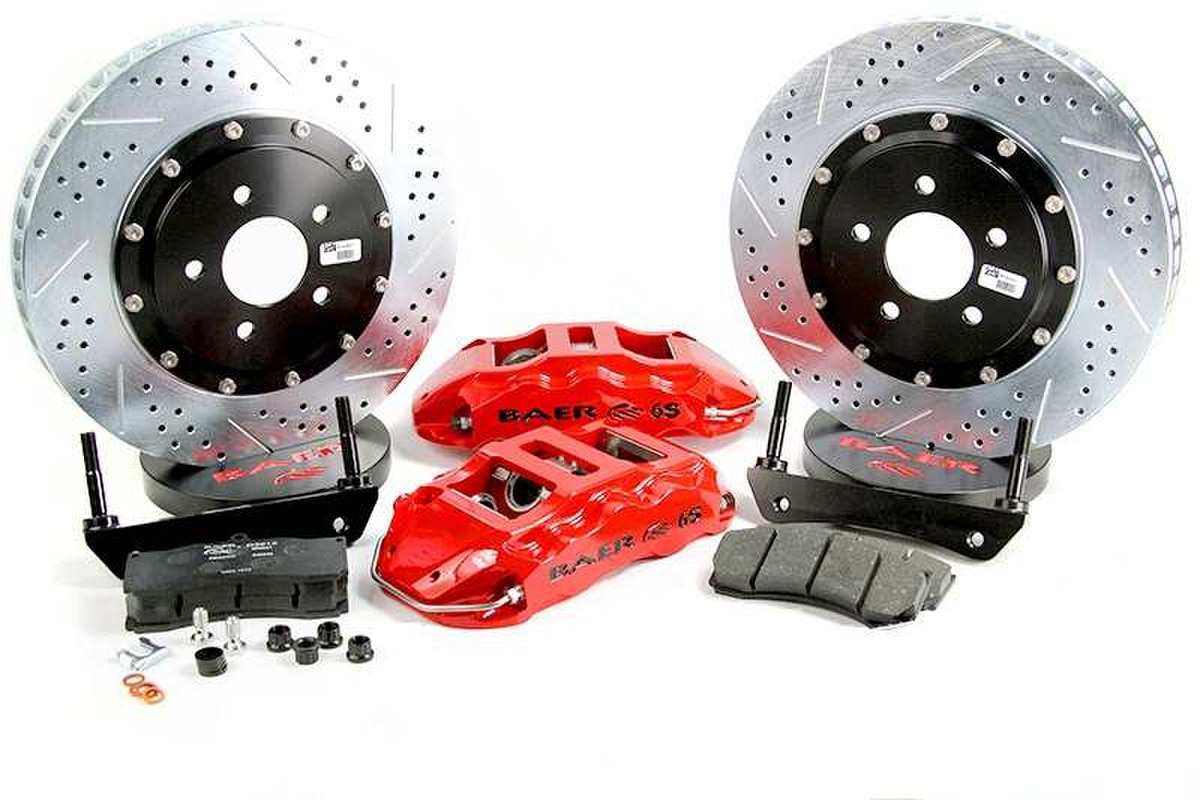

The Extreme Plus system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 15 inch, 2 piece slot, drill, zinc plated rotor. compliant dust and weather seals and uses the popular D1247 pad type.

Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets and hardware are also included.

The 15 inch Extreme Plus fits most 19 inch or larger wheels.

Features and Benefits:

• 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, Az
• CNC Machined from Us Sourced 2618 Aluminum Forging
• Powder Coated Finish
• Stainless Steel Pistons, Abutments and Noise Suppression Clips
• Staggered Pistons to Minimize Uneven Pad Wear
• Dual Seals, Dust/Weather & Pressure
• 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat

Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.

Details:

• Fitment Notes: 19-24 Classic Body
• Caliper: 6S

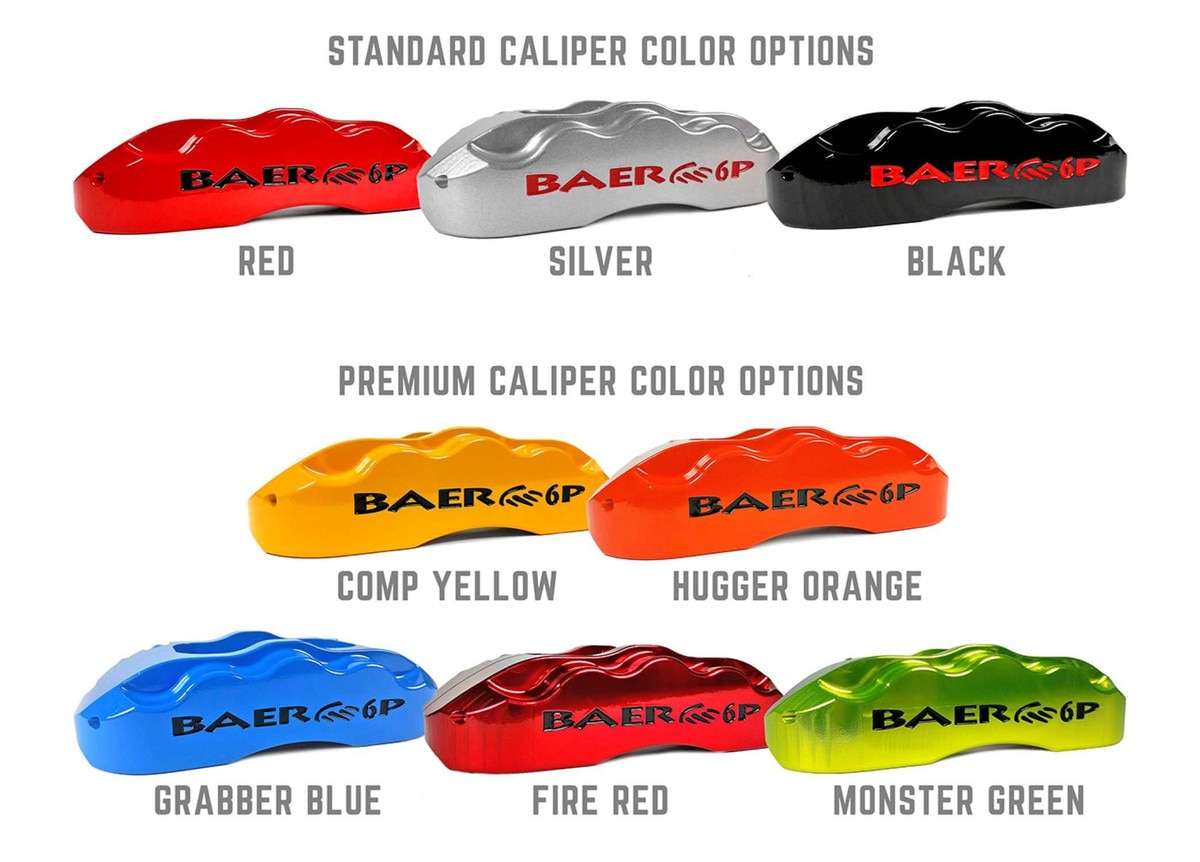

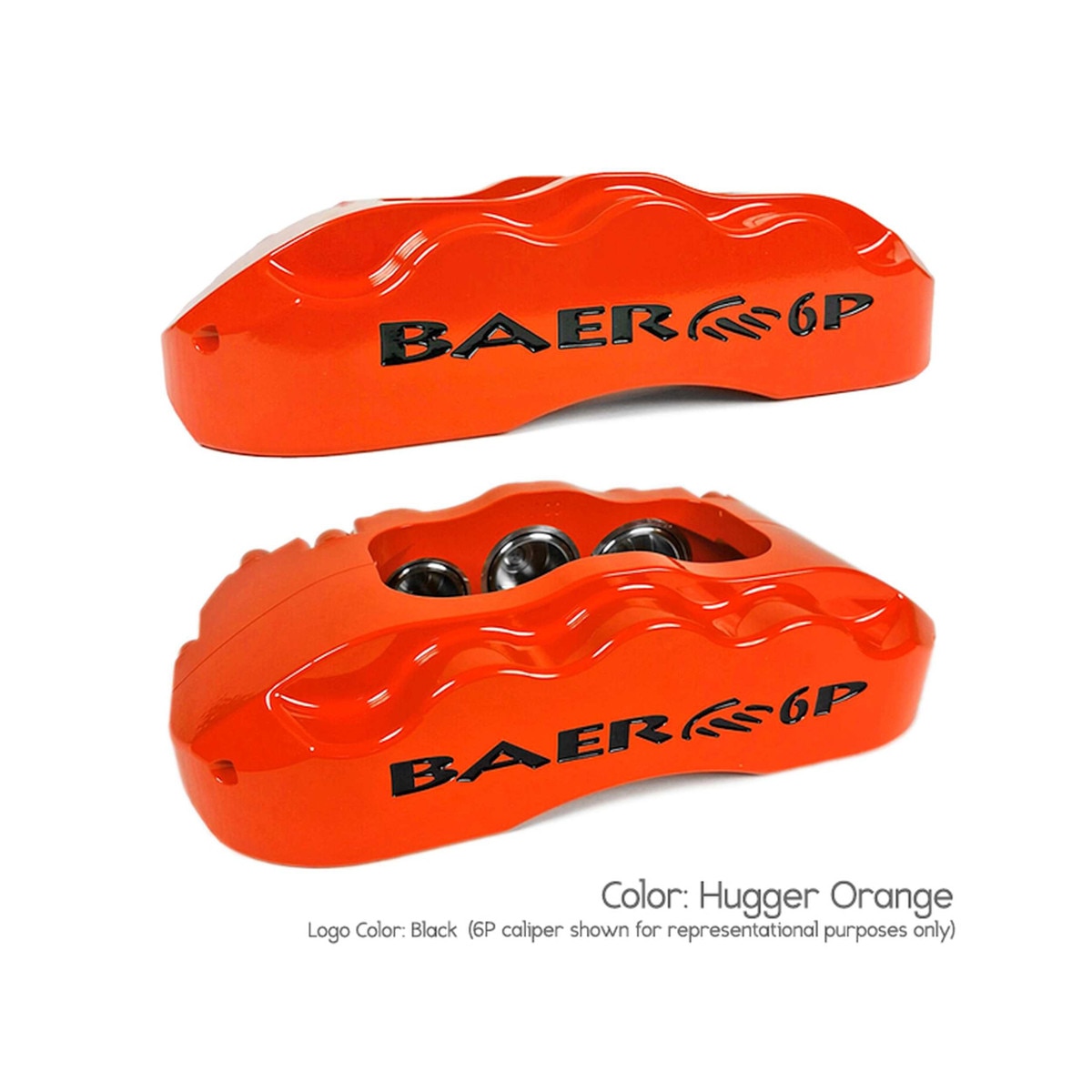

• Caliper Color: Hugger Orange
• Disc Brake Rotor (Front) Outside Diameter: 15.0 Inch
• Applications: Dodge/Ram 1500 Trucks 02-25
• Axle: Front
• Disc Brake Caliper (Front) Piston Quantity: 6
• Disc Brake Caliper (Front) Type: Fixed
• Disc Brake Pad FMSI Number: D1247
• Disc Brake Rotor (Front) Construction: Vented
• Emission Code: 6
• Export Description: Brake Components
• Grade Type: Performance
• Hose Material: Re-uses OE Hoses
• Lug Count: 5 Lug
• Min Wheel Diameter: 19.0 Inch
• Rotor Thickness: 1.25
• Rotor Type: 2-Piece
• Surface Type: Slotted, Drilled and Zinc Plated
• Template: N118U

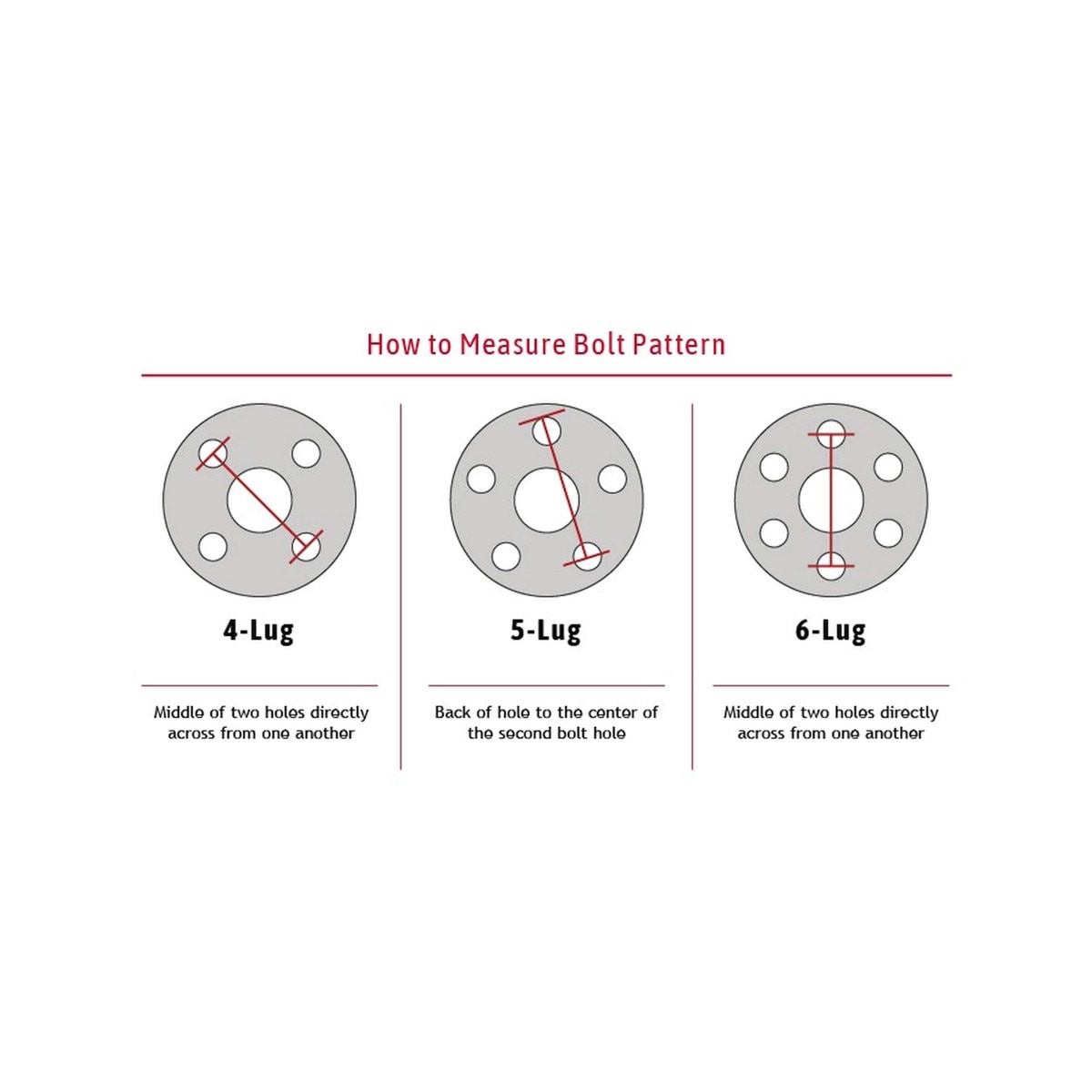

• Wheel Lug/Bolt Pattern: 5x139.7mm

• 2002 Dodge Ram 1500 3.7L GAS
• 2002 Dodge Ram 1500 4.7L GAS
• 2002 Dodge Ram 1500 5.9L GAS
• 2003 Dodge Ram 1500 3.7L GAS
• 2003 Dodge Ram 1500 4.7L GAS
• 2003 Dodge Ram 1500 5.7L GAS
• 2003 Dodge Ram 1500 5.9L GAS
• 2004 Dodge Ram 1500 3.7L GAS
• 2004 Dodge Ram 1500 4.7L FLEX
• 2004 Dodge Ram 1500 4.7L GAS
• 2004 Dodge Ram 1500 5.7L GAS
• 2004 Dodge Ram 1500 8.3L GAS
• 2005 Dodge Ram 1500 3.7L GAS
• 2005 Dodge Ram 1500 4.7L FLEX
• 2005 Dodge Ram 1500 4.7L GAS
• 2005 Dodge Ram 1500 5.7L GAS
• 2005 Dodge Ram 1500 8.3L GAS
• 2006 Dodge Ram 1500 3.7L GAS
• 2006 Dodge Ram 1500 4.7L FLEX
• 2006 Dodge Ram 1500 4.7L GAS
• 2006 Dodge Ram 1500 5.7L GAS
• 2006 Dodge Ram 1500 8.3L GAS
• 2007 Dodge Ram 1500 3.7L GAS
• 2007 Dodge Ram 1500 4.7L FLEX
• 2007 Dodge Ram 1500 4.7L GAS
• 2007 Dodge Ram 1500 5.7L GAS
• 2008 Dodge Ram 1500 3.7L GAS
• 2008 Dodge Ram 1500 4.7L FLEX
• 2008 Dodge Ram 1500 4.7L GAS
• 2008 Dodge Ram 1500 5.7L GAS
• 2009 Dodge Ram 1500 3.7L GAS
• 2009 Dodge Ram 1500 4.7L FLEX
• 2009 Dodge Ram 1500 5.7L GAS
• 2010 Dodge Ram 1500 3.7L GAS
• 2010 Dodge Ram 1500 4.7L FLEX
• 2010 Dodge Ram 1500 5.7L GAS
• 2011 Ram 1500 3.7L GAS
• 2011 Ram 1500 4.7L FLEX
• 2011 Ram 1500 5.7L GAS
• 2012 Ram 1500 3.7L GAS
• 2012 Ram 1500 4.7L FLEX
• 2012 Ram 1500 5.7L GAS
• 2013 Ram 1500 3.6L FLEX
• 2013 Ram 1500 4.7L FLEX
• 2013 Ram 1500 5.7L GAS
• 2014 Ram 1500 3.0L DIESEL
• 2014 Ram 1500 3.6L FLEX
• 2014 Ram 1500 5.7L GAS
• 2015 Ram 1500 3.0L DIESEL
• 2015 Ram 1500 3.6L FLEX
• 2015 Ram 1500 5.7L GAS
• 2016 Ram 1500 3.0L DIESEL
• 2016 Ram 1500 3.6L FLEX
• 2016 Ram 1500 5.7L GAS
• 2017 Ram 1500 3.0L DIESEL
• 2017 Ram 1500 3.6L FLEX
• 2017 Ram 1500 5.7L GAS
• 2018 Ram 1500 3.0L DIESEL
• 2018 Ram 1500 3.6L FLEX
• 2018 Ram 1500 5.7L GAS
• 2019 Ram 1500 Classic 3.0L DIESEL
• 2019 Ram 1500 Classic 3.6L FLEX
• 2019 Ram 1500 Classic 5.7L GAS
• 2020 Ram 1500 Classic 3.6L FLEX
• 2020 Ram 1500 Classic 5.7L GAS
• 2021 Ram 1500 Classic 3.6L FLEX
• 2021 Ram 1500 Classic 5.7L GAS
• 2022 Ram 1500 Classic 3.6L FLEX
• 2022 Ram 1500 Classic 5.7L GAS
• 2023 Ram 1500 Classic 3.6L FLEX
• 2023 Ram 1500 Classic 5.7L GAS
• 2024 Ram 1500 Classic 3.6L FLEX
• 2024 Ram 1500 Classic 5.7L GAS
