S4 Brake System Front 76-80 Dodge Aspen 73-74 Challenger 73-78 Charger 73-76 Coronet 73-76 Dart 78-79 Monoaco And 73-74 Plymouth Barracuda 73-76 Duster 75-78 Fury 73-75 Roadrunner 73-74 Satellite Hugger Orange - BAER Brakes - 4141049HO

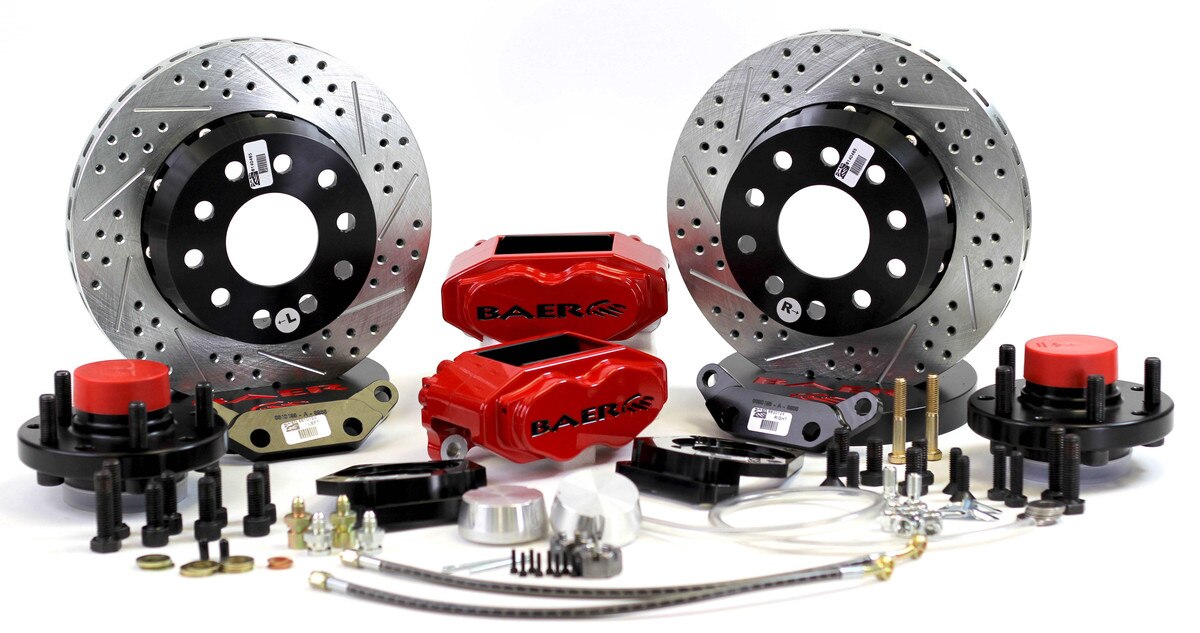

This system features the 4-piston, S4 caliper mounted to a 11 inch, 2 piece slot, drill, zinc plated rotor. T compliant dust and weather seals and uses the popular DR1 or HB100 pad type.

Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. Rotors are pre-assembled with NAS high grade stainless hardware.

All mounting brackets, stainless braided hoses and hardware are also included. The 11 inch SS4 Plus is designed just like Baer's larger systems, but in a smaller package for 15 inch wheels.

Features and Benefits:

• 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, Az
• CNC Machined from Us Sourced Forged or Billet Aluminum
• Powder Coated Finish
• Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
• Dual Seals, Dust/Weather & Pressure
• 2-Piece Slot, Drilled, Zinc-Plate Rotor

Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.

Details:

• Fitment Notes: w/OE Disc Brake Spindles
• Caliper: S4

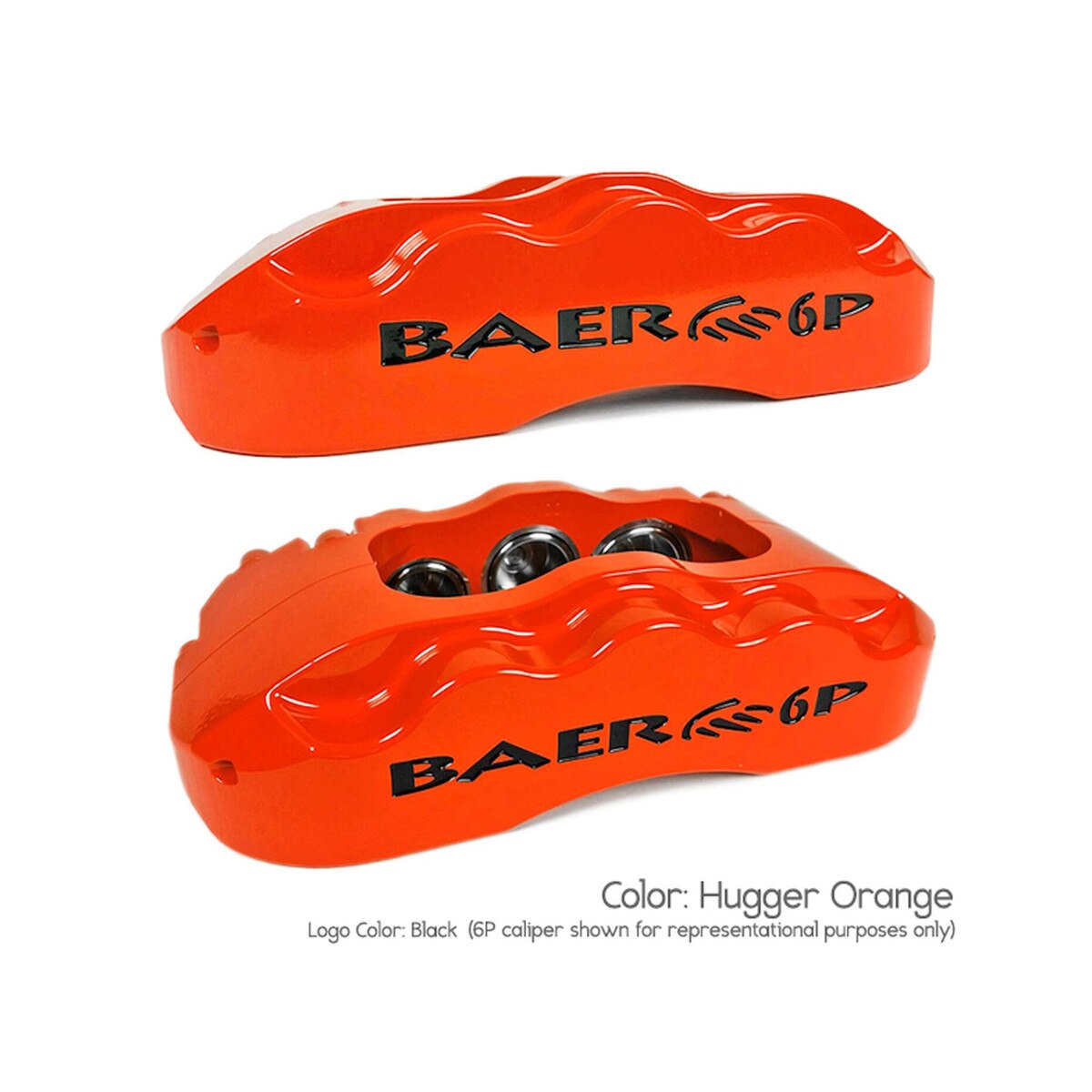

• Caliper Color: Hugger Orange
• Disc Brake Rotor (Front) Outside Diameter: 11.0 Inch
• Applications: Plymouth Duster 73-76, Plymouth Volare 76-80, Plymouth Barracuda 73-74, Dodge Dart 73-76, Plymouth Fury 75-78, Dodge Charger 73-78, Dodge Coronet 73-76, Dodge Monoaco 79, Plymouth Satellite 73-74, Dodge Aspen 76-80, Plymouth Roadrunner 73-75, Dodge Challenger 73-74
• Axle: Front
• Brake Hose DOT Approved: Yes
• Disc Brake Caliper (Front) Piston Quantity: 4
• Disc Brake Caliper (Front) Type: Fixed
• Disc Brake Pad FMSI Number: DR1
• Disc Brake Rotor (Front) Construction: Vented
• Emission Code: 6
• Export Description: Brake Components
• Grade Type: Performance
• Hose Material: Steel Braided
• Lug Count: 5 Lug
• Min Wheel Diameter: 15.0 Inch
• Rotor Thickness: 1.02
• Rotor Type: 2-Piece
• Spindle Type: Mopar E/B-Body Disc (1973-80)
• Spindles Included: No
• Surface Type: Slotted, Drilled and Zinc Plated
• Template: S125A

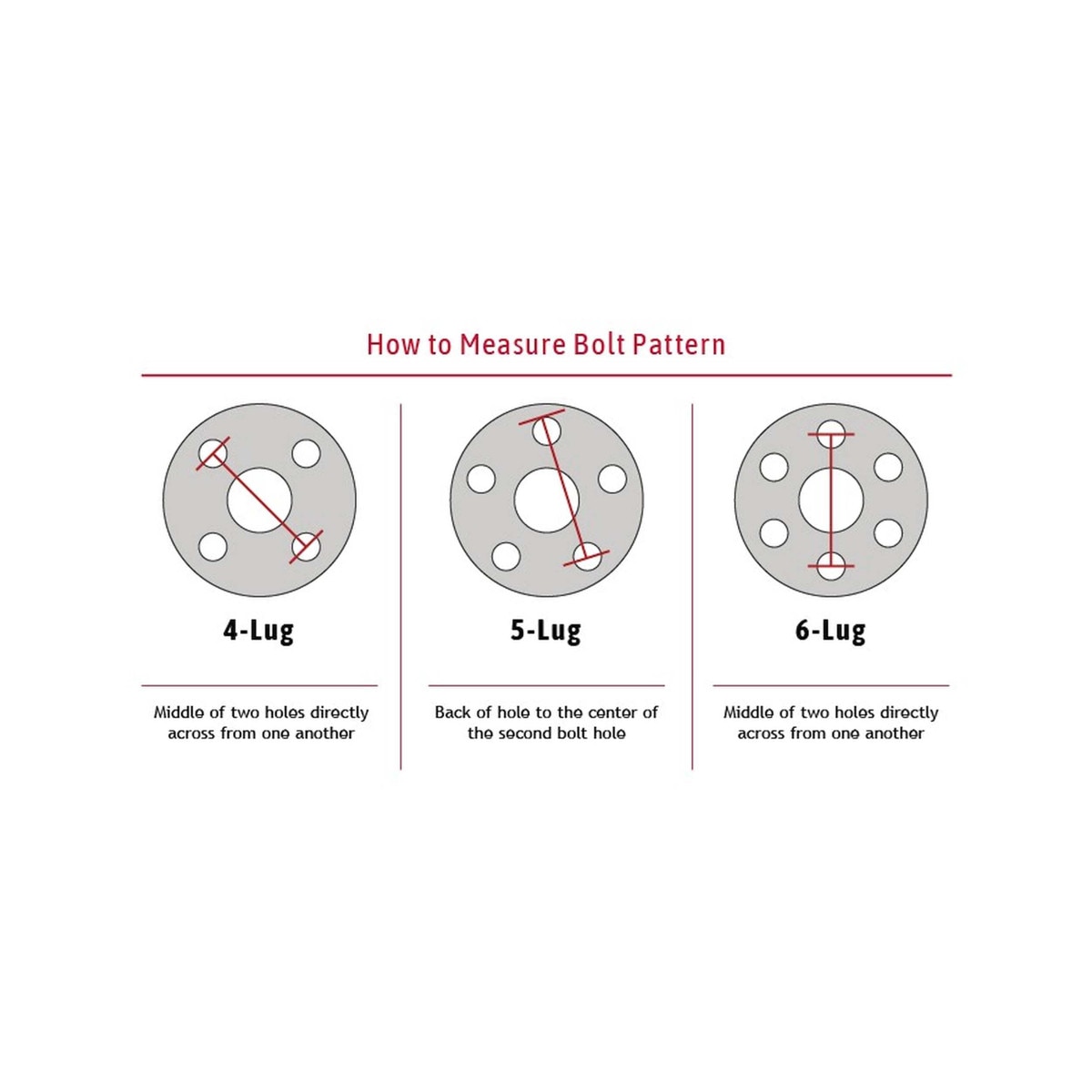

• Wheel Lug/Bolt Pattern: 5x4.50
• Wheel Stud Size: 1/2-20 x 2.25 Inch

• 1973 Dodge Challenger 5.2L GAS
• 1973 Dodge Challenger 5.6L GAS
• 1973 Dodge Challenger 5.9L GAS
• 1973 Dodge Challenger 6.6L GAS
• 1973 Dodge Charger 3.7L GAS
• 1973 Dodge Charger 5.2L GAS
• 1973 Dodge Charger 5.6L GAS
• 1973 Dodge Charger 5.9L GAS
• 1973 Dodge Charger 6.6L GAS
• 1973 Dodge Charger 7.2L GAS
• 1973 Dodge Coronet 3.7L GAS
• 1973 Dodge Coronet 5.2L GAS
• 1973 Dodge Coronet 5.6L GAS
• 1973 Dodge Coronet 5.9L GAS
• 1973 Dodge Coronet 6.6L GAS
• 1973 Dodge Coronet 7.2L GAS
• 1973 Dodge Dart 3.2L GAS
• 1973 Dodge Dart 3.7L GAS
• 1973 Dodge Dart 5.2L GAS
• 1973 Dodge Dart 5.6L GAS
• 1973 Dodge Dart 5.9L GAS
• 1973 Plymouth Barracuda 5.2L GAS
• 1973 Plymouth Barracuda 5.6L GAS
• 1973 Plymouth Barracuda 5.9L GAS
• 1973 Plymouth Duster 3.2L GAS
• 1973 Plymouth Duster 3.7L GAS
• 1973 Plymouth Duster 5.2L GAS
• 1973 Plymouth Duster 5.6L GAS
• 1973 Plymouth Road Runner 5.2L GAS
• 1973 Plymouth Road Runner 5.6L GAS
• 1973 Plymouth Road Runner 6.6L GAS
• 1973 Plymouth Road Runner 7.2L GAS
• 1973 Plymouth Satellite 3.7L GAS
• 1973 Plymouth Satellite 5.2L GAS
• 1973 Plymouth Satellite 5.6L GAS
• 1973 Plymouth Satellite 5.9L GAS
• 1973 Plymouth Satellite 6.6L GAS
• 1973 Plymouth Satellite 7.2L GAS
• 1974 Dodge Challenger 5.2L GAS
• 1974 Dodge Challenger 5.9L GAS
• 1974 Dodge Challenger 6.6L GAS
• 1974 Dodge Charger 3.7L GAS
• 1974 Dodge Charger 5.2L GAS
• 1974 Dodge Charger 5.9L GAS
• 1974 Dodge Charger 6.6L GAS
• 1974 Dodge Charger 7.2L GAS
• 1974 Dodge Coronet 3.7L GAS
• 1974 Dodge Coronet 5.2L GAS
• 1974 Dodge Coronet 5.9L GAS
• 1974 Dodge Coronet 6.6L GAS
• 1974 Dodge Coronet 7.2L GAS
• 1974 Dodge Dart 3.2L GAS
• 1974 Dodge Dart 3.7L GAS
• 1974 Dodge Dart 5.2L GAS
• 1974 Dodge Dart 5.9L GAS
• 1974 Plymouth Barracuda 5.2L GAS
• 1974 Plymouth Barracuda 5.9L GAS
• 1974 Plymouth Duster 3.2L GAS
• 1974 Plymouth Duster 3.7L GAS
• 1974 Plymouth Duster 5.2L GAS
• 1974 Plymouth Duster 5.9L GAS
• 1974 Plymouth Road Runner 5.2L GAS
• 1974 Plymouth Road Runner 5.9L GAS
• 1974 Plymouth Road Runner 6.6L GAS
• 1974 Plymouth Road Runner 7.2L GAS
• 1974 Plymouth Satellite 3.7L GAS
• 1974 Plymouth Satellite 5.2L GAS
• 1974 Plymouth Satellite 5.9L GAS
• 1974 Plymouth Satellite 6.6L GAS
• 1974 Plymouth Satellite 7.2L GAS
• 1975 Dodge Charger 5.2L GAS
• 1975 Dodge Charger 5.9L GAS
• 1975 Dodge Charger 6.6L GAS
• 1975 Dodge Coronet 3.7L GAS
• 1975 Dodge Coronet 5.2L GAS
• 1975 Dodge Coronet 5.9L GAS
• 1975 Dodge Coronet 6.6L GAS
• 1975 Dodge Coronet 7.2L GAS
• 1975 Dodge Dart 3.7L GAS
• 1975 Dodge Dart 5.2L GAS
• 1975 Dodge Dart 5.9L GAS
• 1975 Plymouth Duster 3.7L GAS
• 1975 Plymouth Duster 5.2L GAS
• 1975 Plymouth Duster 5.9L GAS
• 1975 Plymouth Fury 3.7L GAS
• 1975 Plymouth Fury 5.2L GAS
• 1975 Plymouth Fury 5.9L GAS
• 1975 Plymouth Fury 6.6L GAS
• 1975 Plymouth Fury 7.2L GAS
• 1975 Plymouth Road Runner 5.2L GAS
• 1975 Plymouth Road Runner 5.9L GAS
• 1975 Plymouth Road Runner 6.6L GAS
• 1976 Dodge Aspen 3.7L GAS
• 1976 Dodge Aspen 5.2L GAS
• 1976 Dodge Aspen 5.9L GAS
• 1976 Dodge Charger 3.7L GAS
• 1976 Dodge Charger 5.2L GAS
• 1976 Dodge Charger 5.9L GAS
• 1976 Dodge Charger 6.6L GAS
• 1976 Dodge Coronet 3.7L GAS
• 1976 Dodge Coronet 5.2L GAS
• 1976 Dodge Coronet 5.9L GAS
• 1976 Dodge Coronet 6.6L GAS
• 1976 Dodge Coronet 7.2L GAS
• 1976 Dodge Dart 3.7L GAS
• 1976 Dodge Dart 5.2L GAS
• 1976 Dodge Dart 5.9L GAS
• 1976 Plymouth Duster 3.7L GAS
• 1976 Plymouth Duster 5.2L GAS
• 1976 Plymouth Duster 5.9L GAS
• 1976 Plymouth Fury 3.7L GAS
• 1976 Plymouth Fury 5.2L GAS
• 1976 Plymouth Fury 5.9L GAS
• 1976 Plymouth Fury 6.6L GAS
• 1976 Plymouth Volare 3.7L GAS
• 1976 Plymouth Volare 5.2L GAS
• 1976 Plymouth Volare 5.9L GAS
• 1977 Dodge Aspen 3.7L GAS
• 1977 Dodge Aspen 5.2L GAS
• 1977 Dodge Aspen 5.9L GAS
• 1977 Dodge Charger 5.2L GAS
• 1977 Dodge Charger 5.9L GAS
• 1977 Dodge Charger 6.6L GAS
• 1977 Plymouth Fury 3.7L GAS
• 1977 Plymouth Fury 5.2L GAS
• 1977 Plymouth Fury 5.9L GAS
• 1977 Plymouth Fury 6.6L GAS
• 1977 Plymouth Fury 7.2L GAS
• 1977 Plymouth Volare 3.7L GAS
• 1977 Plymouth Volare 5.2L GAS
• 1977 Plymouth Volare 5.9L GAS
• 1978 Dodge Aspen 3.7L GAS
• 1978 Dodge Aspen 5.2L GAS
• 1978 Dodge Aspen 5.9L GAS
• 1978 Dodge Charger 5.2L GAS
• 1978 Dodge Charger 5.9L GAS
• 1978 Dodge Charger 6.6L GAS
• 1978 Dodge Monaco 3.7L GAS
• 1978 Dodge Monaco 5.2L GAS
• 1978 Dodge Monaco 5.9L GAS
• 1978 Dodge Monaco 6.6L GAS
• 1978 Dodge Monaco 7.2L GAS
• 1978 Plymouth Fury 3.7L GAS
• 1978 Plymouth Fury 5.2L GAS
• 1978 Plymouth Fury 5.9L GAS
• 1978 Plymouth Fury 6.6L GAS
• 1978 Plymouth Fury 7.2L GAS
• 1978 Plymouth Volare 3.7L GAS
• 1978 Plymouth Volare 5.2L GAS
• 1978 Plymouth Volare 5.9L GAS
• 1979 Dodge Aspen 3.7L GAS
• 1979 Dodge Aspen 5.2L GAS
• 1979 Dodge Aspen 5.9L GAS
• 1979 Plymouth Volare 3.7L GAS
• 1979 Plymouth Volare 5.2L GAS
• 1979 Plymouth Volare 5.9L GAS
• 1980 Dodge Aspen 3.7L GAS
• 1980 Dodge Aspen 5.2L GAS
• 1980 Dodge Aspen 5.9L GAS
• 1980 Plymouth Volare 3.7L GAS
• 1980 Plymouth Volare 5.2L GAS
• 1980 Plymouth Volare 5.9L GAS
