Banks 1500W Billet Heater Kit - Banks Power - 42807

About This Product

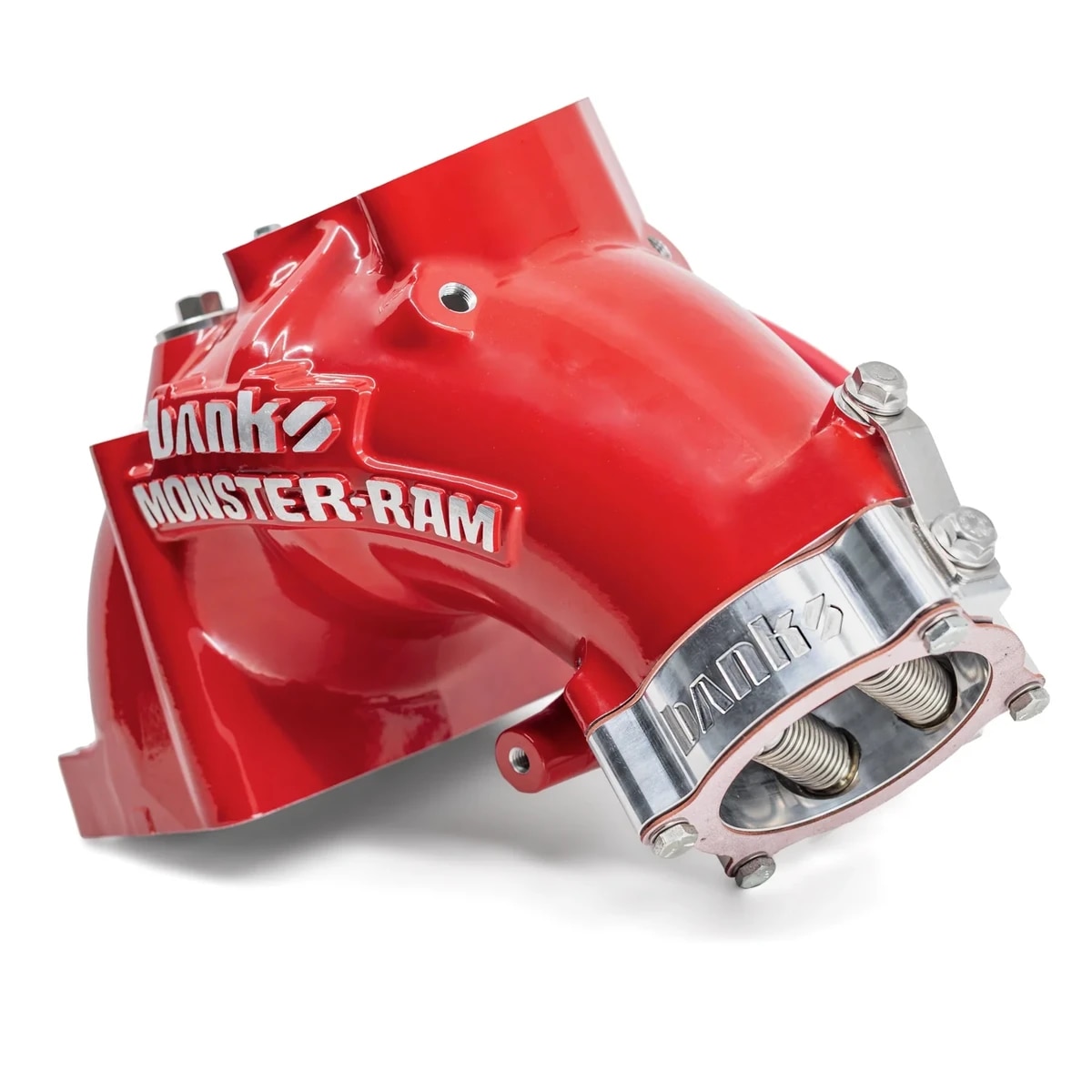

Add the Banks 750 Watt or 1500 Watt Billet Heater Kit to your Monster-Ram to aid cold-weather starts. Increases total heat output in the Single Heat Monster-Ram to 2250 watts or up to 3000 watts in the new Dual Heat Capable Monster-Ram.

Built To Survive

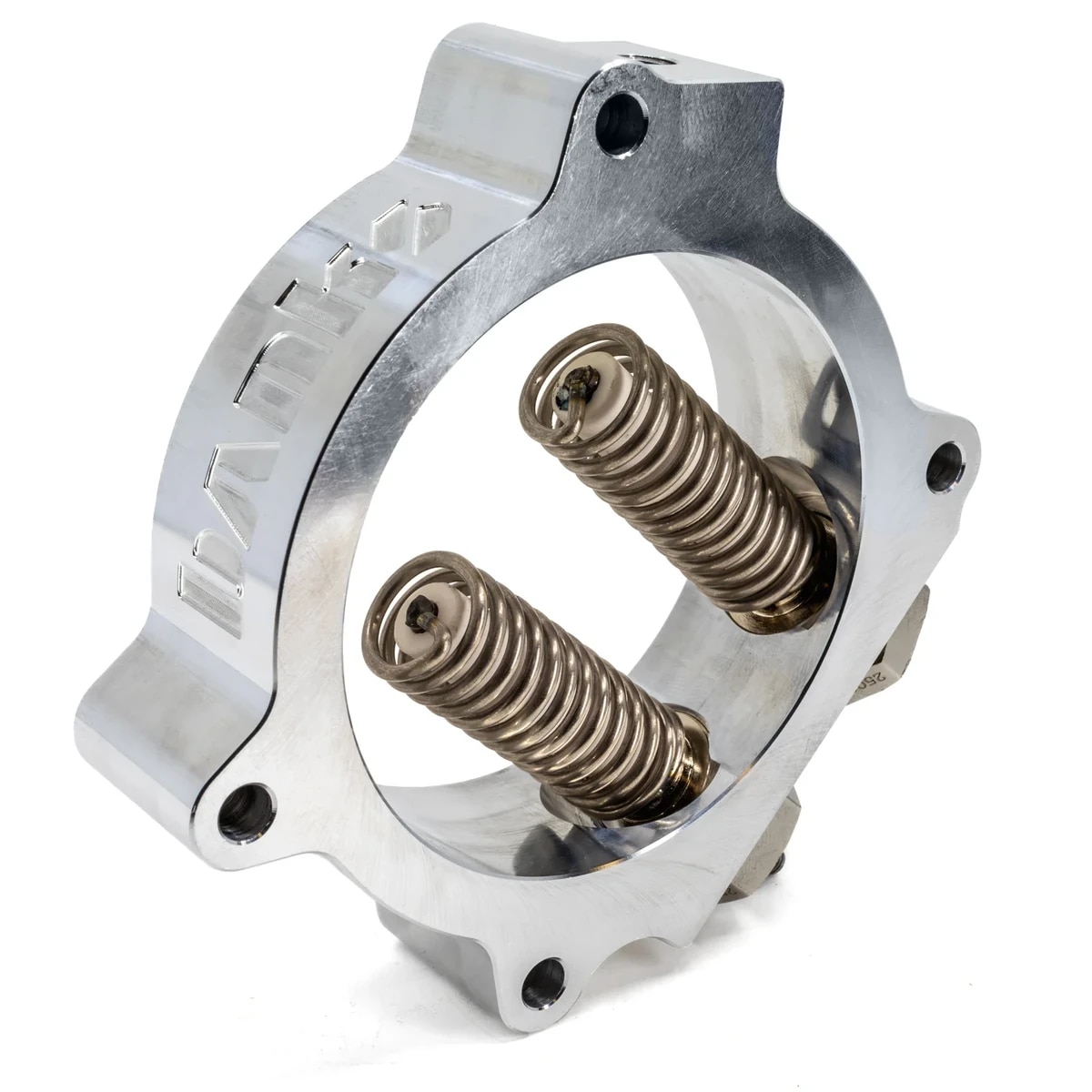

Available in a single 750 Watt or dual 1500 Watt configuration, this simple bolt-on kit requires no maintenance. Unlike the restrictive, failure-prone factory Cummins grid heater, Banks coil heaters are designed to fail safely, avoiding catastrophic engine damage.

750 Watt

1500 Watt

How It Works

Doubles or triples your Banks Monster-Ram's heat output, from 750 watts to 1500-2250 watts.

Bolt On

Add 750 Watts

Add 1500 Watts

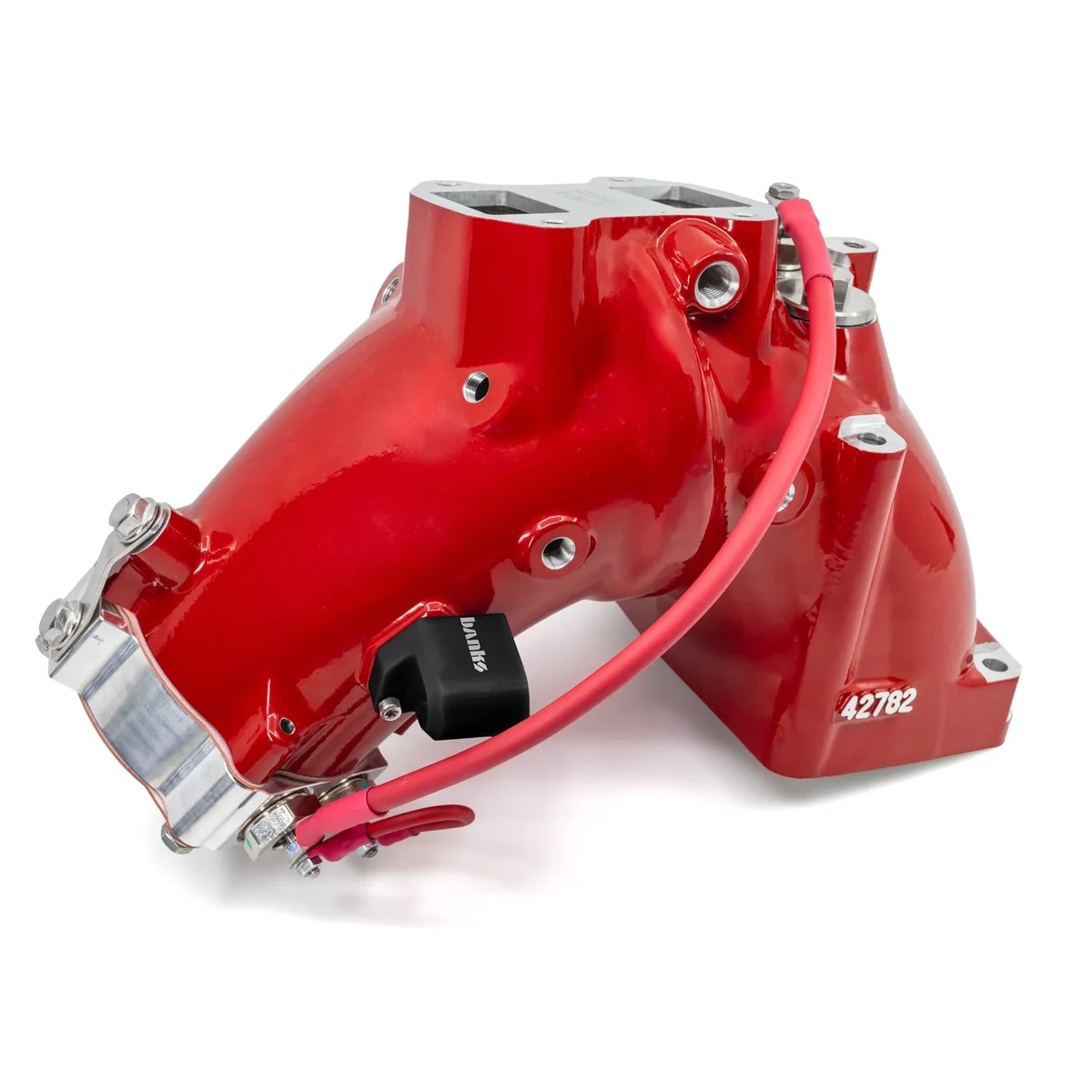

Simply bolt on the 750-Watt or 1500-Watt Billet Heater Kit and connect it with the supplied cable.

Test Criteria

We followed RAM's cold start recommendations. Per the owner’s manual, RAM recommends the use of the block heater when the temperature drops below 0°F/-17°C and mandates the block heater at temperatures below -20°F/-29°C.

Using a controlled climate chamber, our first test utilized block heat and two Banks coil heaters (1500 watts total). The Monster-Ram enabled our test truck to cold start down to -30°F/-34°C. Against RAM’s recommendations, we also attempted to cold start with the same two coil heaters and no block heat. We were able to cold start down to -20°F/-29°C.

All tests were performed with two intake air pre-heat cycles per the owner’s manual. Intake air temperature is just one factor contributing to a successful cold start. Individual results may vary. Testing is ongoing with a detailed video forthcoming.

Test Vehicle Configuration

• 2024 Ram 2500 4x4 Tradesman, dual cab short bed
• Mileage 7,8XX
• Vehicle unmodified apart from Monster-Ram
• Minimum 12-hour cold soak at specified temperature
• #1 Diesel fuel
• AMSOIL Signature Series 5W40 motor oil
• New Interstate AGM batteries with full state of charge
• New MOPAR fuel filter
• New MOPAR fuel/water separator
• New MOPAR air filter

About This Product

Add the Banks 750 Watt or 1500 Watt Billet Heater Kit to your Monster-Ram for a total output up to 3000 watts, aiding cold starts in severe temperatures. The kit can be removed in minutes for non-winter months.

Key Features

Installs and removes in minutes without removing your Monster-Ram

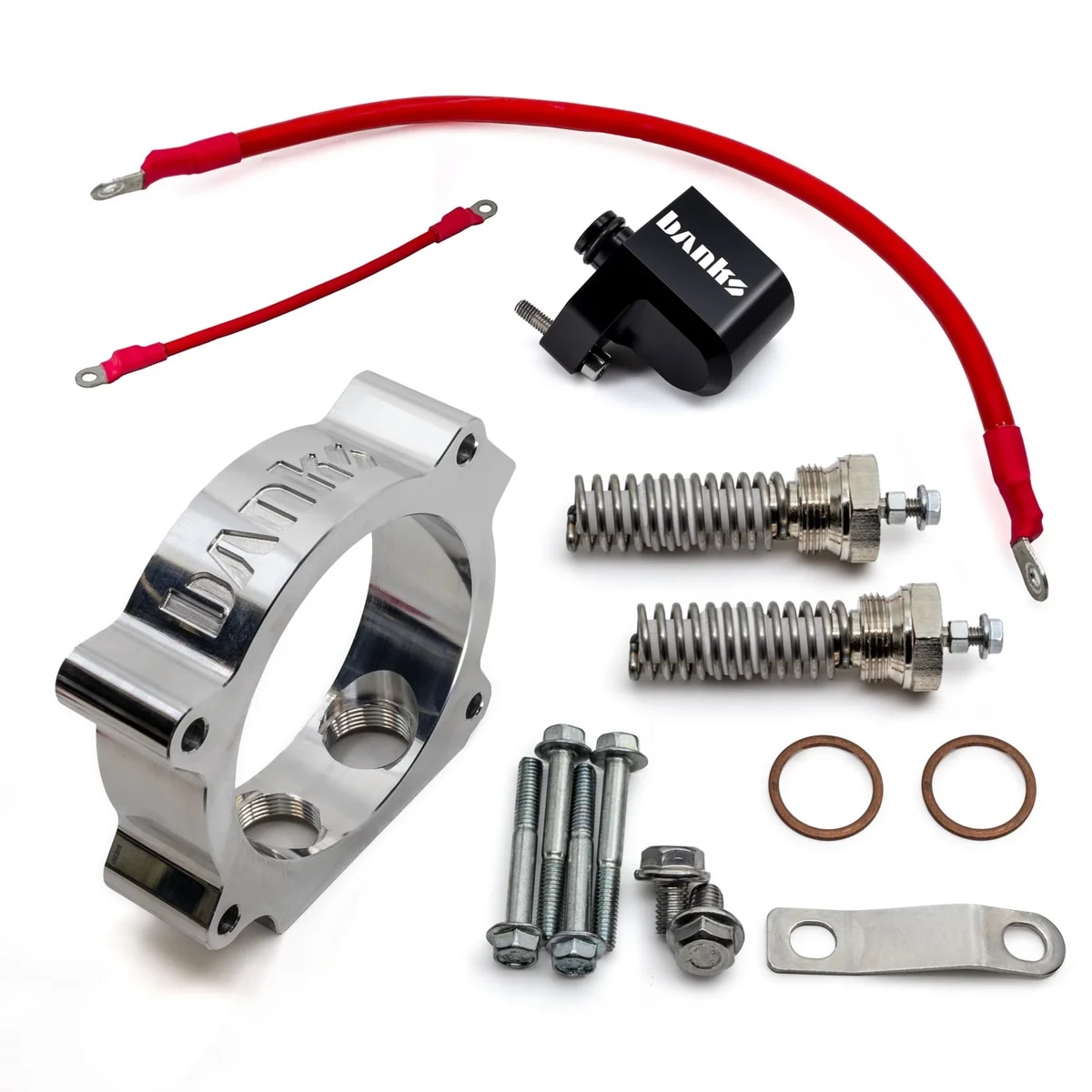

Includes:

• 750-Watt Coil Heater(s)
• Billet Aluminum Body
• Black Anodized MAP Sensor Relocation Block
• Heater Coil Extension Wire(s)

Banks 750W and 1500W Billet Heater Kit

Includes Banks coil heater(s), billet aluminum heater body, TMAP Relocation Kit, and all mounting and connecting hardware

• 2007 Dodge Ram 2500 6.7L DIESEL
• 2007 Dodge Ram 3500 6.7L DIESEL
• 2008 Dodge Ram 2500 6.7L DIESEL
• 2008 Dodge Ram 3500 6.7L DIESEL
• 2009 Dodge Ram 2500 6.7L DIESEL
• 2009 Dodge Ram 3500 6.7L DIESEL
• 2010 Dodge Ram 2500 6.7L DIESEL
• 2010 Dodge Ram 3500 6.7L DIESEL
• 2011 Ram 2500 6.7L DIESEL
• 2011 Ram 3500 6.7L DIESEL
• 2012 Ram 2500 6.7L DIESEL
• 2012 Ram 3500 6.7L DIESEL
• 2013 Ram 2500 6.7L DIESEL
• 2013 Ram 3500 6.7L DIESEL
• 2014 Ram 2500 6.7L DIESEL
• 2014 Ram 3500 6.7L DIESEL
• 2015 Ram 2500 6.7L DIESEL
• 2015 Ram 3500 6.7L DIESEL
• 2016 Ram 2500 6.7L DIESEL
• 2016 Ram 3500 6.7L DIESEL
• 2017 Ram 2500 6.7L DIESEL
• 2017 Ram 3500 6.7L DIESEL
• 2018 Ram 2500 6.7L DIESEL
• 2018 Ram 3500 6.7L DIESEL
• 2019 Ram 2500 6.7L DIESEL
• 2019 Ram 3500 6.7L DIESEL
• 2020 Ram 2500 6.7L DIESEL
• 2020 Ram 3500 6.7L DIESEL
• 2021 Ram 2500 6.7L DIESEL
• 2021 Ram 3500 6.7L DIESEL
• 2022 Ram 2500 6.7L DIESEL
• 2022 Ram 3500 6.7L DIESEL
• 2022 Ram 3500 6.7L DIESEL
• 2022 Ram 3500 6.7L DIESEL
• 2023 Ram 2500 6.7L DIESEL
• 2023 Ram 3500 6.7L DIESEL
• 2024 Ram 2500 6.7L DIESEL
• 2024 Ram 3500 6.7L DIESEL
