Diesel Lift Pump 165GPH II-5G, DF-165-5G 1994-1998 Dodge Cummins - AirDog - A7SABD524

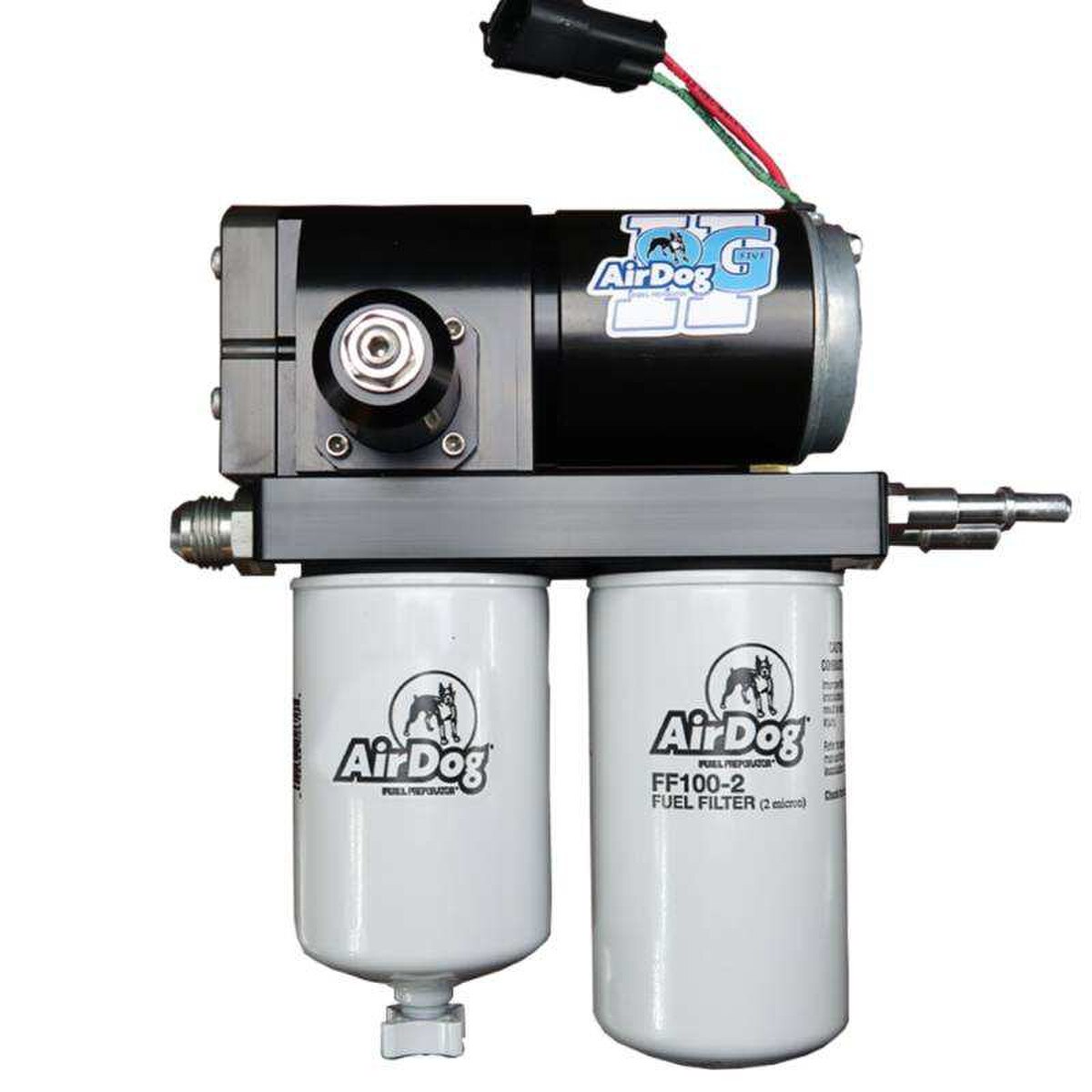

This is the AirDog II-5G DF-165-5G fuel system for the 1994-1998 Dodge Ram P-Pump 12V Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system.

A draw straw is installed in the fuel tank to supply fuel to the pump. The pressure side connects directly into the side of the P-Pump, bypassing the factory fuel filter housing and block mounted pump.

The injection pump return is tied into the engine return to eliminate the need for the factory filter head. The AirDog Air/Vapor return is sent back to the tank through the filler neck return tee.

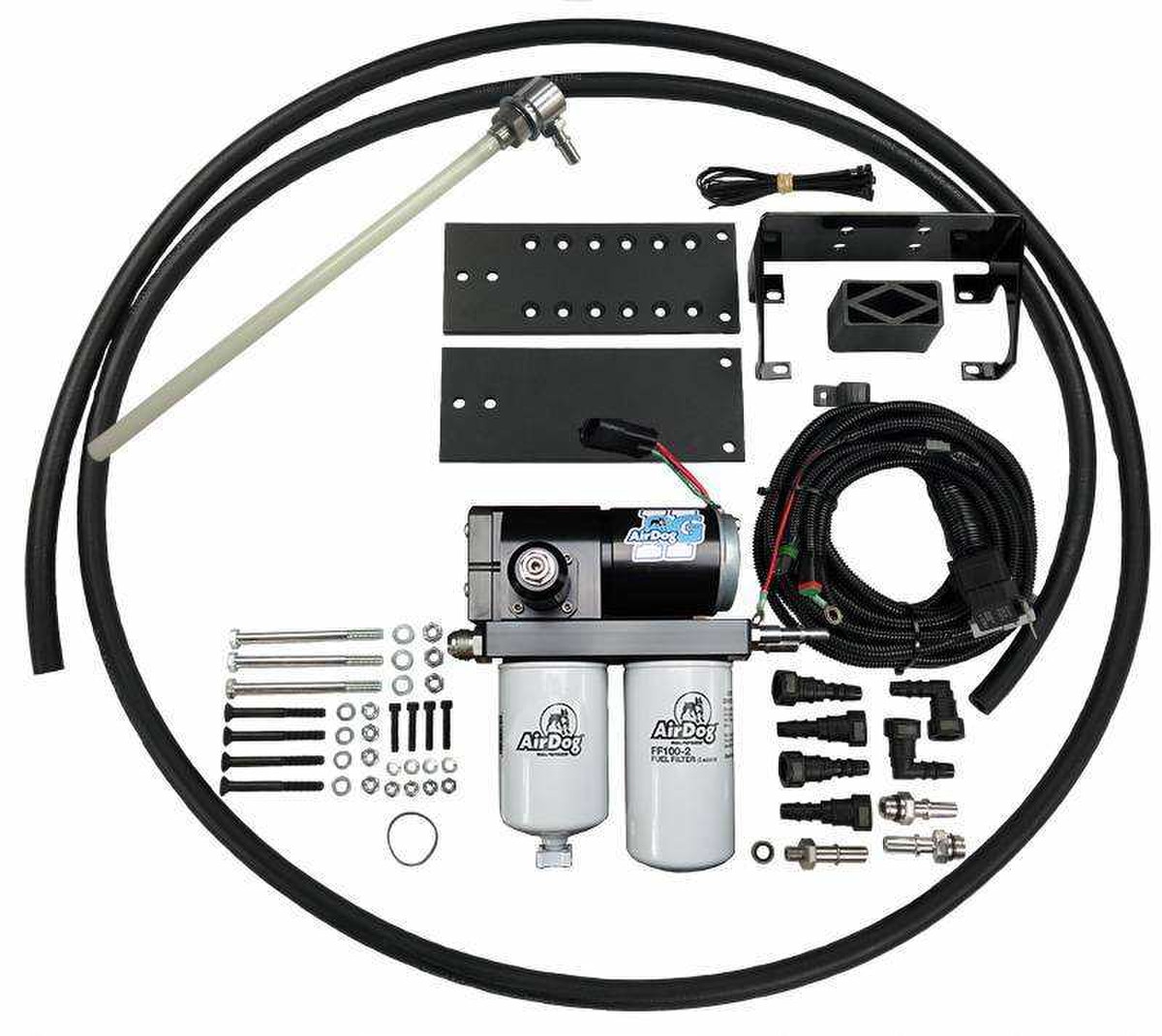

This is a 165GPH (Gallon Per Hour) lift pump system for moderately modified trucks. Check out our installation manual for a list of parts that are included with this kit.

Details:

• Gallons per hour: 165GPH
• Manufacturer: Cummins
• Make: Dodge
• Liter: 5.9L
• Valve: 12V
• Engine Years: 1994-1998.5
• Fuel Type: Diesel

• 1994 Dodge Ram 2500 5.9L DIESEL
• 1994 Dodge Ram 3500 5.9L DIESEL
• 1995 Dodge Ram 2500 5.9L DIESEL
• 1995 Dodge Ram 3500 5.9L DIESEL
• 1996 Dodge Ram 2500 5.9L DIESEL
• 1996 Dodge Ram 3500 5.9L DIESEL
• 1997 Dodge Ram 2500 5.9L DIESEL
• 1997 Dodge Ram 3500 5.9L DIESEL
• 1998 Dodge Ram 2500 5.9L DIESEL
• 1998 Dodge Ram 3500 5.9L DIESEL
