Diesel Lift Pump 100GPH II-5G, DF-100-5G 2008-2010 6.4L Ford - AirDog - A7SPBF266

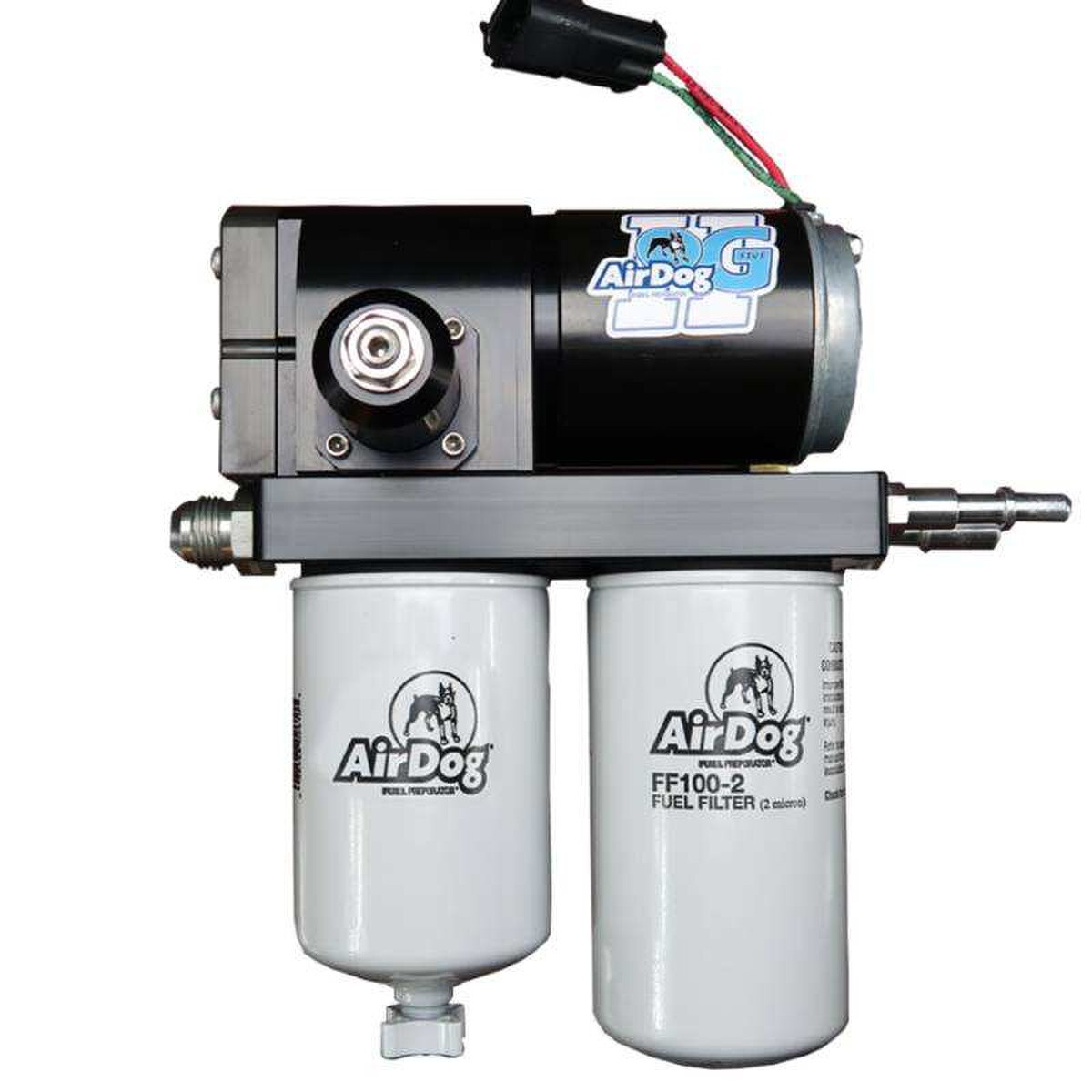

This is the AirDog II-5G DF-100 fuel system for the 2008-2010 Ford 6.4L Powerstroke. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system.

The suction side hooks up to the factory suction line on the frame rail. The pressure side connects to the factory supply line on the frame rail.

This fuel pump completely bypasses the factory fuel pump. The AirDog Air/Vapor return is sent back to the tank through a return Y that splices the AirDog return into the factory engine return.

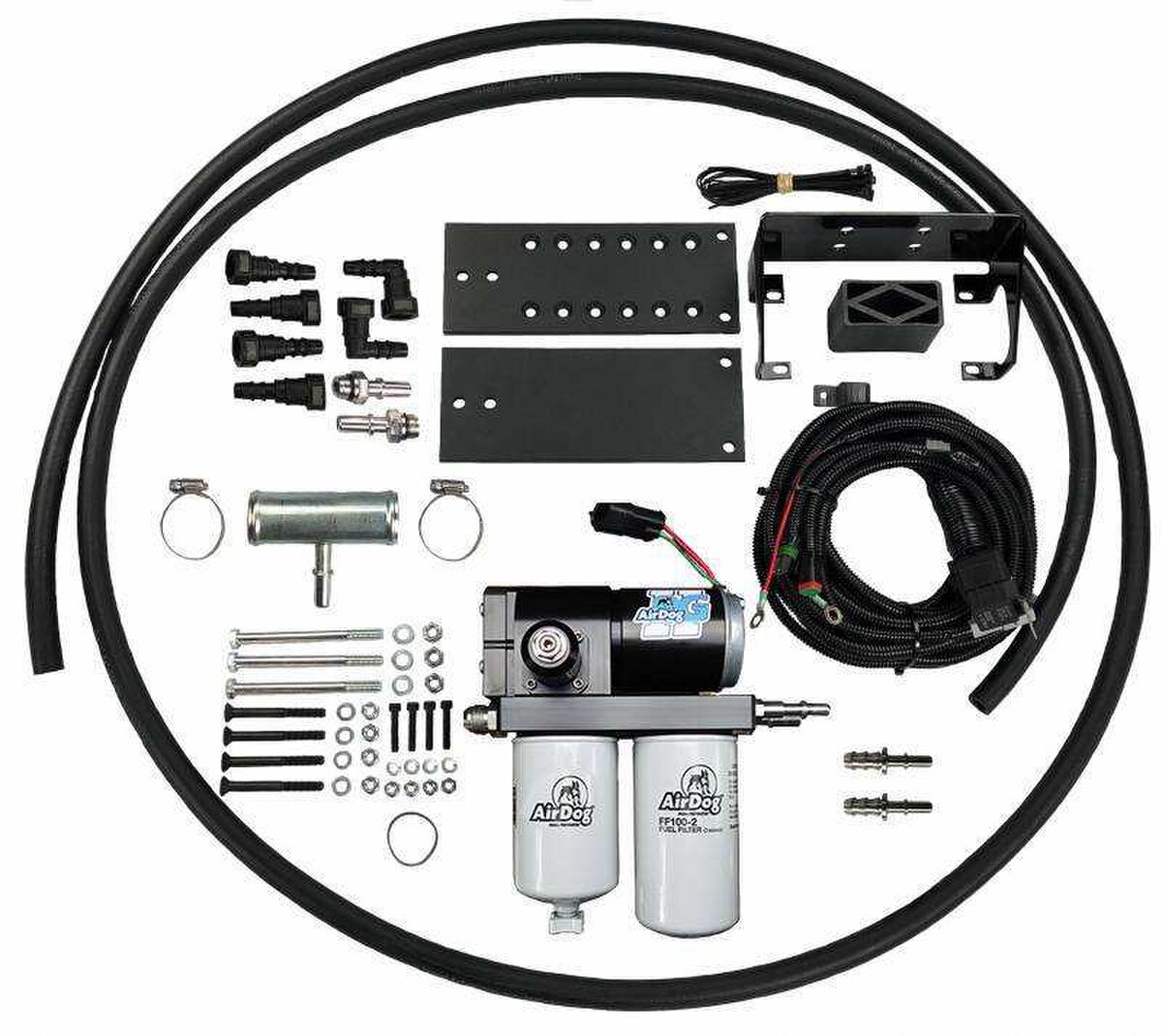

This is a 100GPH (Gallon Per Hour) lift pump system for stock fuel trucks. Check out our installation manual for a list of parts that are included with this kit.

Details:

• Gallons per hour: 100GPH
• Manufacturer: Powerstroke
• Make: Ford
• Liter: 6.4L
• Engine Years: 2008-2010
• Fuel Type: Diesel

• 2008 Ford F-250 Super Duty 6.4L DIESEL
• 2008 Ford F-350 Super Duty 6.4L DIESEL
• 2008 Ford F-450 Super Duty 6.4L DIESEL
• 2008 Ford F-550 Super Duty 6.4L DIESEL
• 2009 Ford F-250 Super Duty 6.4L DIESEL
• 2009 Ford F-350 Super Duty 6.4L DIESEL
• 2009 Ford F-450 Super Duty 6.4L DIESEL
• 2009 Ford F-550 Super Duty 6.4L DIESEL
• 2010 Ford F-250 Super Duty 6.4L DIESEL
• 2010 Ford F-350 Super Duty 6.4L DIESEL
• 2010 Ford F-450 Super Duty 6.4L DIESEL
• 2010 Ford F-550 Super Duty 6.4L DIESEL
