Dodge Big Iron Oil Pan for 03-18 5.9L and 6.7L Cummins Industrial Injection

(0)No Reviews yet
SKU: INDJ-BICR5967OP
$300.64



Details

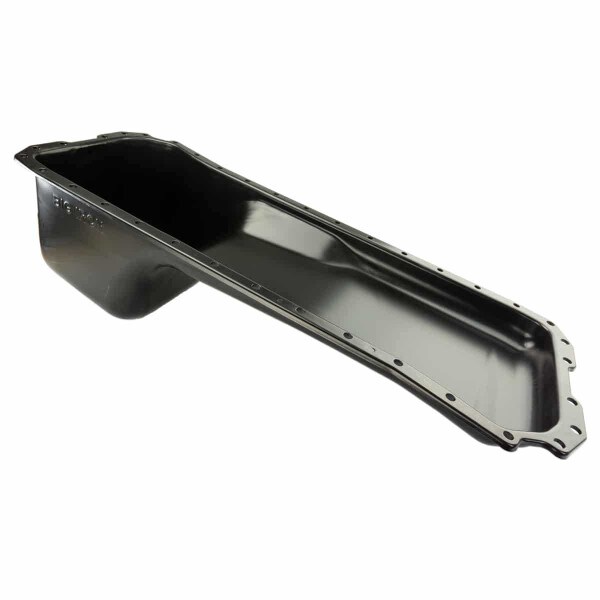

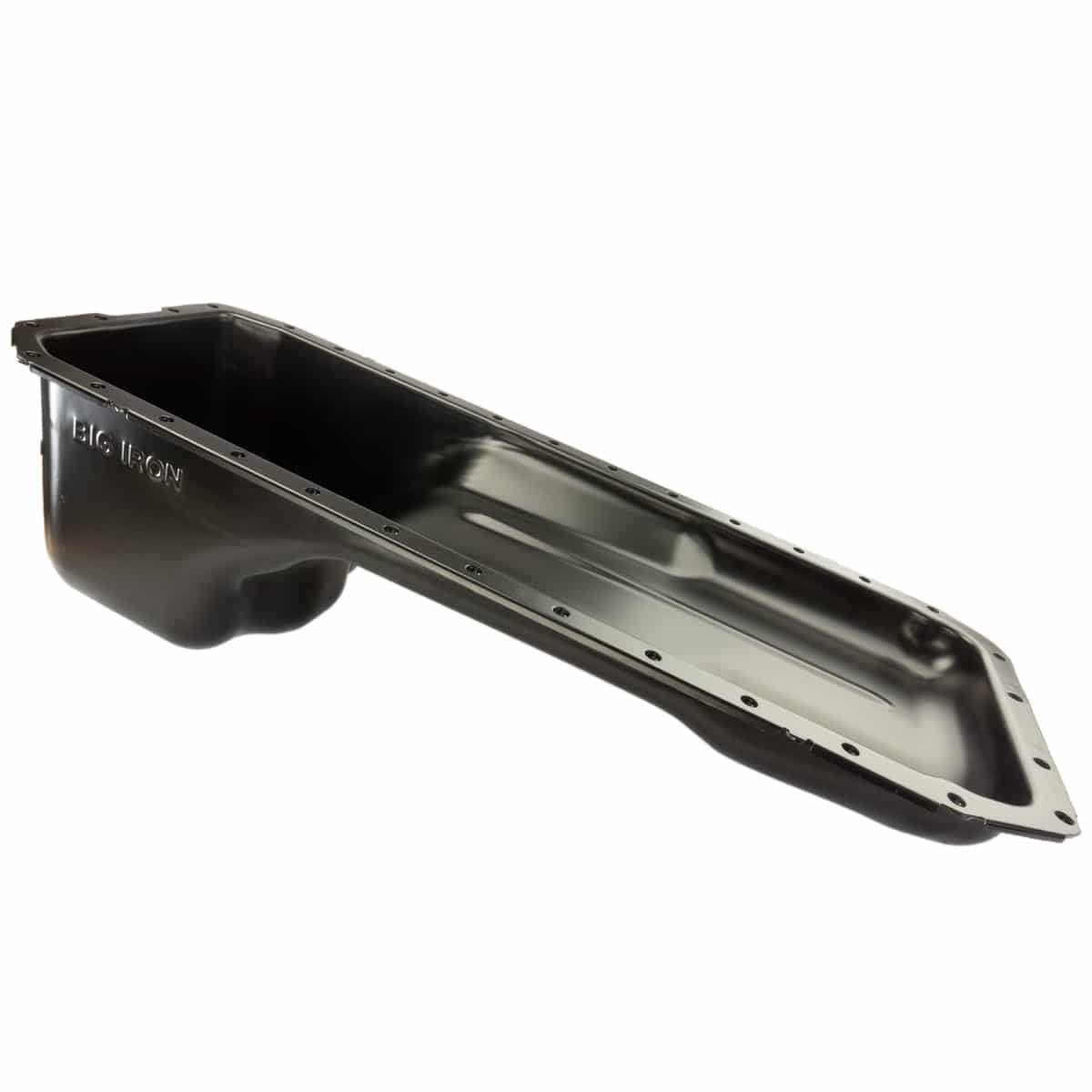

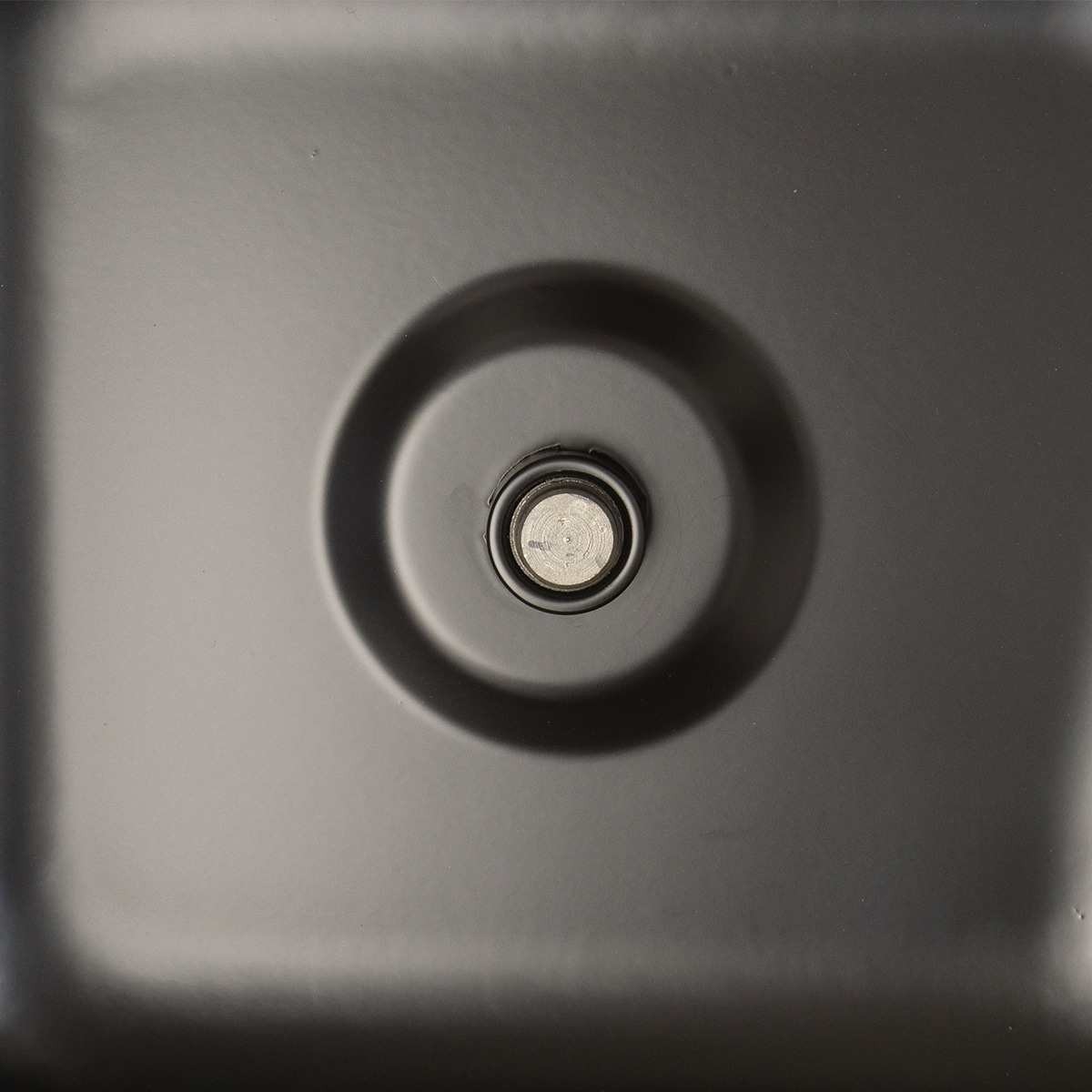

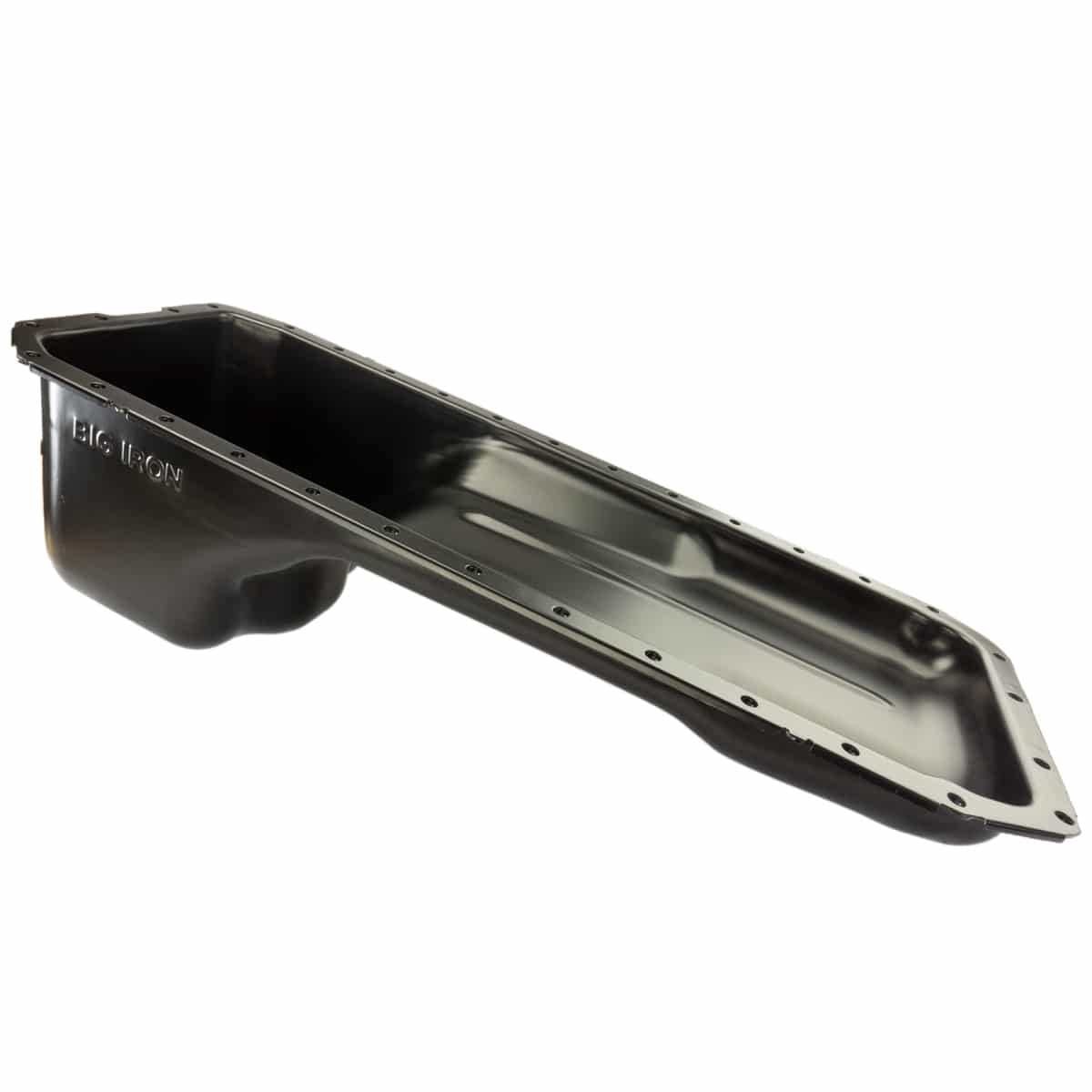

Big Iron Oil Pan 2003-2018 5.9L / 6.7L Dodge Cummins. This pan was designed with four drain holes through the nut to allow the pan to have a complete drain.

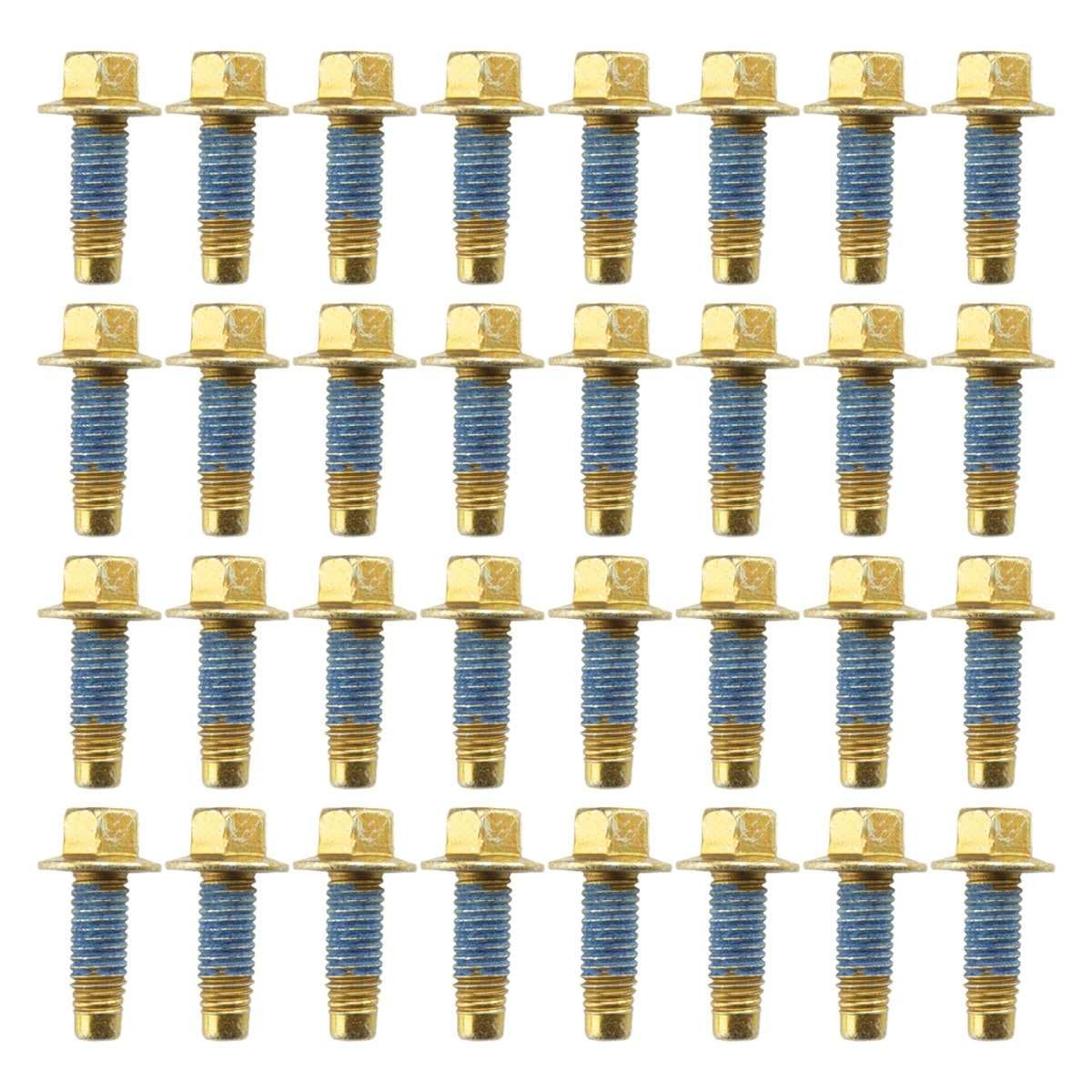

The Big Iron oil pan also has a thicker reinforced lip and it requires the 6.7L oil pan bolts which are longer than the 5.9L bolts. Industrial Injection is the leading distributor, supplier and remanufacturer of diesel fuel systems, turbochargers, and engines.

Your Top Choice for the top diesel products for On/Off highway, industrial, marine, automotive, and agricultrual applications.

Our experience in fuel injection, turbocharger, and engine components is unmatched. Industrial Injection will always deliver the best products for your light, medium, and heavy duty diesel.

Specifications:

  • Direct replacement
  • Built to strict quality control standards
  • Engine Oil Pan for Dodge Ram Pickup Truck for 2003-2018 5.9Land 6.7L Cummins Diesel
  •

Note: On certain 6.7L Cummins engines that come factory with a windage tray instead of a factory girdle you will be required to get the early style longer oil pickup tube bolts as well as an early style oil pickup tube.

We are currently working on a fix for this to prevent any further install issues. Cummins oil pickup tube part number: 3949692 (qty 1)Cummins oil pickup tube bolt part number: 3902460 (qty 2)

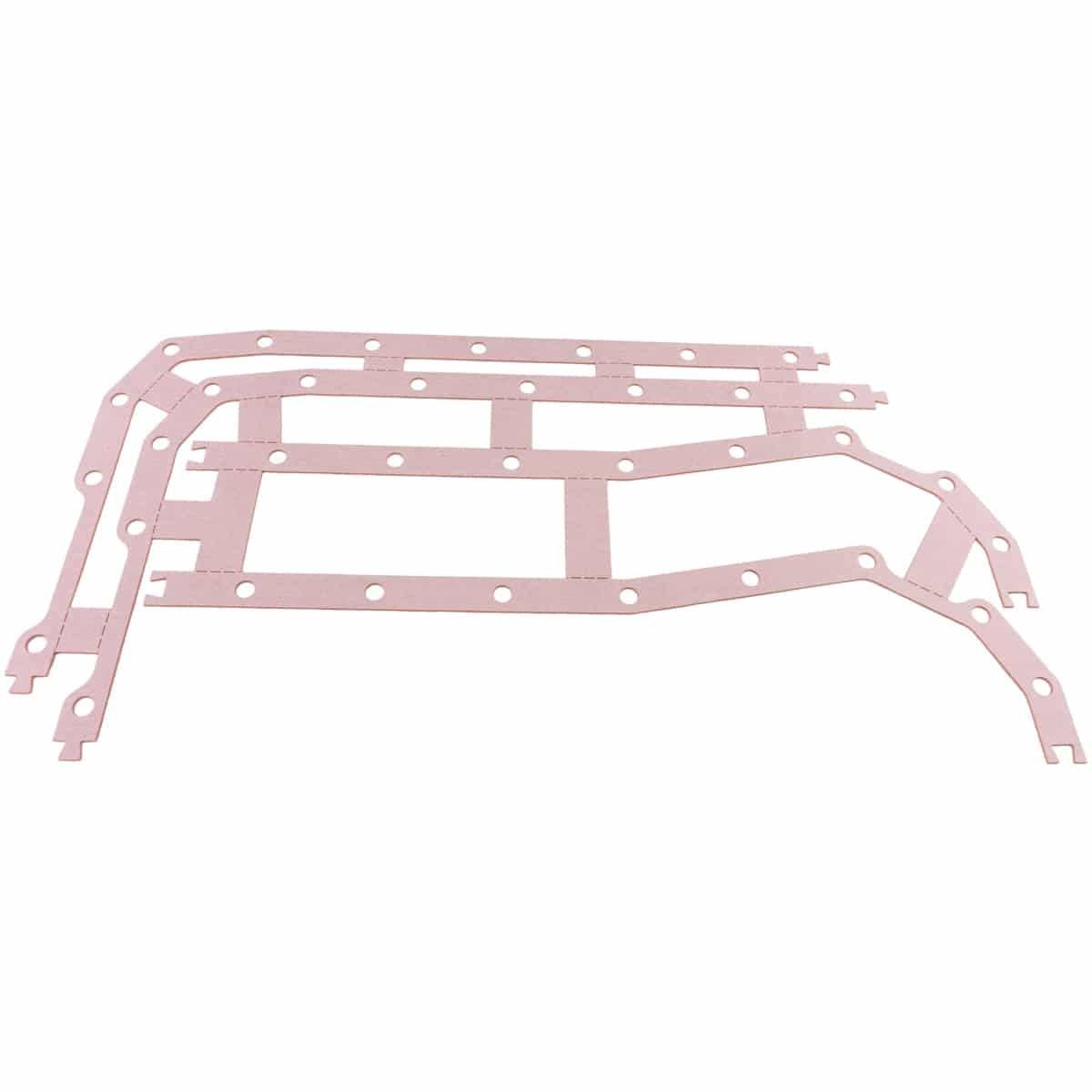

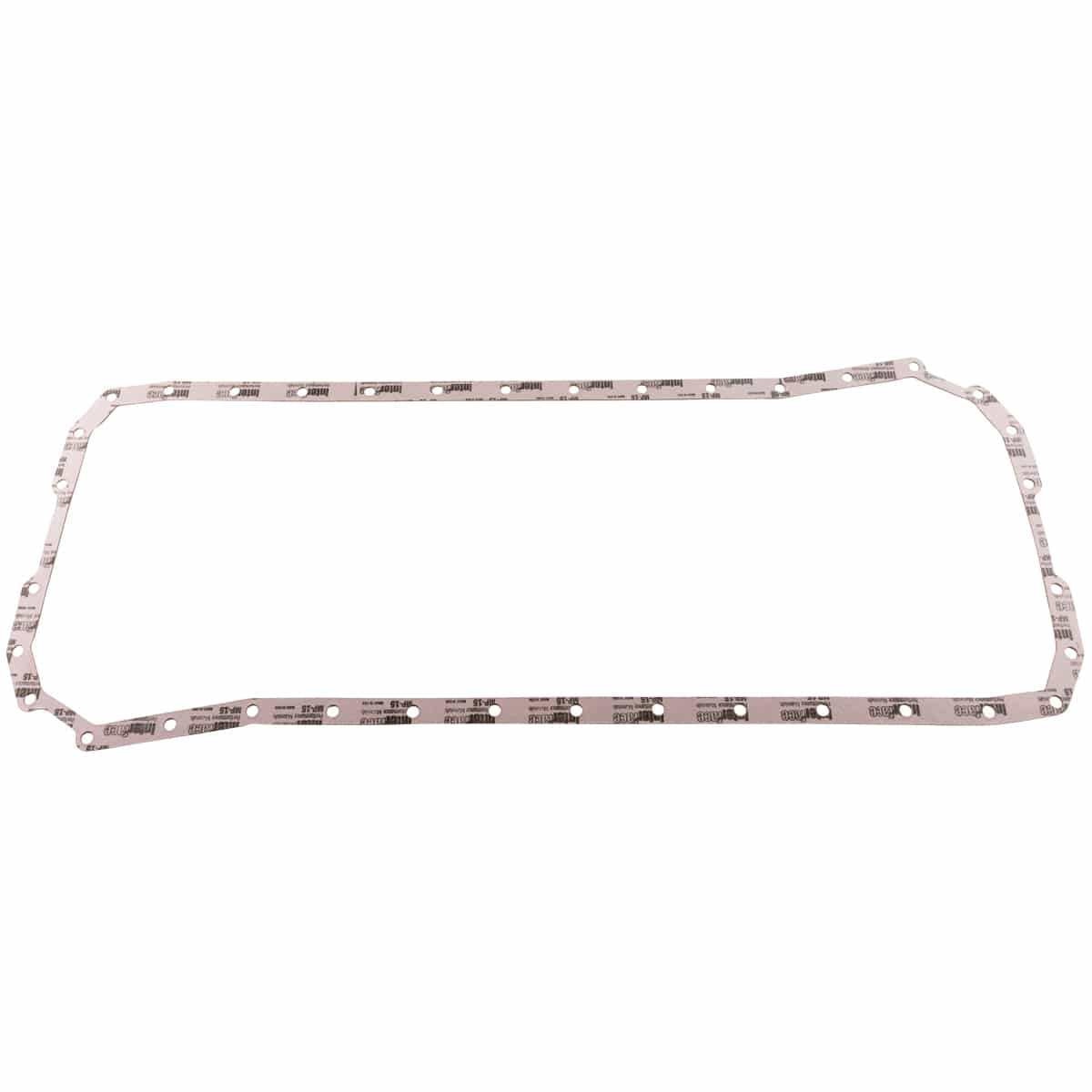

Does not include oil pan gasket or bolts - must be purchased separately.

Fitments

2003_Dodge_Ram 2500_5.9L DIESEL, 2003_Dodge_Ram 3500_5.9L DIESEL, 2004_Dodge_Ram 2500_5.9L DIESEL, 2004_Dodge_Ram 3500_5.9L DIESEL, 2005_Dodge_Ram 2500_5.9L DIESEL, 2005_Dodge_Ram 3500_5.9L DIESEL, 2006_Dodge_Ram 2500_5.9L DIESEL, 2006_Dodge_Ram 3500_5.9L DIESEL, 2007_Dodge_Ram 2500_5.9L DIESEL, 2007_Dodge_Ram 2500_6.7L DIESEL, 2007_Dodge_Ram 3500_5.9L DIESEL, 2007_Dodge_Ram 3500_6.7L DIESEL, 2008_Dodge_Ram 2500_6.7L DIESEL, 2008_Dodge_Ram 3500_6.7L DIESEL, 2009_Dodge_Ram 2500_6.7L DIESEL, 2009_Dodge_Ram 3500_6.7L DIESEL, 2010_Dodge_Ram 2500_6.7L DIESEL, 2010_Dodge_Ram 3500_6.7L DIESEL, 2011_Ram_2500_6.7L DIESEL, 2011_Ram_3500_6.7L DIESEL, 2012_Ram_2500_6.7L DIESEL, 2012_Ram_3500_6.7L DIESEL, 2013_Ram_2500_6.7L DIESEL, 2013_Ram_3500_6.7L DIESEL, 2014_Ram_2500_6.7L DIESEL, 2014_Ram_3500_6.7L DIESEL, 2015_Ram_2500_6.7L DIESEL, 2015_Ram_3500_6.7L DIESEL
WARRANTY: 1 Year Warranty
