EMF 2013-2024 Dodge 4WD 2500/3500 Track Bar Bushing Replacement - BSHA-81862-18mm

Fits: 2013.5-2024 4WD Dodge Ram 2500/3500 OEMFRONT Track Bars .

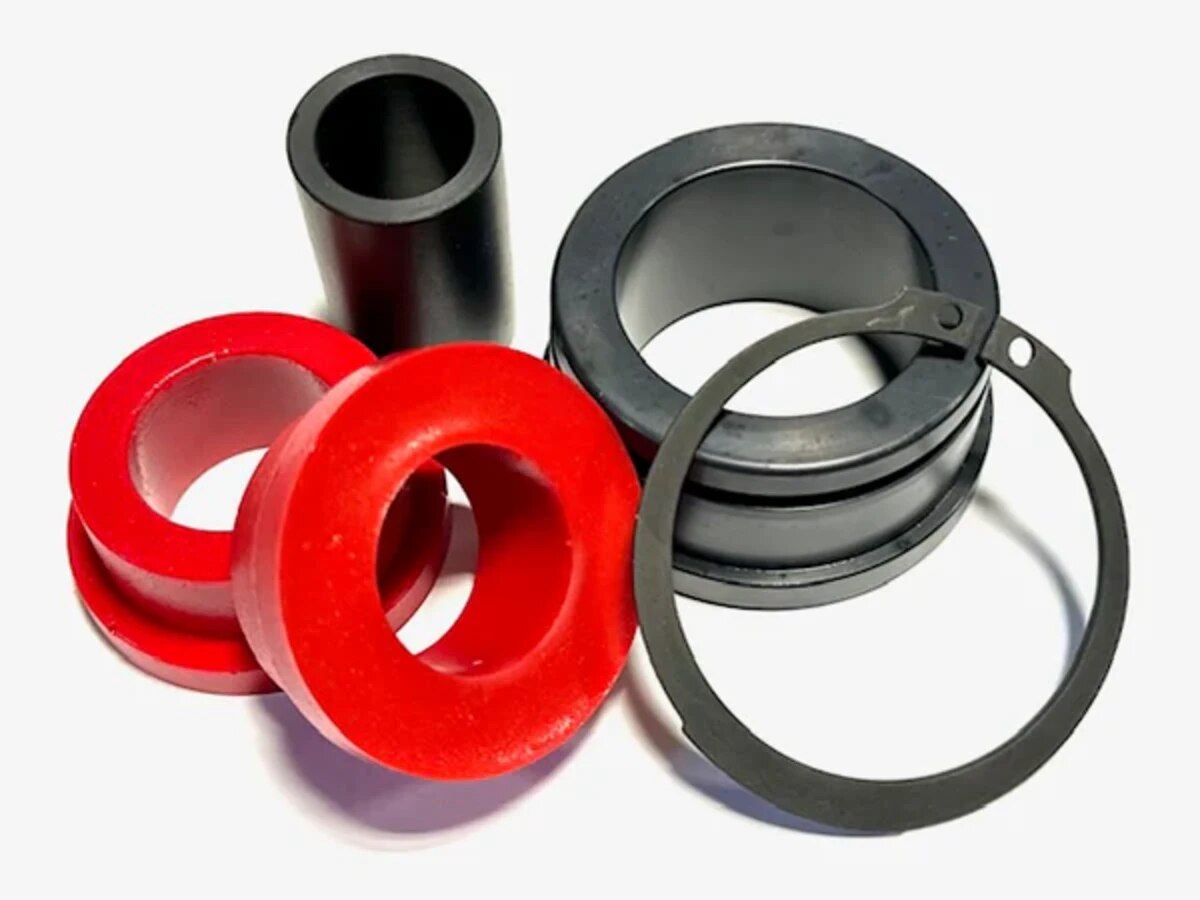

Includes: 1 Bushing Housing, 1 Snap Ring, 1 pair of bushings (2 halves) & 1 x 18mm bolt sleeve for the Upper Bushing Replacement on the front trackbar

These are sold as EACH. If you need to replace both on the trackbar, please order 2 of them.

EMF Dodge Trackbar Bushing Replacement - Made in Canada out of a high quality, high-durometer material to ensure a long lasting product. Bushing Housing and Inner Sleeve is made from 4140 HTSR Chromoly Steel and then Gas Nitrided.

BUSHING MATERIAL SPECS

MADE IN CANADA

DUROMETER (HARDNESS) - 95 +/- 5

SPECIFIC GRAVITY - 1.13 G/CC

TENSILE STRENGTH - 6500 PSI

100% MODULUS - 1800 PSI

FLEXURAL MODULUS - 4300 PSI

ULTIMATE ELONGATION - 380%

COMPRESSION SET - 22HR @ +70 DEGREES - 36%

TEMPERATURE RANGE - -40 TO +92 DEGREES CELSIUS (-40 TO +200 DEGREES FARENHEIT)

BELL BRITTLE POINT - -63 DEGREES CELSIUS (-80 DEGREES FARENHEIT)

BAYSHORE REBOUND - 40%

ABRASION RESISTANCE - 70 MM3

TEAR RESISTANCE, INITIAL - 700 PLI

TEAR RESISTANCE, PROPOGATION - 130 PLI

• 2013 Ram 2500 5.7L GAS
• 2013 Ram 2500 6.7L DIESEL
• 2013 Ram 3500 5.7L GAS
• 2013 Ram 3500 6.7L DIESEL
• 2014 Ram 2500 5.7L CNG
• 2014 Ram 2500 5.7L GAS
• 2014 Ram 2500 6.4L GAS
• 2014 Ram 2500 6.7L DIESEL
• 2014 Ram 3500 5.7L GAS
• 2014 Ram 3500 6.4L GAS
• 2014 Ram 3500 6.4L GAS
• 2014 Ram 3500 6.7L DIESEL
• 2015 Ram 2500 5.7L CNG
• 2015 Ram 2500 5.7L GAS
• 2015 Ram 2500 6.4L GAS
• 2015 Ram 2500 6.7L DIESEL
• 2015 Ram 3500 5.7L GAS
• 2015 Ram 3500 6.4L GAS
• 2015 Ram 3500 6.4L GAS
• 2015 Ram 3500 6.7L DIESEL
• 2016 Ram 2500 5.7L CNG
• 2016 Ram 2500 5.7L GAS
• 2016 Ram 2500 6.4L GAS
• 2016 Ram 2500 6.7L DIESEL
• 2016 Ram 3500 5.7L GAS
• 2016 Ram 3500 6.4L GAS
• 2016 Ram 3500 6.4L GAS
• 2016 Ram 3500 6.7L DIESEL
• 2017 Ram 2500 5.7L CNG
• 2017 Ram 2500 5.7L GAS
• 2017 Ram 2500 6.4L GAS
• 2017 Ram 2500 6.7L DIESEL
• 2017 Ram 3500 5.7L GAS
• 2017 Ram 3500 6.4L GAS
• 2017 Ram 3500 6.4L GAS
• 2017 Ram 3500 6.7L DIESEL
• 2018 Ram 2500 5.7L CNG
• 2018 Ram 2500 5.7L GAS
• 2018 Ram 2500 6.4L GAS
• 2018 Ram 2500 6.7L DIESEL
• 2018 Ram 3500 5.7L GAS
• 2018 Ram 3500 6.4L GAS
• 2018 Ram 3500 6.4L GAS
• 2018 Ram 3500 6.7L DIESEL
• 2019 Ram 2500 6.4L GAS
• 2019 Ram 2500 6.7L DIESEL
• 2019 Ram 3500 6.4L GAS
• 2019 Ram 3500 6.7L DIESEL
• 2020 Ram 2500 6.4L GAS
• 2020 Ram 2500 6.7L DIESEL
• 2020 Ram 3500 6.4L GAS
• 2020 Ram 3500 6.7L DIESEL
• 2021 Ram 2500 6.4L GAS
• 2021 Ram 2500 6.7L DIESEL
• 2021 Ram 3500 6.4L GAS
• 2021 Ram 3500 6.7L DIESEL
• 2022 Ram 2500 6.4L GAS
• 2022 Ram 2500 6.7L DIESEL
• 2022 Ram 3500 6.4L GAS
• 2022 Ram 3500 6.7L DIESEL
• 2022 Ram 3500 6.7L DIESEL
• 2022 Ram 3500 6.7L DIESEL
