Ford (4WD) Suspension Lift Kit - Carli Suspension - CS-FLVL-PT25-11

Suspension Lift Kit

CS-FLVL-PT25-11

Required and Optional Parts to support this system:

Sway Bar Options (REQUIRED): CS-FTSB-45-11 or CS-FSBD-11

Radius Arms: CS-FARA-45-05

Leaf Spring Options (REQUIRED): CS-FFSP-11 or CS-FPAP-11

Leaf Spring Shackle: CS-FSHACKLE-11

Long Travel Bags: CS-FLTB-08

Steering Stabilizer - High mount: CS-FHMSS-08

Steering Stabilizer - Low mount: CS-FLMSS-05

Carrier Bearing Drop: CS-CARRIERDROP-F

Carli Ford Pintop Leveling System, BASE

Carli's most popular system, The pintop kit boasts Remote Reservoir King 2.5" shocks. Designed and tuned in house for the customer looking for substantial on and offroad performance improvement.

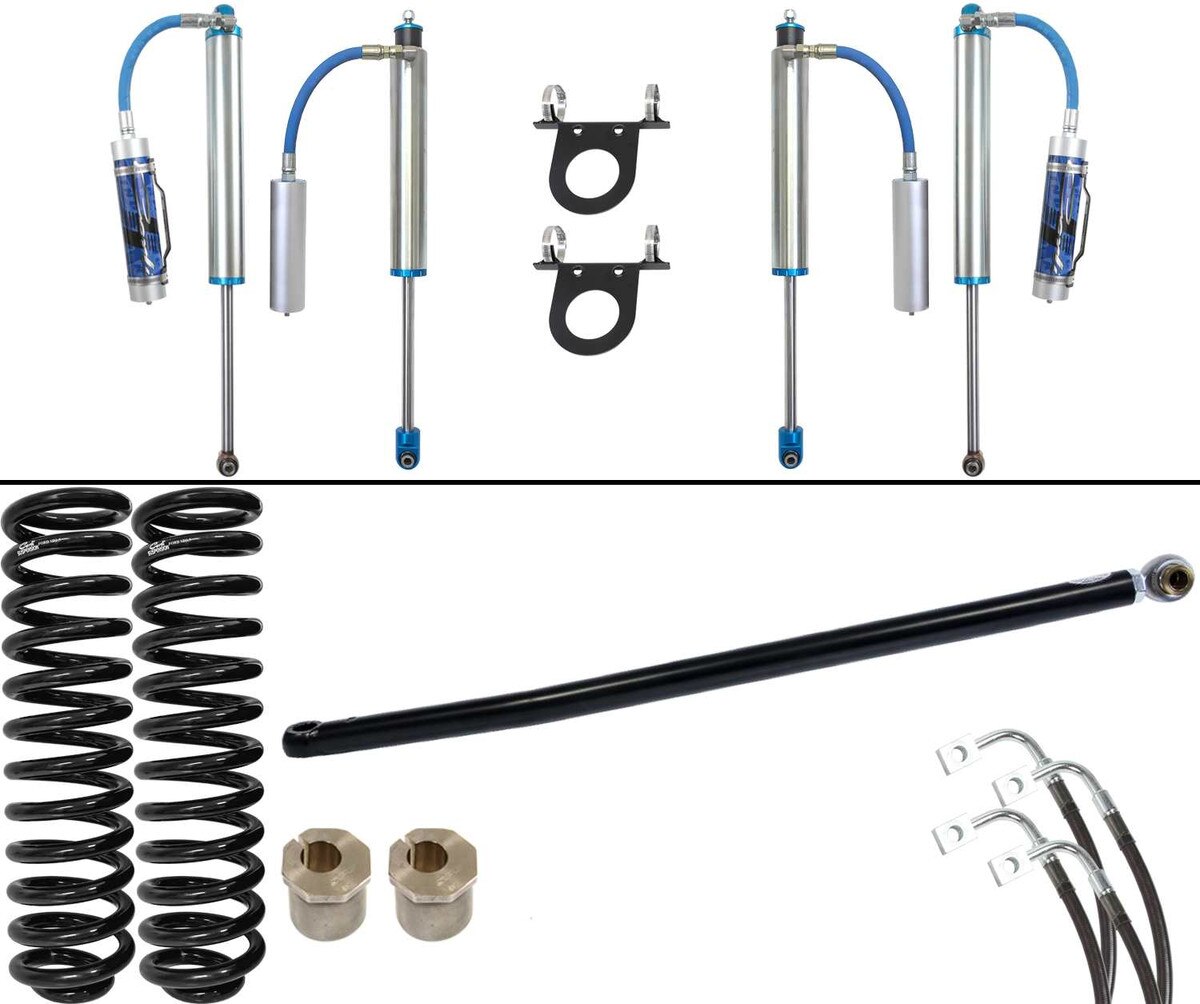

System includes front and rear shock package, linear rate coil springs, brake line kit, bump stop drops, caster correction shims and adjustable track bar.

Increases wheel travel to 9" front and 13" rear.

Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.

11-16 FORD F250/350 4X4 DIESEL 2.5" LIFT PINTOP SYSTEM

Carli Pintop Leveling System, Base, 2.5/3.5” Lift, 2011-16 Ford F250/350, Diesel

Parts Included: AS-FPT25SPKG-LVL-05; CS-FCASTERSHIM-25; CS-FLC-05; CS-FORDBBL-11; CS-FPRB-05; CS-FRM-25; CS-SRM-25

• System includes front and rear shock package, linear rate coil springs, brake line kit, bump stop drops, caster correction shims and adjustable track bar.
• Increases wheel travel to 9" front and 13" rear.
• Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.

• 2011 Ford F-250 Super Duty 6.2L FLEX
• 2011 Ford F-250 Super Duty 6.7L DIESEL
• 2011 Ford F-350 Super Duty 6.2L FLEX
• 2011 Ford F-350 Super Duty 6.7L DIESEL
• 2012 Ford F-250 Super Duty 6.2L FLEX
• 2012 Ford F-250 Super Duty 6.7L DIESEL
• 2012 Ford F-350 Super Duty 6.2L FLEX
• 2012 Ford F-350 Super Duty 6.7L DIESEL
• 2013 Ford F-250 Super Duty 6.2L FLEX
• 2013 Ford F-250 Super Duty 6.7L DIESEL
• 2013 Ford F-350 Super Duty 6.2L FLEX
• 2013 Ford F-350 Super Duty 6.7L DIESEL
• 2014 Ford F-250 Super Duty 6.2L FLEX
• 2014 Ford F-250 Super Duty 6.7L DIESEL
• 2014 Ford F-350 Super Duty 6.2L FLEX
• 2014 Ford F-350 Super Duty 6.7L DIESEL
• 2015 Ford F-250 Super Duty 6.2L FLEX
• 2015 Ford F-250 Super Duty 6.7L DIESEL
• 2015 Ford F-350 Super Duty 6.2L FLEX
• 2015 Ford F-350 Super Duty 6.7L DIESEL
• 2016 Ford F-250 Super Duty 6.2L FLEX
• 2016 Ford F-250 Super Duty 6.7L DIESEL
• 2016 Ford F-350 Super Duty 6.2L FLEX
• 2016 Ford F-350 Super Duty 6.7L DIESEL
