Ford (4WD) Suspension Lift Kit - Carli Suspension - CS-FLVL-PT25-17

Pintop Suspension

CS-FLVL-PT25-17

Required and Optional Parts to support this system:

Sway Bar Options (REQUIRED): CS-FELKIT-45-17 or CS-FTSB-45-17

Radius Arms: CS-FARA-45-05

Leaf Spring Options (REQUIRED): CS-FFSP-17 or CS-FPAP-45-17

Leaf Spring Shackle: CS-FSHACKLE-11

Long Travel Bags: CS-FLTB-17-35 or CS-FLTB-17-40 or CS-FLTB-17-45

Steering Stabilizer - High mount: CS-FHMSS-17

Steering Stabilizer - Low mount: CS-FLMSS-05

Carrier Bearing Drop: CS-CARRIERDROP-F

Trophy Hitch: CS-FHITCH-1723

Carli Ford Pintop Leveling System, BASE

17-22 FORD F250/350 4X4 DIESEL 2.5"/3.5" LIFT PINTOP SYSTEM

Carli's most popular system, The pintop kit boasts Remote Reservoir King 2.5" shocks. Designed and tuned in house for the customer looking for substantial on and offroad performance improvement.

The Carli Pintop is a Jack-of-all-trades system that delivers a sedate yet confident on-road ride with all the harsh edges rounded and smoothed while making light- to medium-duty off-road escapades completely controlled and uneventful. The system features Carli-specific, blueprinted, King 2.5” shocks on all four corners. With a 2.5” diameter shock body these Pintop shocks delver 55% more piston surface area than a 2.0” shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust ¾-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.

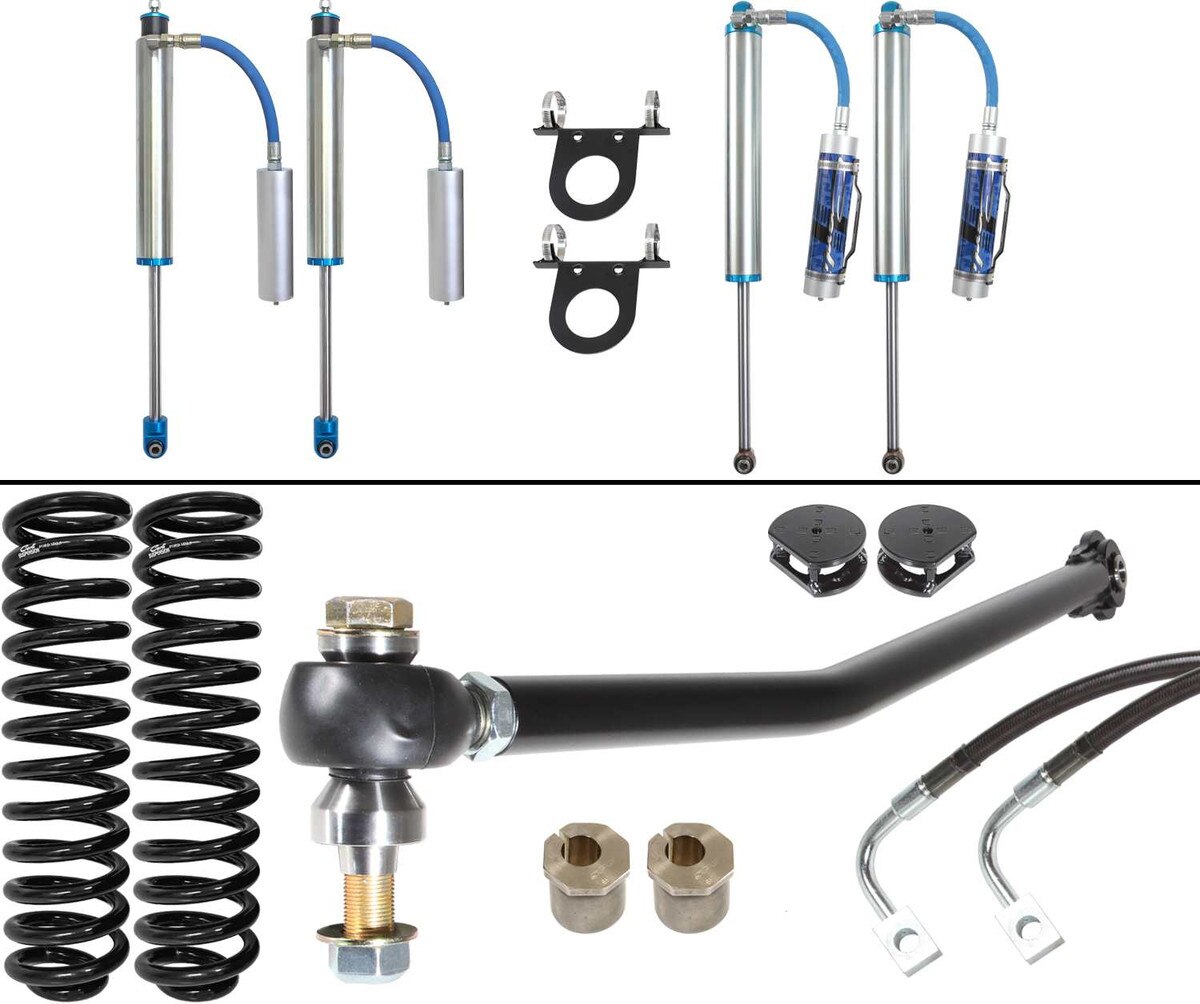

System includes front and rear shock package, linear rate coil springs, brake line kit, bump stop drops, caster correction shims and adjustable track bar.

Increases wheel travel to 9" front and 13" rear.

Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.

Requires but does not include sway bar option.

Carli Pintop Leveling System, Base, 2.5/3.5” Lift, 2017-22 Ford F250/350, Diesel, CS-FLVL-PT25-17

Carli Pintop Leveling System, Base, 2.5/3.5” Lift, 2017-22 Ford F250/350, Diesel

Parts Included: AS-FPT25SPKG-LVL-05; CS-FATB-17; CS-FBDF-25-17; CS-FCASTERSHIM-25; CS-FLC-05; CS-FORDBBL-LVL-17-F; CS-FRM-25; CS-SRM-25

• System includes front and rear shock package, linear rate coil springs, brake line kit, bump stop drops, caster correction shims and adjustable track bar.
• Increases wheel travel to 9" front and 13" rear.
• Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.
• Requires but does not include sway bar option.

• 2017 Ford F-250 Super Duty 6.2L FLEX
• 2017 Ford F-250 Super Duty 6.7L DIESEL
• 2017 Ford F-350 Super Duty 6.2L FLEX
• 2017 Ford F-350 Super Duty 6.7L DIESEL
• 2018 Ford F-250 Super Duty 6.2L FLEX
• 2018 Ford F-250 Super Duty 6.7L DIESEL
• 2018 Ford F-350 Super Duty 6.2L FLEX
• 2018 Ford F-350 Super Duty 6.7L DIESEL
• 2019 Ford F-250 Super Duty 6.2L FLEX
• 2019 Ford F-250 Super Duty 6.7L DIESEL
• 2019 Ford F-350 Super Duty 6.2L FLEX
• 2019 Ford F-350 Super Duty 6.7L DIESEL
• 2020 Ford F-250 Super Duty 6.2L FLEX
• 2020 Ford F-250 Super Duty 6.7L DIESEL
• 2020 Ford F-250 Super Duty 7.3L GAS
• 2020 Ford F-350 Super Duty 6.2L FLEX
• 2020 Ford F-350 Super Duty 6.7L DIESEL
• 2020 Ford F-350 Super Duty 7.3L GAS
• 2021 Ford F-250 Super Duty 6.2L FLEX
• 2021 Ford F-250 Super Duty 6.7L DIESEL
• 2021 Ford F-250 Super Duty 7.3L GAS
• 2021 Ford F-350 Super Duty 6.2L FLEX
• 2021 Ford F-350 Super Duty 6.7L DIESEL
• 2021 Ford F-350 Super Duty 7.3L GAS
• 2022 Ford F-250 Super Duty 6.2L FLEX
• 2022 Ford F-250 Super Duty 6.7L DIESEL
• 2022 Ford F-250 Super Duty 7.3L GAS
• 2022 Ford F-350 Super Duty 6.2L FLEX
• 2022 Ford F-350 Super Duty 6.7L DIESEL
• 2022 Ford F-350 Super Duty 7.3L GAS
