DCR Pump Conversion Kit Chevy Duramax L5P 2017-2023 - Dynomite Diesel Products - DDPL5P-DCRKIT

The Dynomite Diesel DCR Pump Conversion Kit (DDPL5P-DCRKIT) replaces the factory high pressure fuel pump on 2017-2023 Chevy Duramax L5P engines with a DCR common rail pump and matching fuel tube assemblies. The kit is sold brand new, carries no core charge, and is backed by Dynomite Diesel's 3 year unlimited mile warranty.

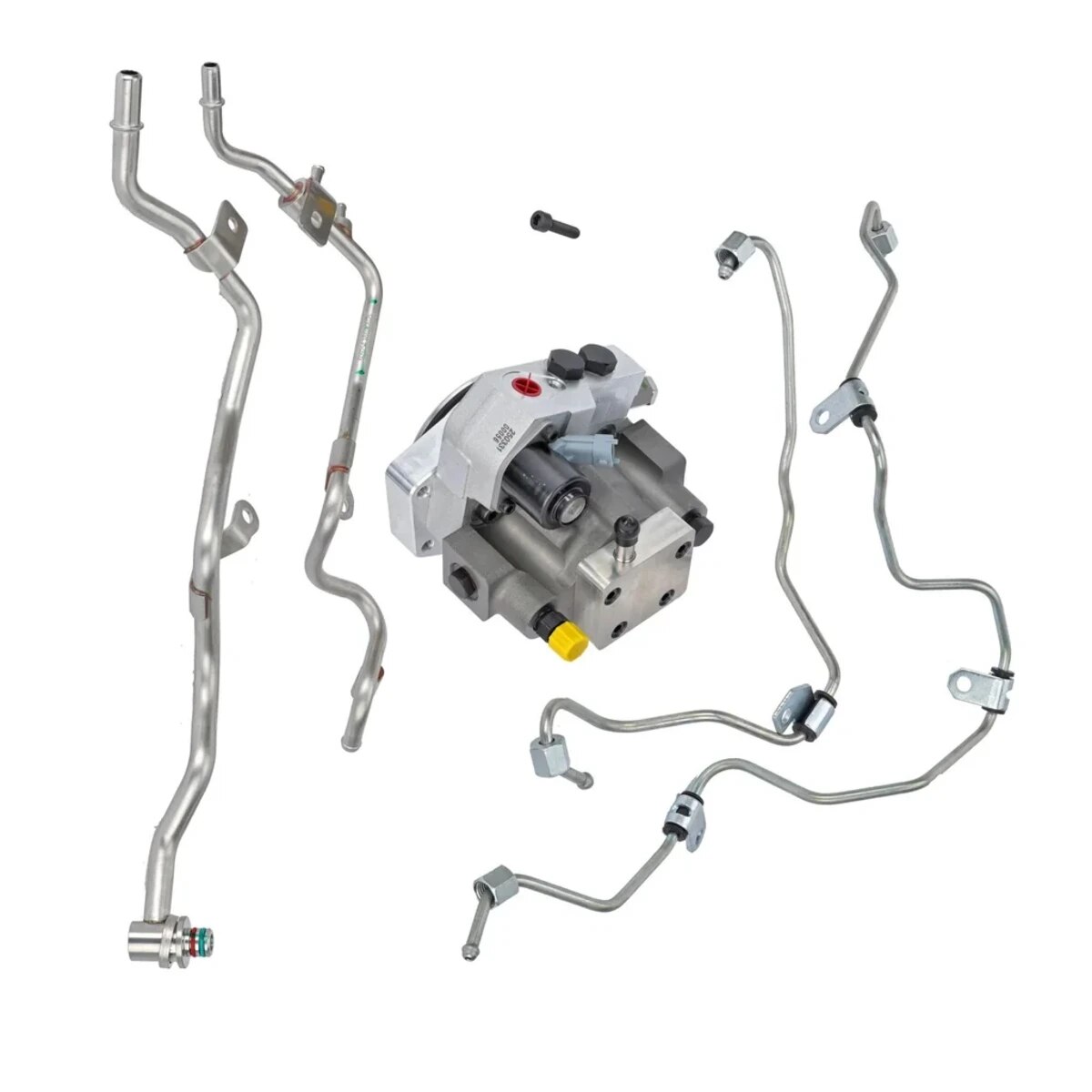

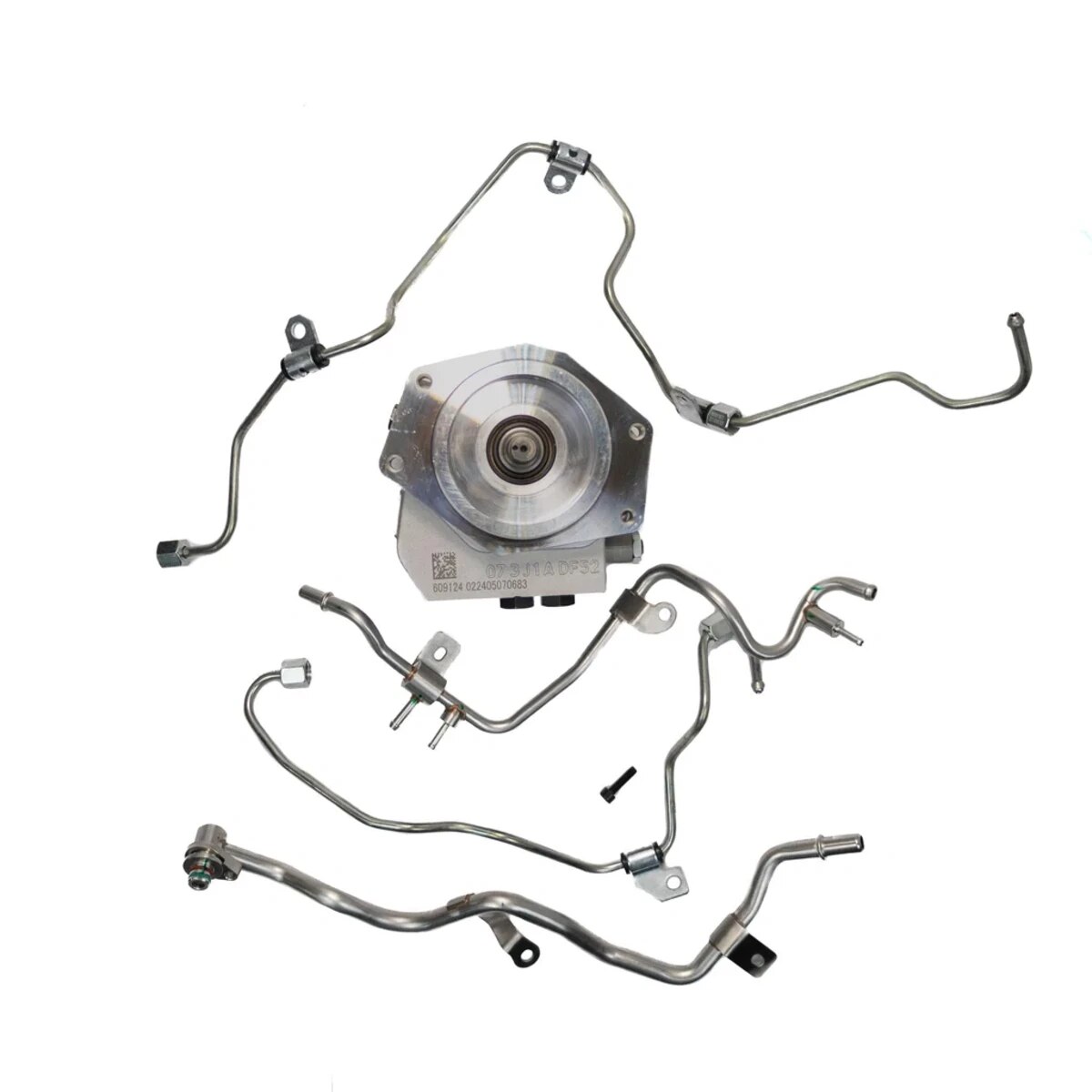

What's in the Kit

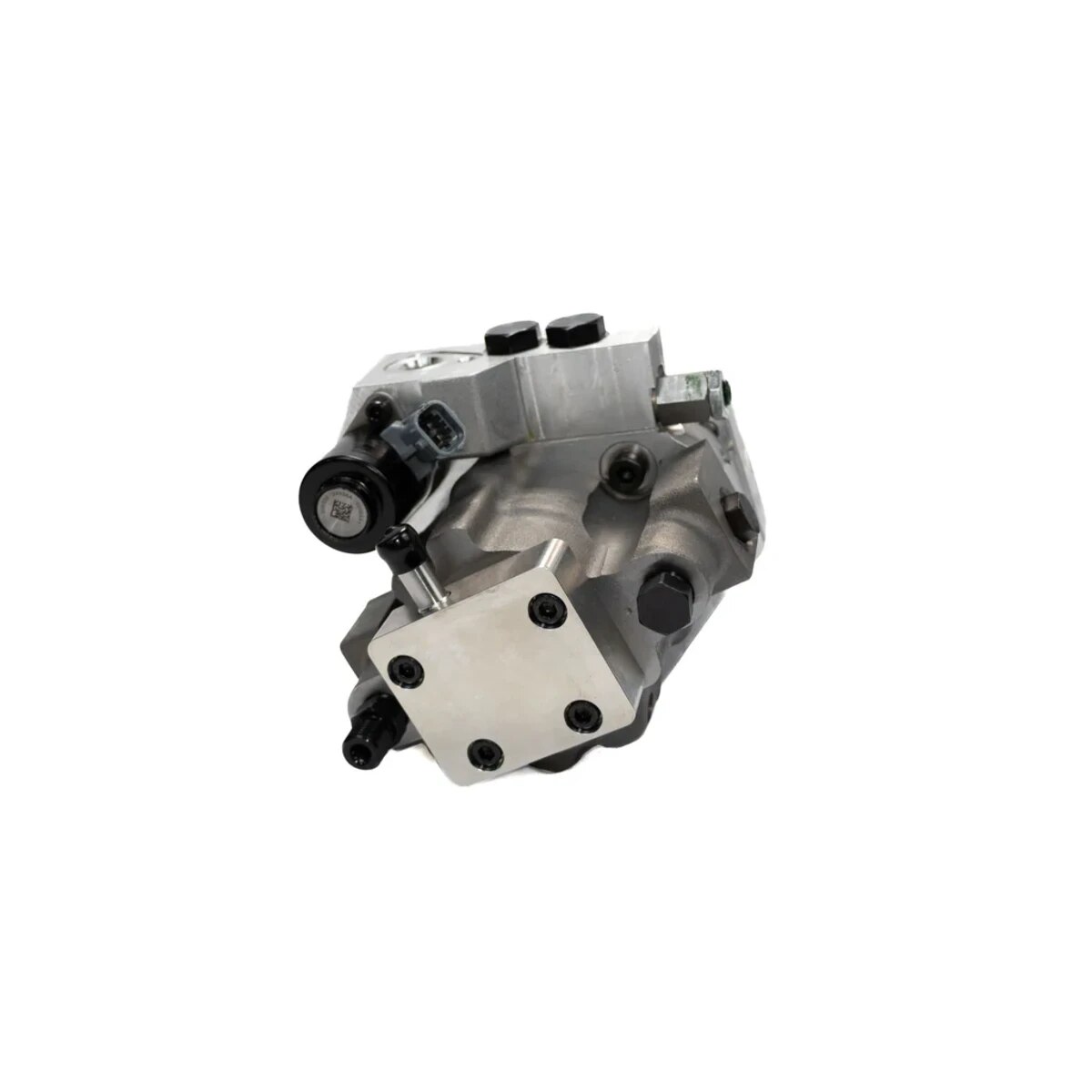

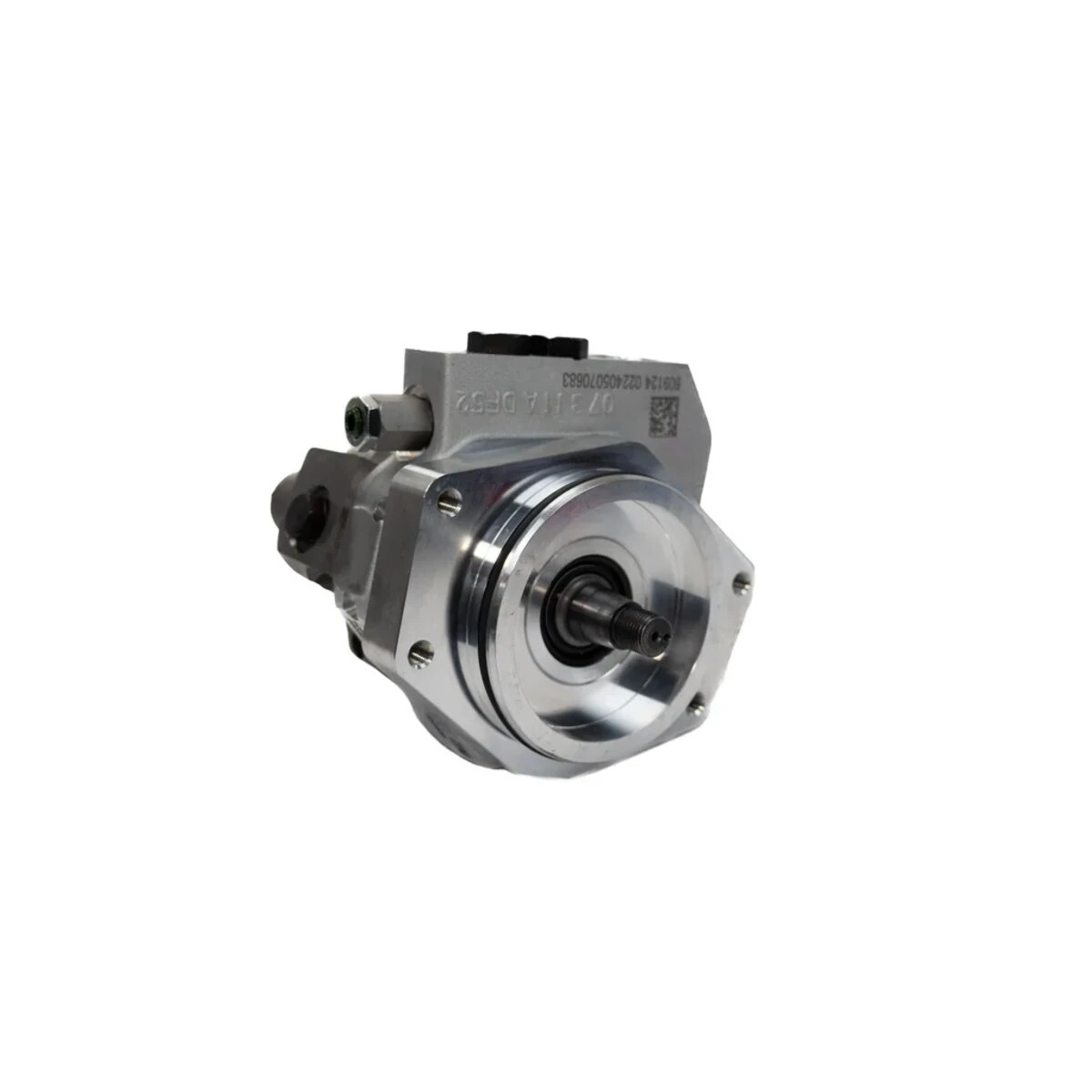

• CR pump assembly (CW), part 608800

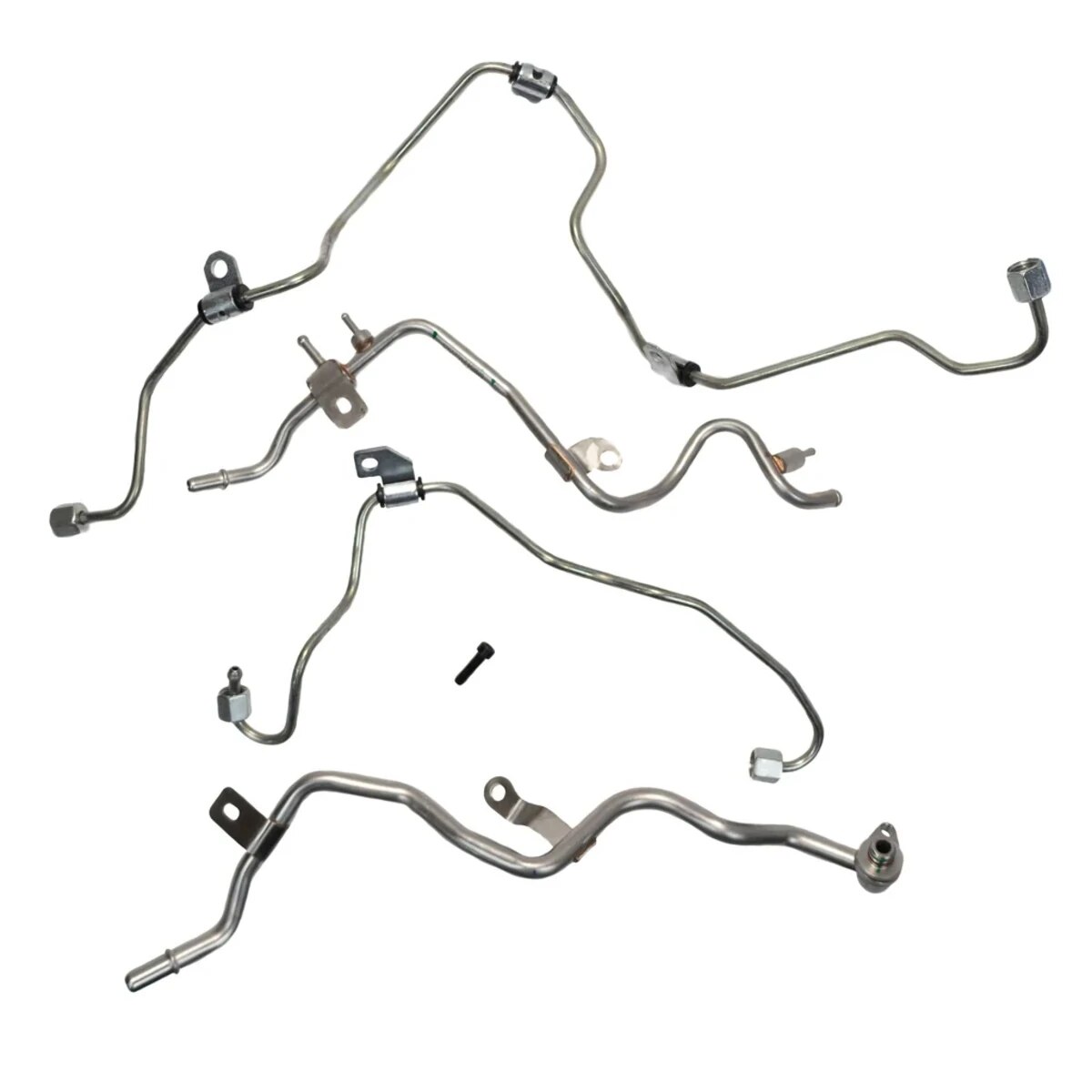

• Fuel tube assembly, HP pump, part 609166
• Fuel tube assembly, HP rail, part 609167
• Fuel tube assembly, LP return, part 609254
• Fuel tube assembly, LP supply, part 609263
• Socket head cap screw, part 46162

Installation Notes

The DCR pump has no key, and timing the pump to the engine is not required. A new pump drive gear must be installed; Dynomite Diesel specifies not reusing the factory drive gear. Dynomite Diesel also lists the following GM service parts for the job:

• High pressure pump drive gear: GM 12698076
• Engine coolant thermostat housing gasket (2x): GM 12643149
• EGR coolant feed pipe gasket: GM 12648140
• EGR pipe gasket: GM 12680216
• Thermostat bypass pipe gasket: GM 12737097
• Thermostat bypass pipe seal: GM 12658352
• Turbocharger air inlet adapter seal: GM 12651147
• Upper intake manifold seal (2x): GM 12642410
• Fan shroud retainers, only if damaged or lost: 4x GM 11589296, 2x GM 01605396
• High pressure fuel pump supply/return tube assembly, only if hoses are damaged: GM 12729812

Required tools include a 17mm crowfoot or line wrench socket, torque wrenches covering 80-89 lb in and 16-74 lb ft, 52mm fan clutch wrench and pulley holder, serpentine belt tensioner tools, 3/8" and 1/2" fuel line disconnect tools, and a GM EN-51142 pump gear holding tool or similar. Full step-by-step instructions and torque values are provided by Dynomite Diesel.

Pump Sizing

Confirm the correct pump size for your build before ordering. Dynomite Diesel recommends talking with your tuner about sizing. Dynomite Diesel does not honour returns, refunds, or credits on an incorrectly sized pump once it has been installed. Our team is happy to help you confirm fitment before you buy.

Specifications

• Manufacturer: Dynomite Diesel Products
• Part Number: DDPL5P-DCRKIT
• Fitment: 2017-2023 Chevy Duramax L5P
• Condition: Brand new
• Core: No core charge
• Quantity: Sold as a kit
• Warranty: 3 year unlimited mile (manufacturer)
• Not for sale in California

• 2017 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2017 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2017 GMC Sierra 2500 HD 6.6L DIESEL
• 2017 GMC Sierra 3500 HD 6.6L DIESEL
• 2018 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2018 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2018 GMC Sierra 2500 HD 6.6L DIESEL
• 2018 GMC Sierra 3500 HD 6.6L DIESEL
• 2019 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2019 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2019 GMC Sierra 2500 HD 6.6L DIESEL
• 2019 GMC Sierra 3500 HD 6.6L DIESEL
• 2020 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2020 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2020 GMC Sierra 2500 HD 6.6L DIESEL
• 2020 GMC Sierra 3500 HD 6.6L DIESEL
• 2021 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2021 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2021 GMC Sierra 2500 HD 6.6L DIESEL
• 2021 GMC Sierra 3500 HD 6.6L DIESEL
• 2022 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2022 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2022 GMC Sierra 2500 HD 6.6L DIESEL
• 2022 GMC Sierra 3500 HD 6.6L DIESEL
• 2023 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2023 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2023 GMC Sierra 2500 HD 6.6L DIESEL
• 2023 GMC Sierra 3500 HD 6.6L DIESEL
