M 9100 (Bump Stop) - Suspension Bump Stop - Bilstein - F4-BE5-G722-M0

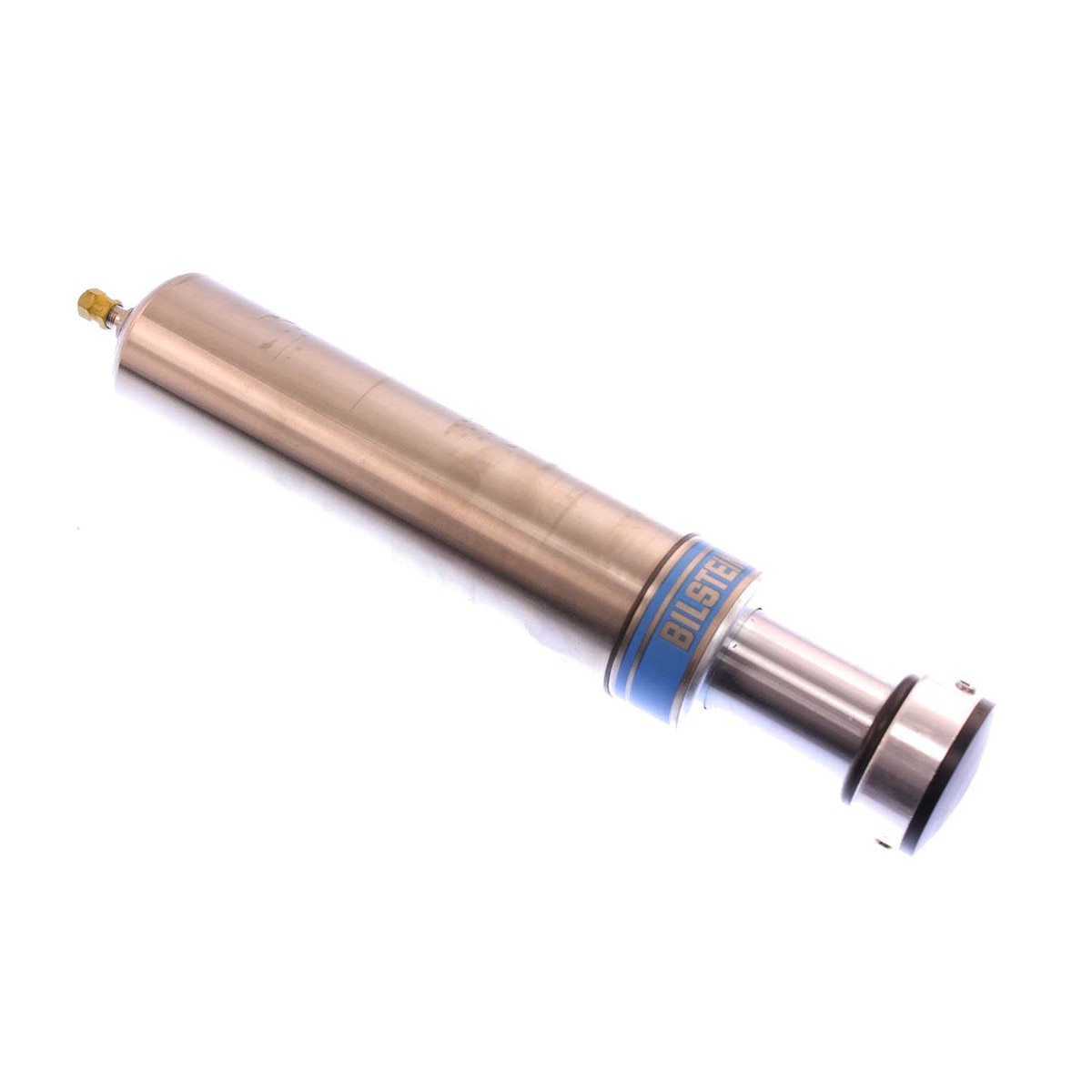

Bilstein M 9100 (Bump Stop) is designed to provide a significant increase in compression control over the last few inches of suspension travel on custom off-road applications. M 9100 (Bump Stop) is available in 3 different stroke lengths ranging from 2-4 inch travel that can accommodate a wide range of custom mount configurations. M 9100 (Bump Stop) has a replaceable strike pad for easy maintenance. This bump stop utilizes a nitrogen fill valve which can be used to fully adjust the compression force. When properly applied M 9100 (Bump Stop) will effectively decelerate the suspension and prevent harsh bottoming on custom off-road applications.Filled with technology perfected over 3 decades of off-road dominance; Monotube gas pressure design maximizes heat dissipation; Available for lifted truck custom truck rock crawling and off-road racing applications

Body Design: Smooth Body (Non-Coilover)
Collapsed Length (IN): 9.61
Collapsed Length (MM): 244.1
Compression @0.52m/s: Custom
Extended Length (IN): 11.47
Extended Length (MM): 291.3
FAB: Available for lifted truck custom truck rock crawling and off-road racing applications
FAB: Monotube gas pressure design maximizes heat dissipation
FAB: Filled with technology perfected over 3 decades of off-road dominance
Finish: Nickel Plated
Internal Design: Monotube
Lower Mount Type: Special
Mount Type: Special
Optional Reservoir Clamp: N/A
PartType: Bump Stop
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s: Custom
Reservoir: No
Segment: Motorsports
Series: M 9100 (Bump Stop)
Shaft Diameter: 1-1/4 in.
Shaft Diameter (mm): 31.8
Spring Seat Included: No
Stroke/Travel Length (IN): 1.86
Stroke/Travel Length (mm): 47.2
Title: Bilstein Shock Absorbers
Upper Mount Type: Special
