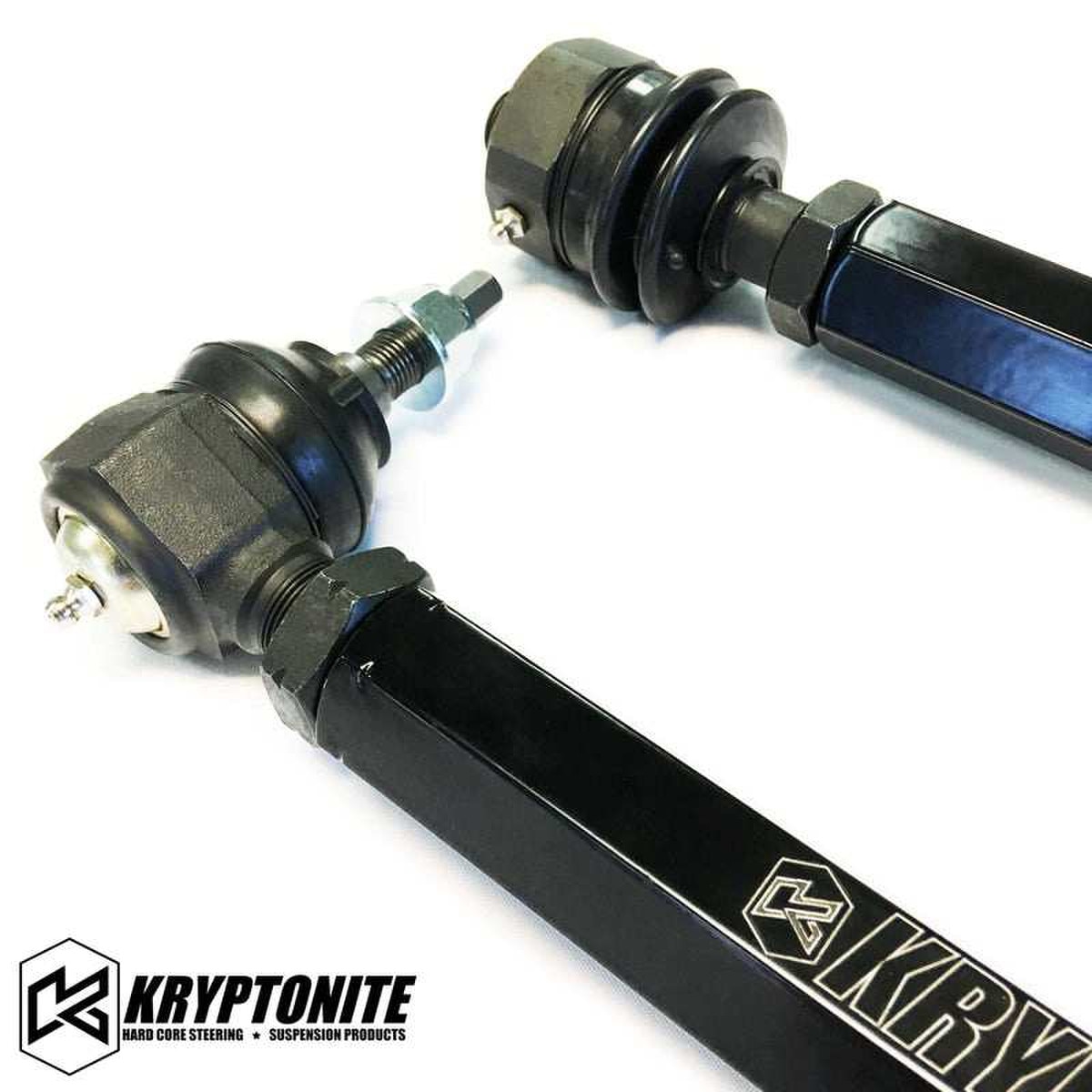

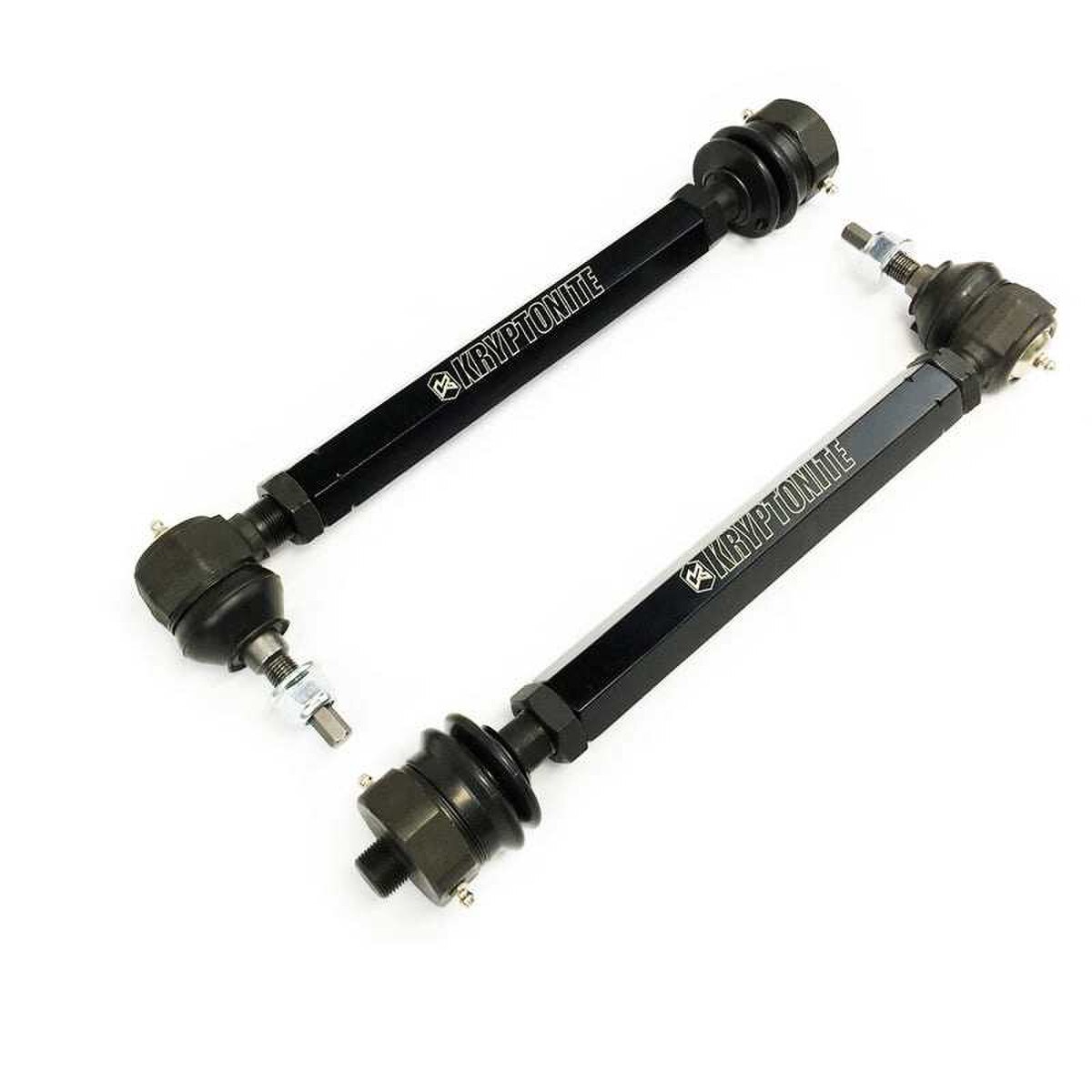

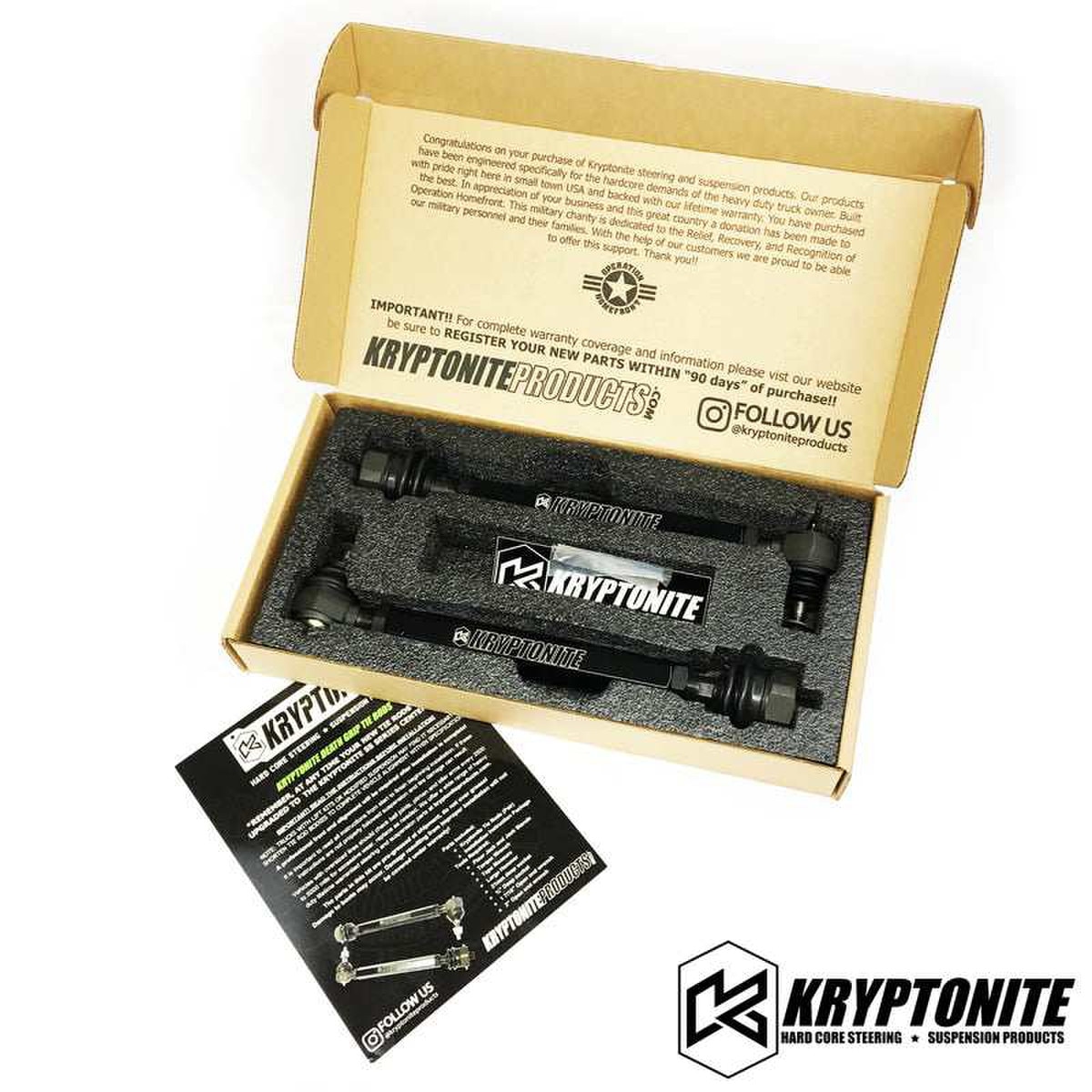

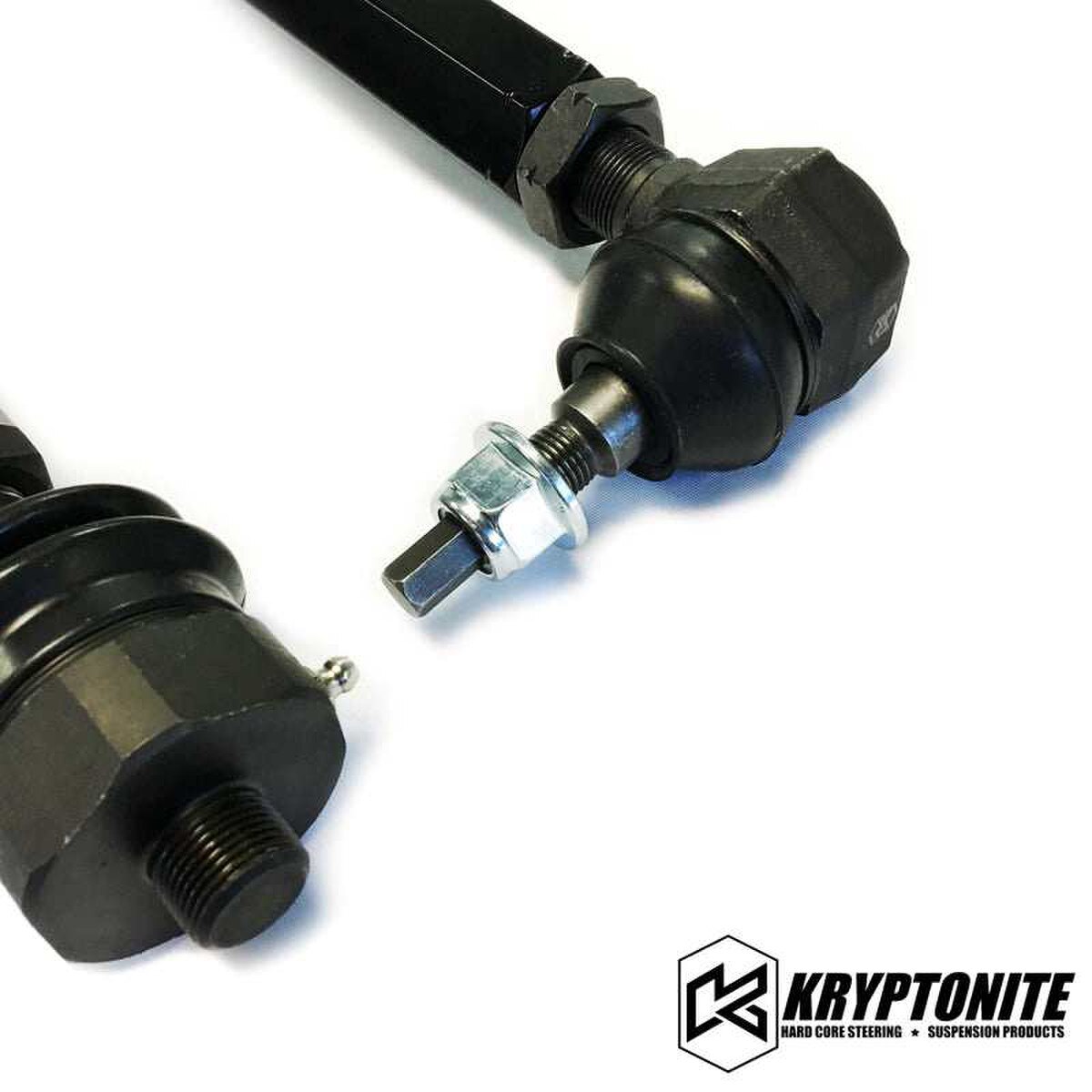

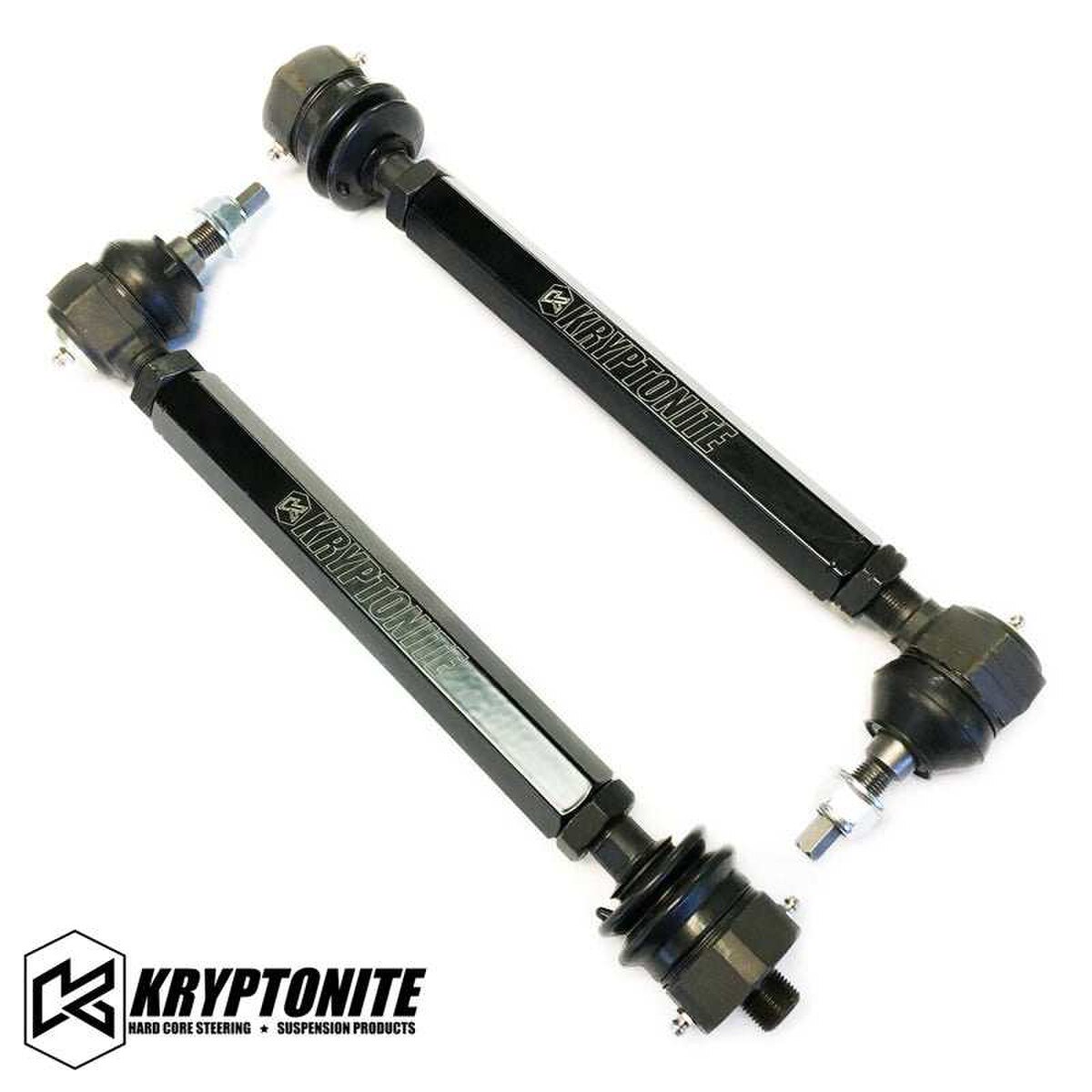

TIE RODS (FABTECH RTS LIFT KITS) FOR 2011+ CHEVY/GMC 2500HD/3500HD - Kryptonite - KRTR11-FT

(0)No Reviews yet

Details

Important Fitment Details:

*These Tie rods are built Specifically for the 2011+ GM 2500HD/3500HD Trucks Equipped with a Fabtech RTS Style Lift kit that utilizes an alternate size outer rod end only!

*Will Not Fit an OEM Knuckle.

Attention; With the installation of an oversized Tie Rod, modification or alteration of the sway bar end link may be required. Replacement end links available here.

Features:

Engineered for Heavy-Duty Use - Designed for the extreme demands of today’s HD trucks, whether stock or lifted

High-Strength Construction - Solid 1-1/4” hexagon steel body resists bending and flexing under load

Premium Materials - Heat-treated chromoly nickel outer studs and all-steel inner ball sockets provide exceptional strength and longevity

Pre-Greased and Ready to Install - Pre-lubed with Chevron Ultra EP2 grease; service every 5-7k miles

Incredible Lab-Tested Strength - Kryptonite tie rods withstood 21,000 lbs of pull force-over twice the OEM spec

Bolt-On Compatibility - Fits factory-style center link; compatible with future centerlink upgrades

Black Powder Coat Finish - Comes standard with black laser-engraved finish

Description:

Engineered exclusively for the extreme demands of today's heavy duty truck to work with stock or modified suspension. Kryptonite tie rods will fit any 2011-2019 2500/3500 GM HD Truck that has the centerlink mounted in the factory location and has Fabtech aftermarket knuckles. Using superior components and engineering, these tie rods easily outperform the competition.This pair is for use with your factory center link.

These Tie Rods can easily be upgraded later to pair with our SS Series Center Link.

CLICK HERE TO SEE CENTERLINK UPGRADE KIT

Materials Breakdown:

In recent laboratory strength tests we applied enough pulling pressure to rip apart the OEM, Aftermarket, and Kryptonite Death Grip tie rods. The OEM tie rods fail at 9000 pounds of pressure. The much larger diameter aftermarket tie rods designed to fit lifted suspension trucks, failed at 17000 pounds of pressure. Kryptonite Death Grip tie rods held up to an incredible 21000 pounds of pressure before pulling apart.

All of our ball joints and rod ends come pre-greased with premium Chevron Ultra EP2 Grease and are ready to install. Servicing will be done every 5-7k miles. (A small amount of grease is needed per joint, do not over grease)

Instructions:

CLICK HERE FOR COMPLETE INSTALLATION INSTRUCTIONS

Warranty:

(Kryptonite No Fine Print Lifetime Warranty)

Kryptonite Steering & Suspension components are warrantied for life to their original purchaser. This warranty covers manufacturer defects, premature wear, or breakage. Race it, jump it, off‑road it, wreck it, lift it-we don’t care. If you can break it, we’ll replace it.

Your Kryptonite products must be purchased through an Authorized Dealer, and Warranty Registration completed within 90 days of purchase. Complete warranty details can be found [here].

Fitments

2011 Chevrolet Silverado 2500 HD 6.0L FLEX
2011 Chevrolet Silverado 2500 HD 6.0L GAS
2011 Chevrolet Silverado 2500 HD 6.6L DIESEL
2011 Chevrolet Silverado 3500 HD 6.0L FLEX
2011 Chevrolet Silverado 3500 HD 6.0L GAS
2011 Chevrolet Silverado 3500 HD 6.6L DIESEL
2011 GMC Sierra 2500 HD 6.0L FLEX
2011 GMC Sierra 2500 HD 6.0L GAS
2011 GMC Sierra 2500 HD 6.6L DIESEL
2011 GMC Sierra 3500 HD 6.0L FLEX
2011 GMC Sierra 3500 HD 6.0L GAS
2011 GMC Sierra 3500 HD 6.6L DIESEL
2012 Chevrolet Silverado 2500 HD 6.0L FLEX
2012 Chevrolet Silverado 2500 HD 6.0L GAS
2012 Chevrolet Silverado 2500 HD 6.6L DIESEL
2012 Chevrolet Silverado 3500 HD 6.0L FLEX
2012 Chevrolet Silverado 3500 HD 6.0L GAS
2012 Chevrolet Silverado 3500 HD 6.6L DIESEL
2012 GMC Sierra 2500 HD 6.0L FLEX
2012 GMC Sierra 2500 HD 6.0L GAS
2012 GMC Sierra 2500 HD 6.6L DIESEL
2012 GMC Sierra 3500 HD 6.0L FLEX
2012 GMC Sierra 3500 HD 6.0L GAS
2012 GMC Sierra 3500 HD 6.6L DIESEL
2013 Chevrolet Silverado 2500 HD 6.0L CNG
2013 Chevrolet Silverado 2500 HD 6.0L FLEX
2013 Chevrolet Silverado 2500 HD 6.0L GAS
2013 Chevrolet Silverado 2500 HD 6.6L DIESEL
2013 Chevrolet Silverado 3500 HD 6.0L FLEX
2013 Chevrolet Silverado 3500 HD 6.0L GAS
2013 Chevrolet Silverado 3500 HD 6.6L DIESEL
2013 GMC Sierra 2500 HD 6.0L CNG
2013 GMC Sierra 2500 HD 6.0L FLEX
2013 GMC Sierra 2500 HD 6.0L GAS
2013 GMC Sierra 2500 HD 6.6L DIESEL
2013 GMC Sierra 3500 HD 6.0L FLEX
2013 GMC Sierra 3500 HD 6.0L GAS
2013 GMC Sierra 3500 HD 6.6L DIESEL
2014 Chevrolet Silverado 2500 HD 6.0L CNG
2014 Chevrolet Silverado 2500 HD 6.0L FLEX
2014 Chevrolet Silverado 2500 HD 6.0L GAS
2014 Chevrolet Silverado 2500 HD 6.6L DIESEL
2014 Chevrolet Silverado 3500 HD 6.0L FLEX
2014 Chevrolet Silverado 3500 HD 6.0L GAS
2014 Chevrolet Silverado 3500 HD 6.6L DIESEL
2014 GMC Sierra 2500 HD 6.0L CNG
2014 GMC Sierra 2500 HD 6.0L FLEX
2014 GMC Sierra 2500 HD 6.0L GAS
2014 GMC Sierra 2500 HD 6.6L DIESEL
2014 GMC Sierra 3500 HD 6.0L FLEX
2014 GMC Sierra 3500 HD 6.0L GAS
2014 GMC Sierra 3500 HD 6.6L DIESEL
2015 Chevrolet Silverado 2500 HD 6.0L CNG
2015 Chevrolet Silverado 2500 HD 6.0L FLEX
2015 Chevrolet Silverado 2500 HD 6.0L GAS
2015 Chevrolet Silverado 2500 HD 6.6L DIESEL
2015 Chevrolet Silverado 3500 HD 6.0L CNG
2015 Chevrolet Silverado 3500 HD 6.0L FLEX
2015 Chevrolet Silverado 3500 HD 6.0L GAS
2015 Chevrolet Silverado 3500 HD 6.6L DIESEL
2015 GMC Sierra 2500 HD 6.0L CNG
2015 GMC Sierra 2500 HD 6.0L FLEX
2015 GMC Sierra 2500 HD 6.0L GAS
2015 GMC Sierra 2500 HD 6.6L DIESEL
2015 GMC Sierra 3500 HD 6.0L CNG
2015 GMC Sierra 3500 HD 6.0L FLEX
2015 GMC Sierra 3500 HD 6.0L GAS
2015 GMC Sierra 3500 HD 6.6L DIESEL
2016 Chevrolet Silverado 2500 HD 6.0L CNG
2016 Chevrolet Silverado 2500 HD 6.0L FLEX
2016 Chevrolet Silverado 2500 HD 6.0L GAS
2016 Chevrolet Silverado 2500 HD 6.6L DIESEL
2016 Chevrolet Silverado 3500 HD 6.0L CNG
2016 Chevrolet Silverado 3500 HD 6.0L FLEX
2016 Chevrolet Silverado 3500 HD 6.0L GAS
2016 Chevrolet Silverado 3500 HD 6.6L DIESEL
2016 GMC Sierra 2500 HD 6.0L CNG
2016 GMC Sierra 2500 HD 6.0L FLEX
2016 GMC Sierra 2500 HD 6.0L GAS
2016 GMC Sierra 2500 HD 6.6L DIESEL
2016 GMC Sierra 3500 HD 6.0L CNG
2016 GMC Sierra 3500 HD 6.0L FLEX
2016 GMC Sierra 3500 HD 6.0L GAS
2016 GMC Sierra 3500 HD 6.6L DIESEL
2017 Chevrolet Silverado 2500 HD 6.0L FLEX
2017 Chevrolet Silverado 2500 HD 6.0L GAS
2017 Chevrolet Silverado 2500 HD 6.6L DIESEL
2017 Chevrolet Silverado 3500 HD 6.0L FLEX
2017 Chevrolet Silverado 3500 HD 6.0L GAS
2017 Chevrolet Silverado 3500 HD 6.6L DIESEL
2017 GMC Sierra 2500 HD 6.0L FLEX
2017 GMC Sierra 2500 HD 6.0L GAS
2017 GMC Sierra 2500 HD 6.6L DIESEL
2017 GMC Sierra 3500 HD 6.0L FLEX
2017 GMC Sierra 3500 HD 6.0L GAS
2017 GMC Sierra 3500 HD 6.6L DIESEL
2018 Chevrolet Silverado 2500 HD 6.0L CNG
2018 Chevrolet Silverado 2500 HD 6.0L FLEX
2018 Chevrolet Silverado 2500 HD 6.0L GAS
2018 Chevrolet Silverado 2500 HD 6.6L DIESEL
2018 Chevrolet Silverado 3500 HD 6.0L FLEX
2018 Chevrolet Silverado 3500 HD 6.0L GAS
2018 Chevrolet Silverado 3500 HD 6.6L DIESEL
2018 GMC Sierra 2500 HD 6.0L FLEX
2018 GMC Sierra 2500 HD 6.0L GAS
2018 GMC Sierra 2500 HD 6.6L DIESEL
2018 GMC Sierra 3500 HD 6.0L FLEX
2018 GMC Sierra 3500 HD 6.0L GAS
2018 GMC Sierra 3500 HD 6.6L DIESEL
2019 Chevrolet Silverado 2500 HD 6.0L CNG
2019 Chevrolet Silverado 2500 HD 6.0L FLEX
2019 Chevrolet Silverado 2500 HD 6.0L GAS
2019 Chevrolet Silverado 2500 HD 6.6L DIESEL
2019 Chevrolet Silverado 3500 HD 6.0L CNG
2019 Chevrolet Silverado 3500 HD 6.0L FLEX
2019 Chevrolet Silverado 3500 HD 6.0L GAS
2019 Chevrolet Silverado 3500 HD 6.6L DIESEL
2019 GMC Sierra 2500 HD 6.0L CNG
2019 GMC Sierra 2500 HD 6.0L FLEX
2019 GMC Sierra 2500 HD 6.0L GAS
2019 GMC Sierra 2500 HD 6.6L DIESEL
2019 GMC Sierra 3500 HD 6.0L CNG
2019 GMC Sierra 3500 HD 6.0L FLEX
2019 GMC Sierra 3500 HD 6.0L GAS
2019 GMC Sierra 3500 HD 6.6L DIESEL
2020 Chevrolet Silverado 2500 HD 6.6L DIESEL
2020 Chevrolet Silverado 2500 HD 6.6L GAS
2020 Chevrolet Silverado 3500 HD 6.6L DIESEL
2020 Chevrolet Silverado 3500 HD 6.6L GAS
2020 GMC Sierra 2500 HD 6.6L DIESEL
2020 GMC Sierra 2500 HD 6.6L GAS
2020 GMC Sierra 3500 HD 6.6L DIESEL
2020 GMC Sierra 3500 HD 6.6L GAS
2021 Chevrolet Silverado 2500 HD 6.6L DIESEL
2021 Chevrolet Silverado 2500 HD 6.6L FLEX
2021 Chevrolet Silverado 2500 HD 6.6L GAS
2021 Chevrolet Silverado 3500 HD 6.6L DIESEL
2021 Chevrolet Silverado 3500 HD 6.6L FLEX
2021 Chevrolet Silverado 3500 HD 6.6L GAS
2021 GMC Sierra 2500 HD 6.6L DIESEL
2021 GMC Sierra 2500 HD 6.6L FLEX
2021 GMC Sierra 2500 HD 6.6L GAS
2021 GMC Sierra 3500 HD 6.6L DIESEL
2021 GMC Sierra 3500 HD 6.6L FLEX
2021 GMC Sierra 3500 HD 6.6L GAS
2022 Chevrolet Silverado 2500 HD 6.6L DIESEL
2022 Chevrolet Silverado 2500 HD 6.6L FLEX
2022 Chevrolet Silverado 2500 HD 6.6L GAS
2022 Chevrolet Silverado 3500 HD 6.6L DIESEL
2022 Chevrolet Silverado 3500 HD 6.6L FLEX
2022 Chevrolet Silverado 3500 HD 6.6L GAS
2022 GMC Sierra 2500 HD 6.6L DIESEL
2022 GMC Sierra 2500 HD 6.6L FLEX
2022 GMC Sierra 2500 HD 6.6L GAS
2022 GMC Sierra 3500 HD 6.6L DIESEL
2022 GMC Sierra 3500 HD 6.6L FLEX
2022 GMC Sierra 3500 HD 6.6L GAS
2023 Chevrolet Silverado 2500 HD 6.6L DIESEL
2023 Chevrolet Silverado 2500 HD 6.6L FLEX
2023 Chevrolet Silverado 2500 HD 6.6L GAS
2023 Chevrolet Silverado 3500 HD 6.6L DIESEL
2023 Chevrolet Silverado 3500 HD 6.6L FLEX
2023 Chevrolet Silverado 3500 HD 6.6L GAS
2023 GMC Sierra 2500 HD 6.6L DIESEL
2023 GMC Sierra 2500 HD 6.6L FLEX
2023 GMC Sierra 2500 HD 6.6L GAS
2023 GMC Sierra 3500 HD 6.6L DIESEL
2023 GMC Sierra 3500 HD 6.6L FLEX
2023 GMC Sierra 3500 HD 6.6L GAS
2024 Chevrolet Silverado 2500 HD 6.6L DIESEL
2024 Chevrolet Silverado 2500 HD 6.6L FLEX
2024 Chevrolet Silverado 2500 HD 6.6L GAS
2024 Chevrolet Silverado 3500 HD 6.6L DIESEL
2024 Chevrolet Silverado 3500 HD 6.6L FLEX
2024 Chevrolet Silverado 3500 HD 6.6L GAS
2024 GMC Sierra 2500 HD 6.6L DIESEL
2024 GMC Sierra 2500 HD 6.6L FLEX
2024 GMC Sierra 2500 HD 6.6L GAS
2024 GMC Sierra 3500 HD 6.6L DIESEL
2024 GMC Sierra 3500 HD 6.6L FLEX
2024 GMC Sierra 3500 HD 6.6L GAS
2025 Chevrolet Silverado 2500 HD 6.6L DIESEL
2025 Chevrolet Silverado 2500 HD 6.6L FLEX
2025 Chevrolet Silverado 2500 HD 6.6L GAS
2025 Chevrolet Silverado 3500 HD 6.6L DIESEL
2025 Chevrolet Silverado 3500 HD 6.6L FLEX
2025 Chevrolet Silverado 3500 HD 6.6L GAS
2025 GMC Sierra 2500 HD 6.6L DIESEL
2025 GMC Sierra 2500 HD 6.6L FLEX
2025 GMC Sierra 2500 HD 6.6L GAS
2025 GMC Sierra 3500 HD 6.6L DIESEL
2025 GMC Sierra 3500 HD 6.6L FLEX
2025 GMC Sierra 3500 HD 6.6L GAS
2026 Chevrolet Silverado 2500 HD 6.6L DIESEL
2026 Chevrolet Silverado 2500 HD 6.6L FLEX
2026 Chevrolet Silverado 2500 HD 6.6L GAS
2026 Chevrolet Silverado 3500 HD 6.6L DIESEL
2026 Chevrolet Silverado 3500 HD 6.6L FLEX
2026 Chevrolet Silverado 3500 HD 6.6L GAS
2026 GMC Sierra 2500 HD 6.6L DIESEL
2026 GMC Sierra 2500 HD 6.6L FLEX
2026 GMC Sierra 2500 HD 6.6L GAS
2026 GMC Sierra 3500 HD 6.6L DIESEL
2026 GMC Sierra 3500 HD 6.6L FLEX
2026 GMC Sierra 3500 HD 6.6L GAS
