Baffled Oil Catch Can, Parallel Port, Universal - Mishimoto - MMBCC-PPTWO
Details

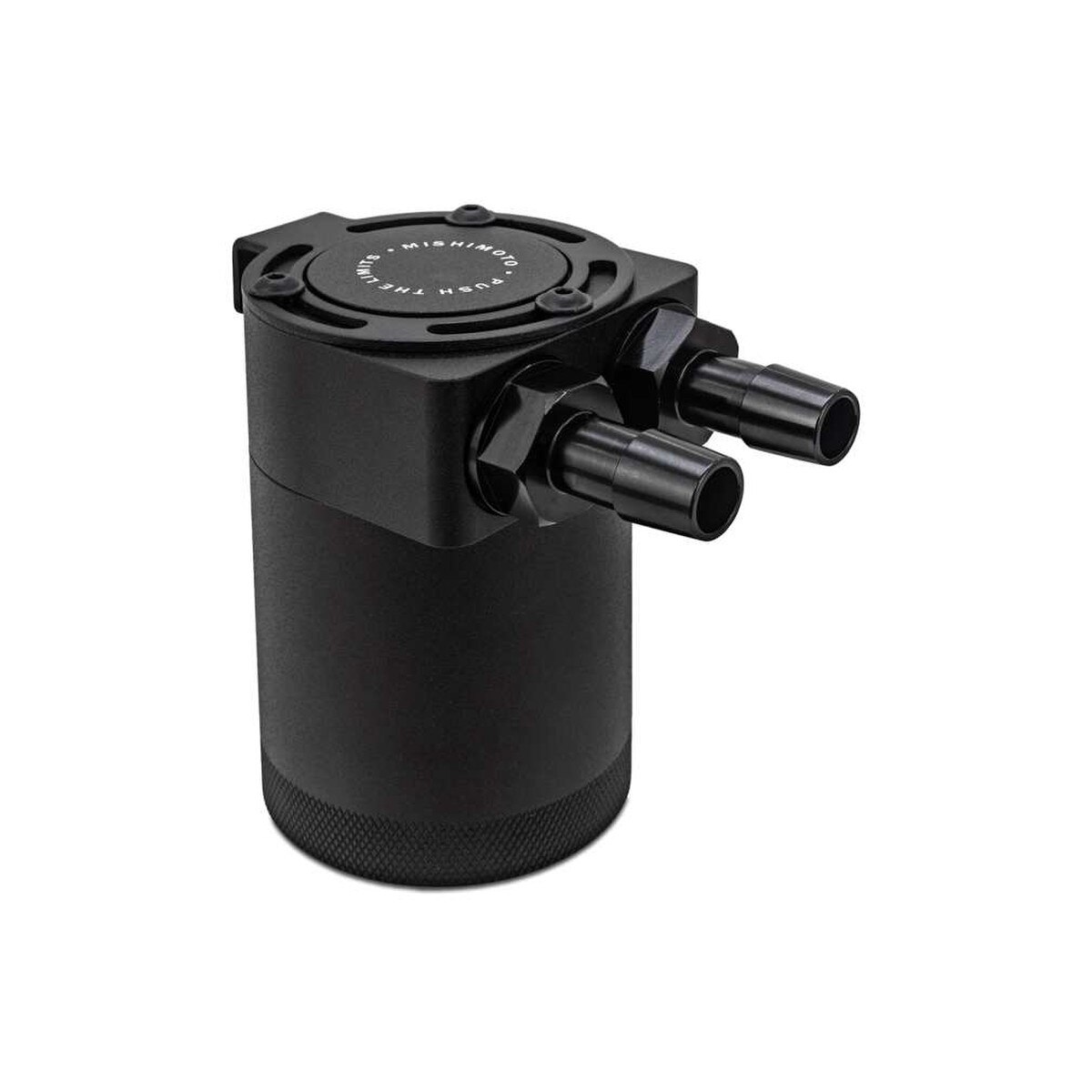

Keep your crankcase free of harmful oil fuel and water vapors with the Mishimoto Universal High-Flow Baffled Catch Can Kit. Compatible with a wide range of makes and models this kit includes a powder coated universal bracket that lets you mount it in the most convenient and secure location. The fully-serviceable design features a detachable bottom for quick and easy maintenance while the removable 50-micron bronze filter improves oil separation to keep your engine breathing right. The inlet and outlet ports accept multiple fitting sizes to accommodate a variety of hose sizing and the all-aluminum billet barbed fittings ensure easy secure hose installation. M20 ORB threading provides a tight pressure-resistant seal to prevent leakage-even in demanding conditions. ---- Backed by the Mishimoto Lifetime Warranty this catch can kit offers long-lasting protection and reliability to keep your engine running better and longer.
- Universal design works with various makes and models
- 50-micron bronze filter for improved oil separation
- Fully serviceable can with detachable bottom
Can Type: Twist Off
Can Outside Diameter: 0 IN
Inlet Port Quantity per Can: 0
Outlet Port Quantity per Can: 0
Can Finish: Anodized
Hose Included: Yes
Color: Black
Outlet Port Inside Diameter: 0 IN
Inlet Port Inside Diameter: 0 IN
Drain Plug Included: Yes
Finish: Anodized
Height: 0 IN
Maximum Can Capacity: 0 FO
Interior Baffle: Yes
Mounting Bracket Included: Yes
Install Difficulty: 2
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Universal design works with various makes and models
SellingPoint02: 50-micron bronze filter for improved oil separation
SellingPoint03: Fully serviceable can with detachable bottom
SellingPoint04: Universal bracket lets you mount the catch can in the most convenient and secure location
SellingPoint05: All-aluminum billet barbed fittings for easy and secure hose installation
SellingPoint06: Inlet and outlet ports accept multiple sizes of barbed fittings for varied hose sizing
SellingPoint07: M20 ORB threading offers tight and pressure-resistant seal to prevent leakage
SellingPoint08: Optional Petcock Drain Kit allows one-turn drainage of all blow-by contents
SellingPoint09: Patent Nos. US ZL 202120175368.7 US D966 372 S
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Universal
TechSpec Catch Can Diameter (in): 2.5
TechSpec Chassis Codes: N/A
TechSpec Drain Plug Thread Size: 3/8 inch-18 NPT
TechSpec Engine Codes: N/A
TechSpec Height (in): 3.9

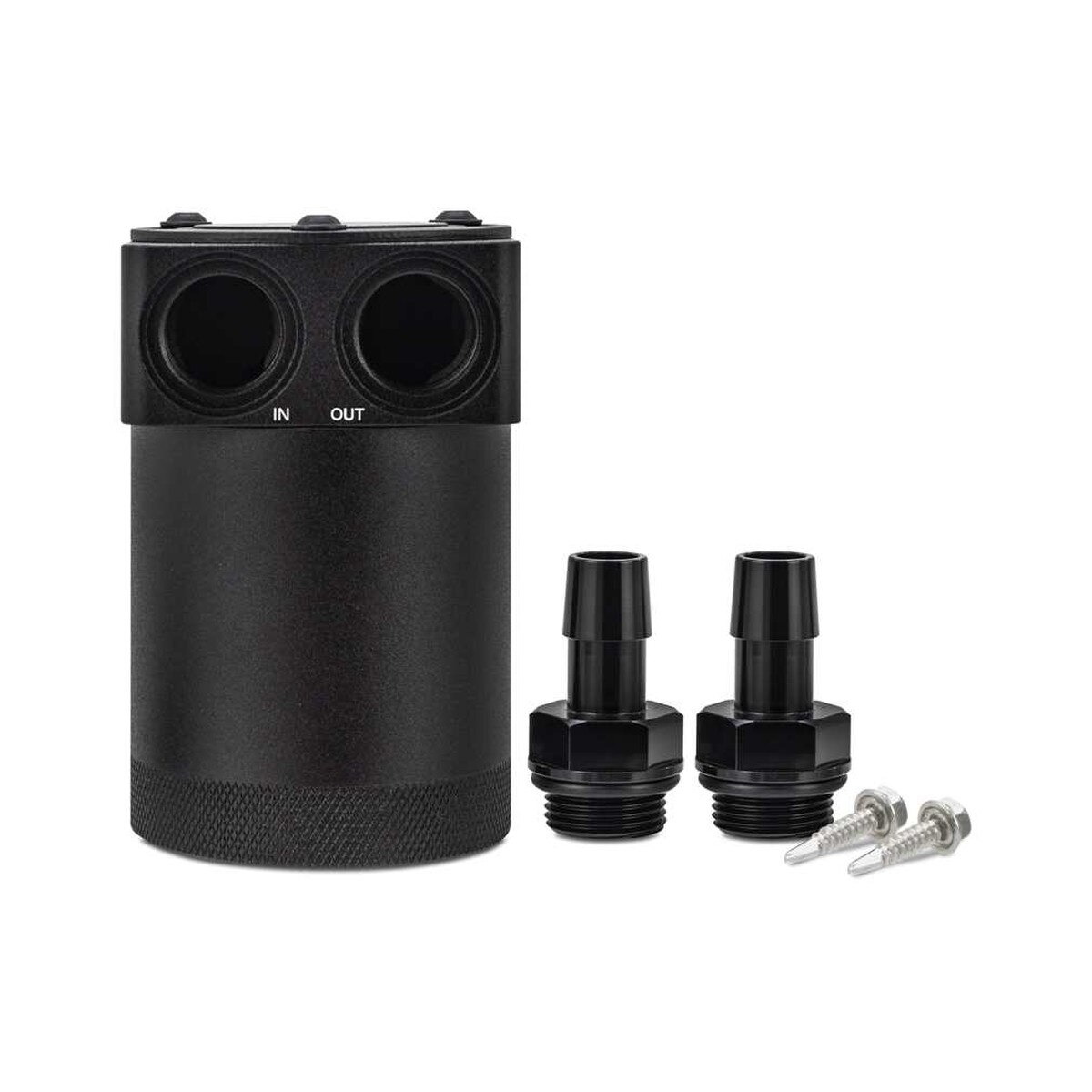

TechSpec Includes: (1) Mishimoto Parrallel Port Catch Can--(2) 1/2 inch M20 O-Ring Faced Aluminum Fittings--Universal Mounting Bracket--(2) Self Tapping Screws--Mishimoto Lifetime Warranty
TechSpec Inlet: 0.5
TechSpec Installation Notes: N/A
TechSpec Material: 6061 Aluminum
TechSpec Note: Threads for O-Ring Faced Fittings are M20 x 1.5
TechSpec Outlet: 0.5
