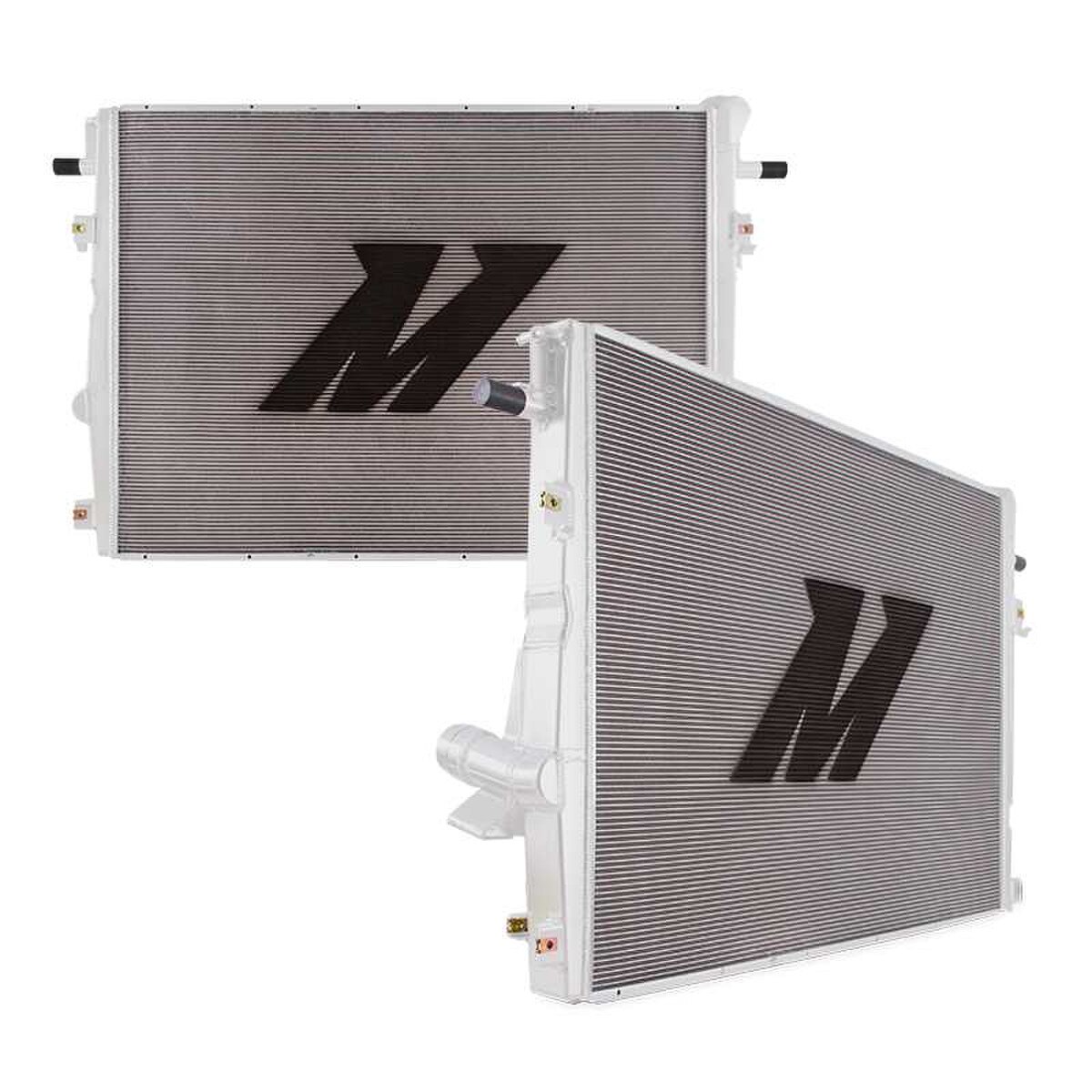

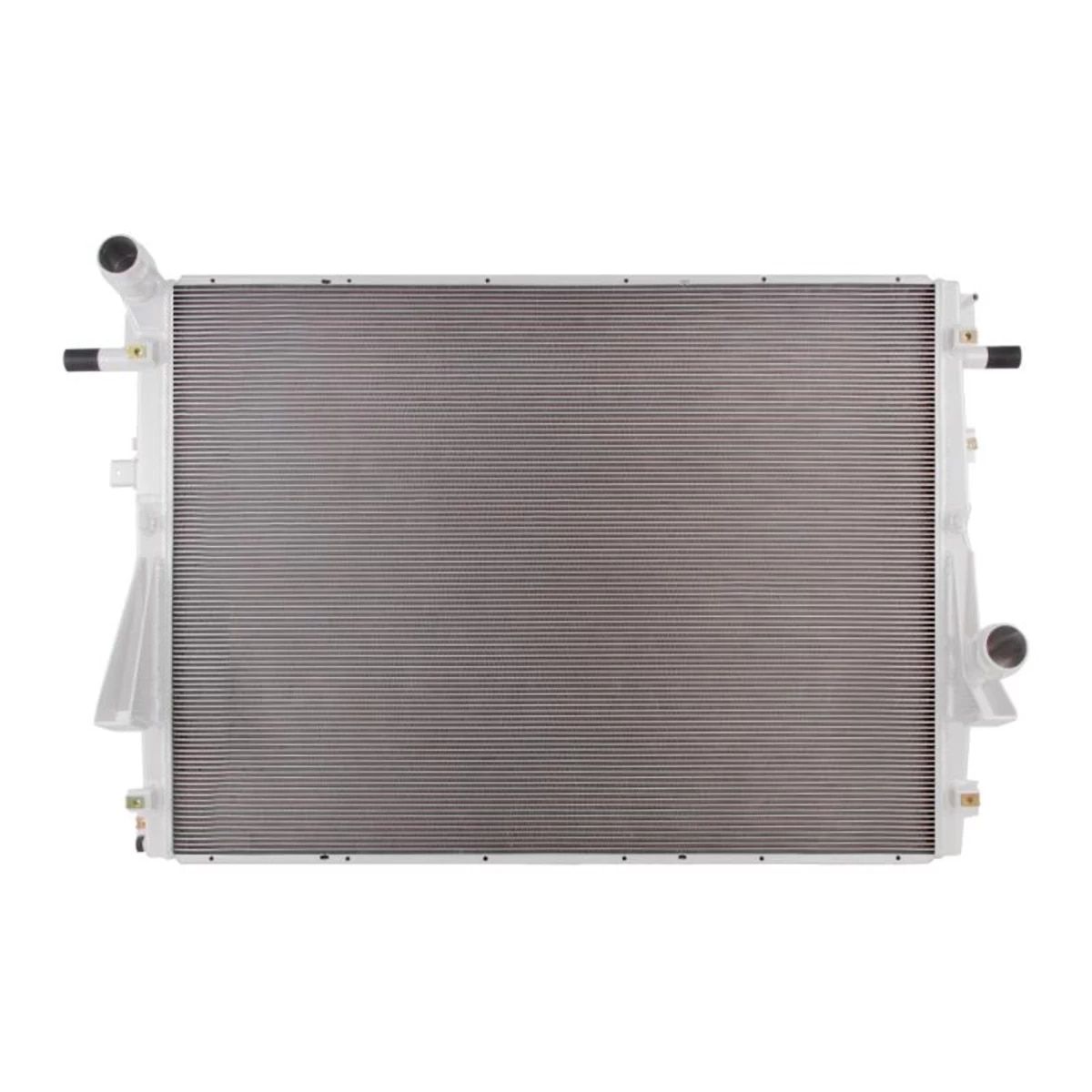

Performance Aluminum Radiator, Primary, fits Ford 6.7L Powerstroke 2011-2016 - Mishimoto - MMRAD-F2D-11V2

(0)No Reviews yet
SKU: MMRAD-F2D-11V2
BRAND: Mishimoto
$1,679.93 CAD

Due to the dimensions of this item it may incur additional shipping charges and require special handling. A member of our team may be in contact with you.


Details

The 6.7L Ford Powerstroke is plagued with radiator and cooling issues with no effective solution available. Upgrade your truck with the Mishimoto 6.7L Powerstroke Aluminum Primary Radiator to put an end to puddles of coolant under your truck. Mishimoto radiators are constructed from high-quality aircraft-grade aluminum with a 100-percent brazed aluminum core. Our 6.7L radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your Powerstroke on the road and out of the shop. The Mishimoto Ford 6.7L Powerstroke Aluminum Primary Radiator retains factory fitment for an easy installation process and includes a magnetic drain plug to catch any debris in your cooling system. As with all our products this radiator is protected by the Mishimoto Lifetime Warranty.

  • 37-percent increase in coolant capacity
  • 20-percent increase in fin area
  • 10-percent thicker core than factory
Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 30.2 IN
Core Height: 38.39 IN
Core Thickness: 1.89 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 27.76 IN
Core Row Quantity: 2
Inlet Diameter: 0 IN
Inlet Location: Top Left
Outlet Diameter: 0 IN
Fluid Capacity: 11.61 GA
Down Flow Or Cross Flow Type: Cross Flow
Overall Length: 48.9 IN
Overall Width: 8 IN
Install Difficulty: 4
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 6.7L Powerstroke 2011-2016
SellingPoint02: 37-percent increase in coolant capacity
SellingPoint03: 20-percent increase in fin area
SellingPoint04: 10-percent thicker core than factory
SellingPoint05: 100-percent brazed aluminum core

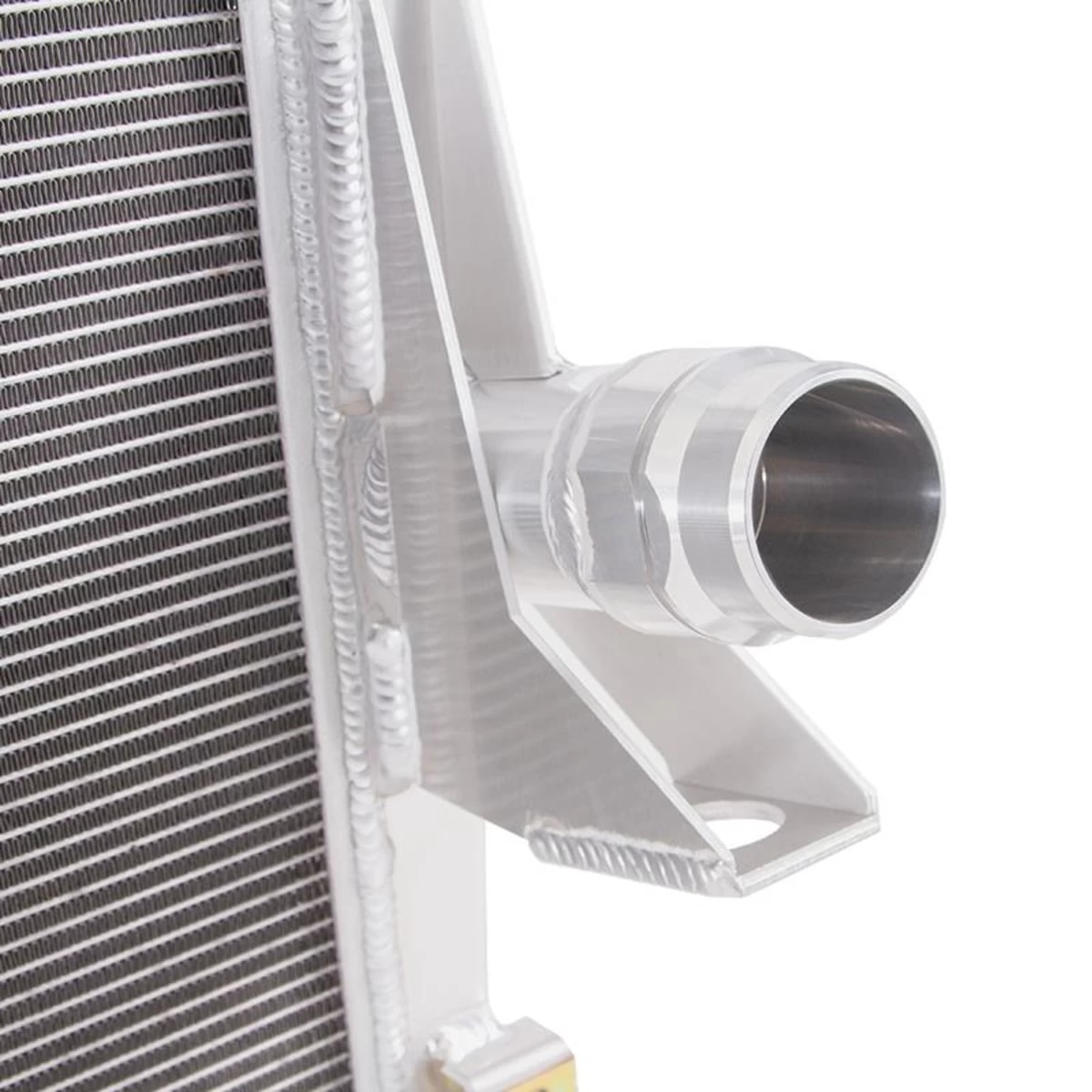

SellingPoint06: CNC-machined factory-style quick-disconnect inlet and outlet
SellingPoint07: TIG-welded to perfection
SellingPoint08: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint09: Patent numberD717 218
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2011-2016 Ford F-250 w/ 6.7L Powerstroke--2011-2016 Ford F-350 w/ 6.7L Powerstroke--2011-2016 Ford F-450 w/ 6.7L Powerstroke--2011-2016 Ford F-550 w/ 6.7L Powerstroke
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 38.39
TechSpec Core Length (in): 27.76
TechSpec Core Thickness (in): 1.89
TechSpec DPI: 13230
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): 11.61
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--(4) M6 x 1.0 x 16mm Bolts--(12) Black Plastic Tree Clips--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): 30.2
TechSpec Overall Length (in): 48.9
TechSpec Overall Width (in): 8
TechSpec Rows: 2

Fitments

  • 2011 Ford F-250 Super Duty 6.2L FLEX
  • 2011 Ford F-250 Super Duty 6.7L DIESEL
  • 2011 Ford F-350 Super Duty 6.2L FLEX
  • 2011 Ford F-350 Super Duty 6.7L DIESEL
  • 2011 Ford F-450 Super Duty 6.7L DIESEL
  • 2011 Ford F-450 Super Duty 6.8L GAS
  • 2011 Ford F-550 Super Duty 6.7L DIESEL
  • 2011 Ford F-550 Super Duty 6.8L GAS
  • 2012 Ford F-250 Super Duty 6.2L FLEX
  • 2012 Ford F-250 Super Duty 6.7L DIESEL
  • 2012 Ford F-350 Super Duty 6.2L FLEX
  • 2012 Ford F-350 Super Duty 6.7L DIESEL
  • 2012 Ford F-450 Super Duty 6.7L DIESEL
  • 2012 Ford F-450 Super Duty 6.8L GAS
  • 2012 Ford F-550 Super Duty 6.7L DIESEL
  • 2012 Ford F-550 Super Duty 6.8L GAS
  • 2013 Ford F-250 Super Duty 6.2L FLEX
  • 2013 Ford F-250 Super Duty 6.7L DIESEL
  • 2013 Ford F-350 Super Duty 6.2L FLEX
  • 2013 Ford F-350 Super Duty 6.7L DIESEL
  • 2013 Ford F-450 Super Duty 6.7L DIESEL
  • 2013 Ford F-450 Super Duty 6.8L GAS
  • 2013 Ford F-550 Super Duty 6.7L DIESEL
  • 2013 Ford F-550 Super Duty 6.8L GAS
  • 2014 Ford F-250 Super Duty 6.2L FLEX
  • 2014 Ford F-250 Super Duty 6.7L DIESEL
  • 2014 Ford F-350 Super Duty 6.2L FLEX
  • 2014 Ford F-350 Super Duty 6.7L DIESEL
  • 2014 Ford F-450 Super Duty 6.7L DIESEL
  • 2014 Ford F-450 Super Duty 6.8L GAS
  • 2014 Ford F-550 Super Duty 6.7L DIESEL
  • 2014 Ford F-550 Super Duty 6.8L GAS
  • 2015 Ford F-250 Super Duty 6.2L FLEX
  • 2015 Ford F-250 Super Duty 6.7L DIESEL
  • 2015 Ford F-350 Super Duty 6.2L FLEX
  • 2015 Ford F-350 Super Duty 6.7L DIESEL
  • 2015 Ford F-450 Super Duty 6.7L DIESEL
  • 2015 Ford F-450 Super Duty 6.8L CNG
  • 2015 Ford F-450 Super Duty 6.8L GAS
  • 2015 Ford F-450 Super Duty 6.8L LPG
  • 2015 Ford F-550 Super Duty 6.7L DIESEL
  • 2015 Ford F-550 Super Duty 6.8L CNG
  • 2015 Ford F-550 Super Duty 6.8L GAS
  • 2015 Ford F-550 Super Duty 6.8L LPG
  • 2016 Ford F-250 Super Duty 6.2L FLEX
  • 2016 Ford F-250 Super Duty 6.7L DIESEL
  • 2016 Ford F-350 Super Duty 6.2L FLEX
  • 2016 Ford F-350 Super Duty 6.7L DIESEL
  • 2016 Ford F-450 Super Duty 6.7L DIESEL
  • 2016 Ford F-450 Super Duty 6.8L CNG
  • 2016 Ford F-450 Super Duty 6.8L GAS
  • 2016 Ford F-450 Super Duty 6.8L LPG
  • 2016 Ford F-550 Super Duty 6.7L DIESEL
  • 2016 Ford F-550 Super Duty 6.8L CNG
  • 2016 Ford F-550 Super Duty 6.8L GAS
  • 2016 Ford F-550 Super Duty 6.8L LPG
WARRANTY: Lifetime Warranty
