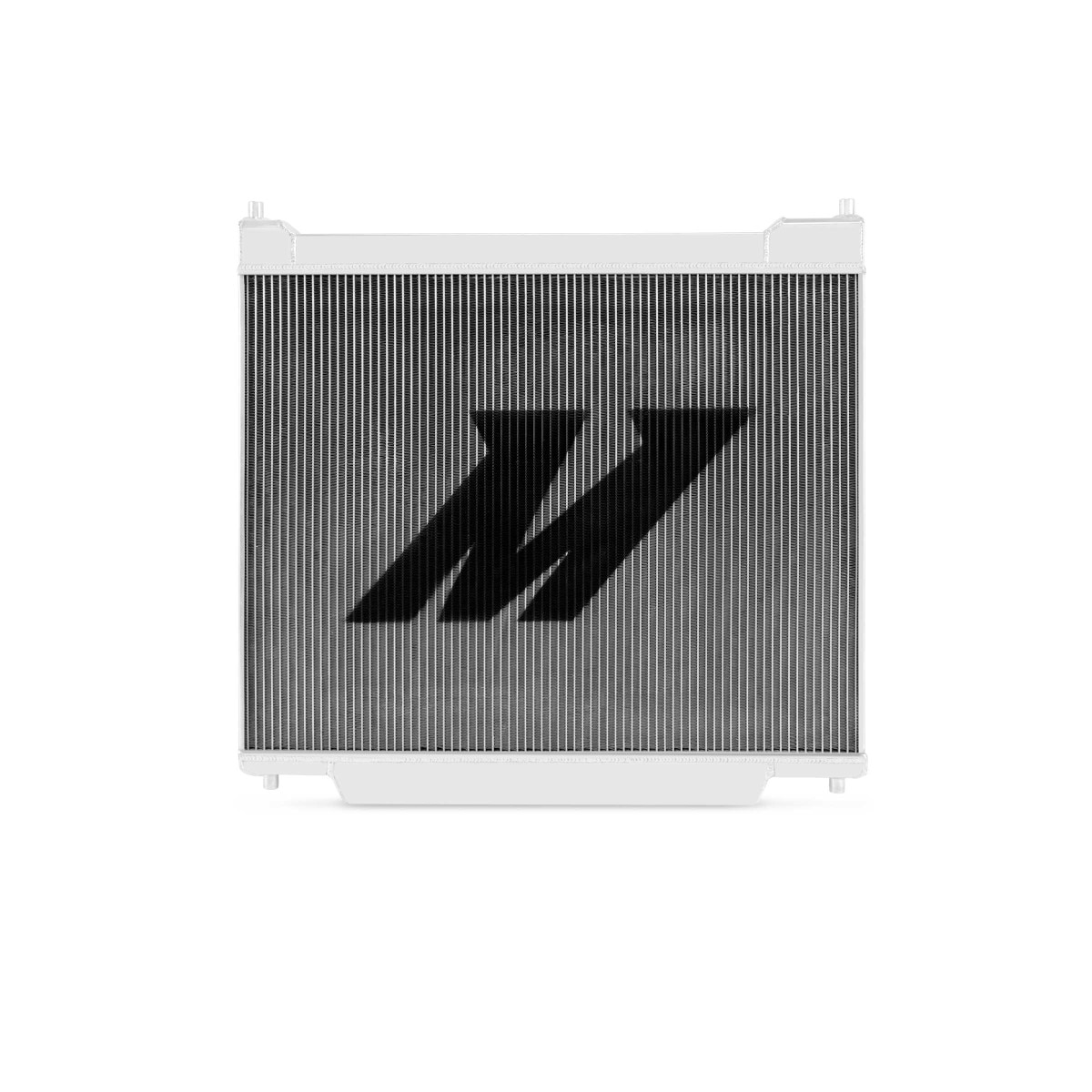

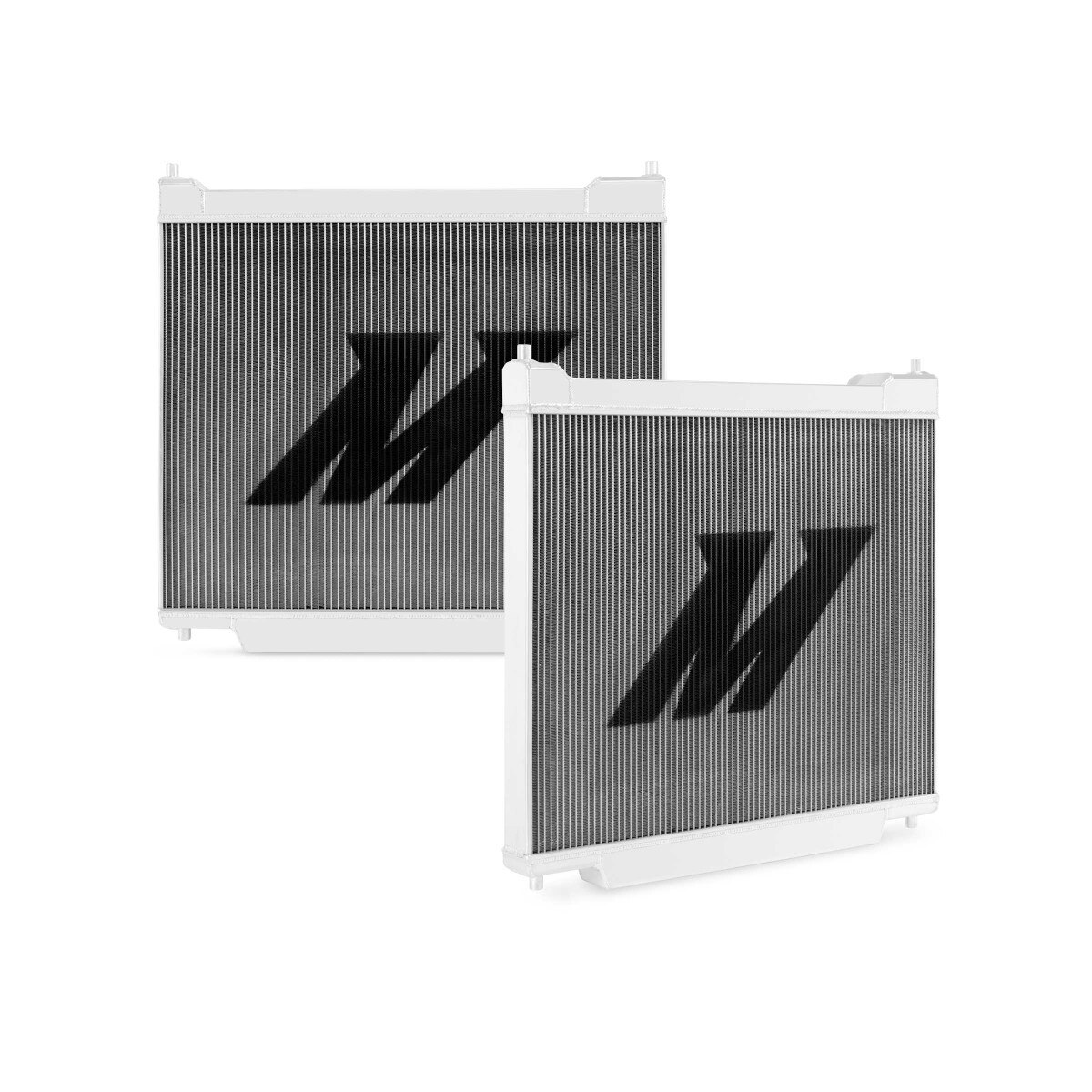

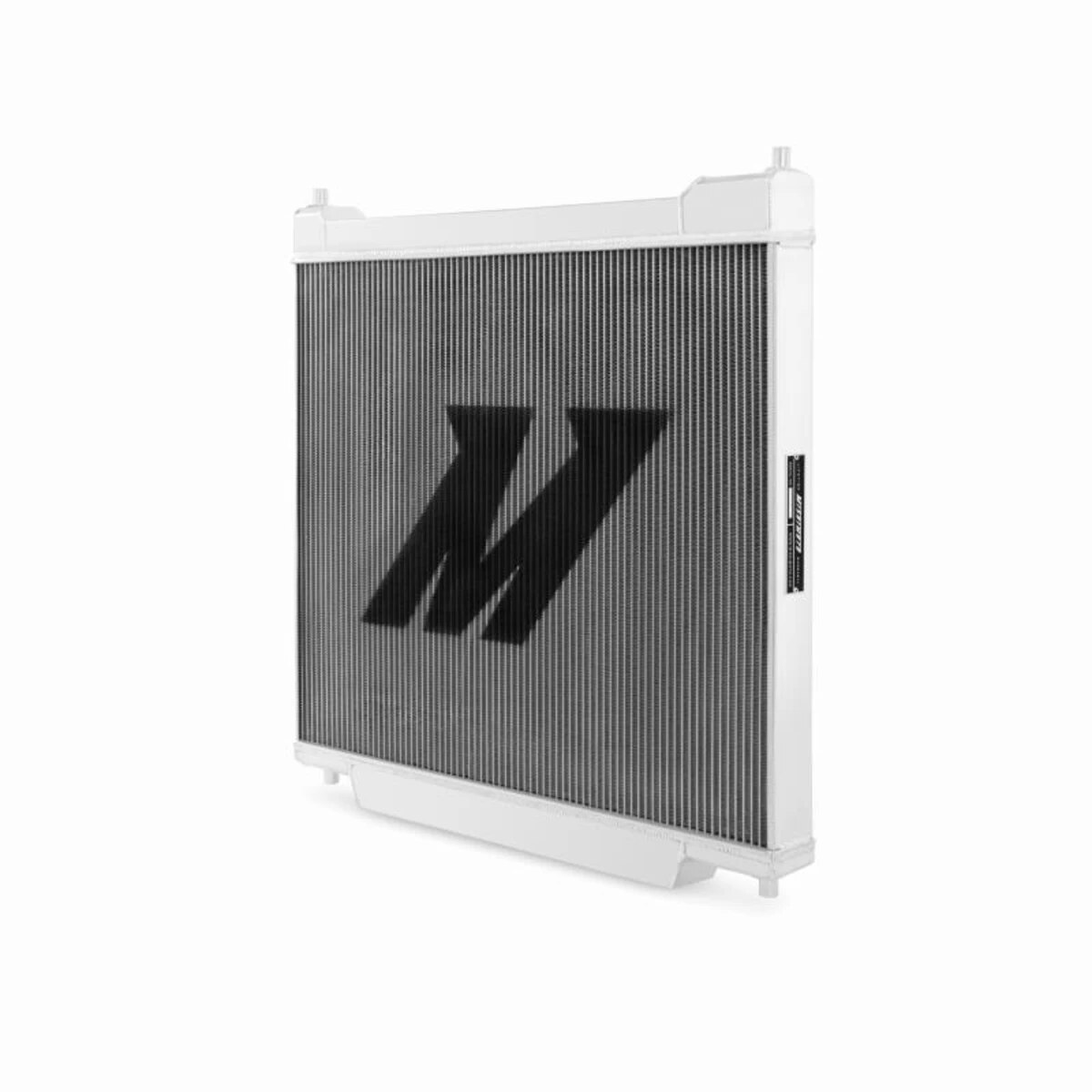

Performance Aluminum Radiator, fits Ford 7.3L Powerstroke 1995-1997 - Mishimoto - MMRAD-F2D-95

The 7.3 Powerstroke is well known for its reliability and longevity so why not pair an amazing engine with a radiator that can keep up! Mishimoto has released a performance aluminum radiator for the 1995-1997 Ford 7.3L Powerstroke. The Mishimoto Powerstroke aluminum radiator is an ideal upgrade for your work truck mud truck or modified pull truck. Whatever the use of your truck the Mishimoto radiator will keep your engine cool with its brazed aluminum core and TIG-welded end tanks for superior reliability and performance. The Mishimoto 7.3L radiator is precision engineered for exact factory fitment it bolts right up to the stock fan shroud allowing for easy installation. Included with the Mishimoto Powerstroke aluminum radiator is our magnetic drain plug and signature lifetime warranty.

• Full aluminum construction with durable TIG-welded end tanks
• Features a two-row 2.28-in thick brazed aluminum core providing ideal fluid temperatures during all driving conditions
• Increased fluid capacity and superior heat dissipation

Drain Plug Thread Size: M12 - 1.5
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 29.9 IN
Core Height: 23.54 IN
Core Thickness: 2.2 IN
Core Material: Aluminum
Outlet Location: Bottom Right
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 29.84 IN
Core Row Quantity: 2
Inlet Diameter: 1.75 IN
Inlet Location: Top Left
Outlet Diameter: 1.75 IN
Fluid Capacity: 6.51 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 30 IN
Overall Width: 4.53 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 1995-1997 OBS Ford trucks equipped with the 7.3L Powerstroke
SellingPoint02: Full aluminum construction with durable TIG-welded end tanks
SellingPoint03: Features a two-row 2.2-in thick brazed aluminum core providing ideal fluid temperatures during all driving conditions
SellingPoint04: Increased fluid capacity and superior heat dissipation
SellingPoint05: Perfect upgrade to the stock plastic end tank radiator
SellingPoint06: Ideal for trucks transporting heavy loads towing and/or driving in extreme environments
SellingPoint07: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 1995-1997 F250--1995-1997 F350
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 23.54
TechSpec Core Length (in): 29.84
TechSpec Core Thickness (in): 2.2
TechSpec DPI: 1725
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: Navistar T444E Power Stroke
TechSpec Fluid Capacity (gal): 6.51
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug--1/8-inch NPT Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.75
TechSpec Material: Aluminum
TechSpec Note: Model Year 1995 Fors F-250s produced prior to 1/31/1995 use the 1994 model year radiator: 1983-1994 Ford 6.9L and 7.3L IDI Diesel Performance Aluminum Radiator
TechSpec Outlet (in): 1.75
TechSpec Overall Height (in): 29.9
TechSpec Overall Length (in): 30
TechSpec Overall Width (in): 4.53
TechSpec Rows: 2
