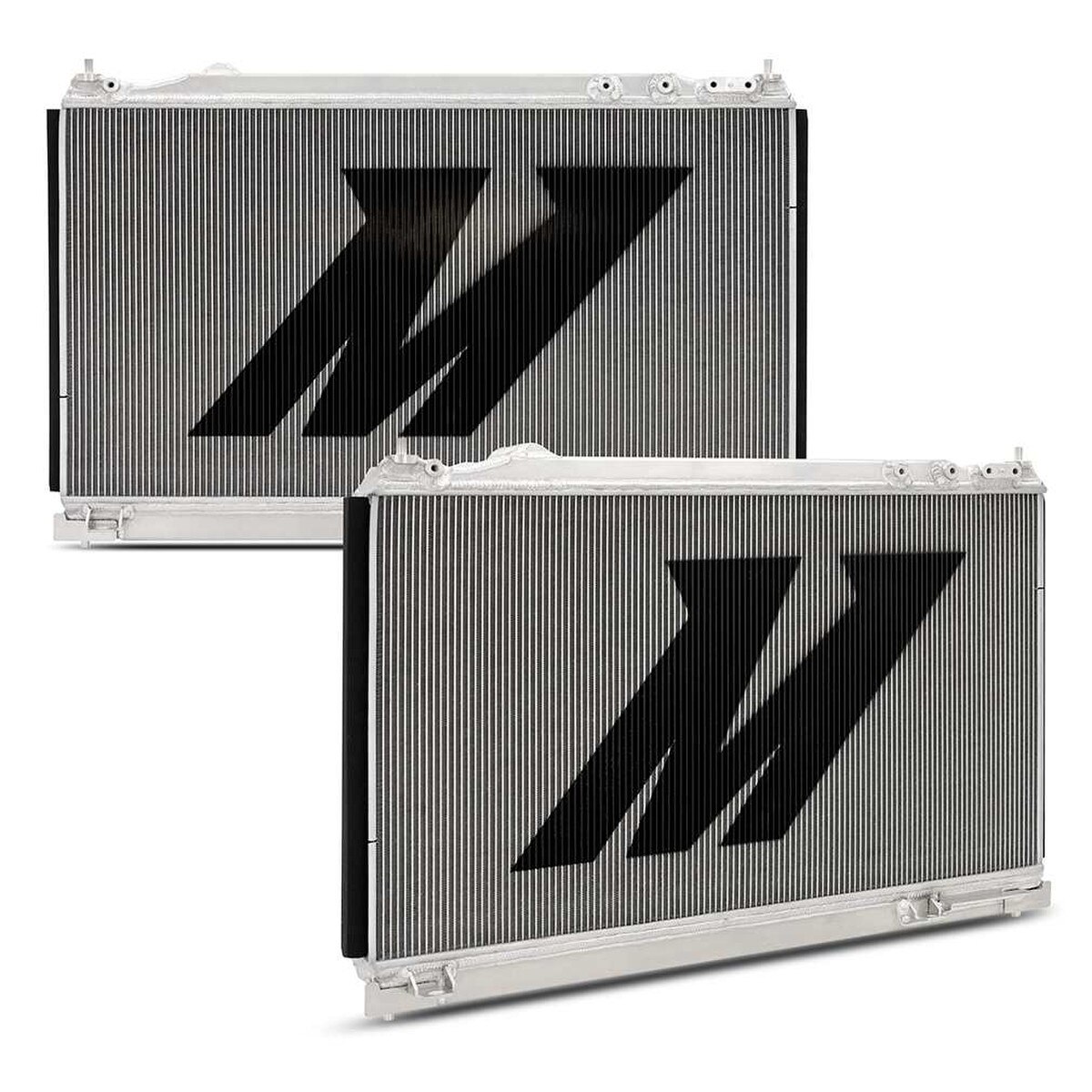

Performance Aluminum Radiator, fits Nissan Z 2023+ - Mishimoto - MMRAD-Z-23
Details
Whether your 2023+ Nissan Z is a daily driver dedicated track monsters or weekend tourer cooling is essential to getting the most out of your Z. Unleash the full potential of your Z with the Mishimoto 2023+ Nissan Z Performance Radiator. This radiator is engineered to be a direct fit with no cutting or other modifications needed. Featuring an all-aluminum design that eliminates leak-prone plastic end tanks the Mishimoto Z performance radiator ensures durability. Strutted tubes provide additional protection against vibrations over potholes and kerbs. This radiator retains the stock rock guard on manual vehicles to help protect your new Mishimoto radiator from road and track debris----Our radiator features a 51-percent increase in core volume boosting cooling capacity and a 70% larger tube area for efficient heat transfer. The included foam seals optimize airflow by seamlessly mating the radiator to the fan shroud. The 48-percent thicker core enhances cooling efficiency helping to keep your Z cool under extreme conditions.----An extended drain and slotted drain plug simplify maintenance offering mess-free draining. Backed by the Mishimoto Lifetime Warranty this performance radiator guarantees reliability. Elevate your driving experience with the Mishimoto 2024+ Nissan Z Performance Radiator.
- 51-percent increase in core volume for improved cooling capacity
- 70-percent increase in tube area for effective heat transfer
- 48-percent thicker core maximizes cooling efficiency
Core Finish: Uncoated
Drain Plug Included: Yes
Overall Height: 19.32 IN
Core Height: 15.15 IN
Core Thickness: 1.57 IN
Core Material: Aluminum
Outlet Location: Bottom Left
Transmission Oil Cooler Included: No
Transmission Oil Cooler Fitting Type: N/A
Radiator Cap Included: No
Core Length: 25.59 IN
Core Row Quantity: 1
Inlet Diameter: 1.38 IN
Inlet Location: Top Right
Outlet Diameter: 1.38 IN
Fluid Capacity: 0.8411 GA
Down Flow Or Cross Flow Type: Down Flow
Overall Length: 29.25 IN
Overall Width: 4.84 IN
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 2023+ Nissan Z
SellingPoint02: 51-percent increase in core volume for improved cooling capacity
SellingPoint03: 70-percent increase in tube area for effective heat transfer
SellingPoint04: 48-percent thicker core maximizes cooling efficiency
SellingPoint05: Retains stock stone guard to protect against road and track debris
SellingPoint06: Included foam seals radiator to fan shroud for optimal airflow
SellingPoint07: Single-row core with strutted tubes utilizes entire core thickness for cooling

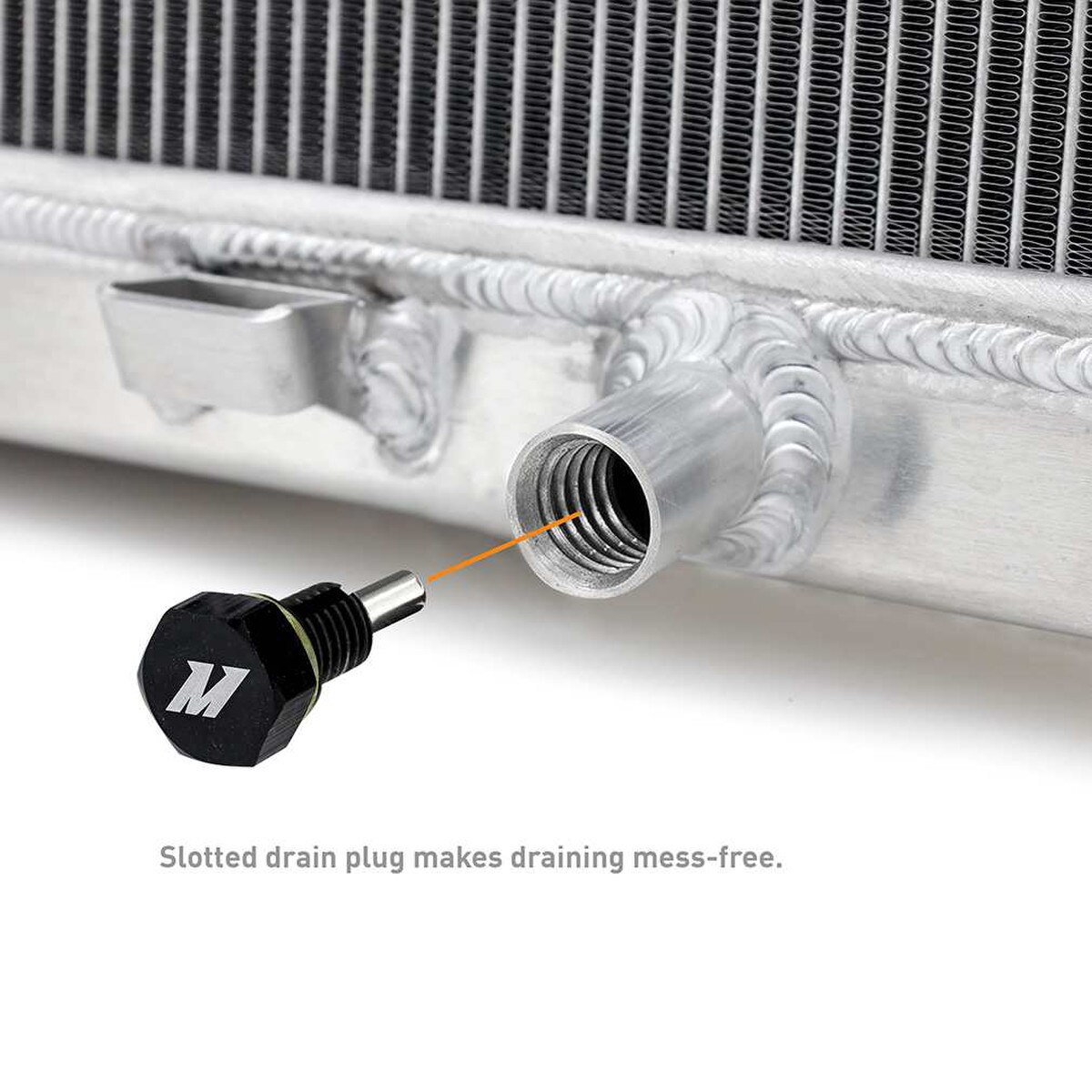

SellingPoint08: Extended drain and slotted drain plug make draining easy and mess-free
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Nissan Z V6 3.0L Turbo 2023+
TechSpec Chassis Codes: RZ34
TechSpec Core Height (in): 15.15
TechSpec Core Length (in): 25.59
TechSpec Core Thickness (in): 1.57
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12x1.5
TechSpec Engine Codes: VR30DDTT
TechSpec Fluid Capacity (gal): 0.8411
TechSpec Includes: (1) Aluminum Performance Radiator--Installation Hardware--(1) Install Notecard--Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.38
TechSpec Material: Aluminum
TechSpec Note: N/A
TechSpec Outlet (in): 1.38
TechSpec Overall Height (in): 19.32
TechSpec Overall Length (in): 29.25
TechSpec Overall Width (in): 4.84
TechSpec Rows: 1
Fitments
- 2023 Nissan Z 3.0L GAS
- 2024 Nissan Z 3.0L GAS
- 2025 Nissan Z 3.0L GAS
- 2026 Nissan Z 3.0L GAS
