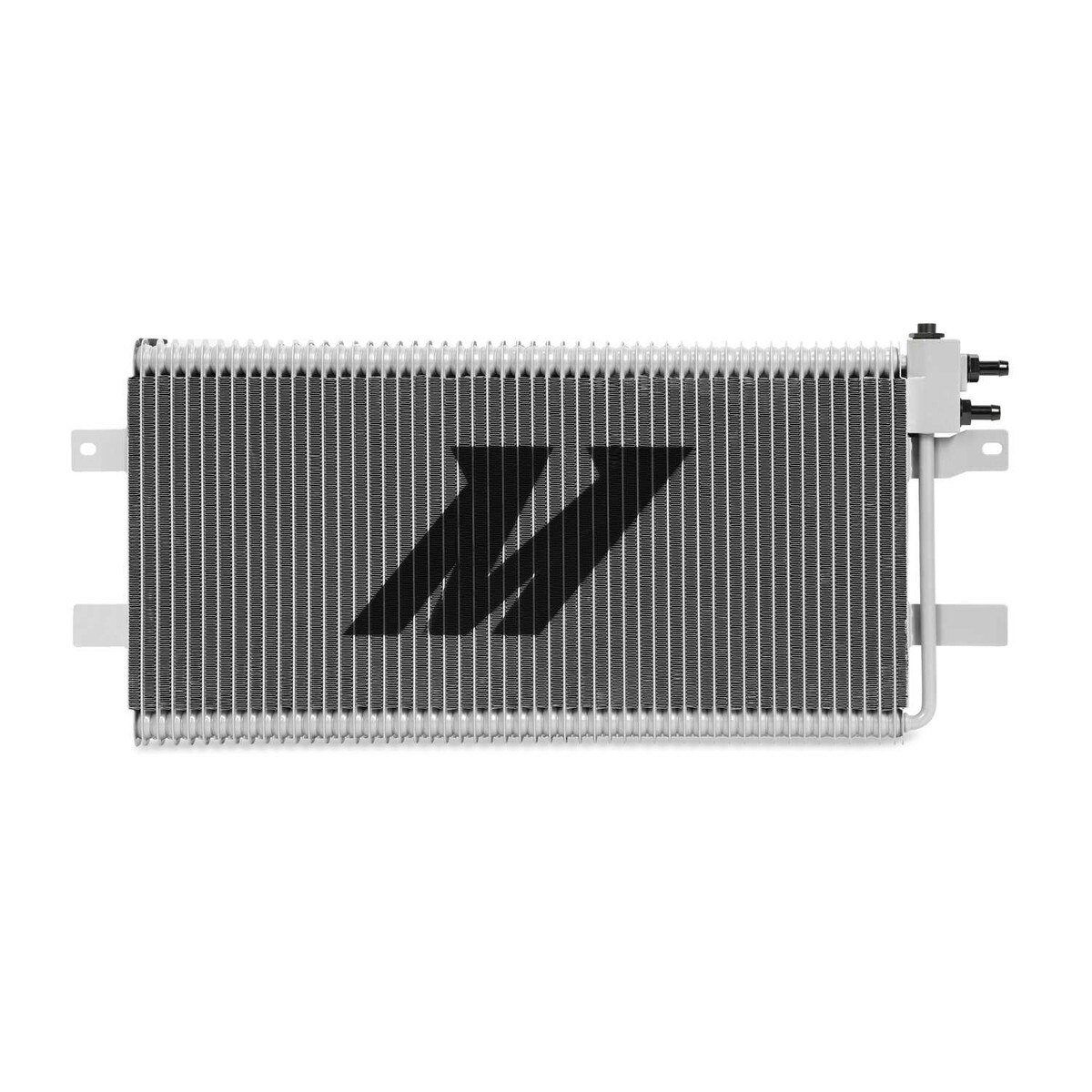

Transmission Cooler, Silver, fits Dodge Ram 5.9L/6.7L Cummins 2003-2009 - Mishimoto - MMTC-RAM-03SL
Details
There's no greater enemy for a transmission than heat. Whether your 2003-2009 Dodge Ram 5.9L / 6.7L Cummins is a dedicated tow vehicle hardworking fleet truck or a daily driver you need to ensure that your transmission runs cool. Luckily Mishimoto has developed a direct-fit transmission cooler to do just that. Our 2003-2009 Dodge Ram 5.9L / 6.7L Cummins transmission cooler utilizes a stacked plate core for durable and powerful cooling. With a massive 212-percent greater core volume 244-percent increase in fluid capacity this trans cooler is a huge improvement over stock 2003-2009 Dodge Ram 5.9L / 6.7L Cummins transmission cooler. The Mishimoto transmission cooler is not only larger than the stock cooler but more reliable too. When the stock cooler's thermostat fails it fails closed bypassing the cooler and returning hot fluid to the transmission. Mishimoto has solved this common issue by making the thermostat in our 2003-2009 Dodge Ram Cummins transmission cooler fully serviceable and easily bypassed for constant cooling. A port located at the top of the cooler provides easy access to the thermostat for servicing in just a few minutes. Replacement thermostats can be purchased individually if needed; no more replacing the entire cooler if the thermostat fails. Owners in cold climates can still enjoy the fast warm-up times that the thermostat provides while owners in hot climates can choose to bypass the thermostat by replacing it with the supplied stainless-steel bypass plug. To make this cooler even easier to install and service Mishimoto'saves you the hassle of removing seized fittings. The provided CNC-machined stainless steel hose barb fittings let you cut to the chase literally. These fittings and the supplied transmission cooler hose allow you to remove the quick-disconnect fittings and connect the stock soft-line to the Mishimoto cooler. Like all Mishimoto products this transmission cooler is backed up by our Lifetime Warranty
- Fits all 2003-2009 Dodge Ram 5.9L and 6.7L Cummins
- 212-percent Increase in core volume
- 244-percent Increase in fluid capacity
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Fits all 2003-2009 Dodge Ram 5.9L and 6.7L Cummins
SellingPoint02: 212-percent Increase in core volume
SellingPoint03: 244-percent Increase in fluid capacity
SellingPoint04: Includes fully serviceable thermostat for fast warm-up in cold climates and thermostat bypass for constant cooling in hot climates
SellingPoint05: Stacked-plate design for tough and reliable cooling
SellingPoint06: Eliminates corrosion-prone quick-disconnect fittings
SellingPoint07: Available -8ORB to -8AN adapters allow the use of AN transmission fluid lines. (2 required)
SellingPoint08: Patent numberD912 701
SellingPoint09: Includes durable SAE J1532 hose designed specifically for use with transmission fluid
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Applicable with 47RE 48RE and 68RFE Transmissions----Dodge Ram 2500 I6 (5.9L) 2003-2007--Dodge Ram 2500 I6 (6.7L) 2007-2009--Dodge Ram 3500 I6 (5.9L) 2003-2007--Dodge Ram 3500 I6 (6.7L) 2007-2009--Dodge Ram 4500 I6 (6.7L) 2008-2009--Dodge Ram 5500 I6 (6.7L) 2008-2009
TechSpec Caution: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Construction: N/A
TechSpec Core Height (in): 10.94
TechSpec Core Length (in): 26
TechSpec Core Thickness (in): 0.87
TechSpec Engine Codes: 5.9L--6.7L Cummins
TechSpec Fluid Capacity (qts): N/A

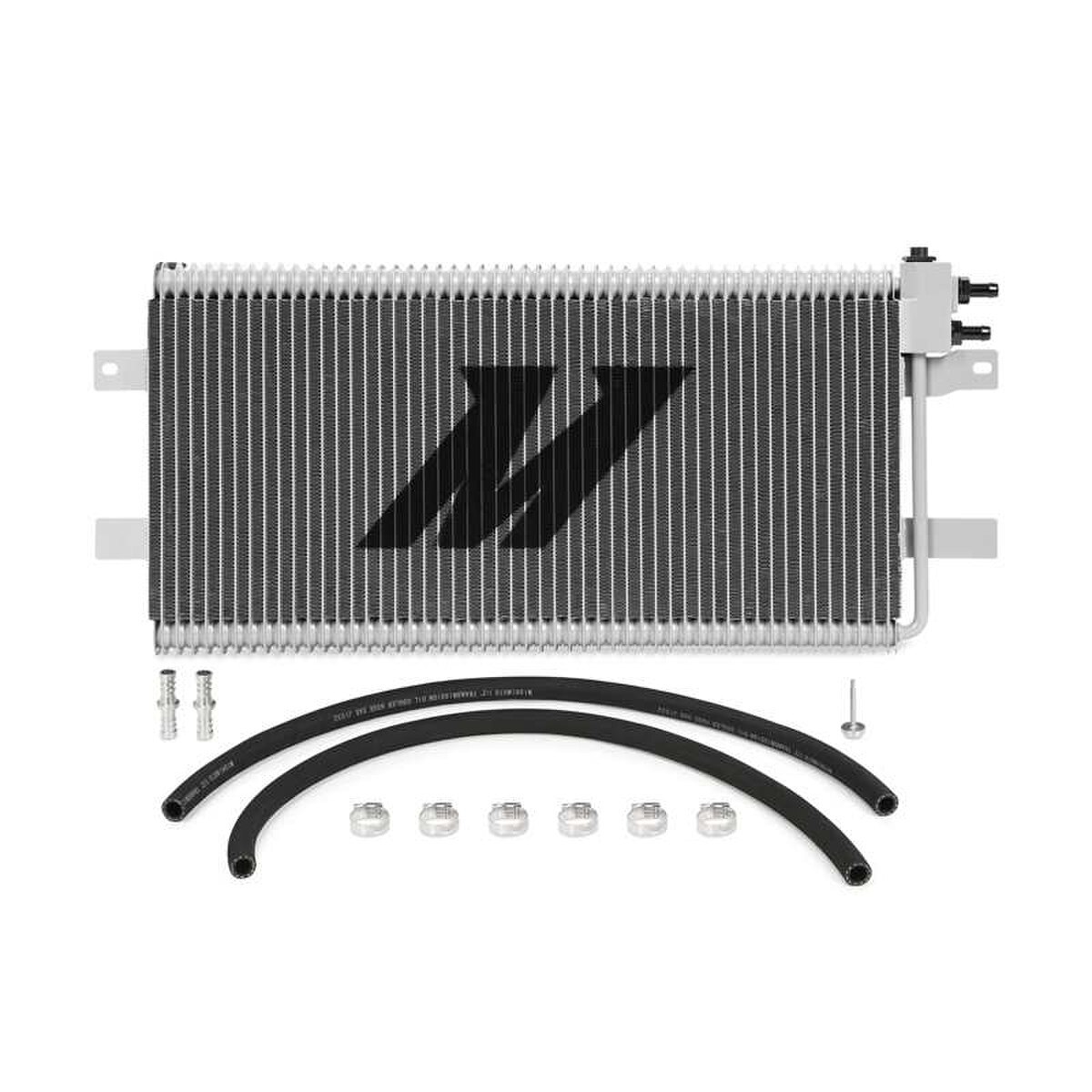

TechSpec Includes: Mishimoto Stacked-Plate Transmission Cooler--High-Pressure Transmission Cooler Lines--Removable Thermostat--Removable Thermostat Bypass--CNC-Machined Stainless Steel Barbed Fittings--CNC-Machined Aluminum 3/4-in-16 ORB to Hose Barb Fittings--Worm Gear Clamps--Mishimoto Lifetime Warranty
TechSpec Inlet: N/A
TechSpec Installation Notes: N/A
TechSpec Note: Patent #D912701--------This kit requires cutting of the stock transmission cooler lines to remove the quick-disconnect fittings. Mishimoto provides CNC-machined stainless steel hose barb fittings to splice the supplied transmission cooler line with the stock soft-lines. Please see installation instructions for more details.
TechSpec Outlet: N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (in): N/A
TechSpec Rows: 48
TechSpec Transmission Codes: 47RE--48RE--68RFE
Fitments
- 2003 Dodge Ram 2500 5.7L GAS
- 2003 Dodge Ram 2500 5.9L DIESEL
- 2003 Dodge Ram 2500 8.0L GAS
- 2003 Dodge Ram 3500 5.7L GAS
- 2003 Dodge Ram 3500 5.9L DIESEL
- 2003 Dodge Ram 3500 8.0L GAS
- 2004 Dodge Ram 2500 5.7L GAS
- 2004 Dodge Ram 2500 5.9L DIESEL
- 2004 Dodge Ram 3500 5.7L GAS
- 2004 Dodge Ram 3500 5.9L DIESEL
- 2005 Dodge Ram 2500 5.7L GAS
- 2005 Dodge Ram 2500 5.9L DIESEL
- 2005 Dodge Ram 3500 5.7L GAS
- 2005 Dodge Ram 3500 5.9L DIESEL
- 2006 Dodge Ram 2500 5.7L GAS
- 2006 Dodge Ram 2500 5.9L DIESEL
- 2006 Dodge Ram 3500 5.7L GAS
- 2006 Dodge Ram 3500 5.9L DIESEL
- 2007 Dodge Ram 2500 5.7L GAS
- 2007 Dodge Ram 2500 5.9L DIESEL
- 2007 Dodge Ram 2500 6.7L DIESEL
- 2007 Dodge Ram 3500 5.7L GAS
- 2007 Dodge Ram 3500 5.9L DIESEL
- 2007 Dodge Ram 3500 6.7L DIESEL
- 2008 Dodge Ram 2500 5.7L GAS
- 2008 Dodge Ram 2500 6.7L DIESEL
- 2008 Dodge Ram 3500 5.7L GAS
- 2008 Dodge Ram 3500 6.7L DIESEL
- 2008 Dodge Ram 4500 6.7L DIESEL
- 2008 Dodge Ram 5500 6.7L DIESEL
- 2009 Dodge Ram 2500 5.7L GAS
- 2009 Dodge Ram 2500 6.7L DIESEL
- 2009 Dodge Ram 3500 5.7L GAS
- 2009 Dodge Ram 3500 6.7L DIESEL
- 2009 Dodge Ram 4500 6.7L DIESEL
- 2009 Dodge Ram 5500 6.7L DIESEL
