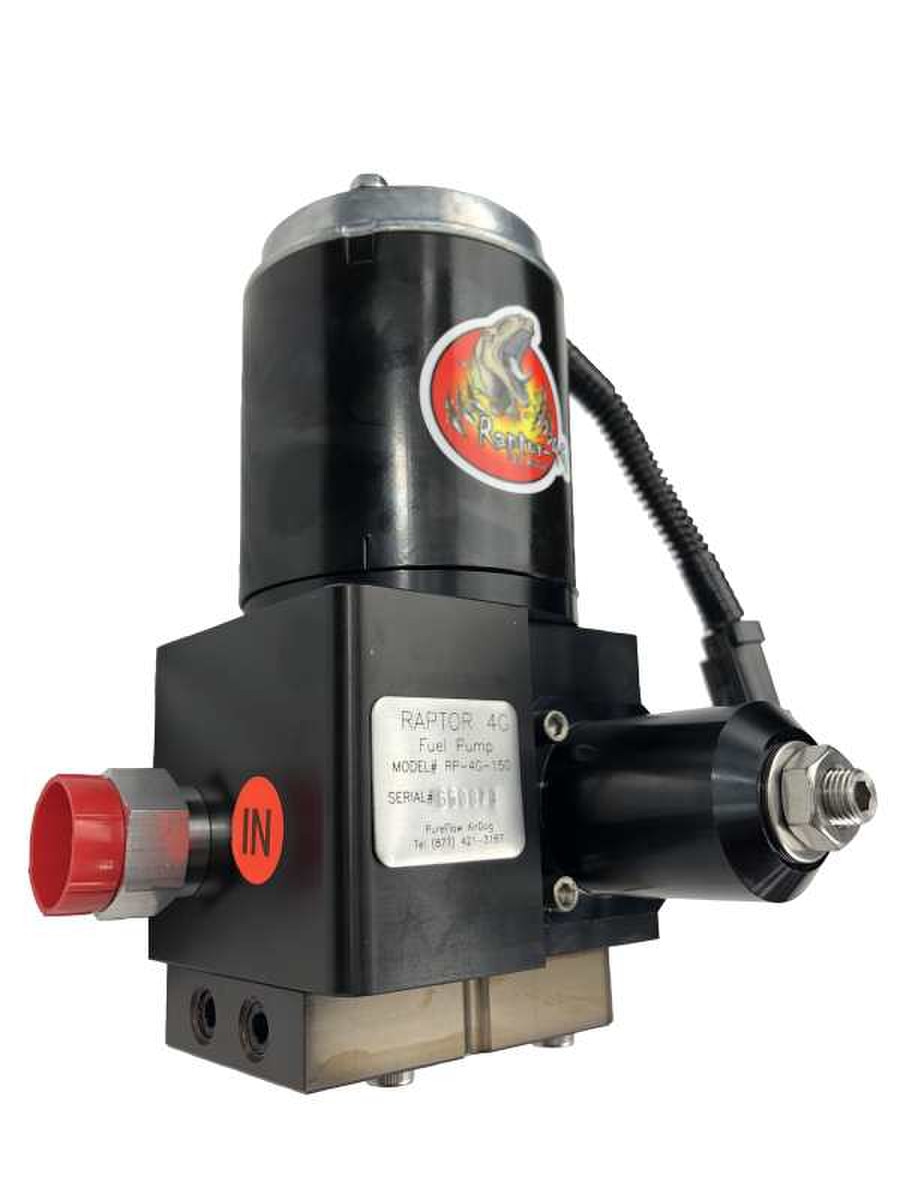

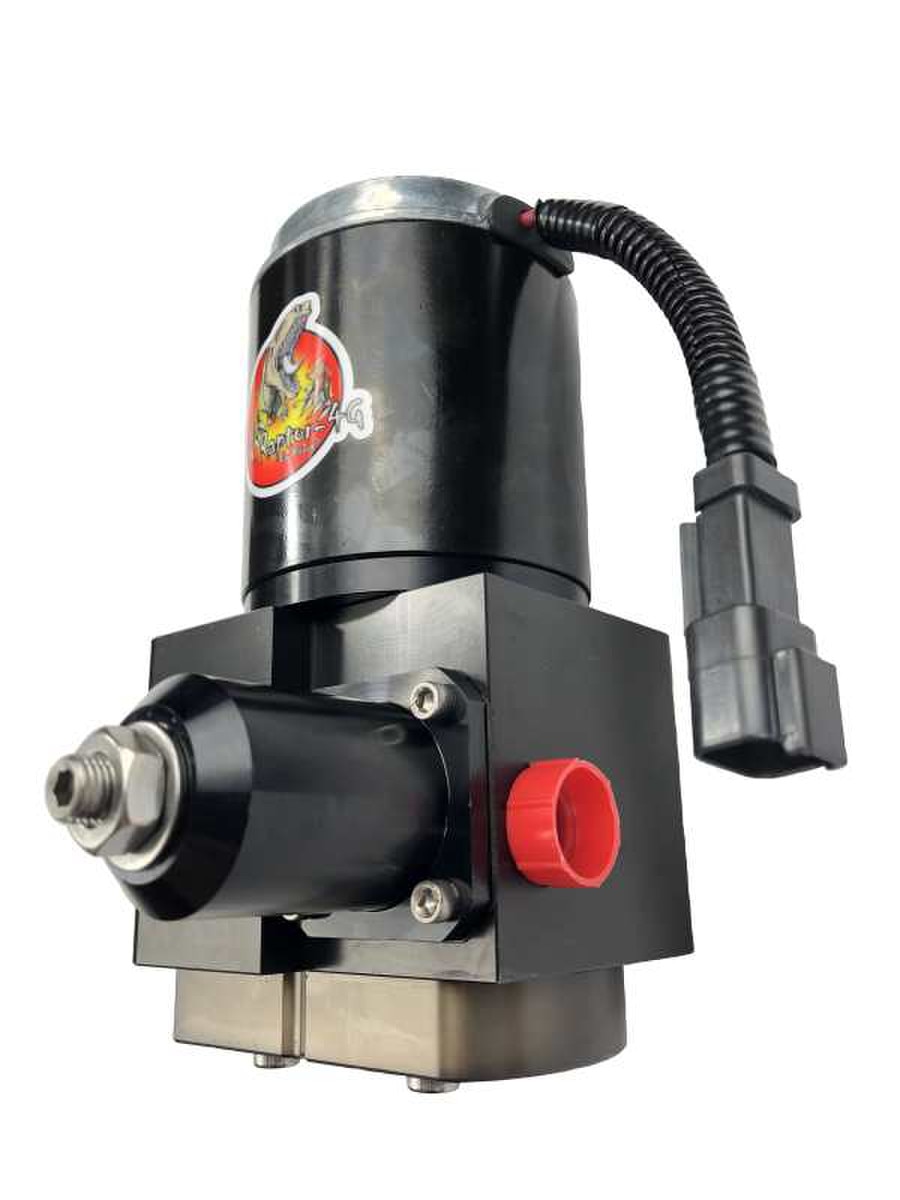

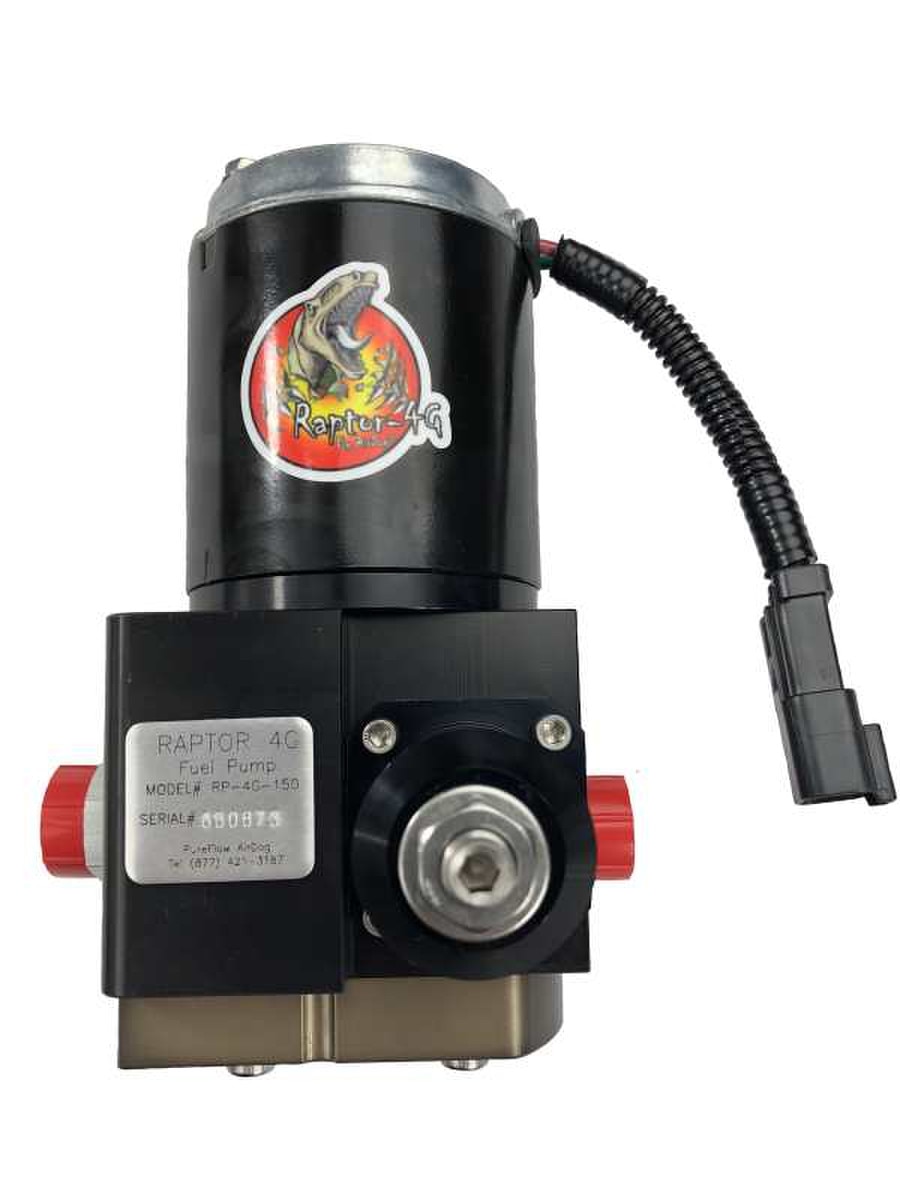

Diesel Lift Pump 150GPH Raptor RP-4G-150 2001-2010 Chevy Duramax - AirDog - R4SBC136

This is the Raptor-4G RP-150 fuel system for the 2001-2010 6.6L Duramax. This system mounts to the frame rail using the supplied sandwich plate mounting system.

The suction line connects to the factory suction fitting on top of the fuel module. The pressure side connects to the factory injection pump feed line on the frame back by the fuel cooler.

These pumps are internally regulated and do not require a return line. This is a 150GPH (Gallon Per Hour) fuel system for moderately modified trucks.

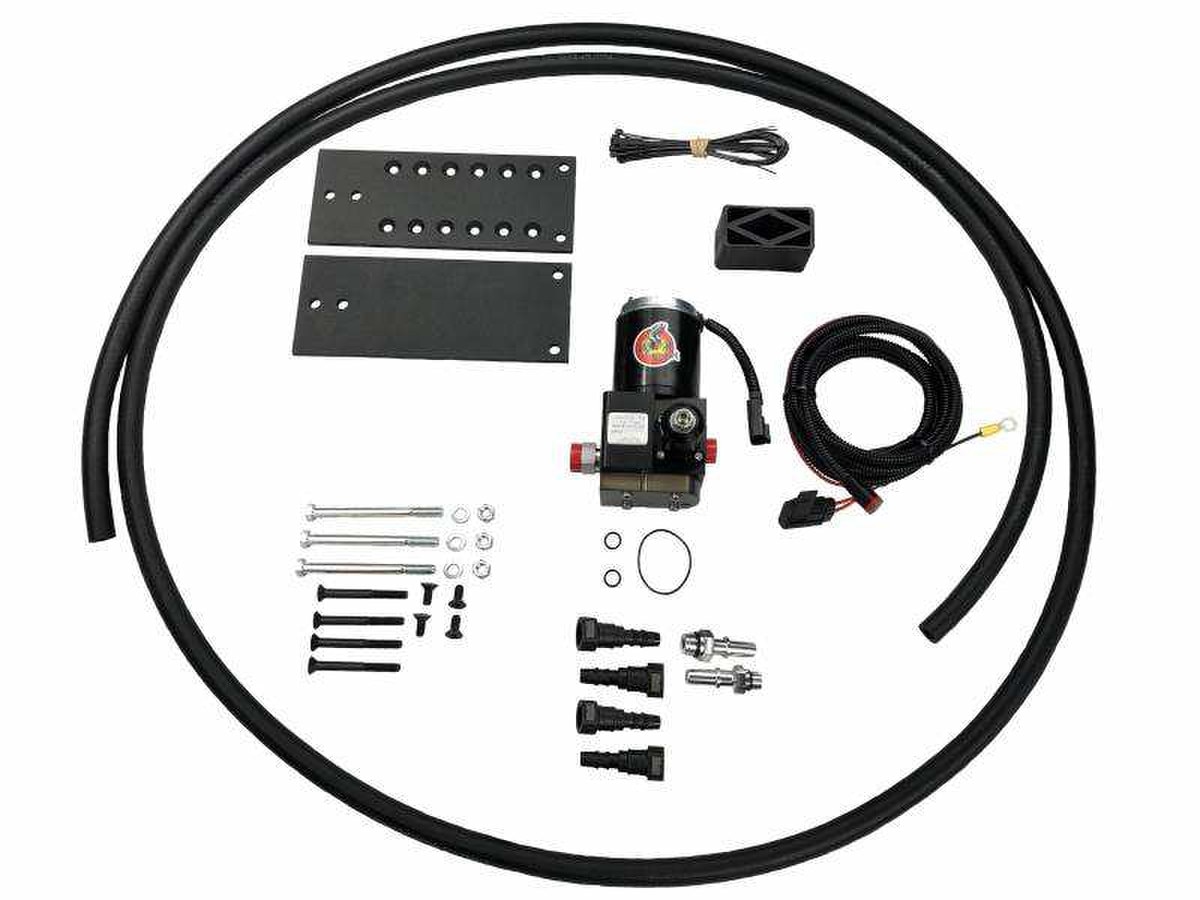

Check out our installation manual for a list of parts that are included with this kit.

Details:

• Gallons per hour: 150GPH
• Manufacturer: Duramax
• Make: GM/Chevy
• Liter: 6.6L
• Engine Version: LB7
• Engine Years: 2001-2004
• Fuel Type: Diesel

• 2001 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2001 Chevrolet Silverado 3500 6.6L DIESEL
• 2001 GMC Sierra 2500 HD 6.6L DIESEL
• 2001 GMC Sierra 3500 6.6L DIESEL
• 2002 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2002 Chevrolet Silverado 3500 6.6L DIESEL
• 2002 GMC Sierra 2500 HD 6.6L DIESEL
• 2002 GMC Sierra 3500 6.6L DIESEL
• 2003 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2003 Chevrolet Silverado 3500 6.6L DIESEL
• 2003 GMC Sierra 2500 HD 6.6L DIESEL
• 2003 GMC Sierra 3500 6.6L DIESEL
• 2004 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2004 Chevrolet Silverado 3500 6.6L DIESEL
• 2004 GMC Sierra 2500 HD 6.6L DIESEL
• 2004 GMC Sierra 3500 6.6L DIESEL
