Diesel Lift Pump 150GPH Raptor RP-4G-150 2003-2004 Dodge Cummins Without In-Tank Fuel Pump - AirDog - R4SBD325

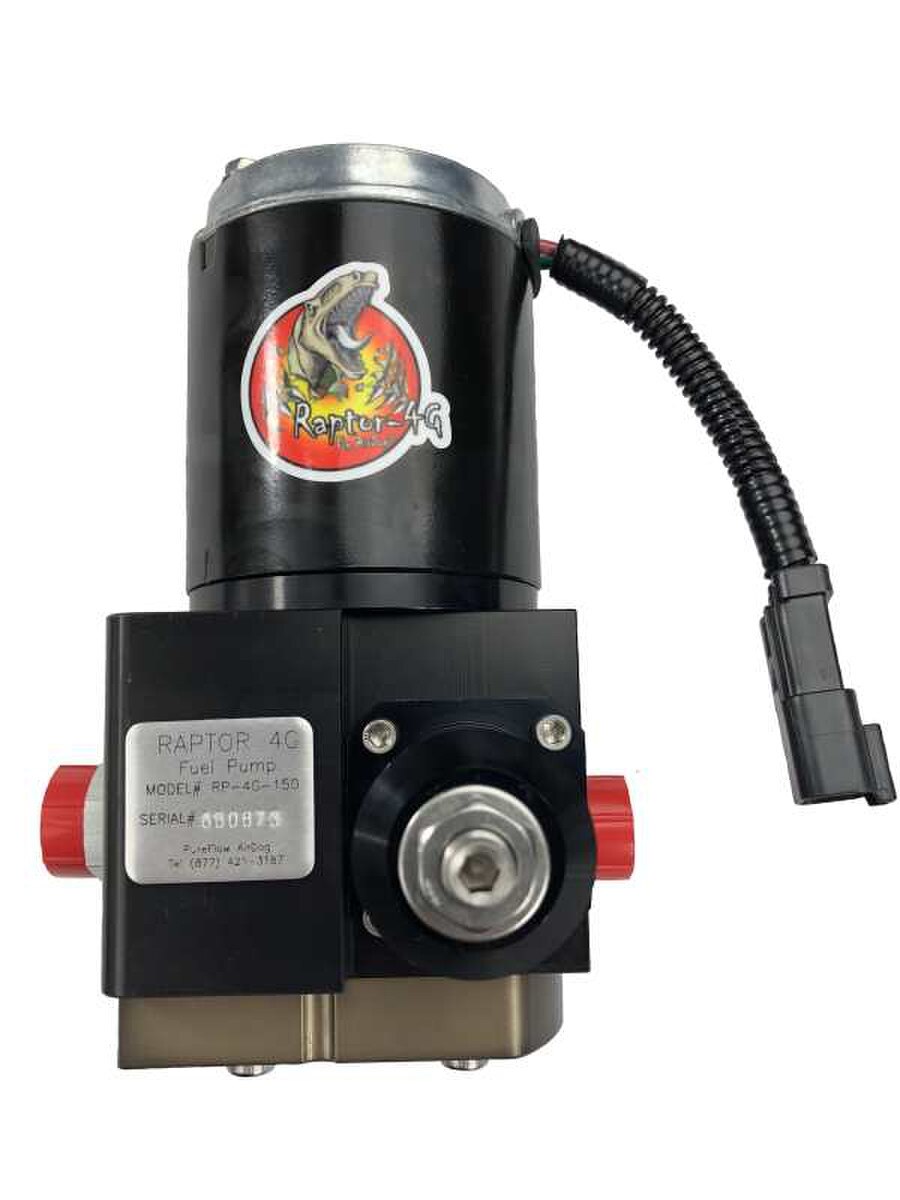

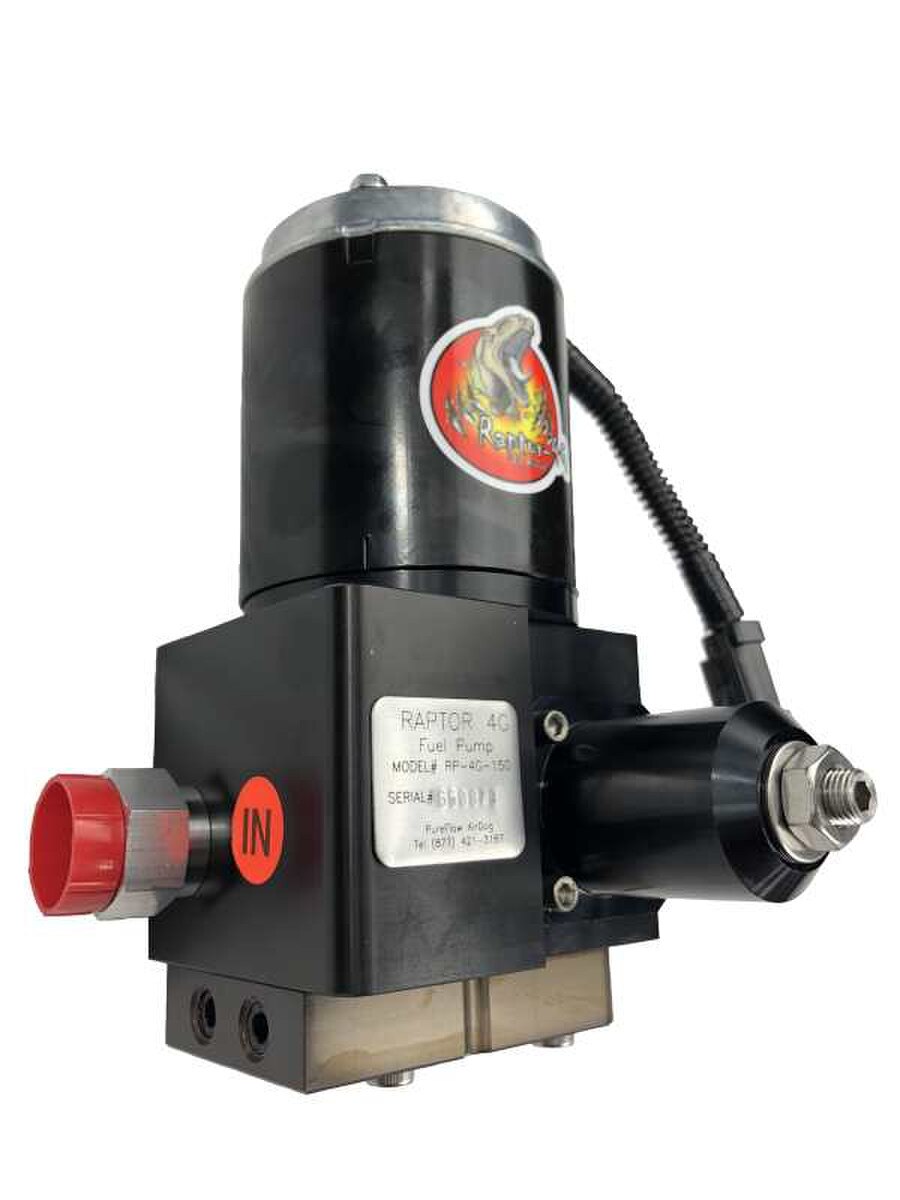

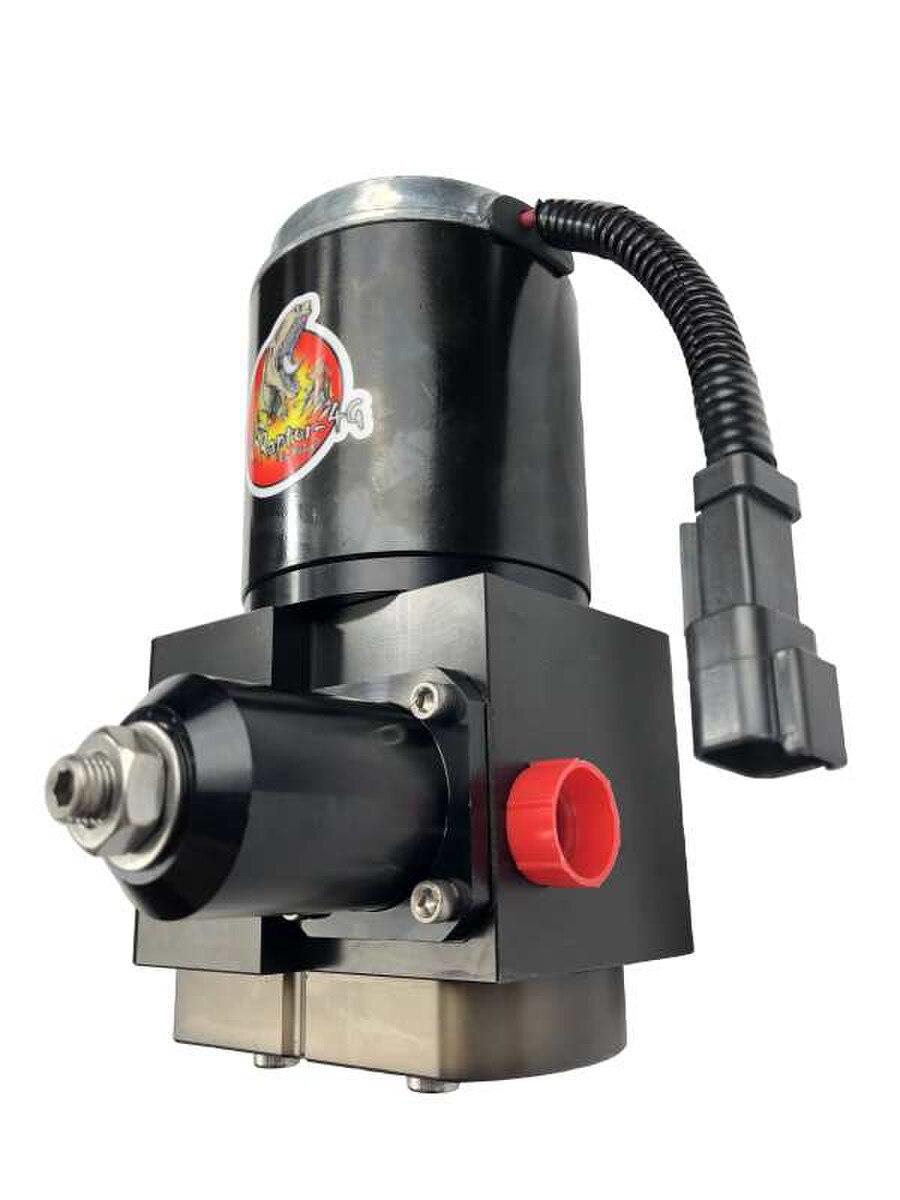

This is the Raptor-4G RP-150 fuel system for the 2003-2004.5 Common Rail Cummins without the factory fuel pump in the fuel tank. This system mounts to the frame rail using the supplied sandwich plate mounting system.

The suction line connects to the factory suction fitting on top of the fuel module. The pressure side connects directly into the side of the fuel filter housing on the engine block.

These pumps are internally regulated and do not require a return line. This is a 150GPH (Gallon Per Hour) fuel system for moderately modified trucks.

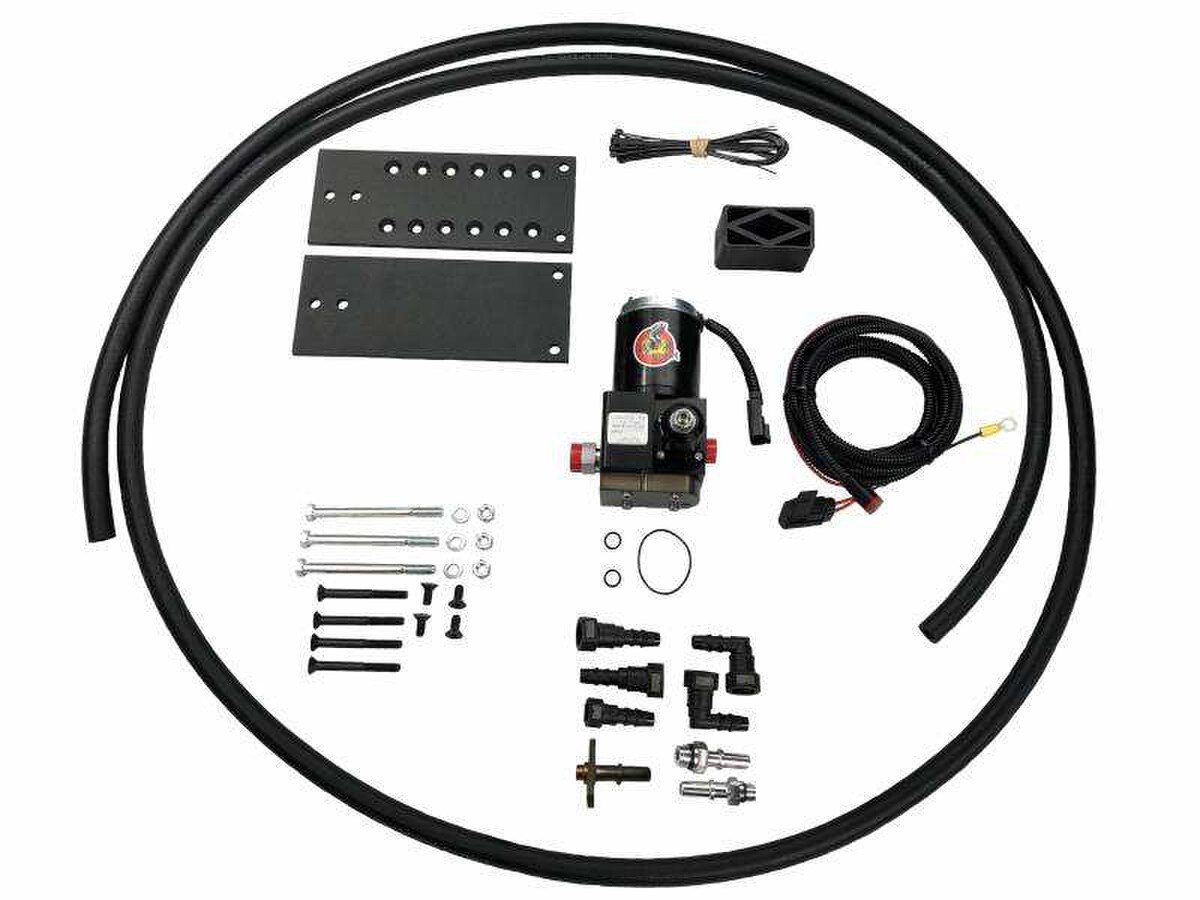

Check out our installation manual for a list of parts that are included with this kit.

Details:

• Gallons per hour: 150GPH
• Manufacturer: Cummins
• Make: Dodge
• Liter: 5.9L
• Valve: 24V
• Engine Years: 1998.5-2004
• Fuel Type: Diesel

• 1998 Dodge Ram 2500 5.9L DIESEL
• 1998 Dodge Ram 3500 5.9L DIESEL
• 1999 Dodge Ram 2500 5.9L DIESEL
• 1999 Dodge Ram 3500 5.9L DIESEL
• 2000 Dodge Ram 2500 5.9L DIESEL
• 2000 Dodge Ram 3500 5.9L DIESEL
• 2001 Dodge Ram 2500 5.9L DIESEL
• 2001 Dodge Ram 3500 5.9L DIESEL
• 2002 Dodge Ram 2500 5.9L DIESEL
• 2002 Dodge Ram 3500 5.9L DIESEL
• 2003 Dodge Ram 2500 5.9L DIESEL
• 2003 Dodge Ram 3500 5.9L DIESEL
• 2004 Dodge Ram 2500 5.9L DIESEL
• 2004 Dodge Ram 3500 5.9L DIESEL
